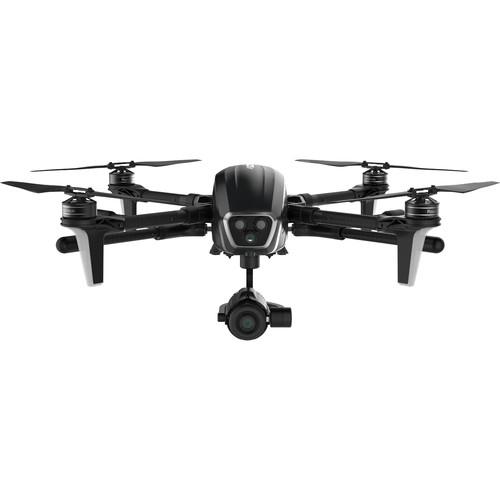

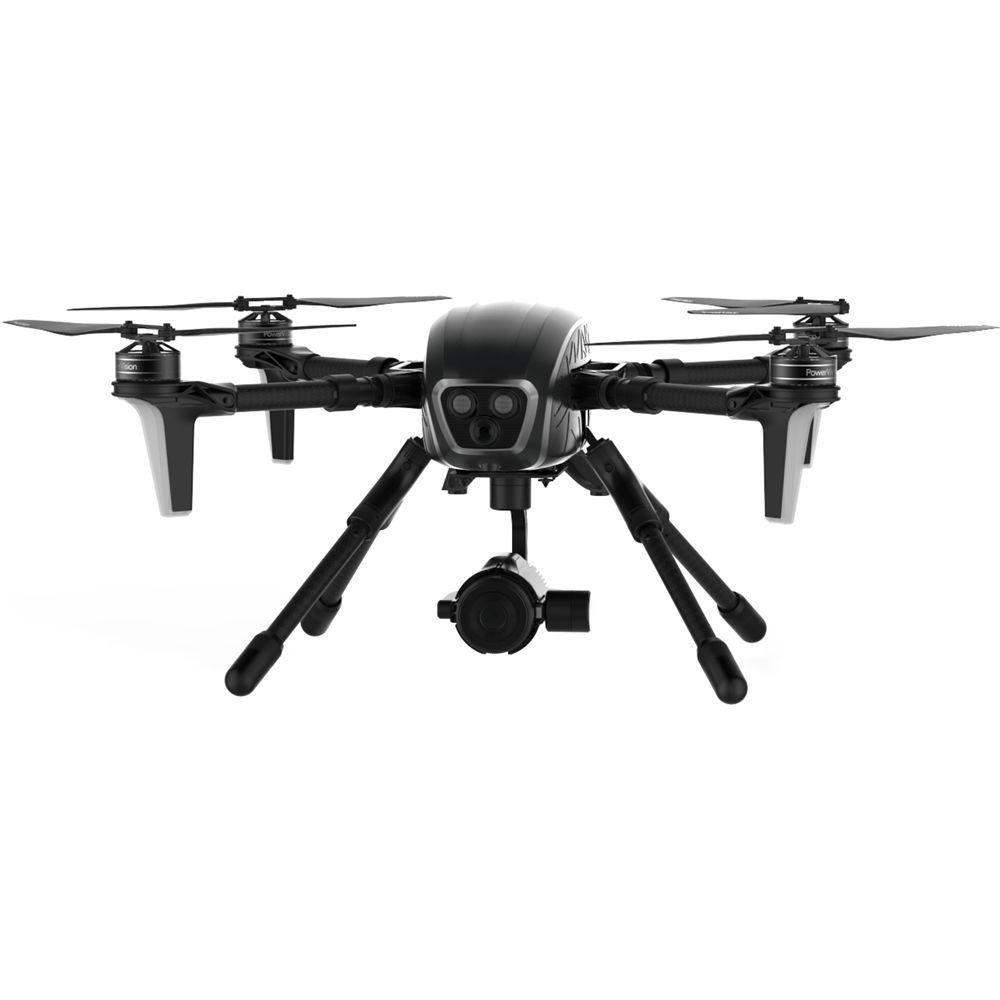

Product description Aerial Photography and Drone Glossary Read More sxrecqbfvs With a gimbal-stabilized Micro Four Thirds camera, the PowerEye Quadcopter from PowerVision is designed with the photographer and videography in mind. It features a Panasonic Lumix G 14mm f/2.5 ASPH lens and will work with an assortment of separately available Olympus lenses, including their 14 to 42mm zoom lens. In video mode, the camera captures either DCI or UHD 4K, and it also takes still photos up to 16MP. There are burst and time-lapse modes as well as single shot. Video and stills are recorded to a separately available microSD card. - Micro Four Thirds Camera

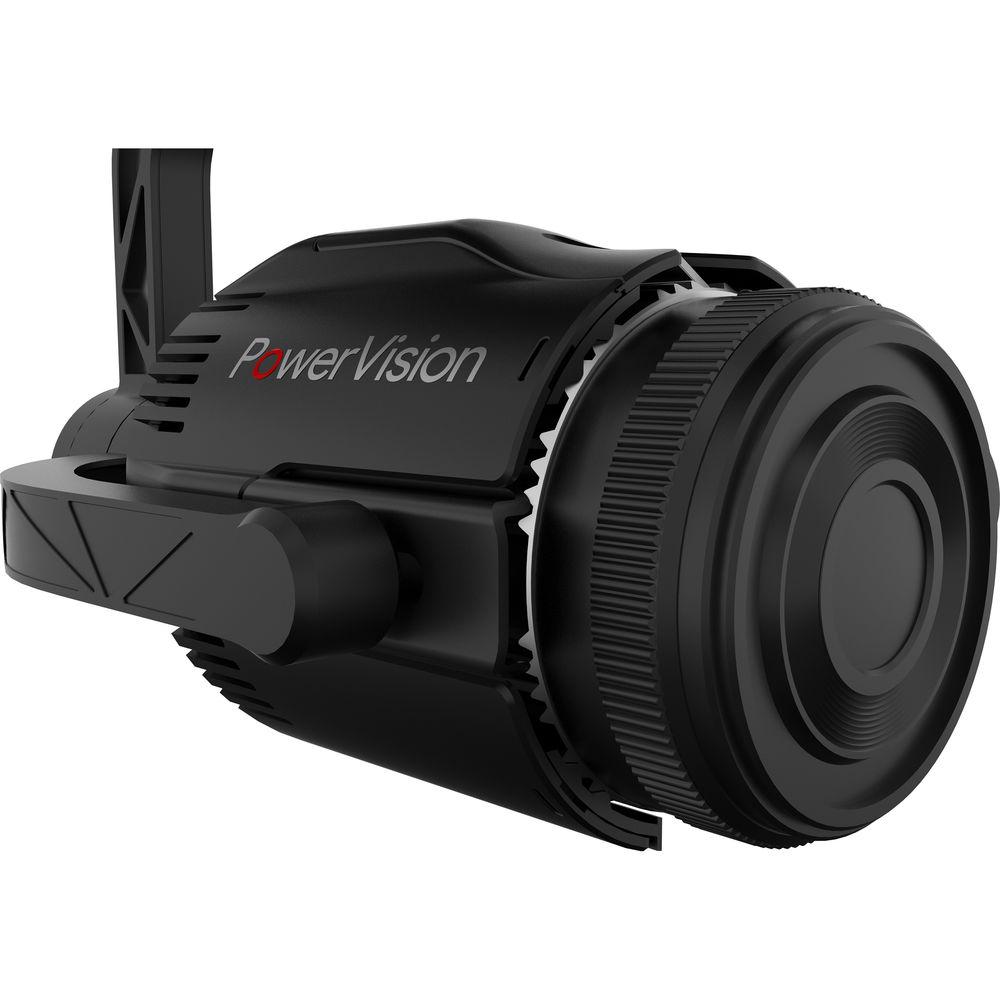

- With a Micro Four Thirds camera and interchangeable lenses, the PowerEye uses a simple to use rotational gimbal equilibrium system to ensure your pictures and video are captured in perfect balance. Capture stills and video in DCI or UHD 4K resolution using either the included 14mm lens or a variety of separately available lens options, including a 14 to 42mm zoom lens.
- Up to 29 Minutes Flying Time
- Thanks to a 99.9Wh battery, the PowerEye can stay aloft for up to 29 minutes, meaning less down time and a more productive shooting day.
- PowerModes Intelligent Flight Modes
- PowerModes are intelligent flight modes that leave most of the piloting to the computer. This enables the operator focus on what's most important: getting a great shot.
- Up to 3.1 Mile Range

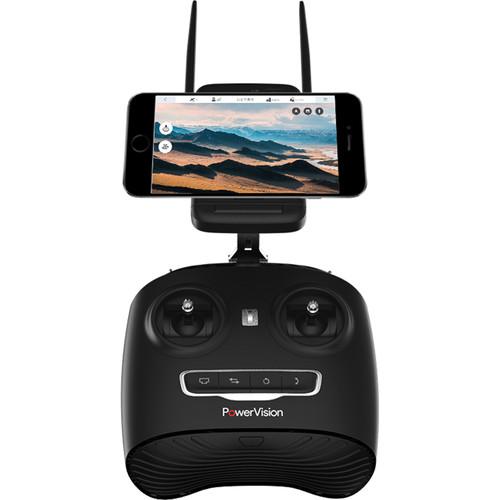

- Thanks to an included base station unit providing amplification, the control range and HD video downlink both work at a range of up to 3.1 miles (depending on conditions). A live feed from the camera can be viewed via a compatible mobile device.
- FPV Camera and Object Detection
- The PowerEye features a First-Person-View camera and object detection on the front of the aircraft, letting the pilot execute precision maneuvering while feeling confident of their surroundings.
- Indoor Operation
- Vision positioning and sonar enable to the PowerEye to be flown indoors where a GPS signal is unavailable.

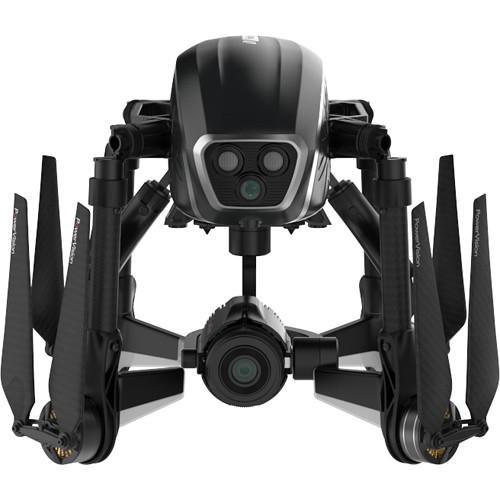

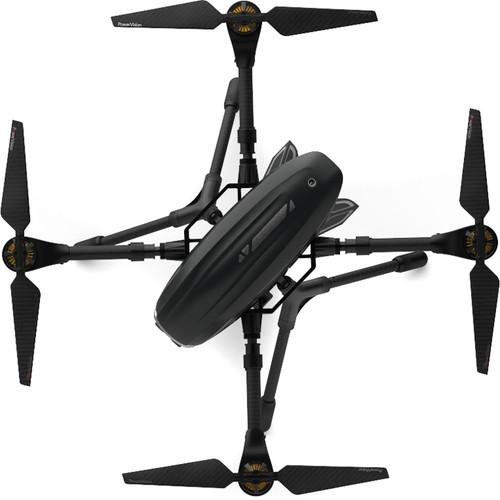

- Folding Design
- While in the air, the landing gear rise, ensuring a clear field of vision, and it is easily detachable on the ground. The rotor arms also fold down, creating a transportable form factor and letting you take your PowerEye to nearly any location.
UPC: 852123007400 In the Box Power Vision PowerEye Quadcopter Remote Control (Transmitter) Base Station Charger Smart Battery Rolling Case Limited 6-Month Warranty for Gimbal Camera, Motors, Battery, and Battery Charger Limited 1-Year Warranty for PCB Board, Sensors, and Remote Controller Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Power Vision PowerEye Quadcopter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPower Vision PowerEye Specs | | | Flight Ceiling | 13,123.4' / 4000 m (above sea level) | | Maximum Vertical Speed | 59.1 ft/s (18 m/s) | | Maximum Ascent Speed | 16.4 ft/s (5 m/s) | | Maximum Descent Speed | 6.6 ft/s (2 m/s) | | Vertical Hover Accuracy | Professional Mode: ±0.3' / 0.1 m
With Vision Positioning: ±3.3' / 1 m (0.7 to 13.1' / 0.2 to 4 m range) | | Horizontal Hover Accuracy | Professional Mode: ±0.7' / 0.2 m
With Vision Positioning: ±4.9' / 1.5 m (surface with clear pattern and adequate lighting) | | Wind Resistance | Up to Level 5 | | Flight Time | Up to 29.5 minutes | | Maximum Attitude | 35° | | | | Sensor | Micro Four Thirds CMOS | | Lens | Panasonic Lumix G 14mm f/2.5 ASPH | | Compatible Lenses | Olympus M.Zuiko 17mm
Olympus M.Zuiko ED 14-42mm f/3.5-5.6 EZ
Olympus M.Zuiko 25mm f/1.8
Olympus M.Zuiko 45mm f/1.8 | | Shutter Speeds | 8 to 1/8000 second | | Photo Resolutions | Up to 4640 x 3480 | | Video Resolutions | DCI 4K (4096 x 2160)
UHD 4K (3840 x 2160) | | Recording Formats | Photo: JPEG, DNG Video: MP4, MOV (MPEG-4 AVC/H.264) | | Video Bit Rate | 60 Mbps | | Recording Media | microSD card up to 64 GB (Class 10 / UHS-1 or better)
Note: FAT32 / exFAT supported | | ISO | Photo: 100 to 1600
Video: 100 to 3200 | | Photo Modes | Single shot
Burst shooting: 3 / 5 / 7 frames
Auto Exposure Bracketing (AEB): 3 / 5 bracketed frames at 0.7 EV Bias
Timer shooting | | Operating Temperature | 14 to 104°F / -10 to 40°C | | | | Number of Axes | 3-axis | | Controllable Range | Pitch: 0 to 90°
Pitch: -180° to +180° | | Control Accuracy | 0.05° | | | | Receiver | Frequency: 2.4 GHz | | GNSS | GPS
BeiDou | | | | Altitude Range | 0.66 - 13.12' / 0.2 - 3.5 m | | Velocity Range | Up to 13.1 ft/s / 4 m/s (6.6' / 2 m above ground) | | Operating Environment | Surface with clear pattern and adequate lighting ( > 15 lux) | | | | Operating Current | 120 mA / 3.7 V | | Battery Life | Up to 35 hours | | Battery | Capacity: 5000 mAh
Chemistry: Lithium-ion (LiPo)
Configuration: 1S
Charge Time: 5 hours | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Frequency | Aircraft to Base Station: 2.400 to 2.483 GHz
Base Station to Other Devices: 5.725 to 5.875 GHz | | Range | Up 3.1 miles / 5 km (depending on conditions) | | Latency | 300 ms | | Transmit Power | 28 dBm | | Battery Life | 1.5 hours | | Battery | Capacity: 2300 mAh
Chemistry: Lithium-ion (LiPo)
Configuration: 1S | | Power Requirements | 800 mA / 3.7 V | | Operating Temperature | 14 to 104°F / -10 to 40°C | | | | Chemistry | Lithium-ion polymer (LiPo) | | Capacity | 9000 mAh / 99.9 Wh | | Charging Current | Up to 2C | | Voltage | 22.2 V | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Weight | 2.7 lb / 1.2 kg | | | | Rated Power | 138.5 W | | Output Power | Port 1: 25.5 V ±0.1 V Port 2: 5 V ±0.1 V | | Power Requirements | AC: 90 to 264 V (47 to 63 Hz) | | Operating Temperature | 14 to 113°F / -10 to 45°C | | | | Mobile App | iOS 8.0 or later
Android 4.2 or later | | | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Power Consumption | Hover: 400 W
Maximum: 800 W | | Diagonal Size | 25.6" / 650 mm | | Dimensions | Closed: 13.4 x 11.2 x 11.7" / 340 x 285 x 296 mm
Flight Mode: 20.2 x 20.2 x 12.2" / 513 x 513 x 310 mm
Note: Excluding propellers | | Weight | 8.7 lb / 4 kg | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 24.0 x 17.5 x 13.5" |
