User Manual for Power Vision PowerRay Explorer Underwater ROV Kit Click to enlarge the picture
Contents of the user manual for the Power Vision PowerRay Explorer Underwater ROV
- Product category: Underwater ROVs Power Vision
- Brand: Power Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Power Vision Underwater ROVs
 |
User manual for the Power Vision PowerRay Explorer Underwater ROV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Power Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Power Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Power Vision product will considerably shorten its lifespan!
|

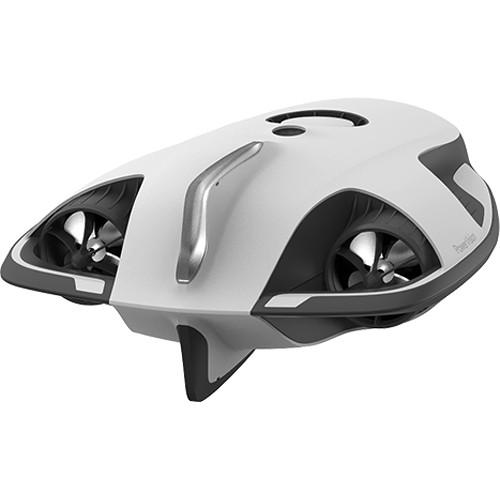

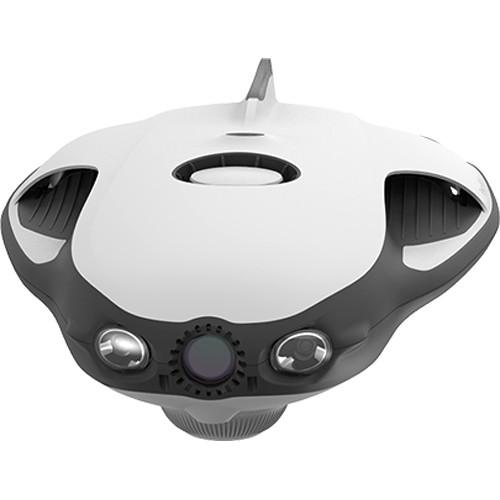

Product description In the Field with the Power Vision PowerRay Read More Explore and capture photos and incredible 4K video of the world beneath the surface--from the comfort of your boat--with the PowerRay Explorer Underwater ROV Kit from PowerVision. This bundle includes the PowerRay vehicle and base station, a wireless transmitter/controller, batteries and chargers, a 32GB memory card, and a 150' tether. The contents of this versatile kit can be neatly stowed and easily transported in the supplied carrying case. ROV - Applications
-
- Explore underwater environments and marine life as far as 98' below the surface
- Inspect undersides of boats and structures such as dams and supports
- Grab underwater footage for film projects
- Live Video and Capture of Videos and Still Photos
-
- Records brilliant 4K UHD video
- Provides Full HD 1080p real-time video streaming
- Captures 12MP still photos
- Burst mode allows for shooting at up to 5 fps
- Features Picture-in-Video (PIV) capability
- Wi-Fi
-
- ROV's internal wireless technology enables transmission of images and data over distances of up to 262'
- Power
-
- Equipped with horizontal and vertical motors, as well as propellers
- Runs on 6400mAh, 94.72Wh battery
Base Station and Transmitter -
- Not for use in water-must stay dry
- Equipped with 150' tether for connection to ROV
- Video game-style transmitter/remote controller connects wirelessly to station to enable ROV operation, speed and LED lighting adjustment, photo/video capture, depth maintenance, and more via push-button and joystick controls
- Transmitter's Wi-Fi is effective at distances of up to 32.8'
- Smartphone can also connect to station to control ROV and camera, and receive live video feed
- Station contains battery with 3000mAh capacity for up to a 4-hour run time
- 32GB memory card for saving captured images
- Rubber belt helps prevent station from slipping off boat deck and into water
Mobile App -
- PowerRay Vision+ Mobile App gives you access to real-time viewing of transmitted photos and videos on iOS and Android mobile devices
- Gives you underwater data and alerts
- Lets you track real-time position of ROV and select travel mode, speed, and lighting settings
- Enables you to choose from 4 modes for controlling ROV
- Each mode presents different assignment of control functions, e.g., left joystick up for forward and down for backwards vs. left joystick up for ascend and down for descend
UPC: 852123007677 In the Box Power Vision PowerRay Explorer Underwater ROV Kit Base Station Transmitter/Controller 150' Tether Intelligent Charger AC Power Cable for Intelligent Charger Handset Clip for Controller Carrying Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Power Vision PowerRay Explorer Underwater ROV Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPower Vision PowerRay Explorer Specs | | | Image Sensor | 1/2.3" CMOS | | Resolution | Photo:
12 MP: 4000 x 3000
Video:
4K：3840 x 2160 / 30p
4K：3840 x 2160 / 25p
2.8K：2880 x 2160 / 30p
2.5K：2560 x 1440 / 60p
2.5K：2560 x 1440 / 30p
Full HD: 1920 x 1080 / 100p
Full HD: 1920 x 1080 / 60p
Full HD: 1920 x 1080 / 30p
HD：1280 x 720 / 200p | | Aspect Ratio | 16:9 | | File Formats | Photo: JPEG, PNG
Video: MP4, MOV (MPEG-4 AVC/H.264) | | Lens | Aperture: f/2.8 | | Focus | Not specified by manufacturer | | Exposure Control | Not specified by manufacturer | | Shutter Speed | 1/30 - 60 sec | | ISO Sensitivity | 100-1600 | | Burst Mode | 5.0 fps | | Slow Motion (Video) | 3x, 4x | | Memory | 64 GB card | | | | Depth Rating | 98' / 30 m | | Speed | Max. Cruising: 3-4 knots / 1.5-2.0 m/s
Max. Ascending: 0.8 knots / 0.4 m/s
Max. Descending: 0.6 knots / 0.3 m/s | | Connectivity | 150' / 45.7 m tether to topside base station
Internal Wi-Fi allows transmission of images and data over distance of up to 262' / 80 m | | Lighting | 2x adjustable front LEDs
1x LED tail light | | Power | Battery with 6400mAh capacity and 94.72Wh energy consumption rate
1x Vertical and 1x horizontal motor | | Run Time | High Speed: 1 hour
Medium Speed: 2 hours
Low Speed: 4 hours | | Material of Construction | Not specified by manufacturer | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | 10.7 x 5.0 x 18.3" / 27 x 12.6 x 46.5 cm | | Weight | With Battery: 14 lb / 6.4 kg
Without Battery: 8.4 lb / 3.8 kg | | | | Connectivity | 150' / 45.7 m tether to ROV
Wi-Fi with 98' / 30 m range | | Battery | Capacity: 3000 mAh
Run Time: Up to 4 hours
Status Indicator: Green (over 60% power), yellow (60-20%), and red (under 20%) | | Weight | Approx. 7.1 oz / 200 g | | | | Voltage | 16.8 V | | Charging Time | Approx. 2 hours | | | | Connectivity | Wi-Fi connection to base station | | Operating Frequency | 2.4 to 2.483 GHz | | Wi-Fi Range | Up to 32.8' / 10 m | | Operating Temperature | 14 to 122°F / -10 to 50°C | | | | Package Weight | 22.75 lb | | Box Dimensions (LxWxH) | 23.0 x 15.0 x 10.0" |
