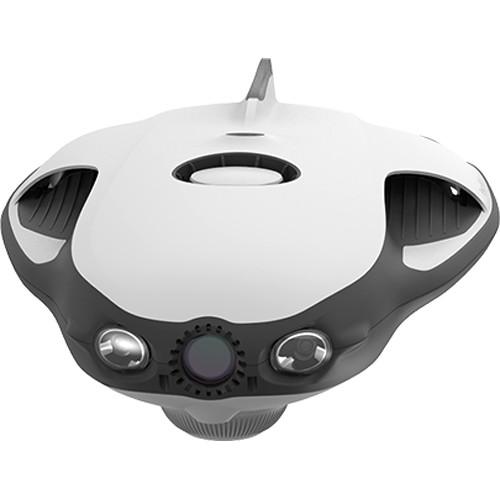

User Manual for Power Vision PowerRay Wizard Underwater ROV Kit Click to enlarge the picture
Contents of the user manual for the Power Vision PowerRay Wizard Underwater ROV
- Product category: Underwater ROVs Power Vision
- Brand: Power Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Power Vision Underwater ROVs
 |
User manual for the Power Vision PowerRay Wizard Underwater ROV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Power Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Power Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Power Vision product will considerably shorten its lifespan!
|

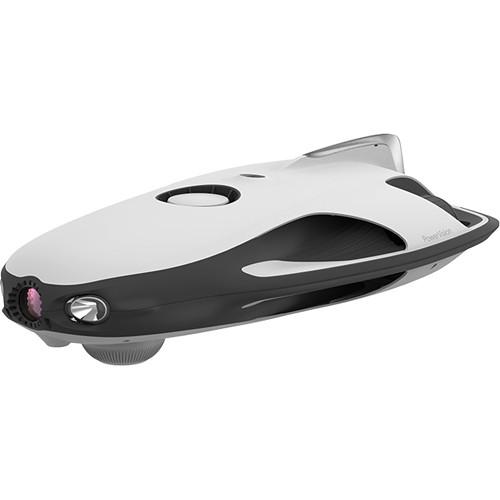

Product description In the Field with the Power Vision PowerRay Read More Explore and capture photos and incredible 4K video of the world beneath the surface--from the comfort of your boat--with the PowerRay Wizard Underwater ROV Kit from PowerVision. This bundle includes the PowerRay vehicle and base station, a wireless transmitter/controller, batteries and chargers, and a 64GB memory card. Additionally, you get a generous 230' tether, along with a PowerSeeker Fishfinder and bait drop line. And to top it all off, you'll enjoy a pair of ZEISS VR ONE Plus Goggles, which work with your smartphone to enable access to immersive, real-time, streaming 3D video from below the surface--so you can feel as though you're actually riding inside the ROV. The contents of this versatile kit can be neatly stowed and easily transported in the supplied, wheeled carrying case. ROV - Applications
-
- Explore underwater environments and marine life as far as 98' below the surface
- Use supplied fishfinder to locate fish and get detailed info on various areas
- Inspect undersides of boats and structures such as dams and supports
- Grab underwater footage for film projects
- Live Video and Capture of Videos and Still Photos
-
- Records brilliant 4K UHD video
- Provides Full HD 1080p real-time video streaming
- Captures 12MP still photos
- Burst mode allows for shooting at up to 5 fps
- Features Picture-in-Video (PIV) capability
- Wi-Fi
-
- ROV's internal wireless technology enables transmission of images and data over distances of up to 262'
- Power
-

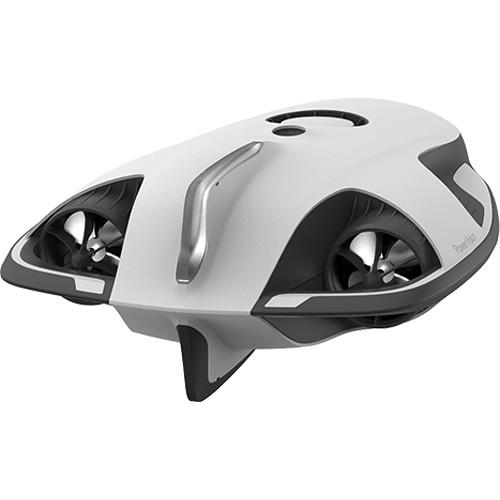

- Equipped with horizontal and vertical motors, as well as propellers
- Runs on 6400mAh, 94.72Wh battery
PowerSeeker Fishfinder -
- Can be attached to top of ROV or used as standalone device
- Provides detailed info on fish distribution, alerts, underwater temperature, depth, and landscape on your iOS or Android smart device via mobile app
- Can detect fish and landscape details as far as 131' below PowerRay
- Offers adjustable display parameters
- Features fish-luring light to attract your scaly friends
- Precision remote bait drop lets you place fish hook in desired location
Base Station and Transmitter -
- Not for use in water--must stay dry
- Equipped with 230' tether for connection to ROV
- Video game-style transmitter/remote controller connects wirelessly to station to enable ROV operation, speed and LED lighting adjustment, photo/video capture, remote bait drop (for fishing), depth maintenance, and more via push-button and joystick controls
- Transmitter's Wi-Fi is effective at distances of up to 32.8'
- Smartphone and included VR goggles can also connect to station to control ROV and camera, and receive live video feed
- Station contains battery with 3000mAh capacity for up to 4-hour run time
- 64GB memory card
- Rubber belt helps prevent station from slipping off boat deck and into water
Mobile App -
- PowerRay Vision+ Mobile App gives you access to real-time viewing of transmitted photos and videos on iOS and Android mobile devices
- Provides images to help you identify fish
- Gives you underwater data and alerts
- Lets you track real-time position of ROV and select travel mode, speed, and lighting settings
- Enables you to choose from 4 modes for controlling ROV
- Each mode presents different assignment of control functions, e.g., left joystick up for forward and down for backwards vs. left joystick up for ascend and down for descend
ZEISS VR ONE Plus Goggles - Features
-
- Headset works with your smartphone to give you access to streaming 3D video from below the water's surface, so you feel as though you're riding inside ROV
- Also provides access to games and augmented reality
- Innovative Zeiss optics and precision eyeglass lenses ensure a fully immersive visual experience
- Gesture-based navigation allows you to control the PowerRay ROV via your own head movements
- Possible to connect optional second pair of goggles to enjoy experience with a friend
- Construction and Handling
-
- Transparent front shield enables use of smartphone cameras for VR apps
- Universal smartphone tray holds phones with display sizes from 4.7 to 5.5"
- Head strap is detachable and can be put back in place easily when needed
- Air vents prevent headset from fogging up

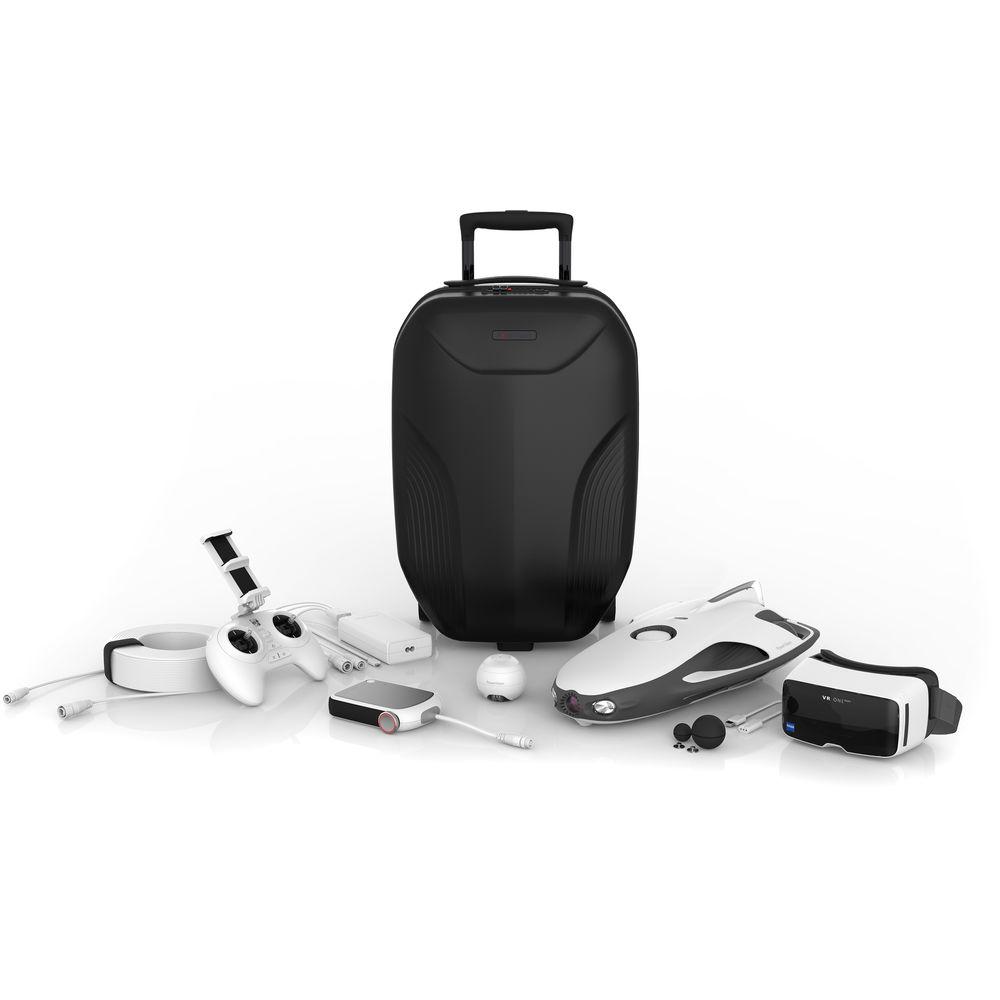

UPC: 852123007813 In the Box Power Vision PowerRay Wizard Underwater ROV Kit Base Station Transmitter/Controller 210' Tether PowerSeeker Fishfinder PowerSeeker Charging Cable Bait Drop Line ZEISS VR ONE Plus Goggles Intelligent Charger AC Power Cord for Intelligent Charger Handset Clip Table of Contents
|
Upload User Manual
Have you got an user manual for the Power Vision PowerRay Wizard Underwater ROV Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPower Vision PowerRay Wizard Specs | | | Image Sensor | 1/2.3" CMOS | | Resolution | Photo:
12 MP: 4000 x 3000
Video:
4K:3840 x 2160 / 30p
4K:3840 x 2160 / 25p
2.8K:2880 x 2160 / 30p
2.5K:2560 x 1440 / 60p
2.5K:2560 x 1440 / 30p
Full HD: 1920 x 1080 / 100p
Full HD: 1920 x 1080 / 60p
Full HD: 1920 x 1080 / 30p
HD:1280 x 720 / 200p | | Aspect Ratio | 16:9 | | File Formats | Photo: JPEG, PNG
Video: MP4, MOV (MPEG-4 AVC/H.264) | | Lens | Aperture: f/2.8 | | Focus | Not specified by manufacturer | | Exposure Control | Not specified by manufacturer | | Shutter Speed | 1/30 - 60 seconds | | ISO Sensitivity | 100-1600 | | Burst Mode | 5.0 fps | | Slow Motion (Video) | 3x, 4x | | Memory | 64 GB card | | | | Depth Rating | 98' / 30 m | | Speed | Max. Cruising: 3-4 knots / 1.5-2.0 m/s
Max. Ascending: 0.8 knots / 0.4 m/s
Max. Descending: 0.6 knots / 0.3 m/s | | Connectivity | 230' / 70 m tether to topside base station
Internal Wi-Fi allows transmission of images and data over distance of up to 262' / 80 m | | Lighting | 2x adjustable front LEDs
1x LED tail light | | Power | Battery with 6400 mAh capacity and 94.72 Wh energy consumption rate
1x Vertical and 1x horizontal motor | | Run Time | High Speed: 1 hour
Medium Speed: 2 hours
Low Speed: 4 hours | | Material of Construction | Not specified by manufacturer | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | 10.7 x 5.0 x 18.3" / 27 x 12.6 x 46.5 cm | | Weight | With Battery: 14 lb / 6.4 kg
Without Battery: 8.4 lb / 3.8 kg | | | | Connectivity | 210' / 64 m tether to ROV
Wi-Fi with 98' / 30 m range | | Battery | Capacity: 3000 mAh
Run Time: Up to 4 hours
Status Indicator: Green (over 60% power), yellow (60-20%), and red (under 20%) | | Weight | Approx. 7.1 oz / 200 g | | | | Voltage | 16.8 V | | Charging Time | Approx. 2 hours | | | | Connectivity | Wi-Fi connection to base station | | Operating Frequency | 2.4 to 2.483 GHz | | Wi-Fi Range | Up to 32.8' / 10 m | | Operating Temperature | 14 to 122°F / -10 to 50°C | | | | Technology | Sonar | | Frequency | 125 kHz | | Probe | Angle: 30°
Depth: 2.0-131' / 0.6-40 m | | Light | Blue LEDs | | Connectivity | Wi-Fi with 262' / 80 m range (when attached to ROV) | | Power | Runs on battery
Automatically turns on when charging port touches water
Turns off 1 minute after leaving water
Status Indicator: Green (over 60% power), yellow (60-20%), and red (under 20%) | | Run Time | Over 2 hours | | Operating Temperature | -4 to 149°F / -20 to 65°C | | Diameter | 2.6" / 68 mm | | Weight | 3.5 oz / 100 g | | | | Compatibility | Supports smartphones with display sizes of 4.7 - 5.5" / 119 - 140 mm | | Interpupillary Distance | 2.1 - 3.0" / 53 - 77 mm | | Field of View | 100° | | | | Package Weight | 27.0 lb | | Box Dimensions (LxWxH) | 23.0 x 15.0 x 13.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Power Vision PowerRay Wizard Underwater ROV Kit
| Subject: Power Vision ROV (Explorer) trouble shooting | | Date: 18.11.2020 13:24:05 | Name: Vishwanath Prasad | | The device is not being charged. & has become non-functional completely. Earlier it was not switched off after disconnection. Remote controller had become nonfunctional. Depth control was not functional. | | Post reply |
