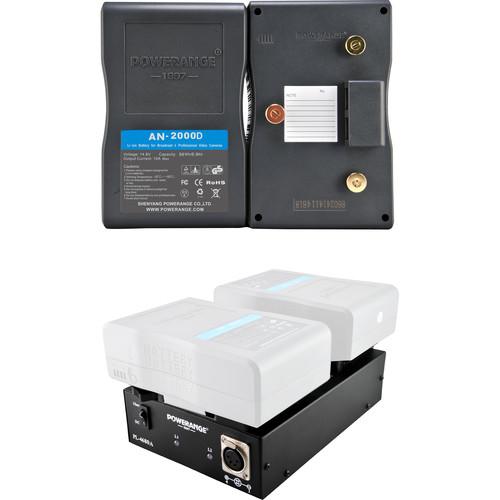

User Manual for POWERANGE Gold Mount Dual Simultaneous Charging Base 16.4VDC Power Station with Two 98Wh Gold Mount Batteries Click to enlarge the picture
Contents of the user manual for the POWERANGE Gold Mount Dual Simultaneous Charging
- Product category: On Camera Batteries POWERANGE
- Brand: POWERANGE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for POWERANGE On Camera Batteries
|
User manual for the POWERANGE Gold Mount Dual Simultaneous Charging contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any POWERANGE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official POWERANGE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a POWERANGE product will considerably shorten its lifespan!
|
Product description This manufacturer bundle of a POWERANGE PR-PL-1680A Dual Simultaneous Charging Base for Gold Mount Lithium-Ion Batteries with 16.4 VDC Output and two POWERANGE PR-AN-2000D 98Wh TSA-Friendly Batteries can simultaneously charge the two included batteries and is compatible with all POWERANGE Gold mount batteries.
The included batteries are rated at 98Wh, which is under the TSA limit for air travel. The batteries support a 10A draw and feature a standard D-Tap power outlet as well as a USB port and barrel port. - PL-4680A Dual-Channel 100W Charger with 16.4V/5A DC Output for Gold Mount Lithium-Ion Batteries The POWERANGE PR-PL-4680A Dual-Channel 100W Charger for Gold Mount Lithium-Ion Batteries with 16.4 VDC Output is a desktop Gold mount battery charger that can charge two batteries simultaneously and is compatible with all POWERANGE AN and Gold mount batteries. It features a 4-pin DC output that allows you to use it as a camera power supply when not charging batteries. It includes an AC power cable and a 4-pin XLR cable to provide power to a device.
- Supports two Gold mount lithium-ion batteries
- 4-pin XLR DC power output
- PR-AN-2000D 98Wh TSA-Friendly Battery (Gold Mount) The POWERANGE PR-AN-2000D is a 14.8V, 6.6Ah lithium-ion Gold mount battery. With a 98Wh capacity, this compact, lightweight battery conforms with the TSA capacity limit of 100Wh or less for air travel. The PR-AN-2000D features a D-Tap output for powering 12V camera accessories, a mini jack port, and a USB port for powering/charging mobile phones and other devices. The D-Tap socket features a protective rubber cover. The PR-AN-2000D battery displays remaining power via a push-button 4-LED power gauge. This pro battery features built-in circuitry to prevent damage from overheating, over-charging/discharging, and excessive current. Its average charging time is 210 minutes. Note: Always check with your carrier for the latest travel regulations
Features - Lightweight, compact, TSA-friendly battery is suitable for traveling to location shoots
- 6.6Ah, 98Wh lithium-ion Gold mount battery
- One D-Tap output for powering 12 VDC camera accessories
- One 5V, 1A USB port for charging mobile phones, etc. and one mini-jack port with a maximum 2.5A output
- Push-button 4-LED power gauge displays remaining power
- Average charging time is 210 minutes
UPC: 843071100114 In the Box Bundle Items PL-4680A Dual-Channel 100W Charger with 16.4V/5A DC Output for Gold Mount Lithium-Ion Batteries zuxdfsrstdxtuddxwdttxtuerebyszuqtysves 2 x PR-AN-2000D 98Wh TSA-Friendly Battery (Gold Mount) Table of Contents
|
Upload User Manual
Have you got an user manual for the POWERANGE Gold Mount Dual Simultaneous Charging Base 16.4VDC Power Station with Two 98Wh Gold Mount Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PL-4680A Dual-Channel 100W Charger with 16.4V/5A DC Output for Gold Mount Lithium-Ion Batteries
| Power Requirements | 100-240 VAC, 47 to 63 Hz | | Charger Output | 16.8 VDC, 2.5 A | | Power Output | 16.4 VDC, 4.5 A | | Power Consumption | 100 W | | Dimensions (WxHxD) | 8.27 x 5.91 x 2.56" / 21 x 15 x 6.5 cm | | Weight | 46.9 oz / 1330 g | - PR-AN-2000D 98Wh TSA-Friendly Battery (Gold Mount)
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.6 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 10 A | | Accessory Port | 1 x D-Tap
1 x Mini Jack | | Maximum Load (Accessory Port) | 10 A ( D-Tap )
2.5 A ( Mini Jack ) | | USB Output | 5 V, 1 A | | Operating Temperature | -4 to 131°F / -20 to 55°C | | Dimensions (W x H x D) | 3.8 x 5.9 x 2.9" / 96.5 x 149.9 x 73.7 mm | | Weight | 2 lb / 907.2 g | | | | Box Dimensions (LxWxH) | 6.9 x 4.45 x 3.05" |
