User Manual for POWERANGE Gold Mount Slim Portable Simultaneous Quad-Charger and 12 28VDC Power Station With 4-98Wh Gold Mount Batteries Click to enlarge the picture
Contents of the user manual for the POWERANGE Gold Mount Slim Portable Simultaneous
- Product category: On Camera Batteries POWERANGE
- Brand: POWERANGE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for POWERANGE On Camera Batteries
|
User manual for the POWERANGE Gold Mount Slim Portable Simultaneous contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any POWERANGE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official POWERANGE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a POWERANGE product will considerably shorten its lifespan!
|

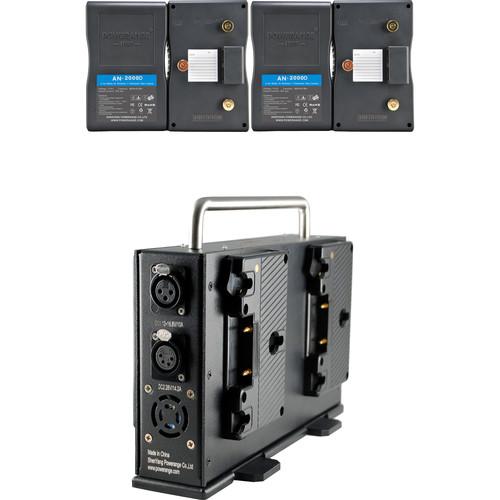

Product description The manufacturer bundle of a POWERANGE PR-PL-6680B Compact Portable Quad Charger with Simultaneous 28 or 16.8 VDC Output for Gold Mount and POWERANGE AN Batteries and four POWERANGE PR-AN-2000D 98Wh TSA-Friendly Batteries includes a compact, yet versatile charger unit that can charge four batteries simultaneously while providing power for your camera. This charger can provide either 12 to 16.8 VDC or 28 VDC output depending on which XLR output you utilize.
The included batteries are rated at 98Wh, which is under the TSA limit for air travel. The batteries feature a standard D-Tap power outlet as well as a 5 volt USB power port and barrel port. - PR-PL-6680A Compact Portable Quad Charger with Simultaneous 28 or 16.8 VDC Output for Gold Mount and POWERANGE AN Batteries The POWERANGE PR-PL-6680A Compact Portable Quad Charger with Simultaneous 28 or 16.8 VDC Output for Gold Mount and POWERANGE AN Batteries is a small, yet extremely versatile charger unit. Not only can it charge four batteries simultaneously, it can also output either 12 to 16.8 VDC and 28 VDC at the same time it is charging your batteries. This allows you to charge your batteries while at the same time, powering your camera.
When not connected to an AC power source your batteries can be used to feed the two discrete XLR outputs on the unit. For supplying 12 to 16.8 VDC, this enables you to hot swap batteries while the power remains uninterrupted. However, for the unit to supply 28 VDC when not plugged into AC power, you must have four 14.8 V (nominal) batteries attached to the unit. The charger features support feet that help prevent it from tipping over. It includes an AC power cable, but you must source the XLR cable yourself. - Supports four Gold mount lithium-ion batteries
- 28 VDC uses the built-in 3-pin XLR DC power output
12 to 16.8 VDC uses the built-in 4-pin XLR DC power output - Simultaneously charge and output power via either XLR connector
- The unit can output 12 to 16.8 VDC from even a single attached battery when not connected to an AC power source. However, it requires four attached and charged batteries for the unit to output 28 VDC when not connected to an AC power source. When connected to an AC power source the unit can charge up to four batteries and provide DC output at the same time
- Built-in support/anti-tip feet
UPC: 850875006900 - PR-AN-2000D 98Wh TSA-Friendly Battery (Gold Mount) The POWERANGE PR-AN-2000D is a 14.8V, 6.6Ah lithium-ion Gold mount battery. With a 98Wh capacity, this compact, lightweight battery conforms with the TSA capacity limit of 100Wh or less for air travel. The PR-AN-2000D features a D-Tap output for powering 12V camera accessories, a mini jack port, and a USB port for powering/charging mobile phones and other devices. The D-Tap socket features a protective rubber cover. The PR-AN-2000D battery displays remaining power via a push-button 4-LED power gauge. This pro battery features built-in circuitry to prevent damage from overheating, over-charging/discharging, and excessive current. Its average charging time is 210 minutes. Note: Always check with your carrier for the latest travel regulations
Features - Lightweight, compact, TSA-friendly battery is suitable for traveling to location shoots
- 6.6Ah, 98Wh lithium-ion Gold mount battery
- One D-Tap output for powering 12 VDC camera accessories
- One 5V, 1A USB port for charging mobile phones, etc. and one mini-jack port with a maximum 2.5A output
- Push-button 4-LED power gauge displays remaining power
- Average charging time is 210 minutes
UPC: 843071100114 In the Box Bundle Items PR-PL-6680A Compact Portable Quad Charger with Simultaneous 28 or 16.8 VDC Output for Gold Mount and POWERANGE AN Batteries ufurvqyafutqzqccfb 4 x PR-AN-2000D 98Wh TSA-Friendly Battery (Gold Mount) Table of Contents
|
Upload User Manual
Have you got an user manual for the POWERANGE Gold Mount Slim Portable Simultaneous Quad-Charger and 12 28VDC Power Station With 4-98Wh Gold Mount Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PR-PL-6680A Compact Portable Quad Charger with Simultaneous 28 or 16.8 VDC Output for Gold Mount and POWERANGE AN Batteries
| Power Requirements | 100-240 VAC | | Power Output | 4-Pin XLR: 12 to 16.8 VDC 15 A
3-Pin XLR: 28 VDC, 9.3 A | | Power Consumption | 260 W | | Dimensions (WxHxD) | 10.4 x 3 x 7.2" / 26.42 x 7.62 x 18.29 cm | | Weight | 4.85 lb / 2.2 kg | - PR-AN-2000D 98Wh TSA-Friendly Battery (Gold Mount)
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.6 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 10 A | | Accessory Port | 1 x D-Tap
1 x Mini Jack | | Maximum Load (Accessory Port) | 10 A ( D-Tap )
2.5 A ( Mini Jack ) | | USB Output | 5 V, 1 A | | Operating Temperature | -4 to 131°F / -20 to 55°C | | Dimensions (W x H x D) | 3.8 x 5.9 x 2.9" / 96.5 x 149.9 x 73.7 mm | | Weight | 2 lb / 907.2 g | | | | Box Dimensions (LxWxH) | 6.9 x 4.45 x 3.05" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
The discussion is empty - enter the first post
Post a new topic / query / comment:
|
|
|
| Request for user manual |
You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:
I’m looking for a manual / Request for manual
