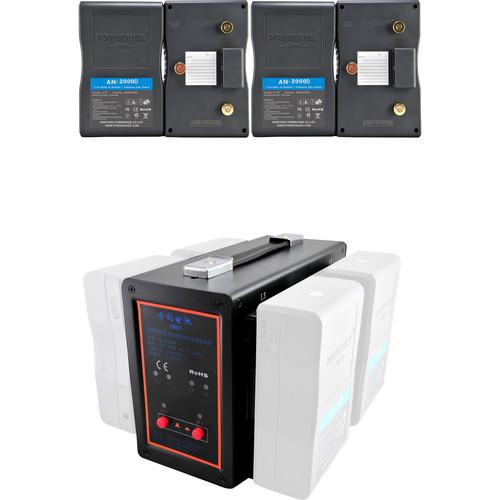

POWERANGE PR-5680A-4 Simultaneous Gold Mount Quad-Charger

User Manual for POWERANGE PR-5680A-4 Simultaneous Gold Mount Quad-Charger and 16.8 VDC Power Station With 4-98Wh Gold Mount Batteries

• Product category: On Camera Batteries POWERANGE
• Brand: POWERANGE
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for POWERANGE On Camera Batteries

Product description

• PR-PL-5680A Compact Portable Quad Charger with Simultaneous 16.8 VDC Output for Gold Mount and POWERANGE AN Batteries The POWERANGE PR-PL-5680A Compact Portable Quad Charger with Simultaneous 16.8 VDC Output for Gold Mount and POWERANGE AN Batteries is an extremely versatile charger unit. Not only can it charge four batteries simultaneously, it can also output 16.8 VDC via two XLR ports at the same time it is charging your batteries. This allows you to charge your batteries while at the same time, powering your camera and another accessory.

  When not connected to an AC power source, your batteries can be used to feed the two discrete XLR outputs on the unit. This enables you to hot swap batteries while the power remains uninterrupted. The charger features lights that indicate the condition of each attached battery as you are charging it, and has a dedicated power switch for each of the XLR outputs.
  • Supports two Gold mount lithium-ion batteries
  • The unit can output 16.8 VDC from attached batteries when not connected to an AC power source. When connected to an AC power source the unit can charge up to four batteries and provide DC output at the same time
  • The charger handles four batteries, two on each side
  • Two independent XLR outputs deliver 16.8 VDC
  • Simultaneously charge and output power via either XLR connector
  • The XLR connectors are independent of each other and each are dedicated only to the battery plates on one side of the charger. When the unit is not plugged into an AC power source, each XLR connector only draws power from the batteries on one pair of battery plates
  • 100-240 VAC power input
  • Built-in carry handle
• PR-AN-2000D 98Wh TSA-Friendly Battery (Gold Mount) The POWERANGE PR-AN-2000D is a 14.8V, 6.6Ah lithium-ion Gold mount battery. With a 98Wh capacity, this compact, lightweight battery conforms with the TSA capacity limit of 100Wh or less for air travel. The PR-AN-2000D features a D-Tap output for powering 12V camera accessories, a mini jack port, and a USB port for powering/charging mobile phones and other devices. The D-Tap socket features a protective rubber cover. The PR-AN-2000D battery displays remaining power via a push-button 4-LED power gauge. This pro battery features built-in circuitry to prevent damage from overheating, over-charging/discharging, and excessive current. Its average charging time is 210 minutes. Note: Always check with your carrier for the latest travel regulations

  Features

  • Lightweight, compact, TSA-friendly battery is suitable for traveling to location shoots
  • 6.6Ah, 98Wh lithium-ion Gold mount battery
  • One D-Tap output for powering 12 VDC camera accessories
  • One 5V, 1A USB port for charging mobile phones, etc. and one mini-jack port with a maximum 2.5A output
  • Push-button 4-LED power gauge displays remaining power
  • Average charging time is 210 minutes
  UPC: 843071100114

• AC Power Cord

• 2 x XLR Cables

• Limited 1-Year Warranty

• Limited 1-Year Warranty
