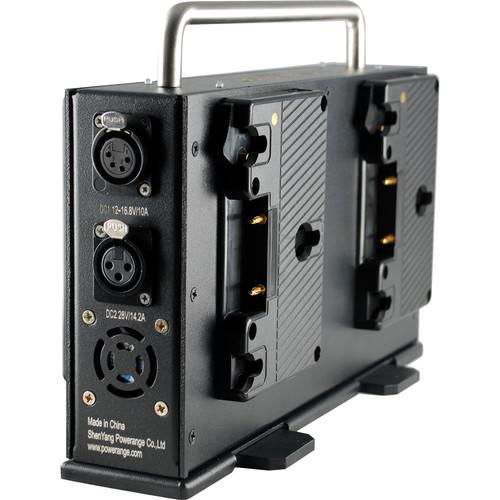

User Manual for POWERANGE PR-PL-6680A Compact Portable Quad Charger with Simultaneous 28 or 16.8 VDC Output for Gold Mount and POWERANGE AN Batteries Click to enlarge the picture
Contents of the user manual for the POWERANGE PR-PL-6680A Compact Portable Quad Charger
- Product category: Batteries & Power POWERANGE
- Brand: POWERANGE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for POWERANGE Batteries & Power
|
User manual for the POWERANGE PR-PL-6680A Compact Portable Quad Charger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any POWERANGE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official POWERANGE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a POWERANGE product will considerably shorten its lifespan!
|
Product description The POWERANGE PR-PL-6680A Compact Portable Quad Charger with Simultaneous 28 or 16.8 VDC Output for Gold Mount and POWERANGE AN Batteries is a small, yet extremely versatile charger unit. Not only can it charge four batteries simultaneously, it can also output either 12 to 16.8 VDC and 28 VDC at the same time it is charging your batteries. This allows you to charge your batteries while at the same time, powering your camera.
When not connected to an AC power source your batteries can be used to feed the two discrete XLR outputs on the unit. For supplying 12 to 16.8 VDC, this enables you to hot swap batteries while the power remains uninterrupted. However, for the unit to supply 28 VDC when not plugged into AC power, you must have four 14.8 V (nominal) batteries attached to the unit. The charger features support feet that help prevent it from tipping over. It includes an AC power cable, but you must source the XLR cable yourself. - Supports four Gold mount lithium-ion batteries
- 28 VDC uses the built-in 3-pin XLR DC power output
12 to 16.8 VDC uses the built-in 4-pin XLR DC power output - Simultaneously charge and output power via either XLR connector
- The unit can output 12 to 16.8 VDC from even a single attached battery when not connected to an AC power source. However, it requires four attached and charged batteries for the unit to output 28 VDC when not connected to an AC power source. When connected to an AC power source the unit can charge up to four batteries and provide DC output at the same time
- Built-in support/anti-tip feet
UPC: 850875006900 In the Box POWERANGE PR-PL-6680A Compact Portable Quad Charger with Simultaneous 28 or 16.8 VDC Output for Gold Mount and POWERANGE AN Batteries AC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the POWERANGE PR-PL-6680A Compact Portable Quad Charger with Simultaneous 28 or 16.8 VDC Output for Gold Mount and POWERANGE AN Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPOWERANGE PR-PL-6680A Specs | Power Requirements | 100-240 VAC | | Power Output | 4-Pin XLR: 12 to 16.8 VDC 15 A
3-Pin XLR: 28 VDC, 9.3 A | | Power Consumption | 260 W | | Dimensions (WxHxD) | 10.4 x 3 x 7.2" / 26.42 x 7.62 x 18.29 cm | | Weight | 4.85 lb / 2.2 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
