POWERANGE V-Mount Dual Simultaneous Charging Base

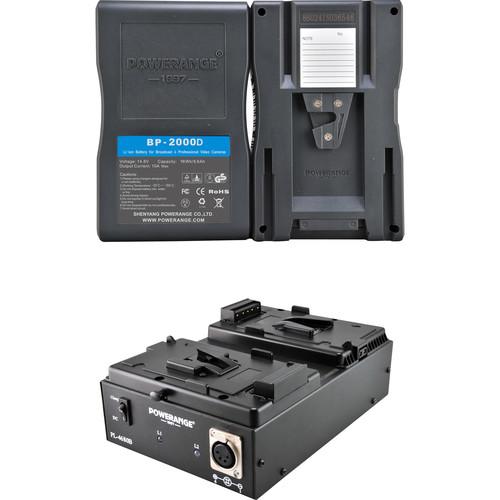

User Manual for POWERANGE V-Mount Dual Simultaneous Charging Base 16.4VDC Power Station with Two 98Wh V-Mount Batteries

• Product category: On Camera Batteries POWERANGE
• Brand: POWERANGE
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for POWERANGE On Camera Batteries

Product description

• PL-4680B Dual-Channel 100W Charger with 16.4V/5A DC Output for V-Mount Lithium-Ion Batteries The POWERANGE PR-PL-4680B Dual-Channel 100W Charger for V-Mount Lithium-Ion Batteries with 16.4 VDC Output is a desktop V-mount battery charger that can charge two batteries simultaneously and is compatible with all POWERANGE BP and V-mount batteries. It features a 4-pin DC output that allows you to use it as a camera power supply when not charging batteries. It includes an AC power cable and a 4-pin XLR cable to provide power to a device.
  • Supports two V-mount lithium-ion batteries
  • 4-pin XLR DC power output
  • Built-in carry handle
  • 100-240 VAC power input
• PR-BP-2000D 98Wh TSA-Friendly Battery (V-Mount) The POWERANGE PR-BP-2000D is a 14.8V, 6.6Ah lithium-ion V-mount battery. With a 98Wh capacity, this compact, lightweight battery conforms with the TSA capacity limit of 100Wh or less for air travel. The PR-BP-2000D features a D-Tap output for powering 12V camera accessories, a mini jack port, and a USB port for powering/charging mobile phones and other devices. The D-Tap socket features a protective rubber cover. The PR-BP-2000D battery displays remaining power via a push-button 4-LED power gauge. This pro battery features built-in circuitry to prevent damage from overheating, over-charging/discharging, and excessive current. Its average charging time is 210 minutes. Note: Always check with your carrier for the latest travel regulations

  Features

  • Lightweight, compact, TSA-friendly battery is suitable for traveling to location shoots
  • 6.6Ah, 98Wh lithium-ion V-mount battery
  • One D-Tap output for powering 12 VDC camera accessories
  • One 5V, 1A USB port for charging mobile phones, etc. and one mini-jack port with a maximum 2.5A output
  • Push-button 4-LED power gauge displays remaining power
  • Average charging time is 210 minutes
  UPC: 850875006702

• AC Power Cord

• 4-Pin XLR Cable

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• PL-4680B Dual-Channel 100W Charger with 16.4V/5A DC Output for V-Mount Lithium-Ion Batteries

  Power Requirements	100-240 VAC, 47 to 63 Hz
  Charger Output	16.8 VDC, 2.5 A
  Power Output	16.4 VDC, 4.5 A
  Power Consumption	100 W
  Dimensions (WxHxD)	8.27 x 5.91 x 2.76" / 21 x 15 x 7 cm
  Weight	49 oz / 1390 g

• PR-BP-2000D 98Wh TSA-Friendly Battery (V-Mount)

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	98 Wh
  Amp-Hours	6.6 Ah
  Output Voltage	14.8 VDC
  Maximum Load	10 A
  Accessory Port	1 x D-Tap 1 x Mini Jack
  Maximum Load (Accessory Port)	10 A ( D-Tap ) 2.5 A ( Mini Jack )
  USB Output	5 V, 1 A
  Operating Temperature	-4 to 131°F / -20 to 55°C
  Dimensions (W x H x D)	3.8 x 5.9 x 2.9" / 96.5 x 149.9 x 73.7 mm
  Weight	2 lb / 907.2 g

  Box Dimensions (LxWxH)	6.8 x 4.2 x 3.0"
