POWERANGE V-Mount Slim Portable Simultaneous Quad-Charger

User Manual for POWERANGE V-Mount Slim Portable Simultaneous Quad-Charger and 12 28VDC Power Station With 4-98Wh V-Mount Batteries

• Product category: On Camera Batteries POWERANGE
• Brand: POWERANGE
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for POWERANGE On Camera Batteries

Product description

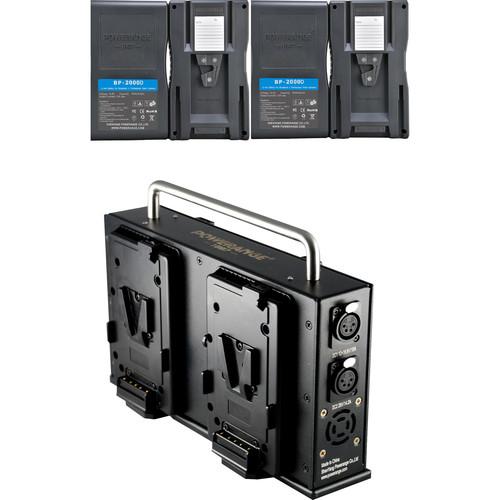

• PR-PL-6680B Compact Portable Quad Charger with Simultaneous 28 or 16.8 VDC Output for V-Mount and POWERANGE BP Batteries The POWERANGE PR-PL-6680B Compact Portable Quad Charger with Simultaneous 28 or 16.8 VDC Output for V-Mount and POWERANGE BP Batteries is a small, yet extremely versatile charger unit. Not only can it charge four batteries simultaneously, it can also output either 12 to 16.8 VDC and 28 VDC at the same time it is charging your batteries. This allows you to charge your batteries while at the same time, powering your camera.

  When not connected to an AC power source your batteries can be used to feed the two discrete XLR outputs on the unit. For supplying 12 to 16.8 VDC, this enables you to hot swap batteries while the power remains uninterrupted. However, for the unit to supply 28 VDC when not plugged into AC power, you must have four 14.8 V (nominal) batteries attached to the unit. The charger features support feet that help prevent it from tipping over. It includes an AC power cable, but you must source the XLR cable yourself.
  • Supports four V-mount lithium-ion batteries
  • 28 VDC uses the built-in 3-pin XLR DC power output
    12 to 16.8 VDC uses the built-in 4-pin XLR DC power output
  • Simultaneously charge and output power via either XLR connector
  • The unit can output 12 to 16.8 VDC from even a single attached battery when not connected to an AC power source. However, it requires four attached and charged batteries for the unit to output 28 VDC when not connected to an AC power source. When connected to an AC power source the unit can charge up to four batteries and provide DC output at the same time
  • 100-240 VAC power input
  • Built-in carry handle
  • Built-in support/anti-tip feet
• PR-BP-2000D 98Wh TSA-Friendly Battery (V-Mount) The POWERANGE PR-BP-2000D is a 14.8V, 6.6Ah lithium-ion V-mount battery. With a 98Wh capacity, this compact, lightweight battery conforms with the TSA capacity limit of 100Wh or less for air travel. The PR-BP-2000D features a D-Tap output for powering 12V camera accessories, a mini jack port, and a USB port for powering/charging mobile phones and other devices. The D-Tap socket features a protective rubber cover. The PR-BP-2000D battery displays remaining power via a push-button 4-LED power gauge. This pro battery features built-in circuitry to prevent damage from overheating, over-charging/discharging, and excessive current. Its average charging time is 210 minutes. Note: Always check with your carrier for the latest travel regulations

  Features

  • Lightweight, compact, TSA-friendly battery is suitable for traveling to location shoots
  • 6.6Ah, 98Wh lithium-ion V-mount battery
  • One D-Tap output for powering 12 VDC camera accessories
  • One 5V, 1A USB port for charging mobile phones, etc. and one mini-jack port with a maximum 2.5A output
  • Push-button 4-LED power gauge displays remaining power
  • Average charging time is 210 minutes
  UPC: 850875006702

• AC Power Cord

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• PR-PL-6680B Compact Portable Quad Charger with Simultaneous 28 or 16.8 VDC Output for V-Mount and POWERANGE BP Batteries

  Power Requirements	100-240 VAC
  Power Output	4-Pin XLR: 12 to 16.8 VDC 15 A 3-Pin XLR: 28 VDC, 9.3 A
  Power Consumption	260 W
  Dimensions (WxHxD)	10.4 x 3 x 7.2" / 26.42 x 7.62 x 18.29 cm
  Weight	4.85 lb / 2.2 kg

• PR-BP-2000D 98Wh TSA-Friendly Battery (V-Mount)

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	98 Wh
  Amp-Hours	6.6 Ah
  Output Voltage	14.8 VDC
  Maximum Load	10 A
  Accessory Port	1 x D-Tap 1 x Mini Jack
  Maximum Load (Accessory Port)	10 A ( D-Tap ) 2.5 A ( Mini Jack )
  USB Output	5 V, 1 A
  Operating Temperature	-4 to 131°F / -20 to 55°C
  Dimensions (W x H x D)	3.8 x 5.9 x 2.9" / 96.5 x 149.9 x 73.7 mm
  Weight	2 lb / 907.2 g

  Box Dimensions (LxWxH)	6.8 x 4.2 x 3.0"
