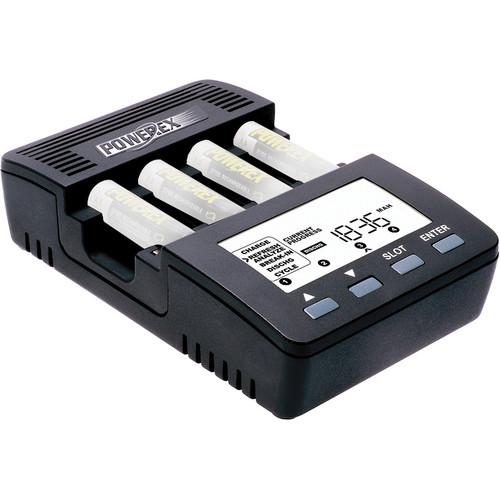

User Manual for Powerex MH-C9000 WizardOne Charger-Analyzer for 4 AA AAA NiMH NiCD Batteries Click to enlarge the picture
Contents of the user manual for the Powerex MH-C9000 WizardOne Charger-Analyzer for 4
- Product category: Universal Batteries & Chargers Powerex
- Brand: Powerex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Powerex Universal Batteries & Chargers
|
User manual for the Powerex MH-C9000 WizardOne Charger-Analyzer for 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Powerex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Powerex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Powerex product will considerably shorten its lifespan!
|
Product description The MH-C9000 WizardOne Charger-Analyzer for 4 AA / AAA NiMH / NiCD Batteries from Powerex charges 1-4 AA or AAA NiMH or NiCD batteries via 4 independent slots. It supports batteries with capacities of 100-20,000mAh. The large, backlit LCD screen displays capacity, voltage, elapsed time and current. The charger provides 29 selectable charge and discharge rates, including 19 charging currents from 0.2-2.0A (200-2000mA) and 10 discharging currents from 0.1-1.0A (100-1000mA) in increments of 0.1A.
The MH-C9000 has 5 operational modes: Charge, Refresh & Analyze, Break-In, Discharge and Cycle. Charge mode recharges your batteries at the selected rate, and is suitable for frequently-used batteries. Refresh & Analyze charges batteries, rests for an hour, discharges, rests again, and then recharges the batteries at selectable charge and discharge rates. This mode is well suited to batteries stored for more than 2 weeks but less than 3 months, or for those demonstrating poor performance.
Break-In mode, otherwise known as IEC capacity measurement and "Battery Forming," charges and discharges the batteries at a fraction of their full capacities. It charges them at 0.1C for 16 hr, rests for an hour, discharges them at 0.2C, and then recharges them once more at 0.1C for 16 hr, where C is the battery capacity. It is best used for new batteries or those stored for longer than 3 months, and chemically reactivates the battery after the deactivation that occurs with long-term storage. Discharge mode simply discharges your batteries at the chosen rate, and is useful for analyzing the amount of charge stored in the battery. Cycle performs a charge-discharge cycle for up to 12 times, with discharge capacity stored in memory for display on command, and then recharges the batteries following the final cycle.
The charger also performs Battery Matching, which enables you to group batteries with similar actual capacity--within approximately +/-5% of the rated capacity--in the device you want to power. When batteries are used together in a device, performance is limited to the worst one. But by using the Refresh & Analyze mode on this charger, you can match batteries with the same performance and then group them together, knowing that the full performance potential should be realized in the device you use.
The MH-C9000 charger utilizes independent negative delta V charge control and has temperature and timer protection to eliminate over- and under-charging. It comes with a 100-240V power adapter, and is also compatible with a 12V input. When used with the optional cigarette lighter adapter (not included), the charger will work in your car. - Charges 1-4 AA or AAA NiMH or NiCD batteries via 4 independent slots. Supports batteries with capacities of 100-20,000mAh
- Large, backlit LCD screen displays capacity, voltage, elapsed time and current
- 29 selectable charge and discharge rates, including 19 charging currents from 0.2-2.0A (200-2000mA) and 10 discharging currents from 0.1-1.0A (100-1000mA) in increments of 0.1A
- 5 operational modes: Charge, Refresh & Analyze, Break-In, Discharge and Cycle
- Charge mode recharges your batteries at the selected rate, and is suitable for frequently-used batteries
- Refresh & Analyze charges batteries, rests for an hour, discharges, rests again, and then recharges the batteries at selectable charge and discharge rates. This mode is well suited to batteries stored for more than 2 weeks but less than 3 months, or for those demonstrating poor performance
- Break-In mode, otherwise known as IEC capacity measurement and "Battery Forming," charges and discharges the batteries at a fraction of their full capacities. It charges them at 0.1C for 16 hr, rests for an hour, discharges them at 0.2C, and then recharges them once more at 0.1C for 16 hr, where C is the battery capacity. It is best used for new batteries or those stored for longer than 3 months, and chemically reactivates the battery after the deactivation that occurs with long-term storage
- Discharge mode simply discharges your batteries at the chosen rate, and is useful for analyzing the amount of charge stored in the battery
- Cycle performs a charge-discharge cycle for up to 12 times, with discharge capacity stored in memory for display on command, and then recharges the batteries following the final cycle
- Performs Battery Matching, which enables you to group batteries with similar actual capacity--within approximately +/-5% of the rated capacity--in the device you want to power. When batteries are used together in a device, performance is limited to the worst one. But by using the Refresh & Analyze mode on this charger, you can match batteries with the same performance and then group them together, knowing that the full performance potential should be realized
- Utilizes independent negative delta V charge control and has temperature and timer protection to eliminate over- and under-charging
- Comes with a 100-240V power adapter, and is also compatible with a 12V input. When used with the optional cigarette lighter adapter (not included), the charger will work in your car
UPC: 802366122330 In the Box Powerex MH-C9000 WizardOne Charger-Analyzer for 4 AA / AAA NiMH / NiCD Batteries MHS-CO1202000SS 100-240V US-Plug Switching Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Powerex MH-C9000 WizardOne Charger-Analyzer for 4 AA AAA NiMH NiCD Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPowerex MH-C9000-0000GS Specs | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Charging Bays | 4 x AA, AAA | | Supported Battery Chemistry | Ni-Cd, Ni-MH | | Charging Voltage | 12 VDC | | Charging Amperage | 10 to 2000 mA | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 7.1 x 5.2 x 4.2" |
