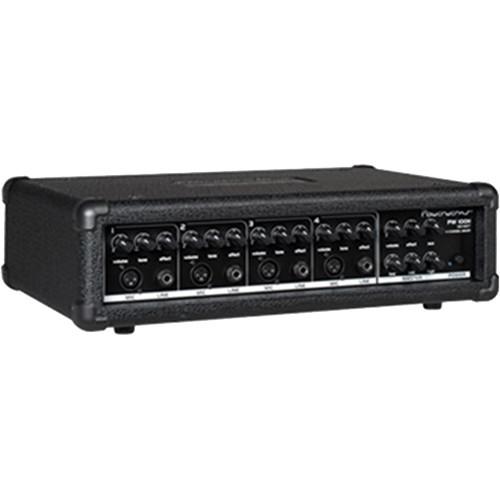

User Manual for Powerwerks PW100H 100W Four-Channel Powered Mixer Click to enlarge the picture
Contents of the user manual for the Powerwerks PW100H 100W Four-Channel Powered Mixer
- Product category: Sound Reinforcement Mixers Powerwerks
- Brand: Powerwerks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Powerwerks Sound Reinforcement Mixers
|
User manual for the Powerwerks PW100H 100W Four-Channel Powered Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Powerwerks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Powerwerks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Powerwerks product will considerably shorten its lifespan!
|
Product description The PW100H 100W Four-Channel Powered Mixer from Powerwerks features 100W of power, four channels with eight front panel inputs, a 3-band master EQ, and a delay effect. Each channel has an XLR microphone input with +15V phantom power for condenser mics and a 1/4" line input for instruments. The mixer can be used when paired with speakers (sold separately) for amplification of microphones, keyboards, drum machines, guitar instruments, MP3 and CD players, and more. Each channel offers volume, tone and effects level controls. The master section controls volume, effects level, aux level, and low, mid, and high tone controls. In addition, on the back of the unit a line out jack can be used to connect the system to an additional power amp or external recording device. The PW100H provides professional audio reproduction in a wide variety of environments for club, bar, restaurant, school, and house of worship applications. UPC: 701963024842 In the Box Powerwerks PW100H 100W Four-Channel Powered Mixer Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Powerwerks PW100H 100W Four-Channel Powered Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPowerwerks PW100H Specs | Output Power | 100 W @ 4 Ohms
70 W @ 8 Ohms | | Inputs | 4 x XLR, mic
4 x 1/4" / 6.3 mm, line
1 x RCA Aux input for MP3 or CD player | | Maximum Gain | +70 dB mic input (Ch. 1 to 4) to speaker out
+50 dB line input (Ch. 1 to 4) to speaker out
+40 dB tape in to speaker out
+40 dB mic input (Ch. 1 to 4) to line out
+20 dB line input (Ch. 1 to 4) to line out
+10 dB tape in to line out
+40 dB mic input (Ch. 1 to 4) to tape out
+20 dB line input (Ch. 1 to 4) to tape out | | Equalization | Input Tone: ±15 dB @ 5 kHz | | Master EQ Frequency | ±15 dB @ 10 kHz high
±15 dB @ 1.5 kHz mid
±15 dB @ 100 Hz low | | Phantom Power for Mic Inputs | 15 V channels 1 to 4 | | Power Requirements | 120 VAC, 60 Hz
160 W (nominal) | | Effects | Reverb | | Dimensions (H x W x D) | 5.1 x 18.9 x 12.0" / 13.0 x 48.0 x 30.5 cm (mixer) | | Weight | 18.7 lb / 8.5 kg (mixer) |
