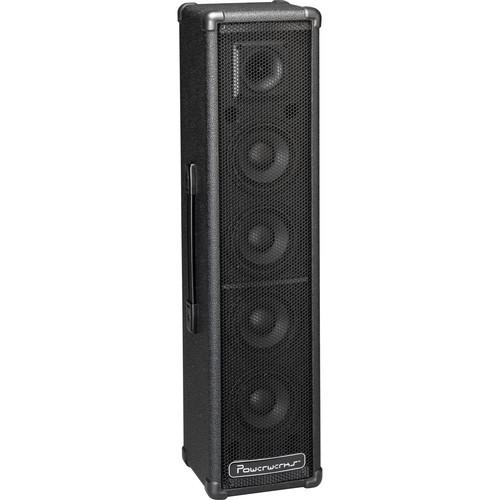

User Manual for Powerwerks PW100T 100-Watt Personal PA System Click to enlarge the picture
Contents of the user manual for the Powerwerks PW100T 100-Watt Personal PA System
- Product category: Portable PA Systems Powerwerks
- Brand: Powerwerks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Powerwerks Portable PA Systems
|
User manual for the Powerwerks PW100T 100-Watt Personal PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Powerwerks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Powerwerks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Powerwerks product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More With its heavy-duty steel grill, the PW100T 100-Watt Personal PA System from PowerWerks can be used in a variety of environments for multiple PA applications. It features four 4.5-inch drivers, a high-frequency horn, and an integrated 3-channel mixer with 2 mic/instrument inputs and a 1/8-inch auxiliary input. The PW100T is capable of up to 100 watts RMS output. - 4x 4.5" drivers and a high-frequency horn
- XLR Mic and 1/4" Instrument inputs per channel, both of which can be used simultaneously
- High and Low EQ per channel
- 1/8" mini input for music, with high and low EQ
- Powerlink circuit allows you to link 2 or more units together, with independent volume control
UPC: 701963025917 In the Box Powerwerks PW100T 100-Watt Personal PA System Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Powerwerks PW100T 100-Watt Personal PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPowerwerks PW100T Specs | Output Power | Output Power 1%: 100 W @ 4 Ω | | Inputs | Channels 1 & 2:
Mic: Balanced XLR
Line Level: Unbalanced 1/4" (6.3 mm)
Channel 3:
Line Level: 1/8" (3.5 mm) headphone/line stereo mixed mono | | Frequency Response | 20 Hz to 20 kHz, Actual response is tailored to speaker cabinet for accurate acoustical response | | Hum and Noise | Residual Noise, All Level Controls 0% Minimum: -56 dB
Nominal System Noise, All Level Controls at 50%: -48 dB | | System Gain | Mic to Speaker Output (Channels 1 & 2): +70 dB @ 1 kHz
Line to Speaker Output (Channels 1 & 2): +56 dB @ 1 kHz
Aux In to Speaker Output: +42 dB @ 1 kHz | | Channel EQ | 4 kHz and above , 800 Hz and below | | Sync | In and Out: Both jacks accept a balanced input and sends a pre-master volume output mix of channels. Recommended use: Linking two PW100T's together. | | Subwoofer Output | Line Out, 20 to 150 Hz | | Phantom Power | +15 V on Channels 1 & 2 | | Power Requirements | USA/Canada: 120 VAC/60 Hz, 160 W nominal
Europe: 230 VAC/50 Hz, 160 W nominal
UK: 230 VAC/50 Hz, 160 W nominal
Australia: 240 VAC/50 Hz, 160 W nominal
Japan: 100 VAC/50-60 Hz, 160 W nominal | | Speakers | 4x 4.5", 50 W @ 4 Ω | | Horn | 3.5" piezo driver | | Power Capacity | 100 W RMS | | Frequency Response | Full Range (Subwoofer jack not used): 60 Hz to 20 kHz
Crossover Active (Subwoofer jack in use): 150 Hz to 20 kHz | | Nominal Impedance | 4 Ω (not designe for external speakers) | | Dimensions (W x H x D) | 7.5 x 28.0 x 6.5" (190 x 715 x 165 mm) | | Weight | 23.3 lb (10.6 kg) | | | | Package Weight | 27.85 lb | | Box Dimensions (LxWxH) | 32.25 x 10.0 x 9.8" |
