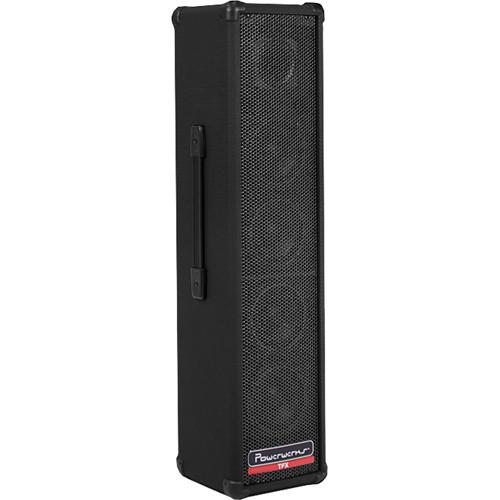

User Manual for Powerwerks PW150TFX 150 Watt PA Tower with Digital Effects Click to enlarge the picture
Contents of the user manual for the Powerwerks PW150TFX 150 Watt PA Tower
- Product category: Portable PA Systems Powerwerks
- Brand: Powerwerks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Powerwerks Portable PA Systems
|
User manual for the Powerwerks PW150TFX 150 Watt PA Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Powerwerks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Powerwerks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Powerwerks product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The PowerWerks PW150TFX 150 Watt PA Tower with Digital Effects is a portable system designed for a variety of situations such as amplifying vocals, instruments, keyboards, drum machines, audio devices, and more. It uses four 4.5" speakers and a high frequency driver to provide defined mid frequencies and clear highs with a full range frequency response of 60 to 20,000 Hz. A dedicated active crossover with a 1/4" mono plug subwoofer jack adjusts the response to 150 to 20,000 Hz so you can incorporate a dedicated subwoofer. A separate monitor output with dedicated level control allows you to further expand the system. The unit's POWERLINK circuit allows you to connect multiple units together using standard XLR microphone cables, each with an independent master level control.
The back panel of the speaker features a three channel mixer with two simultaneous 1/4" instrument and XLR-3F mic channels, each with high and low eq controls. It also feature an 1/8" mini input for pre-recorded music with a high and low eq control. The sound of your music can be further adjusted using the four built-in DSP effects: room reverb, hall reverb, chorus + reverb, and delay + reverb. The construction of the speaker includes a heavy-duty steel grill and rigid corners. It can be positioned on a standard speaker stand. - DSP Effects
- Offers room reverb, hall reverb, chorus + reverb, and delay + reverb
- POWERLINK Circuit
- Allows you to connect multiple units together
- Subwoofer Output With Active Crossover
- Enables incorporating a dedicated subwoofer into your system
In the Box Powerwerks PW150TFX 150 Watt PA Tower with Digital Effects Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Powerwerks PW150TFX 150 Watt PA Tower with Digital Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPowerwerks PW150TFX Specs | Inputs | CH1: balanced XLR-3F, unbalanced 1/4" line level
CH2: balanced XLR-3F, unbalanced 1/4" line level
CH3: 1/8" line level | | Output Power | At 1%: 2x 75 W (4 Ohms load) | | Drivers | 4x 4.5" at 50 W 8 Ohm load
Horn: 3.5" piezo driver | | Frequency Response | Input: 20 to 20,000 Hz
Full Range Speaker: 60 to 20,000 Hz
Subwoofer Crossover Active: 150 to 20,000 Hz | | Nominal Impedance | 2x 4 Ohms | | Power Capacity | 150 W RMS | | Hum and Noise | Residual (all levels at 0%): -46 dB
Nominal system at 40% level controls: -37 dB | | System Gain | Mic to Speaker Output (CH1 and CH2): +49 dB
Line to Speaker Output (CH1 and CH2): +35 dB
Aux in to Speaker Output: +25 dB | | Channel EQ | High: 4,000 Hz and above
Low: 800 Hz and below | | Link | POWERLINK: balanced input on XLR-3F to balanced XLR-3M output | | Subwoofer Output | Line Out: 20 to 150 Hz | | Monitor Out | Line Out: balanced TRS output with grounded sleeve | | Phantom Power | Mic inputs (CH1 and CH2): +15 V | | Power Requirements | USA/Canada: 120 VAC 60 Hz, 300 W nominal
Europe: 230 VAC 50 Hz, 300 W nominal
UK: 230 VAC 50 Hz, 300 W nominal
Australia: 240 VAC 50 Hz, 300 W nominal
Japan: 100 VAC 50-60 Hz, 300 W nominal | | Dimensions (W x H x D) | 7.5 x 28.0 x 6.5" (190 x 715 x 165 mm) | | Weight | 25.0 lb (11.3 kg) |
