User Manual for Powerwerks PW3X6BT 3x6" 2-Way 300W All-In-One Portable Bluetooth-Enabled PA System Click to enlarge the picture
Contents of the user manual for the Powerwerks PW3X6BT 3x6" 2-Way 300W All-In-One
- Product category: Portable PA Systems Powerwerks
- Brand: Powerwerks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Powerwerks Portable PA Systems
 |
User manual for the Powerwerks PW3X6BT 3x6" 2-Way 300W All-In-One contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Powerwerks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Powerwerks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Powerwerks product will considerably shorten its lifespan!
|

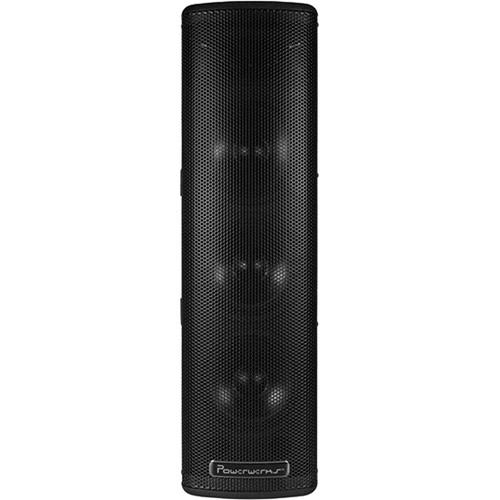

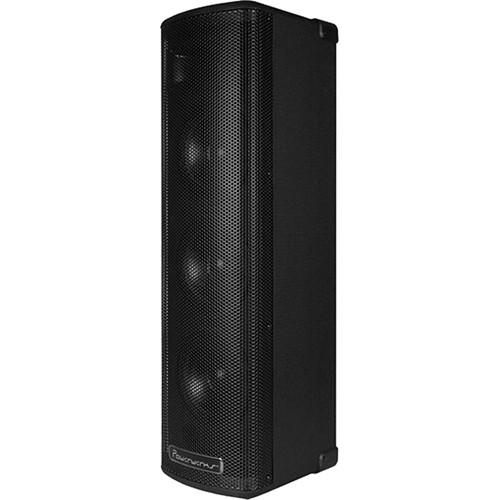

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More uqwcxvtvuqcsawrbydaeccszdwcw The Powerwerks PW3X6BT is a 3x6" 2-way 300W all-in-one portable Bluetooth-enabled PA system designed to provide convenient signal mixing and amplification for musicians, vocalists, and presenters in clubs, special events, and small concert venues. 300W of amplification drive three 6" woofers and a 1" Neodymium compression driver to produce a frequency response of 65 Hz to 20 kHz. A 1/4" sub output allows easy connection to a dedicated subwoofer for additional low-frequency reinforcement while a dedicated balanced 1/4" TRS monitor output can be routed to an external recorder. The integrated 3-channel mixer features XLR, 3.5mm, and 1/4" inputs to accommodate signal from microphones, line sources, or non-Bluetooth devices. A built-in Bluetooth receiver enables wireless streaming of music from smartphones, tablets, and laptops. Charge your mobile devices via two USB Type-A ports on the rear panel. The first two channels boast sends that feed a 24-bit DSP engine, which grants reverb with four preset selections. All three channels offer controls for volume and 2-band equalization. Daisy-chain other Powerwerks PW units via XLR Powerlink input and output jacks. Transport between rooms and gigs is made simple courtesy of the side-mounted carry handle. - 300W (peak) of amplification
- Three 6" woofers and one 1" Neodymium compression driver
- 65 Hz to 20 kHz frequency response
- Built-in Bluetooth receiver for wireless streaming of music from mobile devices
- Two USB Type-A charging ports
- Built-in mixer with volume controls and bass and treble EQ
- XLR and 1/4" inputs on channels one and two
- 3.5mm stereo mini-jack and Bluetooth input on channel three
- 1/4" subwoofer output (crossover at 150 Hz)
- 1/4" TRS balanced line output for connection to a recording device

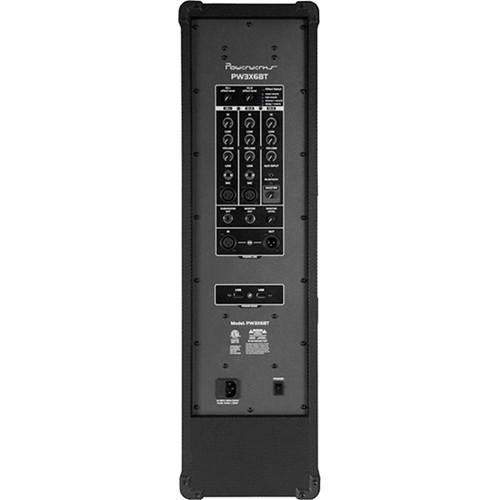

- XLR Powerlink input and output for linking to another Powerwerks PW unit
- Integrated 24-bit DSP provides four effects—Room Reverb, Hall Reverb, Chorus plus Reverb, and Delay plus Reverb
UPC: 701963042488 In the Box Powerwerks PW3X6BT 3x6" 2-Way 300W All-In-One Portable Bluetooth-Enabled PA System AC Power Cable Limited 3-Year Warranty on Cabinet and Electronics Limited 1-Year Warranty on Loudspeakers Table of Contents
|
Upload User Manual
Have you got an user manual for the Powerwerks PW3X6BT 3x6" 2-Way 300W All-In-One Portable Bluetooth-Enabled PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPowerwerks PW3X6BT Specs | LF Driver | 3 x 6" / 152.4 mm woofers (8 Ohms each) | | HF Driver | 1 x 1" / 25.4 mm Neodymium compression driver | | Output Power | 300 W peak (4 Ohms load) | | Inputs | 2 x XLR 3-pin female for channels
1 x XLR 3-pin female for Powerlink
2 x 1/4" TS female
1 x 1/8" (3.5 mm) stereo mini-jack | | Outputs | 1 x XLR 3-pin male for Powerlink
1 x 1/4" TRS monitor out
1 x 1/4" TS sub out | | Bluetooth | Version: 3.0 + EDR
Profile: A2DP
Output Power: +2 dBm Class 2
DAC: 94 dB SNR | | USB | 2 x USB Type-A (5 V) | | Phantom Power | +15 VDC | | Maximum SPL | 118 dB | | Frequency Response | System: 65 Hz to 20 kHz (subwoofer jack not used)
Sub Out: 20 to 150 Hz | | Nominal Impedance | 4 Ohms x 2 (not designed for external speakers) | | Hum and Noise | Residual Noise: -46 dB (all level controls at 0%)
Nominal Noise: -37 dB (all level controls at 50%) | | System Gain | Mic to Speaker Output at 1 kHz: +49 dB
Line to Speaker Output at 1 kHz: +35 dB
Aux In to Speaker Output at 1 kHz: +25 dB | | Equalization | High: 10 kHz
Low: 100 Hz | | Crossover | System: 3 kHz
Subwoofer: 150 Hz to 20 kHz (with 1/4" jack in subwoofer output) | | Enclosure Material | MDF | | Power Requirement | 120 VAC, 60 Hz, 300 W nominal | | Dimensions (D x W x H) | 9.4 x 8.1 x 28.7" / 240 x 205 x 730 mm | | Weight | 29 lb / 13.2 kg | | Specialties | 24-bit digital effects |
