User Manual for Powerwerks PW40BATBT Bluetooth-Enabled Portable PA System Click to enlarge the picture
Contents of the user manual for the Powerwerks PW40BATBT Bluetooth-Enabled Portable PA System
- Product category: Portable PA Systems Powerwerks
- Brand: Powerwerks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Powerwerks Portable PA Systems
 |
User manual for the Powerwerks PW40BATBT Bluetooth-Enabled Portable PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Powerwerks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Powerwerks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Powerwerks product will considerably shorten its lifespan!
|

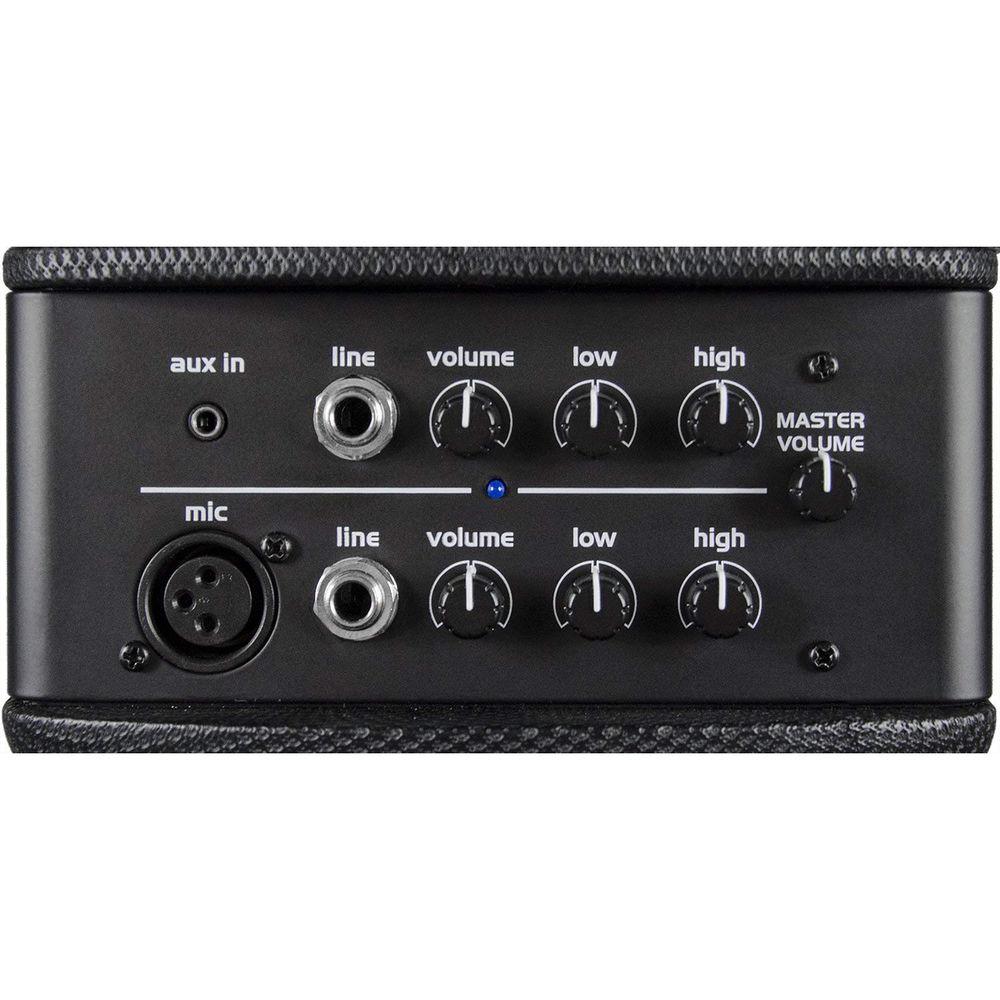

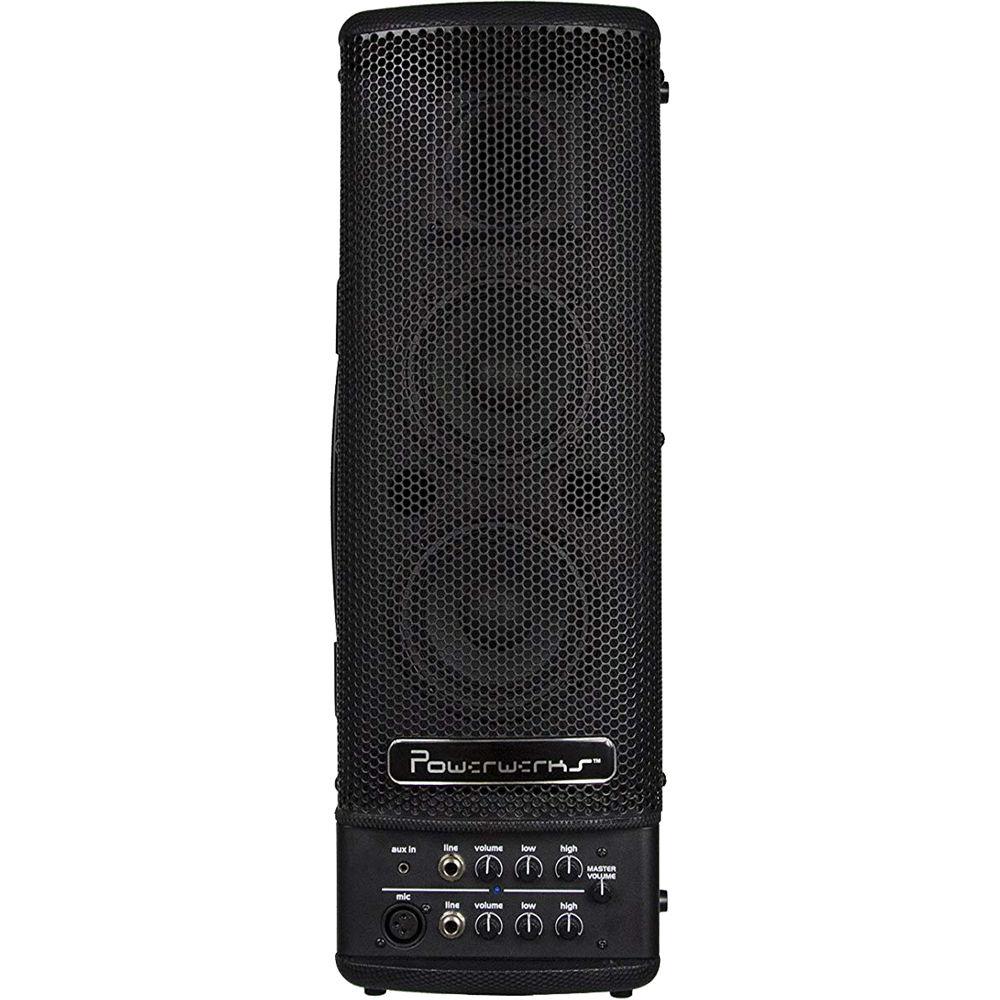

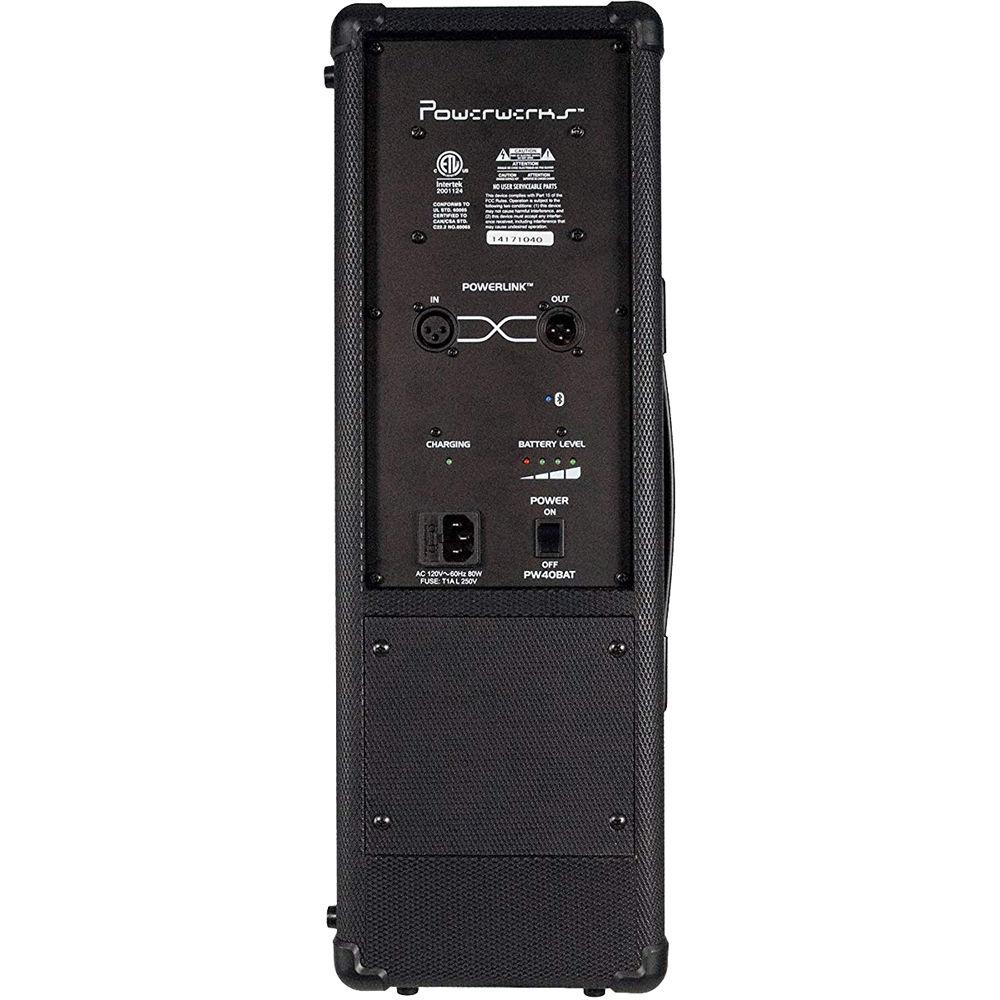

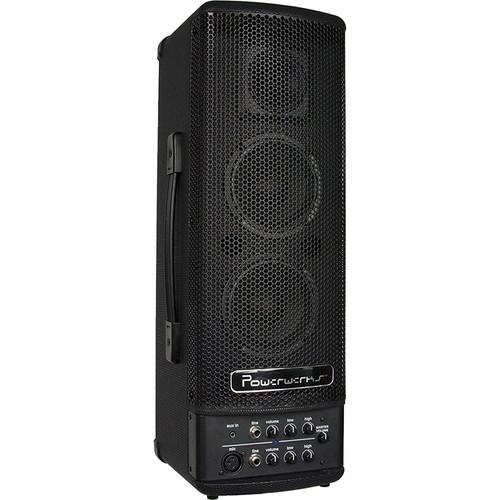

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More Offering 40 watts of output power in a portable form factor, the PW40BATBT Bluetooth-Enabled Portable PA System from Powerwerks can be operated both plugged into an AC power source or operated off of its internal rechargeable battery (for up to 10 hours). Thanks to its integrated Bluetooth 3.0 module, it allows you to stream audio directly from your compatible devices, such as smartphones or tablets, within a 33-foot range. In addition to Bluetooth, the PW40BATBT features 2 wired channels, and auxiliary 1/8" input and an XLR microphone input, each with independent volume control and 2-band EQ. The PowerLink Circuit allows you to link 2 or more units together, allowing for streamlined expandability. - Rubber feet on the bottom and side
- Built-in standard speaker adapter
UPC: 701963029298 In the Box Powerwerks PW40BATBT Bluetooth-Enabled Portable PA System Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Powerwerks PW40BATBT Bluetooth-Enabled Portable PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPowerwerks PW40BATBT Specs | Output Power | AC Powered with Fully Charged Battery: 40 W
Battery Powered: 36 W | | Inputs | Channel 1:
1x 1/8" (3.5 mm) Headphone/line level stereo, mixed mono
1x 1/4" (6.3 mm) unbalanced line level
Channel 2:
1x XLR microphone level
1x 1/4" (6.3 mm) unbalanced line level | | Bluetooth | Bluetooth 3.0 +ERD-compliant
Typical +2 dBm Class-2 power
Audio DAC: 94 dB SNR.A2DP profile support | | Frequency Response | 20 Hz to 20 kHz (Actual response is tailored to speaker cabinet for accurate acoustical response.)
System: 70 Hz to 20 kHz
Nominal: 92 dB 1 W to 1 M | | Hum & Noise | Residual Noise, All Level Controls 0% Minimum: -56 dB
Nominal System Noise, All Level Controls at 50%: -52 dB | | System Gain | Mic to Speaker Output: +70 dB, channels 1 & 2 (@ 1 kHz)
Line to Speaker Output: +50 dB, channels 1 & 2 (@ 1 kHz)
Aux In to Speaker Output: +40 dB (@ 1 kHz) | | Channel EQ | High: 4 kHz and above
Low: 800 Hz and below | | Power Linking | Both jacks accept a balanced input and send a pre-master volume output mix of channels. Recommended use: Linking two PW40BAT(BT) together | | Phantom Power | +9 V | | Power Requirement | USA/Canada: 120 VAC/60 Hz, 80 W nominal
Europe/UK/Australia: 230~240 VAC/50 Hz, 80 W nominal
China: 220 VAC/50 Hz, 80 W Nominal | | Speakers | 2x 4.5" speakers, @ 50 W, 5 ohms each | | Horn | 1x 3.5" piezo driver | | Power Capacity | 40 W RMS total system | | Nominal Impedance | 2x 4 ohms, not designed for external speakers | | Dimensions (W x H x D) | 7.00 x 20.75 x 7.50" (180 x 525 x 190 mm) | | Weight | 21.25 lb (9.60 kg) | | | | Package Weight | 22.4 lb | | Box Dimensions (LxWxH) | 25.0 x 10.0 x 10.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
