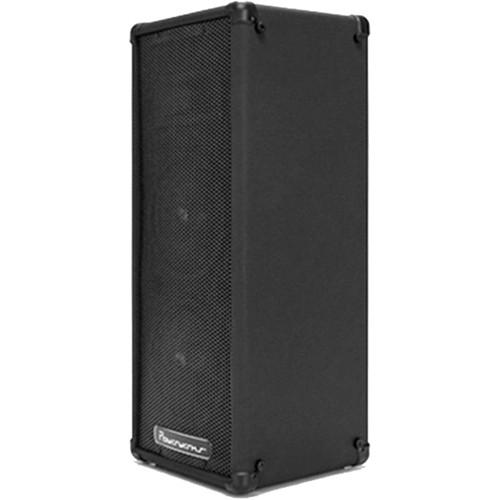

User Manual for Powerwerks PW4X6BT 2x6" 2-Way 100W All-In-One Portable Bluetooth-Enabled PA System with Extension Speaker Click to enlarge the picture
Contents of the user manual for the Powerwerks PW4X6BT 2x6" 2-Way 100W All-In-One
- Product category: Portable PA Systems Powerwerks
- Brand: Powerwerks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Powerwerks Portable PA Systems
 |
User manual for the Powerwerks PW4X6BT 2x6" 2-Way 100W All-In-One contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Powerwerks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Powerwerks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Powerwerks product will considerably shorten its lifespan!
|

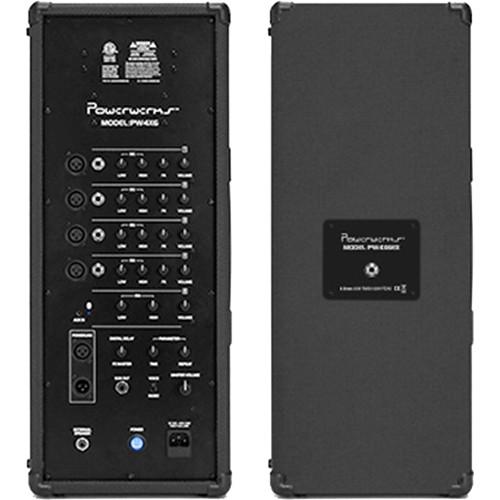

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Powerwerks PW4X6BT is a 4x6" 2-way 100W all-in-one portable Bluetooth-enabled PA system designed to provide convenient signal mixing and amplification for musicians, vocalists, and presenters in clubs, special events, and small concert venues. 100W of amplification drive two speaker cabinets—each with two 6" woofers and a 5.75" piezo horn—to produce a frequency response of 20 Hz to 20 kHz. Connect the main cabinet to the extension unit via a 1/4" speaker cable (available separately). A 1/4" sub output allows easy connection to a dedicated subwoofer for additional low-frequency reinforcement. The integrated 5-channel mixer features XLR, 3.5mm, and 1/4" inputs to accommodate signal from microphones, line sources, or non-Bluetooth devices. A built-in Bluetooth receiver enables wireless streaming of music from smartphones, tablets, and laptops. Each channel offers controls for volume, 2-band equalization, and a send to the integrated digital delay effect. Daisy-chain other Powerwerks PW units via XLR Powerlink input and output jacks. - Two 6" woofers and one 5.75" piezo horn
- 20 Hz to 20 kHz frequency response
- Built-in Bluetooth receiver for wireless streaming of music from mobile devices
- Built-in mixer with volume controls, bass and treble EQ, and adjustable digital delay
- XLR and 1/4" inputs on channels 1-4
- 3.5mm stereo mini-jack and Bluetooth input on channel five
- 1/4" subwoofer output (crossover at 150 Hz)
- XLR Powerlink input and output for linking to another Powerwerks PW unit
UPC: 701963041627 In the Box Powerwerks PW4X6BT 2x6" 2-Way 100W All-In-One Portable Bluetooth-Enabled PA System with Extension Speaker PW4X6EX Extension Speaker Limited 3-Year Warranty on Cabinet and Electronics Limited 1-Year Warranty on Loudspeakers Table of Contents
|
Upload User Manual
Have you got an user manual for the Powerwerks PW4X6BT 2x6" 2-Way 100W All-In-One Portable Bluetooth-Enabled PA System with Extension Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPowerwerks PW4X6BT Specs | LF Driver | 2 x 6" / 152.4 mm woofers (30 W, 16 Ohms each) | | HF Driver | 1 x 5.8" / 146.1 mm piezo horn | | Output Power | 100 W (50 W to each side) | | Inputs | 4 x XLR 3-pin female for channels
1 x XLR 3-pin female for Powerlink
4 x 1/4" TS female for channels
1 x 1/8" / 3.5 mm stereo mini-jack | | Outputs | 1 x XLR 3-pin male for Powerlink
1 x 1/4" TS external speaker
1 x 1/4" TS sub out | | Bluetooth | Version: 3.0 + EDR
Profile: A2DP
Output Power: +2 dBm Class 2
DAC: 94 dB SNR | | Phantom Power | +15 VDC | | Frequency Response | System: 20 Hz to 20 kHz (actual response is tailored to speaker cabinet for accurate acoustical response)
Sub Out: 20 to 150 Hz | | Power Requirement | Standard IEC 3-prong connection | | Dimensions (D x W x H) | 10.0 x 23.2 x 9.1" / 253 x 590 x 231 mm | | Weight | Main Cabinet: 22.9 lb / 10.4 kg
Extension Cabinet: 16.7 lb / 7.6 kg |
