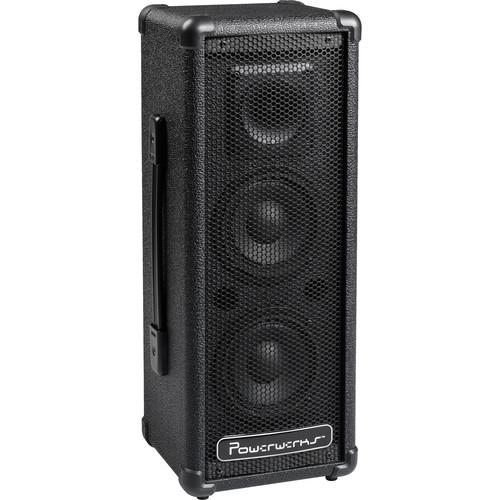

User Manual for Powerwerks PW50 50 Watt Personal PA System Click to enlarge the picture
Contents of the user manual for the Powerwerks PW50 50 Watt Personal PA
- Product category: Portable PA Systems Powerwerks
- Brand: Powerwerks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Powerwerks Portable PA Systems
|
User manual for the Powerwerks PW50 50 Watt Personal PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Powerwerks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Powerwerks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Powerwerks product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The PW50 50 Watt Personal PA System from PowerWerks is designed for use in a variety of PA applications, such as vocals, instruments, keyboards, drum machines, audio devices, and more. It boasts twin 4.5-inch speakers in addition to a high-frequency driver for balanced mid- and high-range sounds, helping vocals cut through in a mix. The PA has a heavy-duty steel grille for durability, and features a 1/4" subwoofer output for connecting an optional subwoofer. - Twin 4.5" drivers with high-frequency horn
- 2x XLR mic and 1/4" instrument inputs, both of which can be used simultaneously
- High & Low EQ per channel
- Powerlink circuit allows you to link 2 or more units together, with independent volume control
UPC: 701963026099 In the Box Powerwerks PW50 50 Watt Personal PA System Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Powerwerks PW50 50 Watt Personal PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPowerwerks PW50 Specs | Output Power | Output Power 1%: 50 W @ 8 Ω | | Inputs | Channels 1 & 2:
Mic: Balanced XLR
Line Level: Unbalanced 1/4" (6.3 mm)
Channel 3:
Line Level: 1/8" (3.5 mm) headphone/line stereo mixed mono | | Frequency Response | 20 Hz to 20 kHz, Actual response is tailored to speaker cabinet for accurate acoustical response | | Hum and Noise | Residual Noise, All Level Controls 0% Minimum: -65 dB
Nominal System Noise, All Level Controls at 50%: -48 dB | | System Gain | Mic to Speaker Output (Channels 1 & 2): +70 dB @ 1 kHz
Line to Speaker Output (Channels 1 & 2): +56 dB @ 1 kHz
Aux In to Speaker Output: +42 dB @ 1 kHz | | Channel EQ | 4 kHz and above , 800 Hz and below | | Sync | In and Out: Both jacks accept a balanced input and send a pre-master volume output mix of channels. Recommended use: Linking two PW50's together. | | Subwoofer Output | Line Out, 20 to 150 Hz | | Phantom Power | +15 V on Channels 1 & 2 | | Power Requirements | USA/Canada: 120 VAC/60 Hz, 80 W nominal
Europe: 230 VAC/50 Hz, 80 W nominal
UK: 230 VAC/50 Hz, 80 W nominal
Australia: 240 VAC/50 Hz, 80 W nominal
Japan: 100 VAC/50-60 Hz, 80 W nominal | | Speakers | 2x 4.5", 50 W @ 4 Ω | | Horn | 3.5" piezo driver | | Power Capacity | 50 W RMS | | Frequency Response | Full Range (Subwoofer jack not used): 60 Hz to 20 kHz
Crossover Active (Subwoofer jack in use): 150 Hz to 20 kHz | | Nominal Impedance | 8 Ω (not designed for external speakers) | | Dimensions (W x H x D) | 7.5 x 18.0 x 6.5" (190 x 460 x 165 mm) | | Weight | 14.7 lb (6.7 kg) | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 22.0 x 10.2 x 9.8" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
