User Manual for Powerwerks PW50BT 50W Bluetooth PA System Click to enlarge the picture
Contents of the user manual for the Powerwerks PW50BT 50W Bluetooth PA System
- Product category: Portable PA Systems Powerwerks
- Brand: Powerwerks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Powerwerks Portable PA Systems
 |
User manual for the Powerwerks PW50BT 50W Bluetooth PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Powerwerks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Powerwerks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Powerwerks product will considerably shorten its lifespan!
|

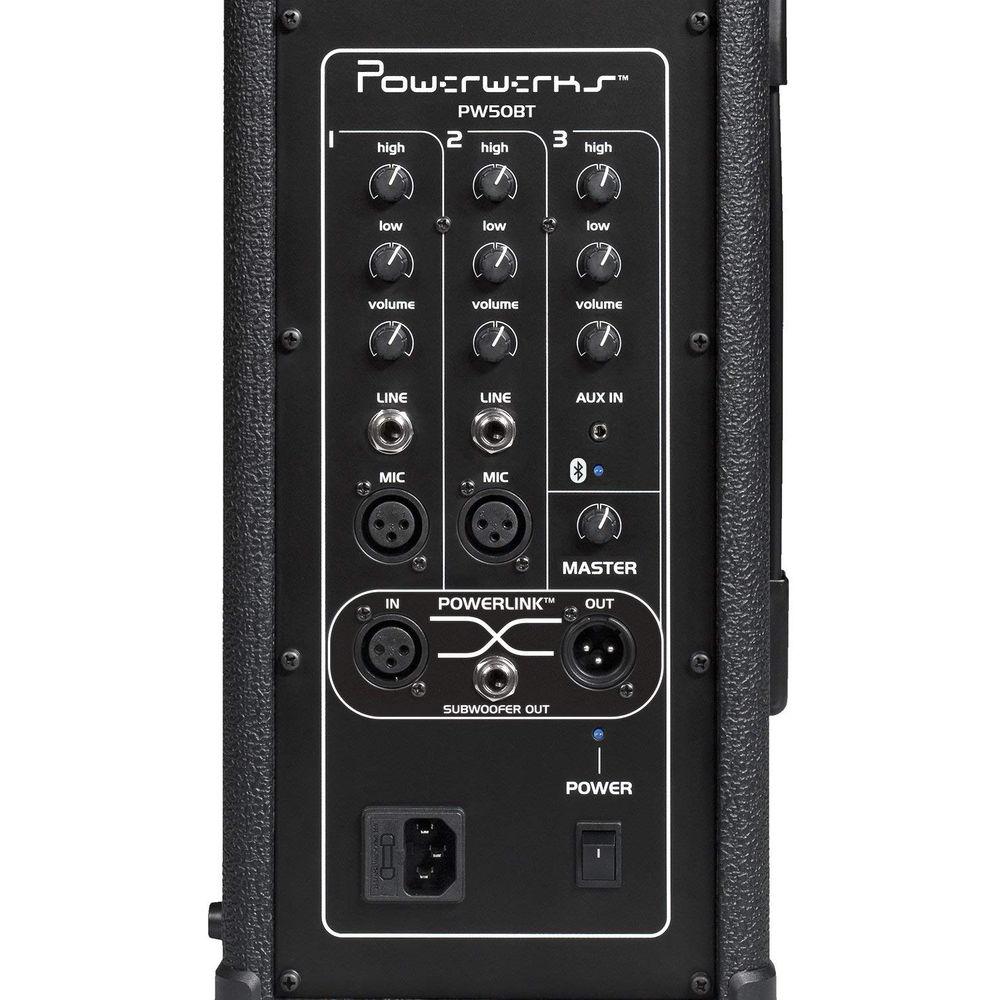

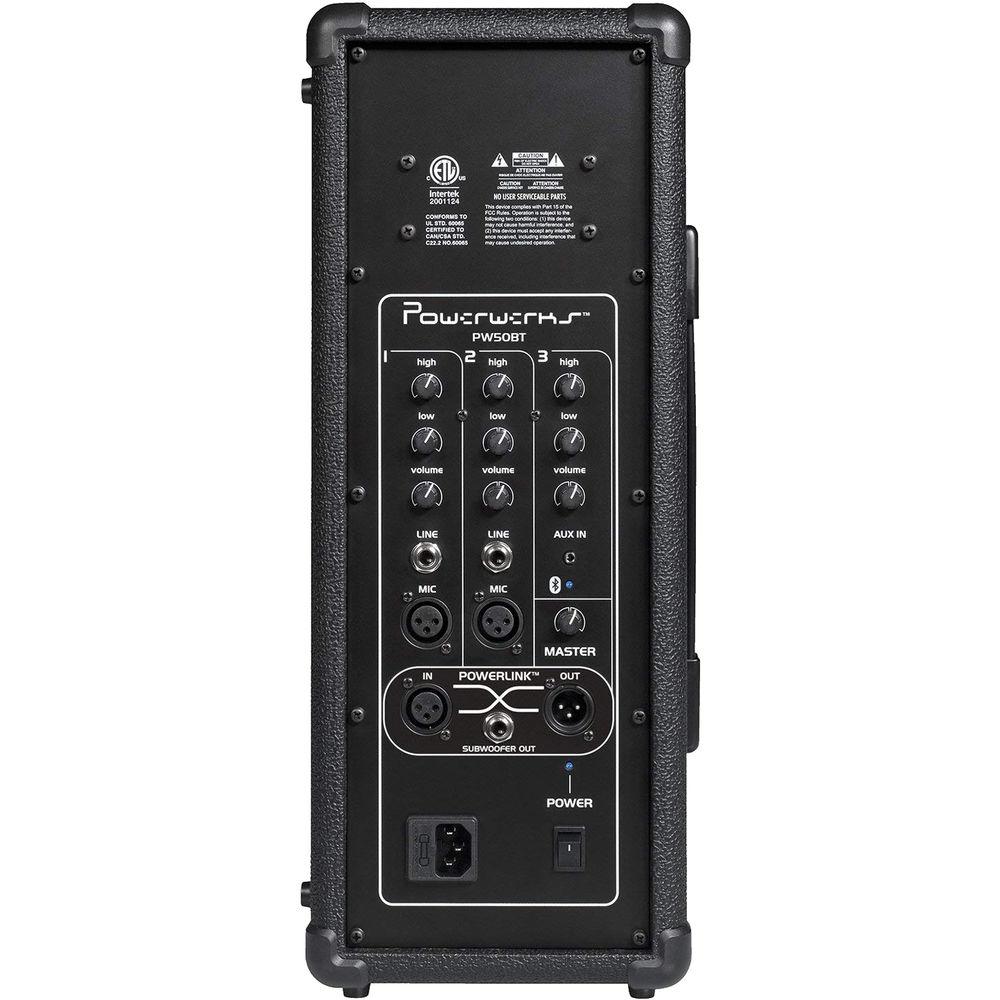

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More wtweffteeb The PW50BT 50W Bluetooth PA System from Powerwerks features two 4.5" woofers, a single horn with a 20mm titanium dome tweeter, three input channels, a subwoofer out, and phantom power on mic input channels 1 & 2. The portable package can be used in a variety of environments, amplifying vocals, instruments, keyboards, drum machines, and more. In addition, the built-in Bluetooth capability allows you to connect any Bluetooth-enabled device and stream audio wirelessly. With 50W of output power, the PW50BT delivers just the right combination of high and midrange sounds, ensuring your vocals cut through the mix while minimizing harsh and unwanted frequencies. The Powerlink circuit allows two or more units to be linked together and function as one PA system. The PW50BT is built with rigid corners and a heavy-duty steel grille. - 2 x 4.5" woofers and single 20mm titanium dome tweeter
- XLR mic and 1/4" instrument inputs per channel, both of which can be used simultaneously
- High and low EQ per channel
- 1/8" mini input for music, with high and low EQ
- Powerlink circuit allows you to link 2 or more units together, with independent volume control
UPC: 701963029267 In the Box Powerwerks PW50BT 50W Bluetooth PA System AC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Powerwerks PW50BT 50W Bluetooth PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPowerwerks PW50BT Specs | Output Power | 50 W @ 8 Ohms (1%) | | Inputs | Channel 1 and 2: Mic, balanced XLR and line level 1/4" / 6.3 mm unbalanced
Channel 3: 1/8" / 3.5 mm line level or Bluetooth device | | Frequency Response | 20 Hz to 20 kHz (actual response tailored to speaker cabinet for accurate acoustical response) | | Hum & Noise | -65 dB residual noise, all level controls 0% (minimum)
-48 dB nominal system noise, all level controls at 50% | | System Gain | (Measurements made at 1 kHz)
+70 dB Mic to speaker output (CH 1 & 2)
+56 dB Line to speaker output (CH 1 & 2)
+42 dB Aux in to speaker output | | Channel EQ | 4 kHz and above, 800 Hz and below (high, low) | | Power Linking | In and Out: Both jacks accept a balanced input and sends a pre-master volume output mix of channels.
Recommended Use: Linking two PW50BT's together | | Subwoofer Output | Line Out: 20 Hz to 150 Hz | | Phantom Power | +15 V mic inputs (Ch 1 & 2) | | Power Requirement | 120 VAC/60 Hz, 80 W nominal | | Speakers | 2 x 4.5" / 11.4 cm, 50 W, 4 Ohms each | | Horn | 0.8" / 2.0 cm titanium dome tweeter | | Power Capacity | 50 W RMS | | Frequency Response | 60 Hz to 20 kHz full range (subwoofer jack not used)
150 Hz to 20 kHz crossover active (1/4" / 6.3 mm mono plug in subwoofer jack) | | Nominal Impedance | 8 Ohms (not designed for external speakers) | | Bluetooth Module | Bluetooth 3.0+EDR compliant.
Typical +2 dBm Class 2 output power
Audio DAC: 94 dB SNR.A2DP profile support | | Dimensions (W x H x D) | 7.5 x 18.0 x 6.5" / 19.1 x 45.7 x 16.5 cm | | Weight | 14.7 lb / 6.7 kg |
