Pre-view Panoramic System for Canon DSLR

Search your instruction manual in PDF to download

User Manual for Pre-view Panoramic System for Canon DSLR Cameras

Click to enlarge the picture
Pre-view Panoramic System for Canon DSLR Cameras Contents of the user manual for the Pre-view Panoramic System for Canon DSLR
  • Product category: Special Effects Lenses Pre-view
  • Brand: Pre-view
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Pre-view Special Effects Lenses

Pre-view Panoramic System for Canon DSLR Cameras Pre-view Panoramic System for Canon DSLR Cameras Pre-view Panoramic System for Canon DSLR Cameras Pre-view Panoramic System for Canon DSLR Cameras
User manual for the Pre-view Panoramic System for Canon DSLR contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Pre-view product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Pre-view user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Pre-view product will considerably shorten its lifespan!



Product description

Anita Kram Explores the Magic of Nature with Lensbaby Lenses Read More
  • Product Demo

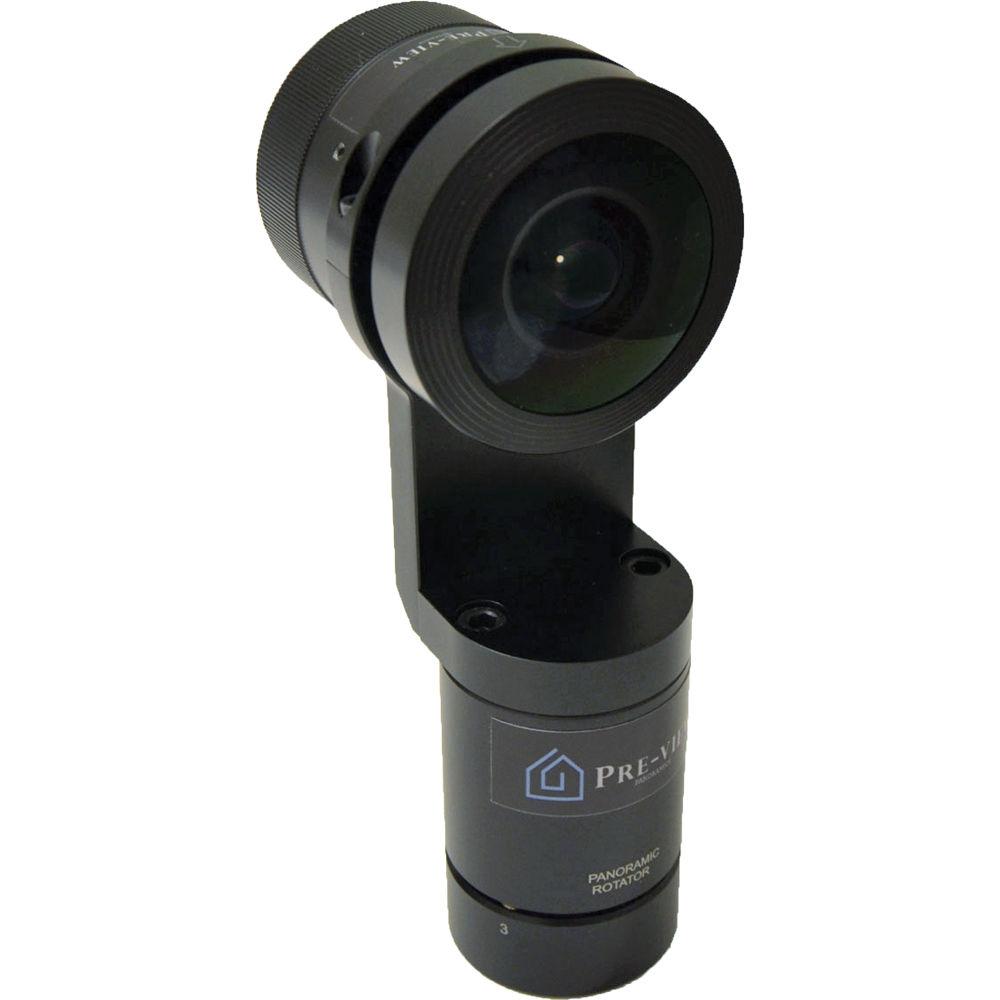

The Pre-View Panoramic System for Canon DSLR Cameras is a complete solution for creating high-resolution 360° panoramic images with just three exposures. The system utilizes a fisheye lens with 185° field of view that is attached to a three-stop rotator to easily guide you throughout the shooting process to record the individual images at the necessary angles in order to achieve a full panoramic image.

Once the images have been recorded, the included Ebot software provides an intuitive interface for stitching together the three recorded images into a single seamless panoramic image. Additionally, the Ebot software integrates a floor plan and mapping hotspot linking feature in order to navigate through a series of panoramas of a single location.
    Panoramic System
  • The system revolves around a three-part process, involving a fisheye lens, a three-stop rotator, and a proprietary software program. The lens provides a wide angle of view that is ideal for recording broad perspectives suited for any type of location. The three stop rotator is attached to the lens and allows you to easily place the lens within defined intervals for capturing three successive images to render a seamless 360° panoramic image. The Ebot software takes the recorded images and transforms them into a single image that encompasses a full view of a location from a single position.
    Fisheye Lens

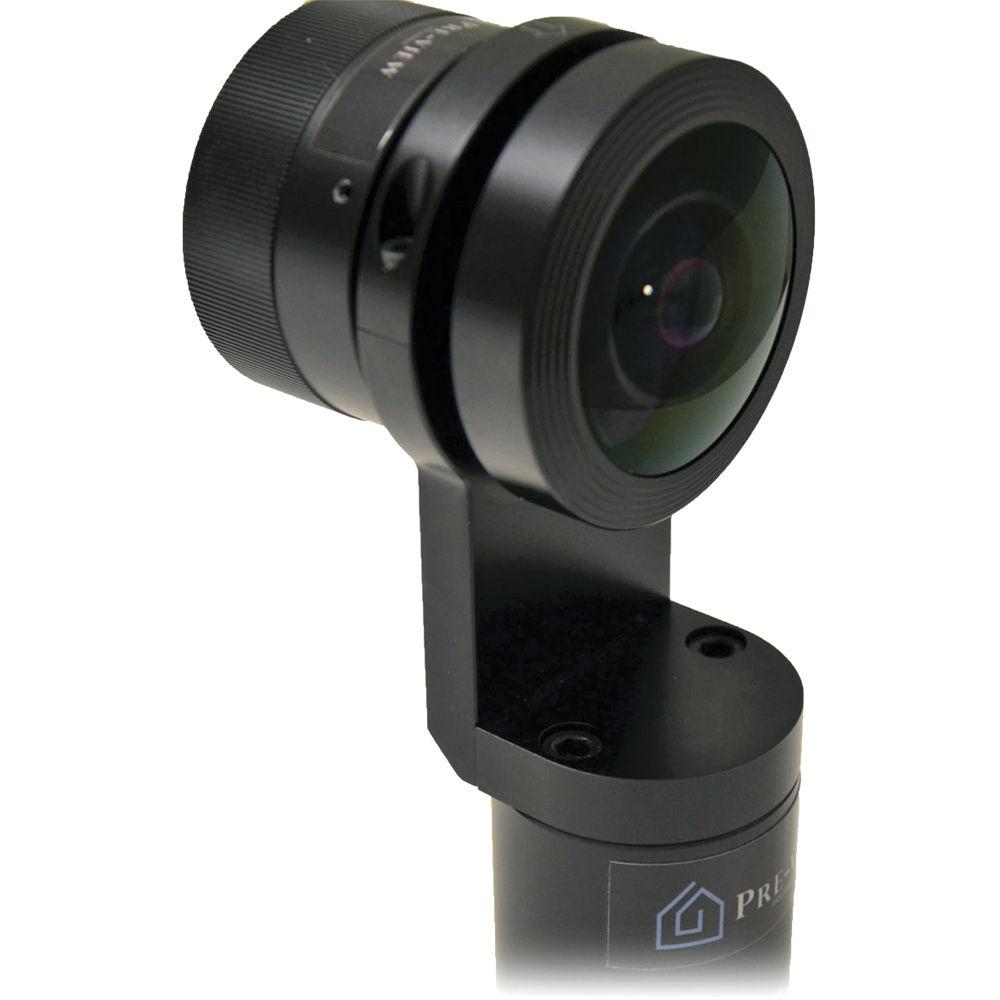

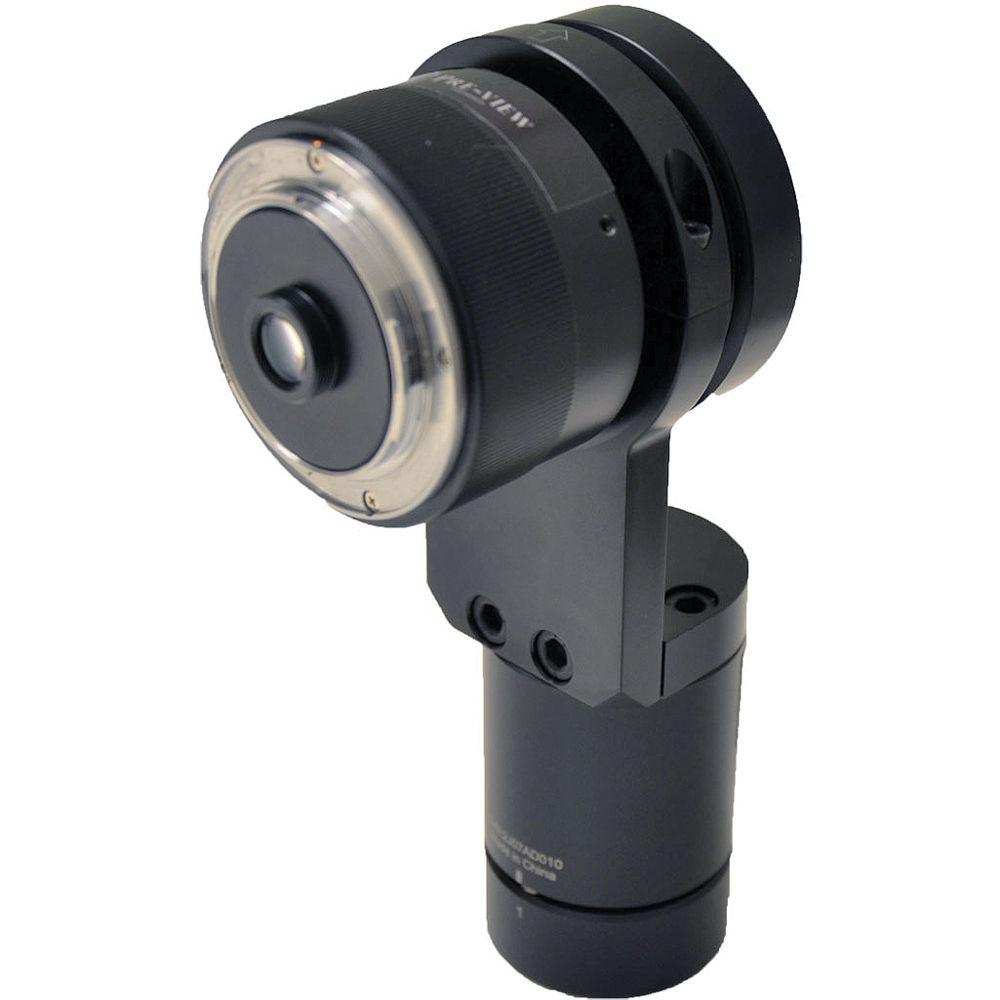

  • The 5.6mm f/5.6 lens has a 185° field of view, covering an extremely wide perspective to gain the most information possible of a scene from a single position. The lens has a fixed f/5.6 aperture and a fixed focus design that renders everything in focus from 1.6' to infinity. The lens is fitted with a Canon EF mount and is compatible with all Canon DSLRs.
    Three-Stop Rotator

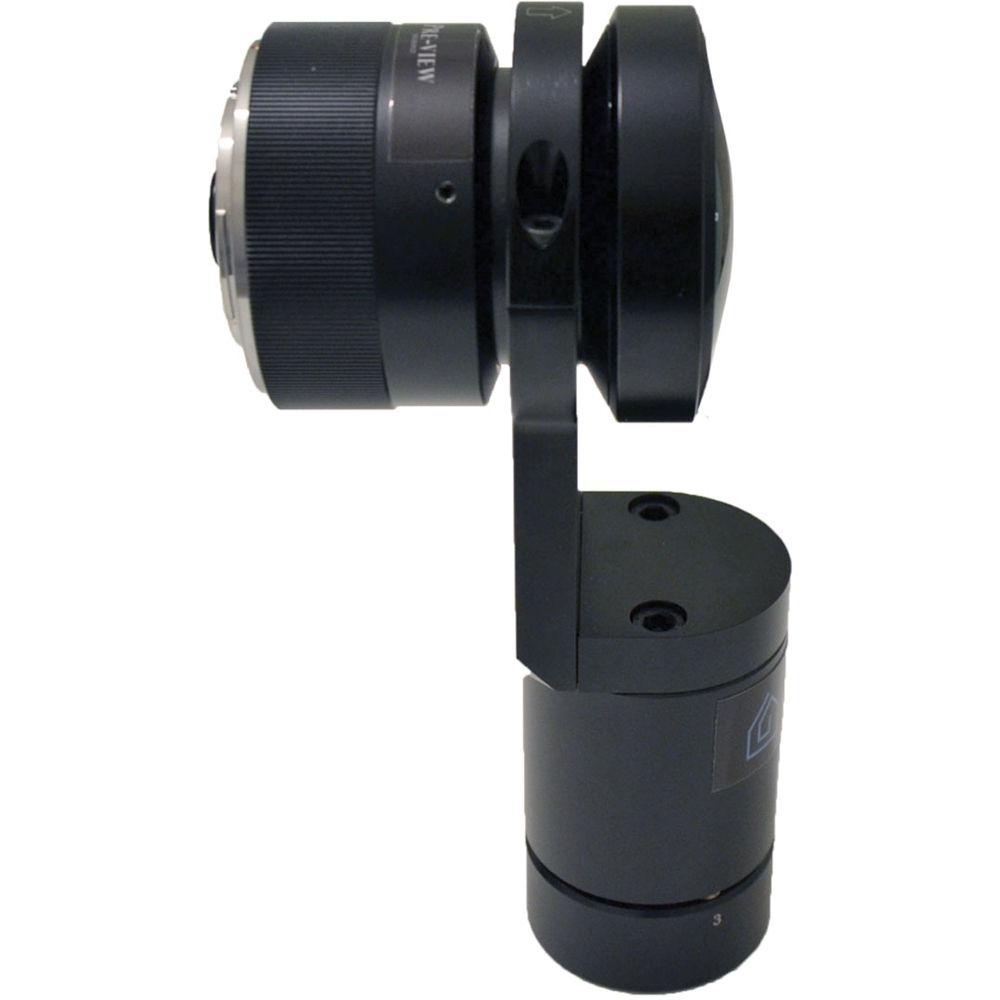

  • This rotator is pre-attached to the fisheye lens and has three click stops to properly direct the lens in a series of intervals for recording all of the views needed for a fully-detailed high-resolution panoramic image. The rotator can be attached to any set of tripod legs using either a 1/4"-20 or 3/8"-16 screw.
    Ebot Software
  • This software program is able to easily convert the three recorded images into a single seamless panoramic image to provide a full 360° perspective of a location. Additionally, the software can apply hotspots within the image that can be clicked on to bring the viewer to another image in order to create a virtual tour of a larger scene. By linking images in this manner, the viewer can gain a better understanding of a large location through a series of linked 360° views.
In the Box Pre-view Panoramic System for Canon DSLR Cameras
  • Fisheye Lens
  • Three-Stop Rotator
  • USB Flash Drive with Ebot Software (12-Month Software License)
  • Quick start Guide PDF 833.8kb Table of Contents




    Upload User Manual

    Have you got an user manual for the Pre-view Panoramic System for Canon DSLR Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Pre-view PV-C1 Specs

    Lens Mount Canon EF
    Focal Length 5.6 mm
    Aperture f/5.6 (fixed)
    Field of View 185°
    Image Circle 0.6" / 14.5 mm
    Focus Fixed focus from 1.6' / 50 cm to infinity
    Tripod Socket Both 1/4"-20 and 3/8"-16
    Dimensions 2.75 x 3.5" / 70 x 90 mm (lens only)
    Weight 2.9 lb / 1.3 kg
    Package Weight 2.5 lb
    Box Dimensions (LxWxH) 8.2 x 3.0 x 2.6"
