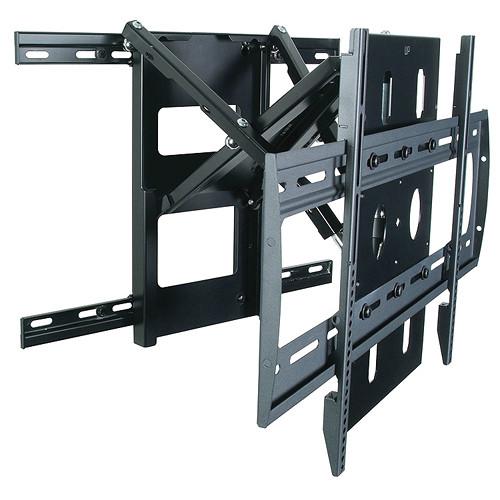

User Manual for Premier Mounts AM225F Extending Swivel Mount for Flat-Panel Displays up to 225 lb Click to enlarge the picture
Contents of the user manual for the Premier Mounts AM225F Extending Swivel Mount
- Product category: Monitor Wall Mounts Premier Mounts
- Brand: Premier Mounts
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Premier Mounts Monitor Wall Mounts
|
User manual for the Premier Mounts AM225F Extending Swivel Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Premier Mounts product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Premier Mounts user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Premier Mounts product will considerably shorten its lifespan!
|
Product description The Premier Mounts AM225F Extending Swivel Mount for Flat-Panel Displays features a scissor-style movement mechanism that extends the mount 20" straight from the wall and holds your flat-panel display weighing up to 225 lb.
Thanks to the open design, routing cables and access to power receptacles is simple and clean. The vertical alignment notch enables you to place the flat-panel at the ideal viewing height. Additionally, the post-installation leveling system lets you to perfectly adjust the placement of your TV screen, even after it is installed. - Open design allows for easy cable routing and access to power receptacles
- Vertical alignment notch aids in placing flat-panel at the correct viewing height
- Capture screws secure flat-panel to wall plate
- Scissor-style mount pulls out 20" straight from the wall
- Post installation leveling enables fine tuned vertical adjustment even after setup
- Mounting kit includes wood, concrete and steel stud attachment hardware
- Built-in lateral shift offers flexible placement of flat-displays
- Universal mounting hardware included
UPC: 829973817381 In the Box Premier Mounts AM225F Extending Swivel Mount for Flat-Panel Displays up to 225 lb 2 x Wall Mounting Bracket 2 x Crosspiece Bracket 8 x M4 x 8mm Combo Phillips Screw 2 x M5 x 8mm Combo Phillips Screw 4 x M8 x 12mm Combo Phillips Screw 4 x M8 x 16mm Combo Phillips Screw 4 x 5/16" Flat Washer - Metal 4 x 5/16" x 3" Hex Lag Bolts M2.5 Allen Wrench Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Premier Mounts AM225F Extending Swivel Mount for Flat-Panel Displays up to 225 lb in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPremier Mounts AM225F Specs | | | Supported Weight Capacity | 225 lb / 102.3 kg | | Mounting-Hole Pattern | 200 x 200 to 815 x 525 mm | | Number of Displays Supported | 1 | | | | Swivel Adjustment | 45
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
