User Manual for Premier Mounts AM50-B Swingout Arm for Displays up to 50 lb Click to enlarge the picture
Contents of the user manual for the Premier Mounts AM50-B Swingout Arm for
- Product category: Monitor Wall Mounts Premier Mounts
- Brand: Premier Mounts
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Premier Mounts Monitor Wall Mounts
|
User manual for the Premier Mounts AM50-B Swingout Arm for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Premier Mounts product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Premier Mounts user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Premier Mounts product will considerably shorten its lifespan!
|

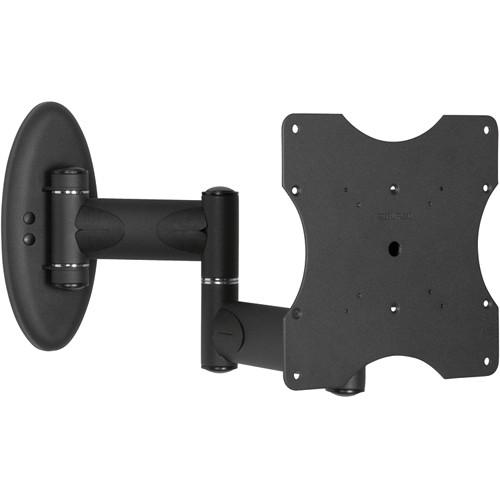

Product description The Premier Mounts AM50-B Swingout Arm (Black) is a full-articulation arm that allows you to mount and draw LCD displays up to 17” (431mm) from the wall. An UFP-280 adaptor plate supports VESA mounting up to 7 x 7” (200 x 200mm). Based on Radial Glide Technology, the Swingout Arm offers 180° swing, 360° rotation, and 15° tilt and offers a maximum load capacity of 50 lb (22 kg). Set screws secure the LCD Panel to a wall plate. In addition, the swingout arm offers cable management by hiding cables and avoiding cables pinching. - Full-articulation arm that allows you to mount and draw LCD displays up to 17" (431mm) from the wall
- An UFP-280 adaptor plate supports VESA mounting up to 7 x 7" (200 x 200 mm)
- Based on Radial Glide Technology
- Offers 180° swing, 360° rotation, and 15° tilt offering improved viewing angles
- Set screws secure the LCD Panel to a wall plate
- Maximum load capacity of 50 lb (22 kg)
- Provides a clutter free environment by hiding cables and avoids cables pinching
- Features adjustable tension head and arm joints
UPC: 829973101657 In the Box Premier Mounts AM50-B Swingout Arm for Displays up to 50 lb (Black) Wall Plate UFP-280 Adaptor Plate 4 x M4 Flat Washers 4 x M5 Flat Washers Thread Depth Indicator M3 Allen Wrench 14mm Socket 4 x 5/16" Concrete Wedge Anchors 30 x Universal Spacers 4 x 14 x 2" Wood Screws 6 x M4 x 10mm Flat Head Screw 4 x M5 x 10mm Screw 6 x M4 x 16mm Flat Head Screw 4 x M5 x 16mm Screw 6 x M4 x 20mm Flat Head Screw 4 x M5 x 20mm Screw 6 x M4 x 30mm Flat Head Screw 4 x M5 x 30mm Screw 6 x M4 x 45mm Flat Head Screw 4 x M5 x 45mm Screw 4 x M6 x 10mm Screw 4 x M4 x 5mm Screw 4 x M6 x 16mm Screw 4 x M4 x 10mm Screw 4 x M6 x 20mm Screw 4 x M6 x 30mm Screw 4 x M6 x 45mm Screw Limited Lifteime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Premier Mounts AM50-B Swingout Arm for Displays up to 50 lb in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPremier Mounts AM50-B Specs | | | Supported Weight Capacity | 50 lb / 22.7 kg | | Mounting-Hole Pattern | 75 x 75 to 200 x 200 mm | | Number of Displays Supported | 1 | | | | Orientation | Landscape, Portrait | | | | Package Weight | 11.55 lb | | Box Dimensions (LxWxH) | 11.3 x 10.7 x 5.7" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
