User Manual for Premier Mounts LMV Video Wall Flat-Panel Framing System Click to enlarge the picture
Contents of the user manual for the Premier Mounts LMV Video Wall Flat-Panel
- Product category: Monitor Wall Mounts Premier Mounts
- Brand: Premier Mounts
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Premier Mounts Monitor Wall Mounts
 |
User manual for the Premier Mounts LMV Video Wall Flat-Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Premier Mounts product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Premier Mounts user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Premier Mounts product will considerably shorten its lifespan!
|

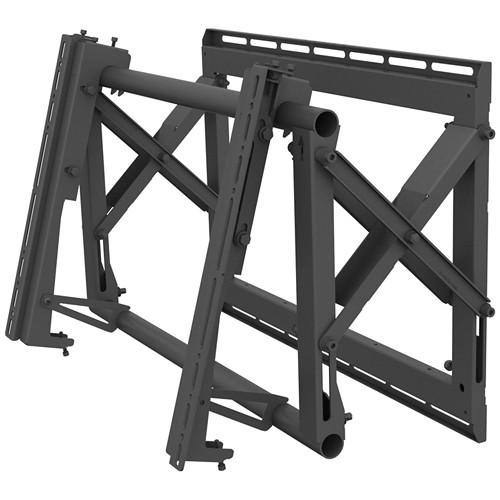

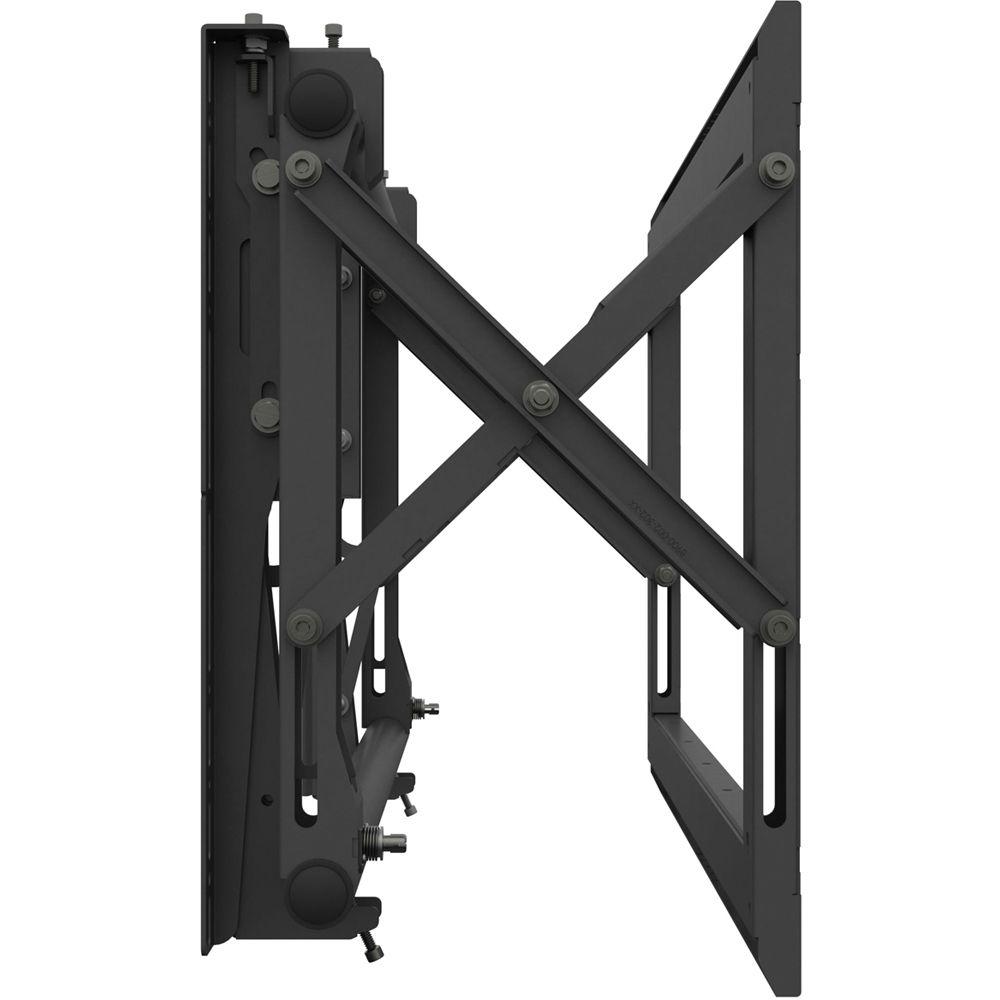

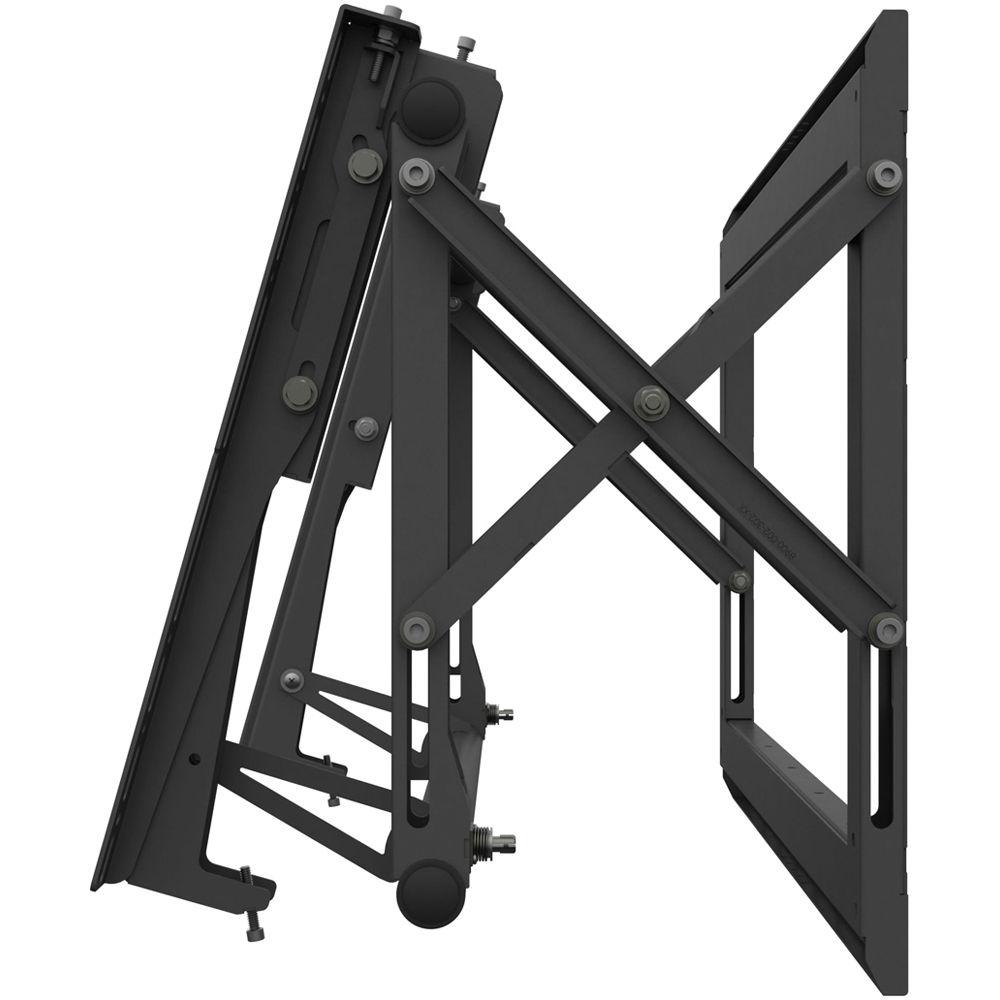

Product description The Premier Mounts LMV Video Wall Flat-Panel Framing System is a customizable video wall mounting system with an open design and custom spacers and is capable of multi-monitor stacking. This system is designed to support most flat-panel displays weighing up to 160 lb. An extending scissor mount with a pull-out base frame ensures easy access when individual displays need to be serviced.
Not all walls are perfectly flat, and hence the framing system comes with top-adjustable mounting brackets, with three labeled adjustment points on each arm, to fine-tune alignment on the x, y, and z planes. Additionally, multi-monitor stacking allows for a customized video wall mounting system while model-specific spacers streamline individual display alignment.

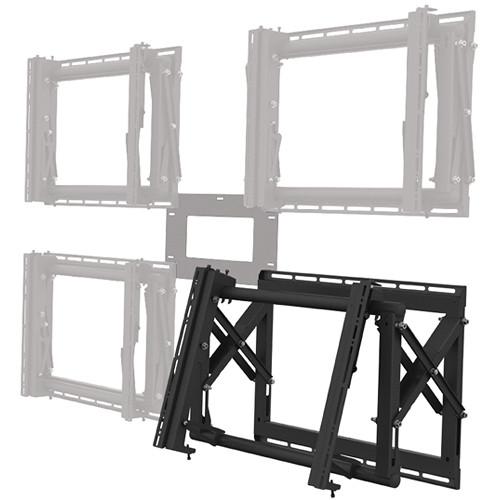

Designed to take the guesswork and extra time out of large scale permanent installations, the LMV’s design is based on modularity. Once the first frame of the system is level, all other frames integrate and instantly level to each other and the frame can be set up in minutes. Spacers are custom designed for specific flat panels. - Maximum weight capacity of 160 lb
- Mounting pattern ranges from 200 x 200 to 600 x 400
- Installation of the LMV is expedited because once the first frame is level, all other frames integrate and instantly level to each other
- All mounting bracket are top-adjustable, with a total of 6 points of adjustment to align the flat-panel display
- Custom spacers designed to match specific flat-panels
UPC: 829973101848 In the Box Premier Mounts LMV Video Wall Flat-Panel Framing System Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Premier Mounts LMV Video Wall Flat-Panel Framing System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPremier Mounts LMV Specs | Load Capacity | 160 lb (72.6 kg) | | Design | Open | | Mounting Pattern Type | Range | | Extension | 4.88 - 12.03" (12.39 - 30.56 cm) | | Mounting Pattern | 200 x 200 (minimum) - 600 x 400 (maximum) | | Dimensions (H x W x D) | 19 x 28.49 x 4.88" (48.26 x 72.36 x 12.4 cm) | | Weight | 45 lb (20.41 kg) | | | | Package Weight | 44.6 lb | | Box Dimensions (LxWxH) | 35.0 x 23.5 x 5.25" |
