User Manual for Premier Mounts LMVP Portrait Mode Video Wall Flat Panel Framing System Click to enlarge the picture
Contents of the user manual for the Premier Mounts LMVP Portrait Mode Video
- Product category: Monitor Wall Mounts Premier Mounts
- Brand: Premier Mounts
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Premier Mounts Monitor Wall Mounts
 |
User manual for the Premier Mounts LMVP Portrait Mode Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Premier Mounts product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Premier Mounts user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Premier Mounts product will considerably shorten its lifespan!
|

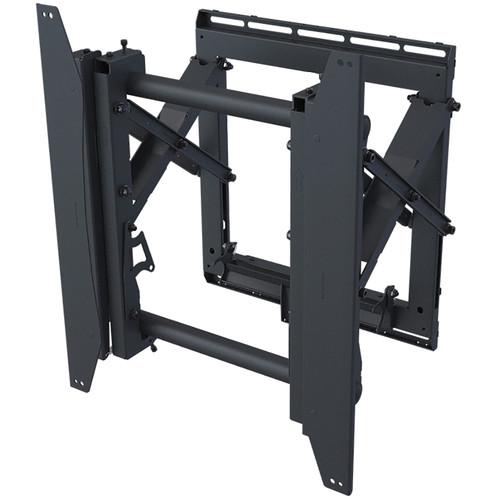

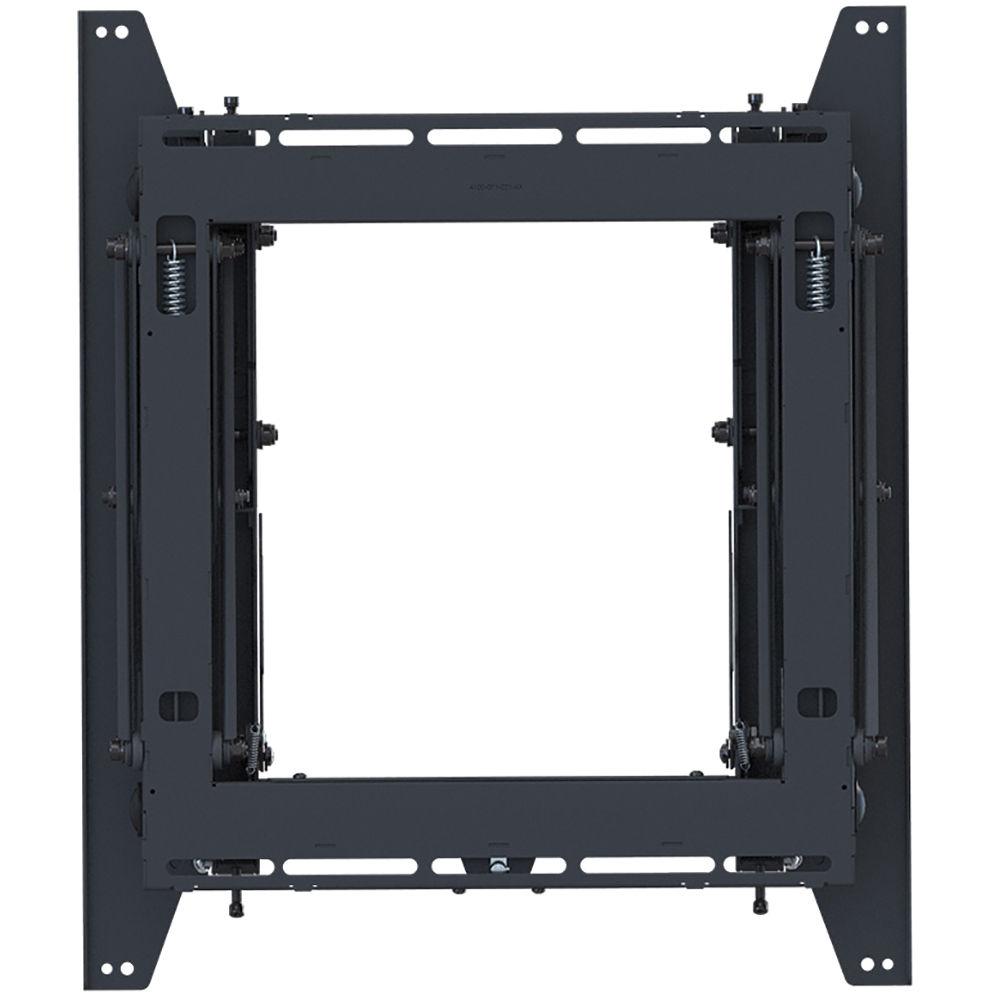

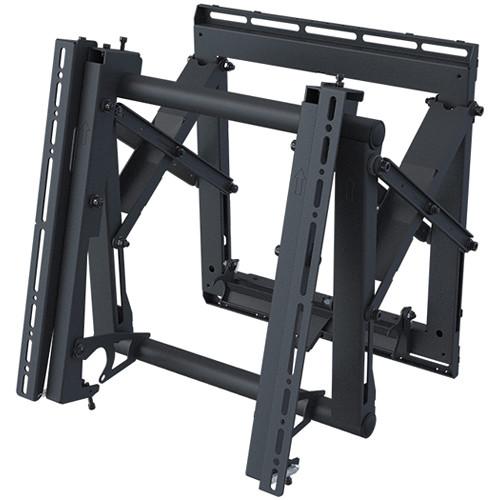

Product description The black LMVP Portrait Mode Video Wall Flat Panel Framing System from Premier Mounts offers a customizable and extending video wall mounting solution for flat panel displays in portrait orientation. It supports displays up to 160 lb with a VESA mounting pattern of 200 x 200 to 600 x 400mm. It features multi-monitor stacking, spring-loaded release, open design, custom spacers, top adjustable mounting brackets, and an extending scissor-style mount for easy installation, cable management, and servicing. - Pop-out mount in portrait orientation
- Press & Release design for easy service access
- Laser cut and precision-design spacers ensure seamless alignment without the need for time-consuming adjustments
- "Click-It" locking feature confirms secure locking of the display through an audible noise

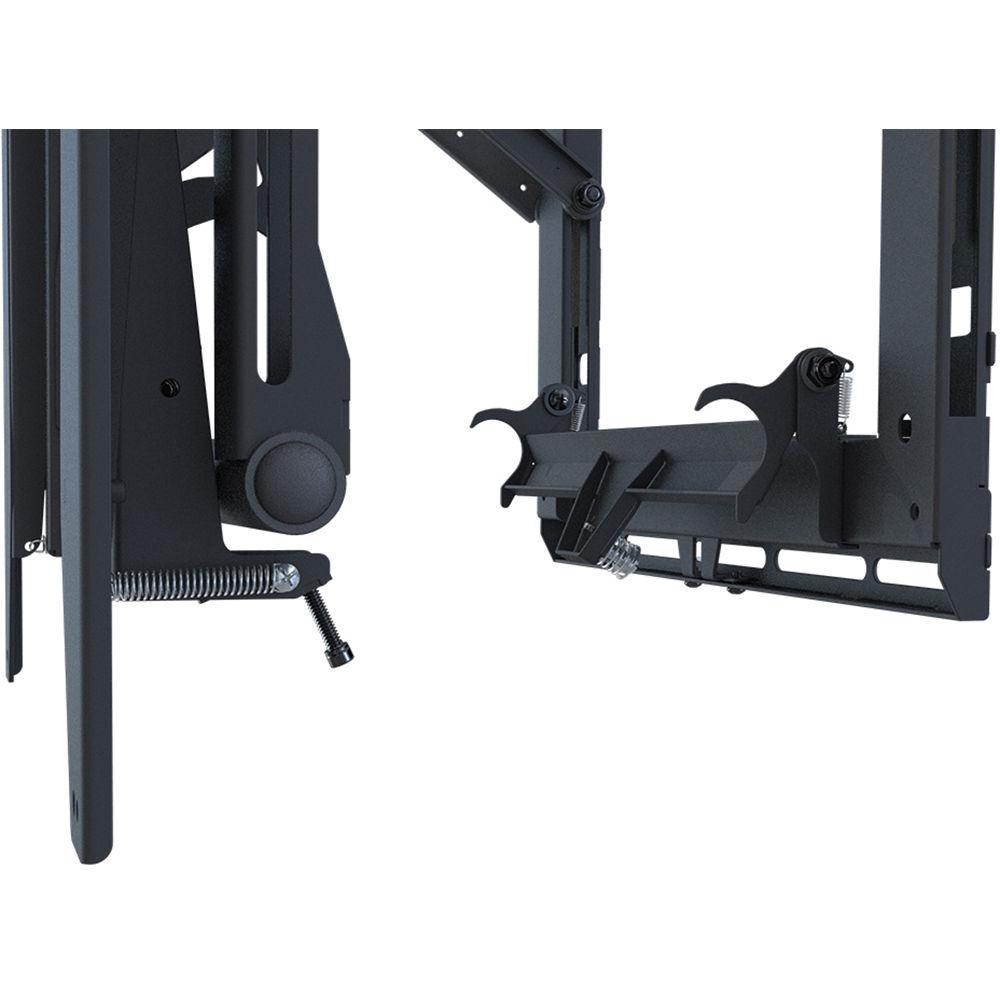

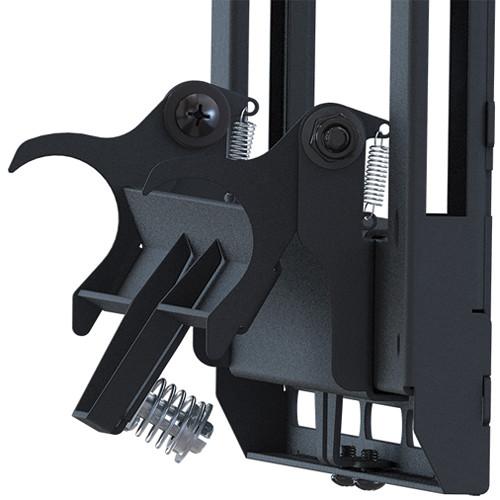

- Spring-loaded locking mechanism provides quick release from locked position
- Single latch design and smaller base frame size provide quick and easy installation
- Top-adjustable and fine-tune mounting brackets ensure post-installation alignment

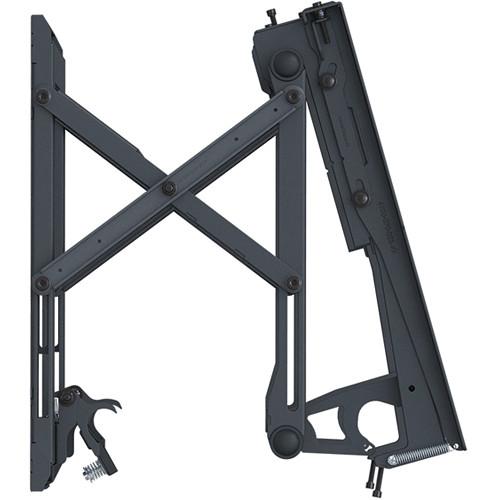

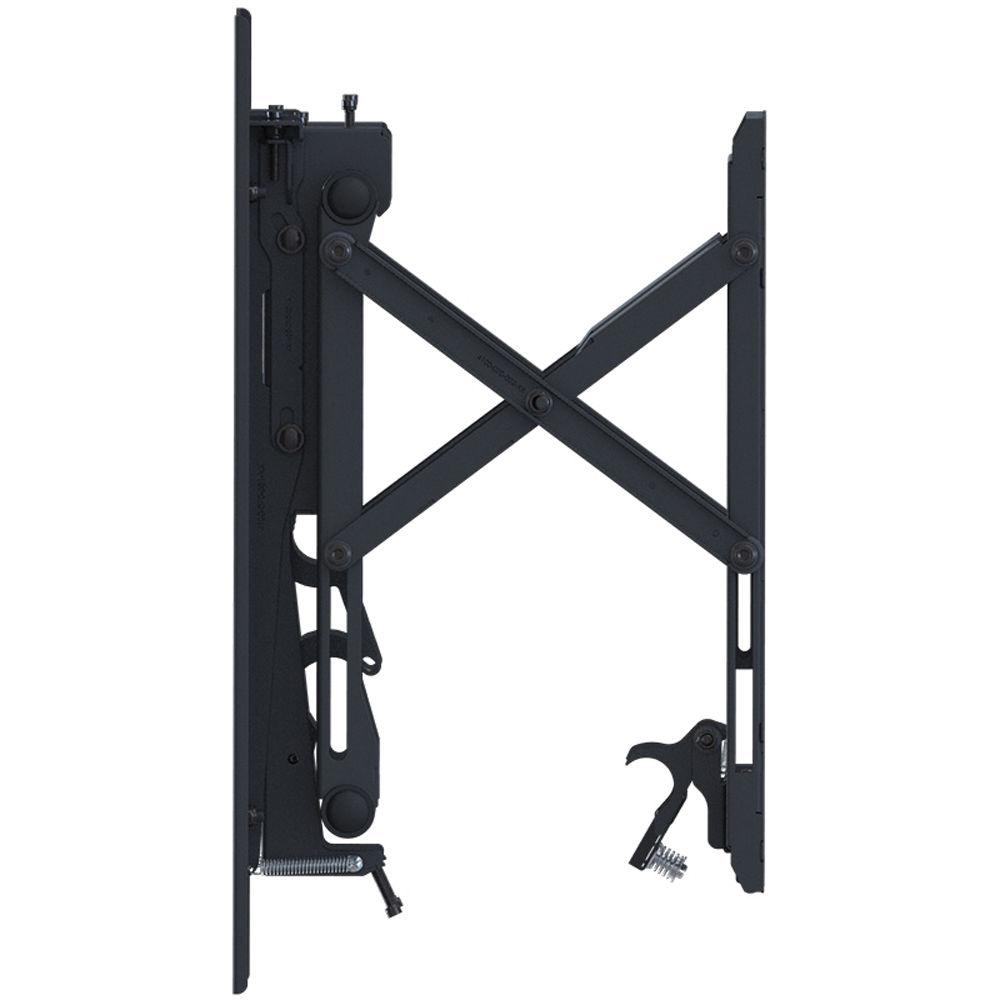

- Scissor design with compact mounting arms allows for extension in one smooth motion with a slight press to the display edge
- Tilt and in-out adjustment knobs make it easy to flush and level the mounted flat panel display for a seamless video wall
- Allows for easy cable access and power distribution installations
- Locking safety screws prevent the flat-panel from being removed or dislodged from the mount
- Lock-It security barrel (available separately) can be used for added protection
- Flat panel can be propped up with the kickstand for easy maintenance
UPC: 829973809805 In the Box Premier Mounts LMVP Portrait Mode Video Wall Flat Panel Framing System (Black) Mounting Hardware Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Premier Mounts LMVP Portrait Mode Video Wall Flat Panel Framing System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPremier Mounts LMVP Specs | Display Range | 37.0 to 63.0" (93.9 to 160.0 cm) | | Total Capacity | 160.0 lb (72.7 kg) | | VESA Mounting | Minimum: 200 x 200 mm
Maximum: 600 x 400 mm | | Mounting Pattern Type | Range | | Dimensions (W x H x D) | 20.78 x 24.70 x 13.42" (52.79 x 62.74 x 34.08 cm) when fully extended
20.78 x 24.70 x 5.14" (52.79 x 62.74 x 13.05 cm) when fully collapsed | | Weight | 43.0 lb (19.5 kg) |
