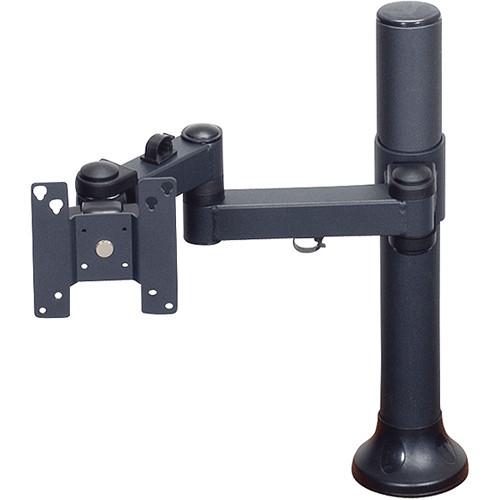

User Manual for Premier Mounts MM-AH151 Single Display Articulating Arm on 15" Tube with Grommet Base Click to enlarge the picture
Contents of the user manual for the Premier Mounts MM-AH151 Single Display Articulating
- Product category: Monitor Table Top Stand Mounts Premier Mounts
- Brand: Premier Mounts
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Premier Mounts Monitor Table Top Stand Mounts
|
User manual for the Premier Mounts MM-AH151 Single Display Articulating contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Premier Mounts product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Premier Mounts user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Premier Mounts product will considerably shorten its lifespan!
|
Product description The Premier Mounts MM-AH151 Single Display Articulating Arm on 15” Tube with Grommet Base includes a single monitor mount with articulating arm and a 15” (38.1 cm) single pole with horseshoe grommet base. The grommet base fits any 2-1/8” cable routing hole, standard in standard office desks, cubicles, or industrial consoles. Each mounting head provides 90° of omni-directional movement. Included set screws allow the mount to be positioned anywhere along the pole. - Premier Mounts Single Display Articulating Arm (Black) The Premier Mounts Single Display Articulating Arm (Black) features an articulating arm with a mounting head for setting up multi-monitor configurations, without sacrificing valuable desktop space. The mounting head allows up to 90º omni-directional movement for adjusting the viewing angle. You can also adjust the position of the mount along the length of the pole.
This articulating arm can be mounted on to the MM-CP, MM-EP and MM-HP 2" poles. - 90° omni-directional movement and 360° rotation to achieve the optimum viewing angle
- Keyhole mounting slots for easily attaching displays to the arm
- Set screws allow the mount to be positioned anywhere along a pole
- Cable management tabs on the arm protect and organize the wires for a clean finish
- Compatible with VESA 75 x 75 or 100 x 100mm mounting pattern
- Mounts on to MM-CP, MM-EP and MM-HP series 2" poles
UPC: 829973720001 - Premier Mounts 15" Single Pole with Horseshoe Grommet Base The Premier Mounts 15" Single Pole with Horseshoe Grommet Base enables multi-monitor installation in office cubicles or industrial consoles. Additionally, it features a through counter base that allows cables and power to be routed through a solid surface. The grommet base attaches to the 2.12" standard hole on desks in office premises. UPC: 829973720070
In the Box - Single Display Articulating Arm (Black) txtfrzxqvwucvrvzsbdedsezfwyquyzxcfavtr
- 4 x M4 x 10mm Combo Screws
- Socket Wrench
- 6mm Allen Key
- 5/32" Allen Key
- Limited Lifetime Warranty
- 15" Single Pole with Horseshoe Grommet Base
Table of Contents
|
Upload User Manual
Have you got an user manual for the Premier Mounts MM-AH151 Single Display Articulating Arm on 15" Tube with Grommet Base in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Premier Mounts Single Display Articulating Arm (Black)
| Number of Displays | 1 | | Mounting-Hole Pattern | 75 x 75 mm, 100 x 100 mm | | Maximum Screen Size | 24" / 61.0 cm | | Minimum Screen Size | 10" / 25.4 cm | | Bracket Load Capacity | 20 lb / 9.1 kg | | Rotation Adjustment | 360° | | Swivel Adjustment | 180° | | Tilt Adjustment | -90 to 90° | | Weight | 5.1 lb / 2.3 kg | | | | Box Dimensions (LxWxH) | 19.6 x 6.4 x 4.8" | - Premier Mounts 15" Single Pole with Horseshoe Grommet Base
| Weight Capacity | 75 lb (34 kg) | | Length | 15" (381 mm) | | Pole Diameter | 2" (51 mm) | | Weight | 4.2 lb (1.9 kg) | | | | Box Dimensions (LxWxH) | 18.5 x 4.3 x 4.1" |
