User Manual for Premier Mounts MM-AH286 2 Triple Display Arms on 28" Pole with Grommet Base Click to enlarge the picture
Contents of the user manual for the Premier Mounts MM-AH286 2 Triple Display
- Product category: Monitor Table Top Stand Mounts Premier Mounts
- Brand: Premier Mounts
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Premier Mounts Monitor Table Top Stand Mounts
 |
User manual for the Premier Mounts MM-AH286 2 Triple Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Premier Mounts product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Premier Mounts user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Premier Mounts product will considerably shorten its lifespan!
|

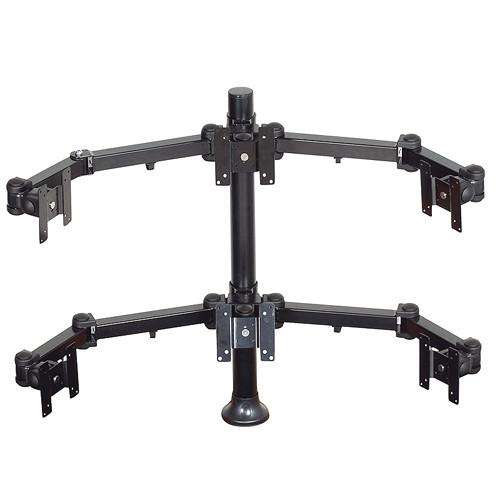

Product description The Premier Mounts MM-AH286 2 Triple Display Arms on 28" Pole with Grommet Base allows you to mount up to 6 (10 to 22”) monitors on to a single display unit without sacrificing valuable desktop space.

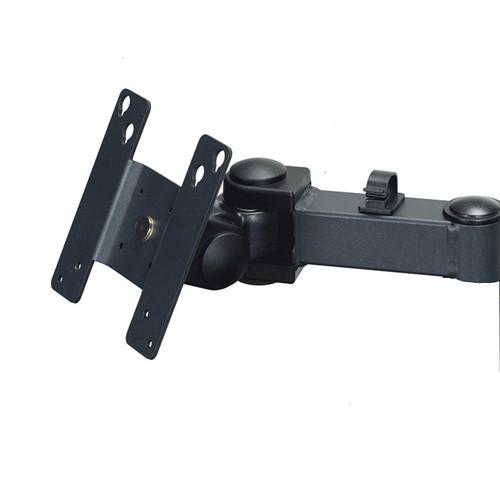

The position of each arm can be adjusted along the length of the pole and fixed with the set screws. Each arm has 3 standard VESA (75 x 75 or 100 x 100mm) mounting heads for attaching the monitors. The mounting heads offer 90º omnidirectional movement and 360° rotation, so you can adjust the orientation of the monitors to obtain the optimum viewing angle.
The horseshoe grommet base of the 28" (71.12 cm) pole fits any standard 2.13" (54mm) cable routing hole on a standard office desk, cubicle, or an industrial console. To give a clean finish to the installation, the monitor cables can be routed through a solid mounting surface via the 28" (71.12 cm) pole. - Each of the 2 triple articulating arms features 3 mounting heads
- Mounts up to 6 monitors on to a single display unit for optimal space utilization
- 90° omnidirectional movement and 360° rotation to achieve the optimum viewing angle
- 75 x 75 or 100 x 100mm VESA mounting heads
- Keyhole mounting slots for easily attaching displays to the mounting head

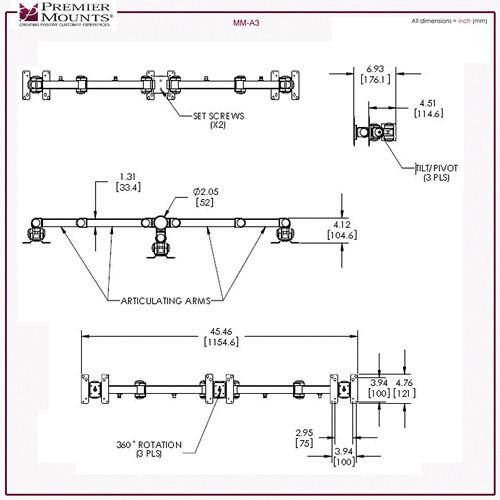

- Set screws allow the mounting arms to be positioned anywhere along the 28" pole
- Monitor cables can be routed via the horseshoe grommet base through any solid surface
- Cable management tabs on the arm protect and organize the wires for a clean finish
In the Box Premier Mounts MM-AH286 2 Triple Display Arms on 28" Pole with Grommet Base Mounting Hardware Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Premier Mounts MM-AH286 2 Triple Display Arms on 28" Pole with Grommet Base in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPremier Mounts MM-AH286 Specs | Display Range | 10 to 22" (25 to 56 cm) | | Viewing Adjustments | Tilt: ±90°
Pivot: ±90°
Rotate: 360° | | Mounting Pattern Type | Fixed | | Mounting Pattern | Standard VESA 75 x 75, 100 x 100 mm | | Pole Diameter | 2" (51 mm) | | Length | 28" (71.12 cm) | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 24.0 x 10.0 x 10.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
