Premier Mounts PBC-FCTA-QL Projector Mount Kit

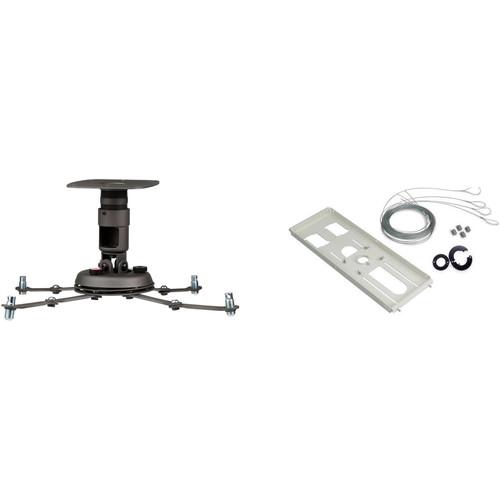

User Manual for Premier Mounts PBC-FCTA-QL Projector Mount Kit with False Ceiling Adapter and Quick Lock Cable

• Product category: Projector Mounts Premier Mounts
• Brand: Premier Mounts
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Premier Mounts Projector Mounts

Product description

• Premier Mounts PBC-UMS Universal Projector Mount (Dark Gray) Premiere Mounts' PBC-UMS Universal Projector Mount with 1.5" Coupler (Dark Gray) fits most projectors weighing less than 60 lb and installs easily on flat, angled, or cathedral ceilings. Unique leveling barrels adapt to any mounting surface for a perfectly level installation despite pitched ceilings.

  Four double-jointed support arms on the adapter flexibly span most screw hole patterns, including irregularly-spaced ones. The hinged arms can also be angled away from lamp and filter access panels, simplifying projector maintenance.

  An adjustable height channel uses standard 1.5" threaded pipe that can accept an extension column for height adjustment of your projector. The PBC-UMS offers 360° rotation and more than ±20° roll and pitch adjustment, making it easy to align your projector.
  Easy Alignment
  • You can rotate your projector a full 360° while separately adjusting pitch and roll more than 20° in either direction.
  Uses Standard National Tapered Pipe
  • The PBC-UMS connects with industry-standard 1.5" threaded pipe for custom-height installations and professional compatibility. If 12.5" of vertical extension isn't enough, you can buy separate orders of NTP-1.5 X Custom length pipe to suit your needs.
  Mount on Nearly Any Ceiling or Wall
  • Premier Mounts offers a wide range of accessories (sold separately) to handle special situations including suspended and concrete ceilings and even wall mounting. Right out of the package the Universal Mount can install on traditional, vaulted, or cathedral ceilings using the included vertical extender and leveling barrel technology.
  Cable Management
  • Wires can be passed through the center channel to conceal them and keep them out of harm's way.
  UPC: 829973203047
• Premier Mounts Hidden False Ceiling Adapter The Premier Mounts Hidden False Ceiling Adapter provides everything you'll need for a clean projector installation with the support plate hidden inside your drop ceiling. Intended for NPT 1.5" pipe, once installed the adapter allows 9" (22.8 cm) of lateral movement in relation to the projector screen. The kit includes mounting hardware, black and white escutcheon rings and hole cutter.
  • Sits above ceiling tile for a hidden installation.
  • 9" of continuous movement allows for precise placement of a projector.
  • Moveable 1.5" pipe coupler offers easy relocation without dragging your entire toolbox into the rafters with you.
  • Unique electrical knockouts accept almost any electrical box.
  • Includes four 25' steel braided cables with quick locking adapters.
  • Supports up to 50 lbs.
  • Comes with T-bar plate, four 25' braided cables with looped ends, four quick locks.
  • Includes 1.5" ceiling tile escutcheon ring w/ hole cutter (1 black / 1 white).
  UPC: 829973259365

• PBC-UMS Universal Projector Mount (Dark Gray) fywdrraffwuqrzrr
• Upper Assembly
• Universal Mounting Bracket
• 3 x #14 Wood Screws
• 4 x M3 x 16mm Phillips Head Screws
• 4 x M3 Flat Washers
• 4 x M5 Hex Head Screws
• 4 x M4 Hex Head Screws
• 4 x Plastic Barrel Caps
• 4 x M6 Hex Head Screws
• M3 Allen Wrench
• M5 Allen Wrench
• Green Level
• Lifetime Warranty

• Hidden False Ceiling Adapter fywdrraffwuqrzrr

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Premier Mounts PBC-UMS Universal Projector Mount (Dark Gray)

  Weight Capacity	60 lb / 27 kg
  Height	7" / 18 cm
  Pitch	+20.00° / -20.00°
  Roll	+20.00° / -20.00°
  Yaw	+360.00° / -360.00°
  Diameter	19" / 488 cm
  Depth From Mounting Source	2.5" / 6.35 cm
  Construction	Steel
  Dimensions	Arms: Up to 15.5" / 39.37 cm Diameter, Fully Extended Ceiling Plate and Adapter: 6.72 x 7.125 x 6.0 / 17.07 x 18.1 x 16.24 cm
  Weight	7.4 lb / 3.4 kg

  Box Dimensions (LxWxH)	14.4 x 10.0 x 7.6"

• Premier Mounts Hidden False Ceiling Adapter

  Construction	Aluminum
  Finish	White
  Dimensions	LxWxD: 23.75 x 8.43 x 1.26" (60.3 x 21.4 x 3.2 cm)
  Weight Capacity	50 lbs (22.6 kg)
  Weight	10 lbs (4.53 kg)

  Box Dimensions (LxWxH)	26.4 x 9.3 x 4.3"

Rating

Discussion
