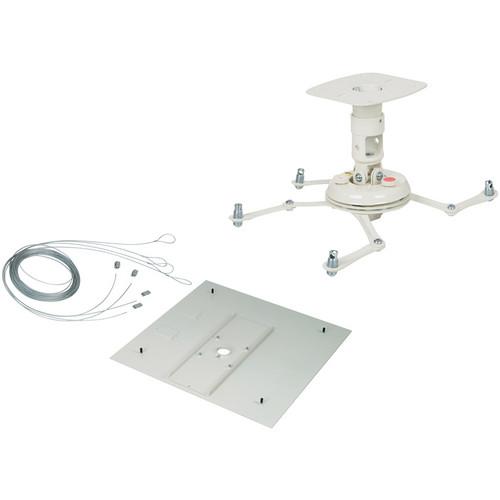

User Manual for Premier Mounts PBC-UMW Projector Mount with PP-FCMA-QL False Ceiling Adapter Kit Click to enlarge the picture
Contents of the user manual for the Premier Mounts PBC-UMW Projector Mount with
- Product category: Projector Mounts Premier Mounts
- Brand: Premier Mounts
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Premier Mounts Projector Mounts
|
User manual for the Premier Mounts PBC-UMW Projector Mount with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Premier Mounts product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Premier Mounts user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Premier Mounts product will considerably shorten its lifespan!
|
Product description The Premier Mounts PBC-UMW Projector Mount with PP-FCMA-QL False Ceiling Adapter Kit from B&H comprises of the PBC-UMW Universal Projector Mount and the PP-FCMA-QL False Ceiling Adapter with Quick lock function. It allows for precise placement and positioning, and provides stable support to the projector.
The universal PBC-UMW Mount is compatible with almost all projectors. The 4-dual-joint arms enable flexible positioning of the projector at almost any mounting point, and the standard 1.5” NPT coupler with the ceiling plate allows for mounting on either a single stud or a 4.5” bolt pattern. This versatile mount also features a quick release connector that not only allows easy installation, but also easy removal for maintenance, and that too without having to worry about realigning the projector when re-installing it.
The PP-FCMA-QL is a full-tile false ceiling adapter that works as a sturdy support system for the projector mount. This adapter comes with a cable that works with the quick lock function of the mount. It creates a false ceiling by fitting into the 1.5” NPT coupler to provide suspension for the projector. This adapter replaces a standard 24 x 24” (60.9 x 60.9cm) ceiling tile and fixes onto the ceiling via its T-bar metal frame. - Premier Mounts False Ceiling Adapter (2x2' Tile Replacement) The False Ceiling Adapter from Premier Mounts is a false ceiling tile which can mount projectors or flat panels. It its into a T-bar metal framing system, replacing a 2x2' tile. A quick locking cable is included. Four 25' steel braided looped end cables and four cable quick locks are included, allowing it to hold projectors weighing up to 50 pounds. It accepts any projector with a standard 1.5" NPT mount. UPC: 829973259372
- Premier Mounts PBC-UMW Universal Projector Mount (White) Premiere Mounts' PBC-UMW Universal Projector Mount with 1.5" Coupler (White) fits most projectors weighing less than 60 lb and installs easily on flat, angled, or cathedral ceilings. Unique leveling barrels adapt to any mounting surface for a perfectly level installation despite pitched ceilings.
Four double-jointed support arms on the adapter flexibly span most screw hole patterns, including irregularly-spaced ones. The hinged arms can also be angled away from lamp and filter access panels, simplifying projector maintenance.
An adjustable height channel uses standard 1.5" threaded pipe that can accept an extension column for height adjustment of your projector. The PBC-UMW offers 360° rotation and more than ±20° roll and pitch adjustment, making it easy to align your projector. - Easy Alignment
- You can rotate your projector a full 360° while separately adjusting pitch and roll more than 20° in either direction.
- Uses Standard National Tapered Pipe
- The PBC-UMW connects with industry-standard 1.5" threaded pipe for custom-height installations and professional compatibility. If 12.5" of vertical extension isn't enough, you can buy separate orders of NTP-1.5 X Custom length pipe to suit your needs.
- Mount on Nearly Any Ceiling or Wall
- Premier Mounts offers a wide range of accessories (sold separately) to handle special situations including suspended and concrete ceilings and even wall mounting. Right out of the package the Universal Mount can install on traditional, vaulted, or cathedral ceilings using the included vertical extender and leveling barrel technology.
- Cable Management
- Wires can be passed through the center channel to conceal them and keep them out of harm's way.
UPC: 829973203054 In the Box - False Ceiling Adapter (2x2' Tile Replacement) wzcvsrwrbt
- Limited Lifetime Warranty
- PBC-UMW Universal Projector Mount (White)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Premier Mounts PBC-UMW Projector Mount with PP-FCMA-QL False Ceiling Adapter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Premier Mounts False Ceiling Adapter (2x2' Tile Replacement)
| | | Box Dimensions (LxWxH) | 25.0 x 25.0 x 4.0" | - Premier Mounts PBC-UMW Universal Projector Mount (White)
| Weight Capacity | 60 lb / 27 kg | | Height | 7" / 18 cm | | Pitch | +20.00° / -20.00° | | Roll | +20.00° / -20.00° | | Yaw | +360.00° / -360.00° | | Diameter | 19" / 488 cm | | Depth From Mounting Source | 2.5" / 6.35 cm | | Construction | Steel | | Dimensions | Arms: Up to 15.5" / 39.37 cm Diameter, Fully Extended
Ceiling Plate and Adapter: 6.72 x 7.125 x 6.0 / 17.07 x 18.1 x 16.24 cm | | Weight | 7.4 lb / 3.4 kg | | | | Box Dimensions (LxWxH) | 14.5 x 10.1 x 7.7" |
