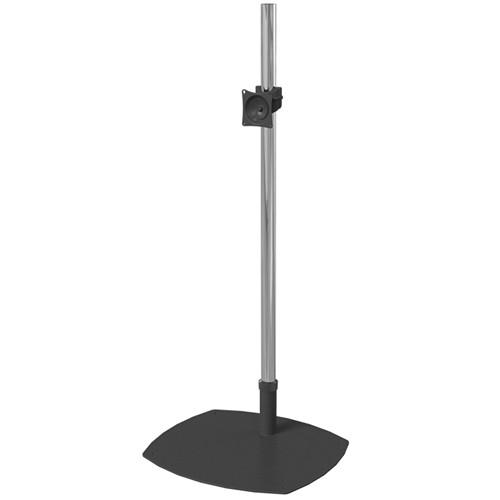

User Manual for Premier Mounts PSP Base with 72" Pole and VPM Mounts Click to enlarge the picture
Contents of the user manual for the Premier Mounts PSP Base with 72"
- Product category: Brackets & Mounting Premier Mounts
- Brand: Premier Mounts
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Premier Mounts Brackets & Mounting
|
User manual for the Premier Mounts PSP Base with 72" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Premier Mounts product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Premier Mounts user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Premier Mounts product will considerably shorten its lifespan!
|
Product description The PSP Base with 72" Pole and VPM Mounts from Premier Mounts includes PSP BASE, a low-profile floor stand base, for use with the included P72 72" pole. This chrome P72 pole serves as a conduit for cabling, hence providing a clean and finished looks. To mount dual displays back-to-back on the P72 pole, this kit comes with two VPM universal VESA pole mounts. VPM mount's radical glide feature allows up to 12° of smooth pivot adjustment in any direction, and once the adjustment is complete, the display remains supported in a fixed position. - 72 Inch Chrome Pole The Premier Mounts 72 Inch Chrome Pole is a 72 inch replacement pole for Premier Mounts floor stand adapters for flat-panel displays. The replacement pole allows you to add additional monitors or raise your display to a higher viewing level.
- Compatible with Premier Mounts floor stand adapter for flat-panel displays
UPC: 829973802929 - PSP BASE for PSP Series Pole Mounts The Premier Mounts PSP BASE is a base for the PSP flat panel pole mounts. This base can be acquired for replacement or for spare equipment applications. UPC: 829973259822
- VESA Pole Mount Adapter The Premier Mounts VESA Pole Mount Adapter supports displays up to 50 lb (22.67 kg) with up to 200 x 200mm VESA pattern. It mounts on poles with a diameter of 1.5" to 2” (38 or 51mm). The Radial Glide feature allows for a smooth pivot adjustment up to 12° in any direction. Once the adjustment is made, the position of the display remains fixed. You can mount 2 adapters back to back on a pole thanks to the angular shape of the adapter, which makes it suitable for use with public view monitors.
- Supports displays up to 50 lb (22.67 kg) with up to 200 x 200 mm VESA mounting pattern
- Mounts on poles with a diameter up to 2" (51 mm)
- Radial Glide offers up to 12° of pivotal adjustment in any direction
- Angled shape allows for back-to-back mounting
- Heavy-duty design makes it ideal for security, rental, and staging applications
- Includes both standard and lock-it security hardware pack
- Includes tilt adapters that allow an additional 10° of tilt (22° total)
UPC: 829973101770 In the Box Bundle Items 72 Inch Chrome Pole berrddqvuatwrfduxx PSP BASE for PSP Series Pole Mounts 2 x VESA Pole Mount Adapter - 200 x 200 VESA Adapter Plate
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Premier Mounts PSP Base with 72" Pole and VPM Mounts in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 72 Inch Chrome Pole
| | | Box Dimensions (LxWxH) | 73.0 x 5.0 x 4.0" | - PSP BASE for PSP Series Pole Mounts
| | | Box Dimensions (LxWxH) | 27.5 x 27.5 x 10.8" | - VESA Pole Mount Adapter
| Number of Displays | 1 | | Mounting-Hole Pattern | 100 x 100 mm, 100 x 200 mm, 200 x 200 mm | | Maximum Screen Size | 40" / 101.6 cm | | Minimum Screen Size | 10" / 25.4 cm | | Bracket Load Capacity | 50 lb / 22.67 kg | | Tilt Adjustment | -12 to 12° | | Maximum Extension | None | | | | Box Dimensions (LxWxH) | 9.6 x 9.3 x 5.6" |
