User Manual for Premier Mounts Triple Display Articulating Arm Click to enlarge the picture
Contents of the user manual for the Premier Mounts Triple Display Articulating Arm
- Product category: Monitor Pole & Truss Mounts Premier Mounts
- Brand: Premier Mounts
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Premier Mounts Monitor Pole & Truss Mounts
 |
User manual for the Premier Mounts Triple Display Articulating Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Premier Mounts product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Premier Mounts user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Premier Mounts product will considerably shorten its lifespan!
|

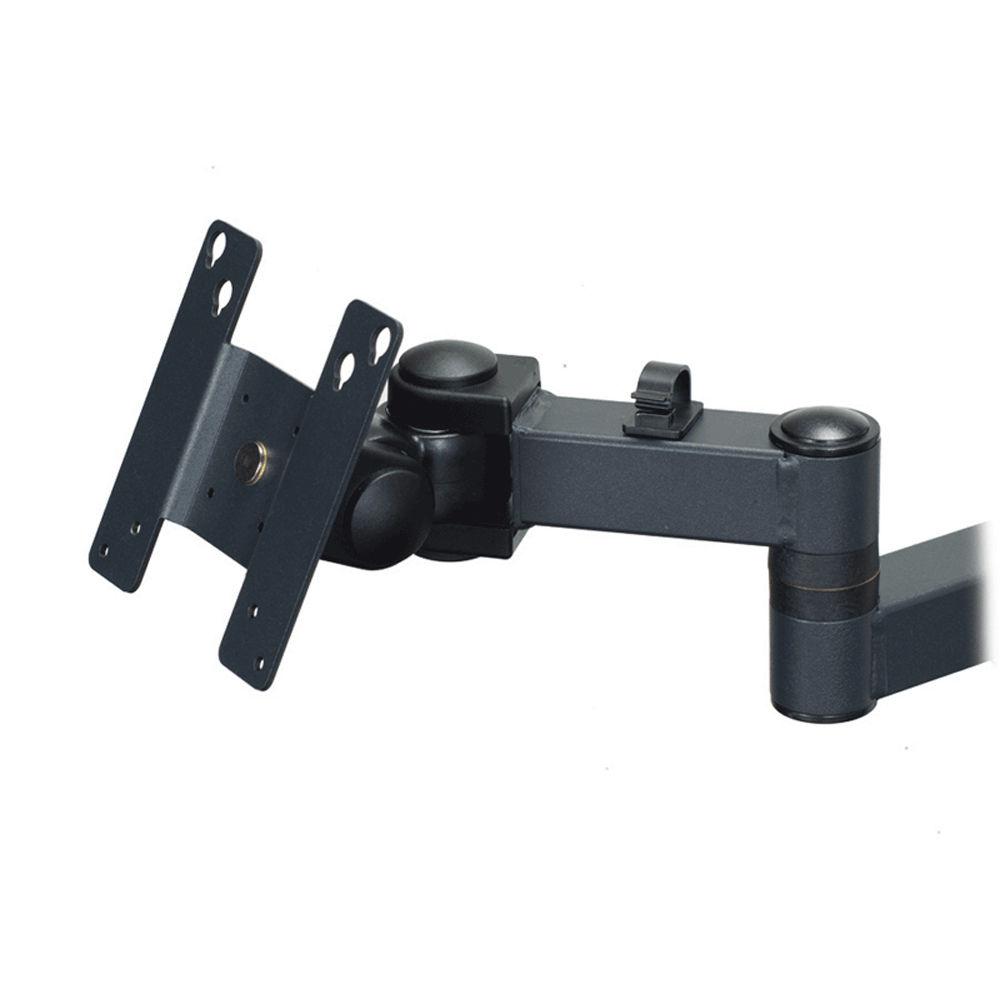

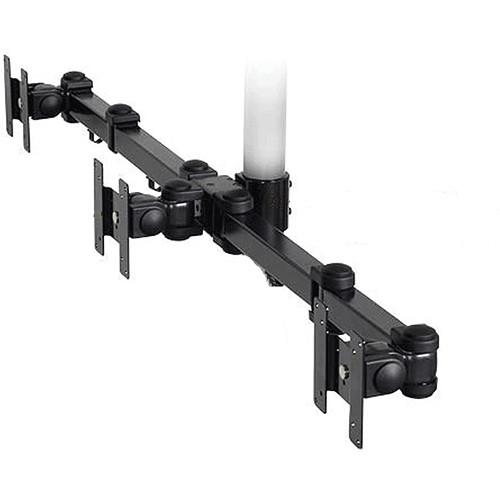

Product description The Premier Mounts Triple Display Articulating Arm (Black) features an articulating arm with 3 mounting heads for setting up multi-monitor configurations, without sacrificing valuable desktop space. Each mounting head allows up to 90º omni-directional movement for adjusting the viewing angle. You can also adjust the position of the mount along the length of the pole.

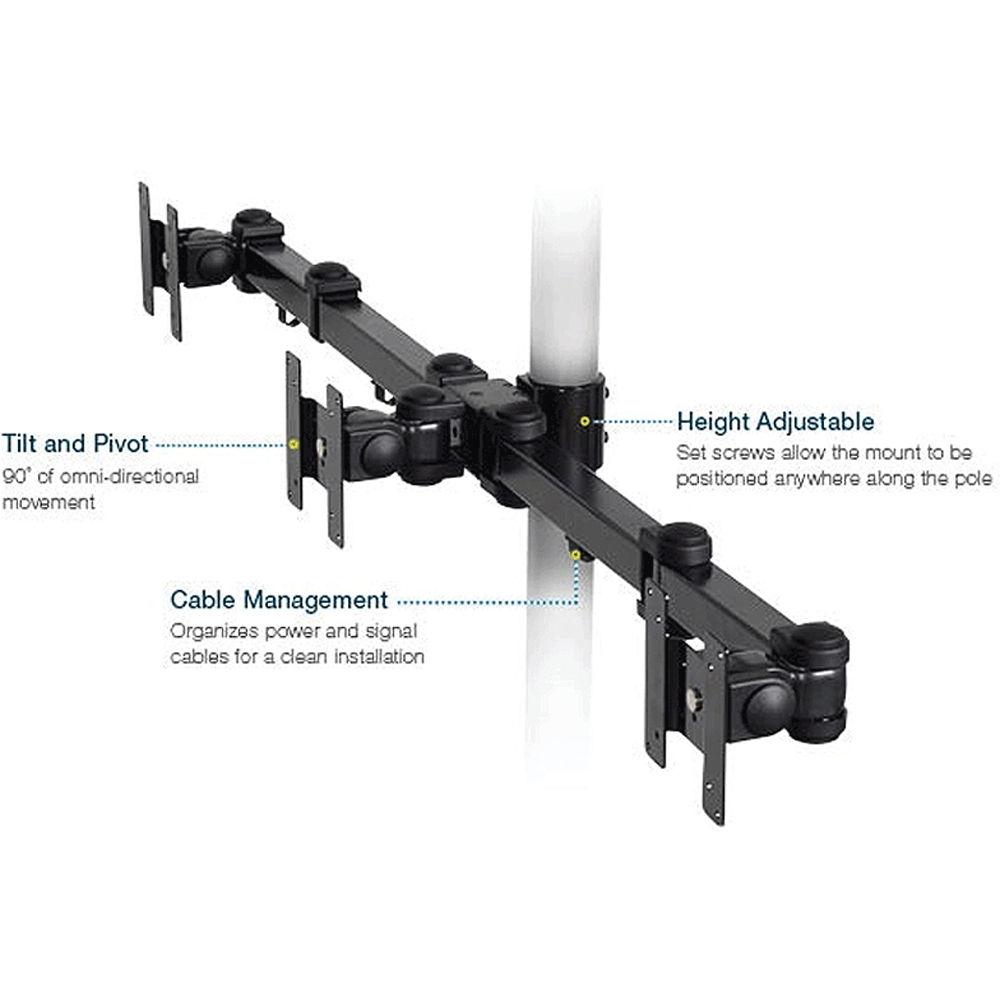

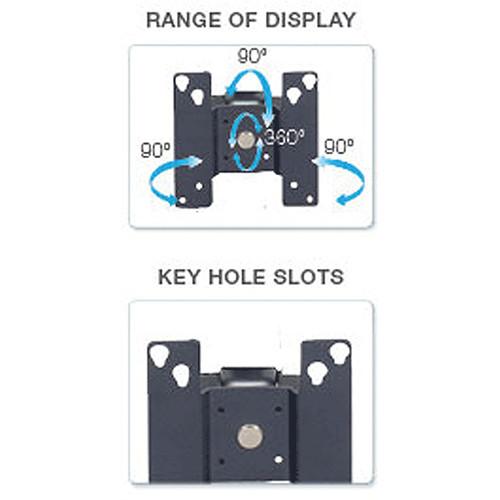

This articulating arm can be mounted on to the MM-CP, MM-EP and MM-HP 2" poles. - 90° omni-directional movement and 360° rotation to achieve the optimum viewing angle
- Keyhole mounting slots for easily attaching displays to the arm
- Set screws allow the mount to be positioned anywhere along a pole
- Cable management tabs on the arm protect and organize the wires for a clean finish
- Compatible with VESA 75 x 75 or 100 x 100mm mounting pattern
- Mounts on to MM-CP, MM-EP and MM-HP series 2" poles
In the Box Premier Mounts Triple Display Articulating Arm (Black) 12 x M4 x 10mm Combo Screws 6mm Allen Key 5/32" Allen Key Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Premier Mounts Triple Display Articulating Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

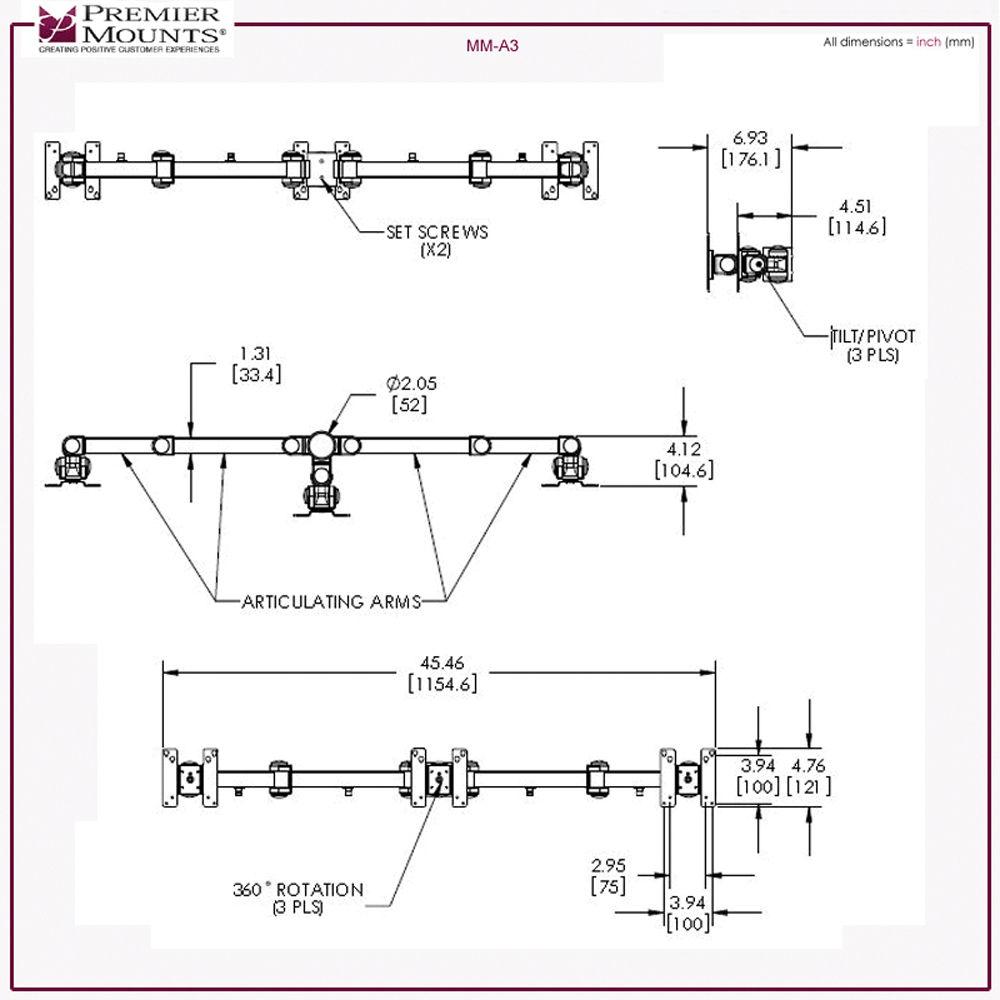

Technical parametersPremier Mounts MM-A3 Specs | Number of Displays | 3 | | Mounting-Hole Pattern | 75 x 75 mm, 100 x 100 mm | | Maximum Screen Size | 22" / 55.9 cm | | Minimum Screen Size | 10" / 25.4 cm | | Bracket Load Capacity | 75 lb / 34 kg | | Rotation Adjustment | 360° | | Swivel Adjustment | 180° | | Tilt Adjustment | -90 to 90° | | Weight | 10.2 lb / 4.6 kg | | | | Package Weight | 11.8 lb | | Box Dimensions (LxWxH) | 24.0 x 9.7 x 5.0" |
