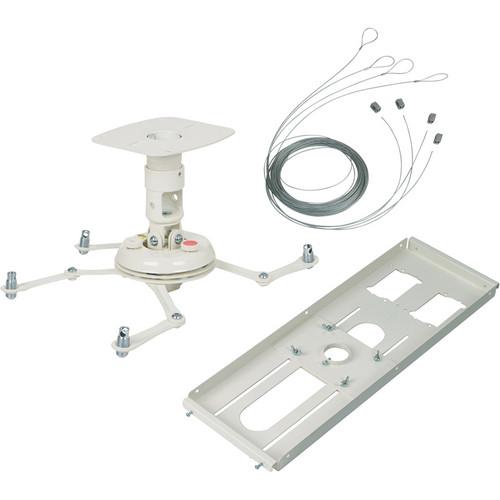

Product description The Premier Mounts Universal Projector Mount with False Ceiling Adapter is a kit available exclusively from . Included is a projector mount that fits most projectors weighing less than 25lb. It installs on flat, angled or cathedral ceilings. The mount offers 360° rotation and more than ±20° roll and pitch adjustment for easy alignment of the projector. The kit also includes a false ceiling adapter that allows for a clean appearance with the support plate hidden inside a drop ceiling. After installation, the adapter allows for 9" of lateral movement in relation to the projector screen. Also included are mounting hardware, black and white escutcheon rings and a hole cutter. - Premier Mounts PBC-UMW Universal Projector Mount (White) Premiere Mounts' PBC-UMW Universal Projector Mount with 1.5" Coupler (White) fits most projectors weighing less than 60 lb and installs easily on flat, angled, or cathedral ceilings. Unique leveling barrels adapt to any mounting surface for a perfectly level installation despite pitched ceilings.
Four double-jointed support arms on the adapter flexibly span most screw hole patterns, including irregularly-spaced ones. The hinged arms can also be angled away from lamp and filter access panels, simplifying projector maintenance.
An adjustable height channel uses standard 1.5" threaded pipe that can accept an extension column for height adjustment of your projector. The PBC-UMW offers 360° rotation and more than ±20° roll and pitch adjustment, making it easy to align your projector. - Easy Alignment
- You can rotate your projector a full 360° while separately adjusting pitch and roll more than 20° in either direction.
- Uses Standard National Tapered Pipe
- The PBC-UMW connects with industry-standard 1.5" threaded pipe for custom-height installations and professional compatibility. If 12.5" of vertical extension isn't enough, you can buy separate orders of NTP-1.5 X Custom length pipe to suit your needs.
- Mount on Nearly Any Ceiling or Wall
- Premier Mounts offers a wide range of accessories (sold separately) to handle special situations including suspended and concrete ceilings and even wall mounting. Right out of the package the Universal Mount can install on traditional, vaulted, or cathedral ceilings using the included vertical extender and leveling barrel technology.
- Cable Management
- Wires can be passed through the center channel to conceal them and keep them out of harm's way.
UPC: 829973203054 - Premier Mounts Hidden False Ceiling Adapter The Premier Mounts Hidden False Ceiling Adapter provides everything you'll need for a clean projector installation with the support plate hidden inside your drop ceiling. Intended for NPT 1.5" pipe, once installed the adapter allows 9" (22.8 cm) of lateral movement in relation to the projector screen. The kit includes mounting hardware, black and white escutcheon rings and hole cutter.
- Sits above ceiling tile for a hidden installation.
- 9" of continuous movement allows for precise placement of a projector.
- Moveable 1.5" pipe coupler offers easy relocation without dragging your entire toolbox into the rafters with you.
- Unique electrical knockouts accept almost any electrical box.
- Includes four 25' steel braided cables with quick locking adapters.
- Comes with T-bar plate, four 25' braided cables with looped ends, four quick locks.
- Includes 1.5" ceiling tile escutcheon ring w/ hole cutter (1 black / 1 white).
UPC: 829973259365 In the Box - PBC-UMW Universal Projector Mount (White) ctuwvffsxubzxtya
- Upper Assembly
- Universal Mounting Bracket
- 3 x #14 Wood Screws
- 4 x M3 x 16mm Phillips Head Screws
- 4 x M3 Flat Washers
- 4 x M5 Hex Head Screws
- 4 x M4 Hex Head Screws
- 4 x Plastic Barrel Caps
- 4 x M6 Hex Head Screws
- M3 Allen Wrench
- M5 Allen Wrench
- Green Level
- Lifetime Warranty
- Hidden False Ceiling Adapter ctuwvffsxubzxtya
Table of Contents
|
Upload User Manual
Have you got an user manual for the Premier Mounts Universal Projector Mount with False Ceiling Adapter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Premier Mounts PBC-UMW Universal Projector Mount (White)
| Weight Capacity | 60 lb / 27 kg | | Height | 7" / 18 cm | | Pitch | +20.00° / -20.00° | | Roll | +20.00° / -20.00° | | Yaw | +360.00° / -360.00° | | Diameter | 19" / 488 cm | | Depth From Mounting Source | 2.5" / 6.35 cm | | Construction | Steel | | Dimensions | Arms: Up to 15.5" / 39.37 cm Diameter, Fully Extended
Ceiling Plate and Adapter: 6.72 x 7.125 x 6.0 / 17.07 x 18.1 x 16.24 cm | | Weight | 7.4 lb / 3.4 kg | | | | Box Dimensions (LxWxH) | 14.5 x 10.1 x 7.7" | - Premier Mounts Hidden False Ceiling Adapter
| Construction | Aluminum | | Finish | White | | Dimensions | LxWxD: 23.75 x 8.43 x 1.26" (60.3 x 21.4 x 3.2 cm) | | Weight Capacity | 50 lbs (22.6 kg) | | Weight | 10 lbs (4.53 kg) | | | | Box Dimensions (LxWxH) | 26.4 x 9.3 x 4.3" |
