User Manual for PreSonus AIR15 2-Way Active Sound-Reinforcement Loudspeakers Click to enlarge the picture
Contents of the user manual for the PreSonus AIR15 2-Way Active Sound-Reinforcement Loudspeakers
- Product category: PA Speakers PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus PA Speakers
 |
User manual for the PreSonus AIR15 2-Way Active Sound-Reinforcement Loudspeakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|
Product description - PreSonus-Rick Naqvi demos the AIR Loudspeakers

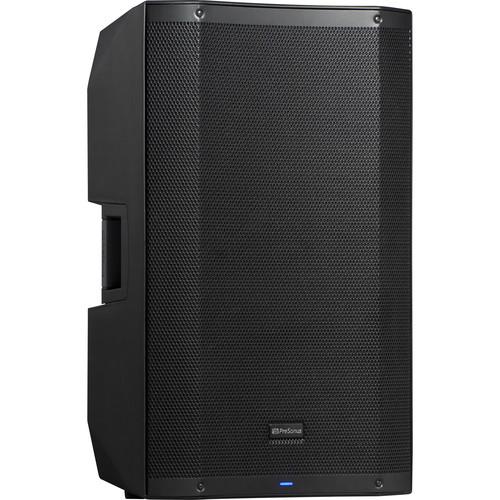

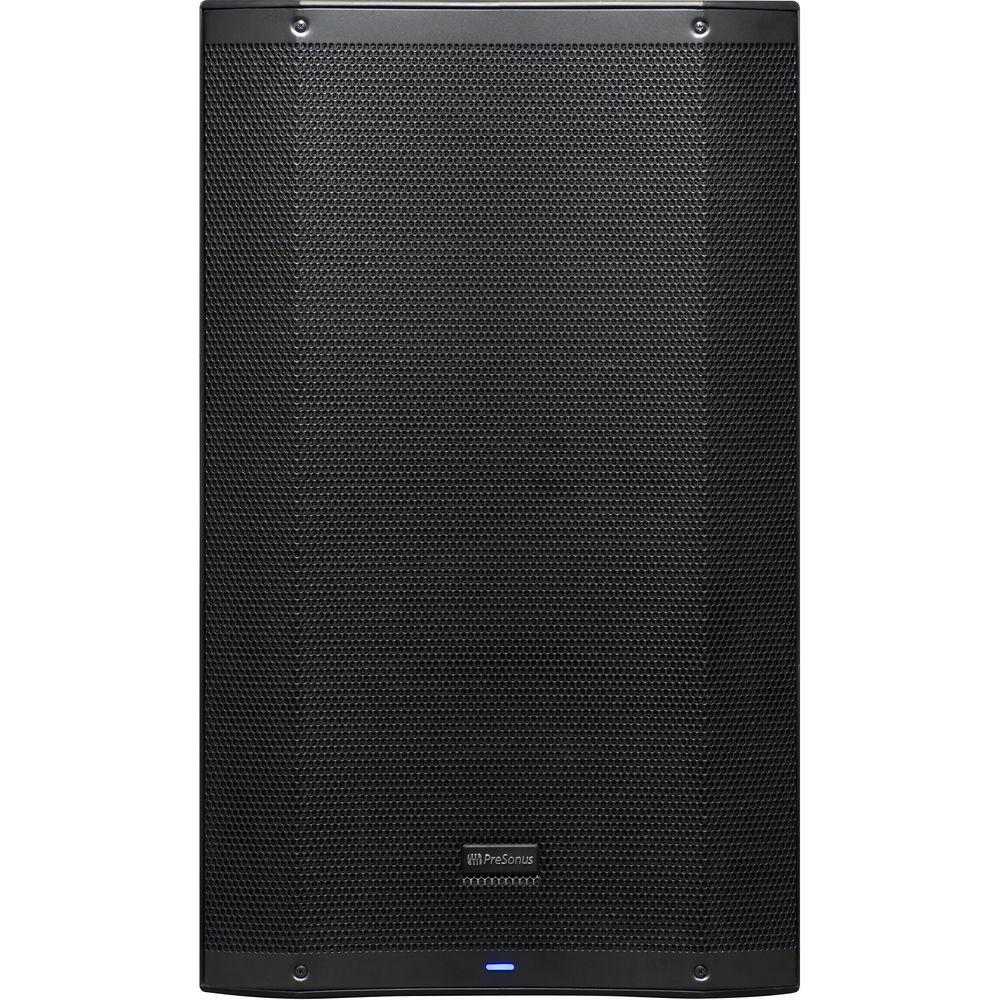

The AIR15 from PreSonus is a versatile and customizable 2-way active sound-reinforcement loudspeaker featuring 1200W of power and enhanced digital tuning functions, well suited for live bands, DJs, clubs, event halls, bars, speaking engagements, and more. The speaker utilizes two amplifiers for the high and low frequency drivers. A 500W (continuous) Class-D amplifier powers the 15" woofer for efficient and clean low end performance, while a 200W (continuous) Class-A/B amplifier powers the 1.35" compression driver for a natural "airy" high end. Both drivers combine to provide 132 dB SPL with a frequency response of 45 Hz to 20 kHz (-3 dB).
The integrated and easy-to-use digital signal processor (DSP) allows you to customize the loudspeaker for a number of applications including DJ, FOH, Monitor, and Speech presets. Additionally, ±10 dB of treble and bass control allows you to further tailor the sound and compensate for room anomalies. Location presets let you optimize performance for stand and bracket mounting as well as flown installations. The Air15 ships with a power cord. - Main Components
-
- Hybrid “best of both worlds” 1,200W (dynamic) power amp configuration
- Low-Frequency Driver: 500W (continuous), Class D amplifier
- High-Frequency Driver: 200W (continuous), Class A/B amplifier
- 1.35" high-frequency compression driver
- 15" woofer with a 2.5" voice coil
- 45 Hz to 20 kHz frequency response (-3 dB)
- 132 dB SPL (max)
- 90° x 60° (horizontal x vertical) dispersion pattern

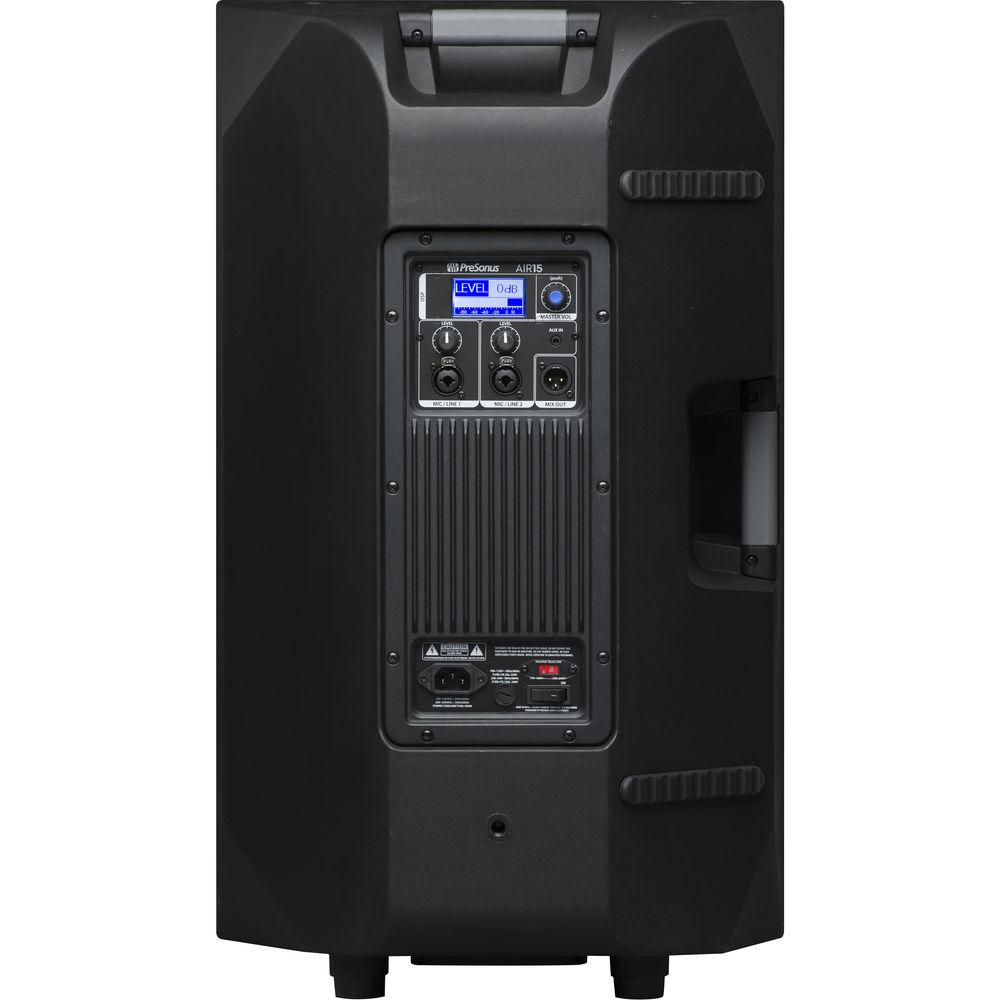

- Onboard mixer with two combo XLR-1/4” inputs and one summed balanced output
- Controls
-
- Easy-to-use DSP performance presets:
- DJ: Music playback
- FOH: Normal front-of-house
- Enhance: Enhanced low end for a warmer sound
- Monitor: Optimized for floor wedge placement
- Speech: Applications where speech intelligibility is critical
- EQ
- HF response ±10 dB
- LF response ±10 dB
- Additional presets and controls
- Stand: For mounting on a pole or tripod
- Bracket: For wall-mount applications
- Suspend: For suspended applications
- Convenience Features
-

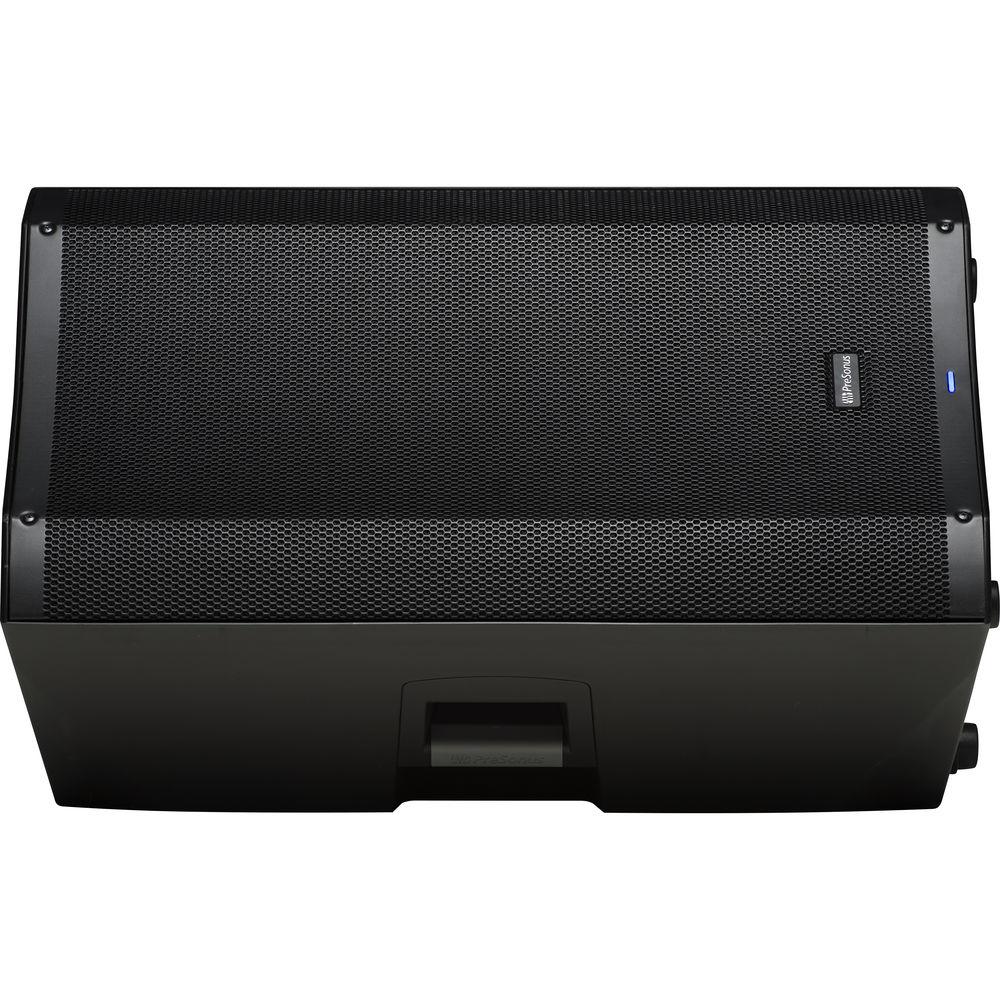

- Multi-angle enclosure for mains or monitor-wedge applications
- Comfortable ergonomic handle
- 35mm pole socket with 7.5° downward tilt
- M10 rigging points for suspended installation
- Defeatable front-panel LED
- Rugged plastic enclosure
- Tour-grade, 16-gauge steel grille
UPC: 673454005060 In the Box PreSonus AIR15 2-Way Active Sound-Reinforcement Loudspeakers (Single) Power Cord Limited 6-Year Warranty User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus AIR15 2-Way Active Sound-Reinforcement Loudspeakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus AIR15 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1200 W Peak | | Amplifier Power Rating | LF:
500 W RMS
HF:
200 W RMS | | Amplifier Class | LF:
Class-D
HF:
Class-AB | | | | HF Driver | 1 x 1.35" / 3.43 cm Compression Driver | | LF Driver | 1 x 15" / 38.1 cm Woofer | | LF Voice Coil | 2.5" / 6.4 cm | | | | Frequency Range | 45 Hz to 20 kHz -3 dB
40 Hz to 20 kHz -10 dB | | Maximum SPL | 132 dB | | Coverage Angle | 90° H x 60° V | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Line/Mic Input
1 x 1/8" / 3.5 mm TRS Input
1 x XLR Mix Output | | | | AC Input Power | User Selectable:
100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz | | | | Mounting | 1 x Pole Socket (Dual Angle)
2 x Fly Point (Top)
1 x Fly Point (Rear) | | Handles | 1 x Top
1 x Side | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 19.7 x 18.5 x 30.9" / 50.0 x 47.0 x 78.5 cm | | Weight | 46.3 lb / 21 kg | | | | Package Weight | 50.5 lb | | Box Dimensions (LxWxH) | 31.0 x 19.5 x 18.5" |
