Product description - PreSonus-Rick Naqvi demos the AIR Loudspeakers

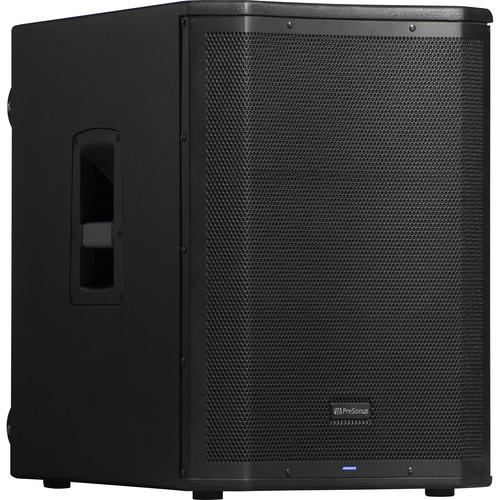

The AIR15S from PreSonus is a versatile and customizable subwoofer featuring 1200W of power and enhanced digital tuning functions, well suited for live bands, DJs, clubs, event halls, bars, speaking engagements, and more. The subwoofer is designed to work with the AIR10, AIR12, and AIR15 full range speakers, but is quite capable of adding low end to any sound system, regardless of manufacturer. The AIR15S utilizes a single 600W (continuous) Class-D amplifier to power the 15" woofer for efficient and clean low end performance with a max SPL output of 132 dB SPL and frequency response of 35 Hz to 160 Hz (-3 dB).
The integrated and easy-to-use digital signal processor (DSP) allows you to customize the subwoofer for a number of applications including Mo'Bass, FOH, Cardioid, and Endfire presets. The cardioid and endfire presets allow for off axis rejection and a uniform bass response throughout the room. Additionally, the variable low pass filter and variable alignment delay functions allow you properly dial in your subs with any available tops. The Air15S ships with a power cord and a caster kit. - Main Components
-
- 1,200W (dynamic) power amp configuration
- Low-Frequency Driver: 600W (continuous), Class D amplifier
- 15" woofer with a 3" voice coil
- 35 to 160 Hz frequency response (-3 dB)
- 132 dB SPL (max)

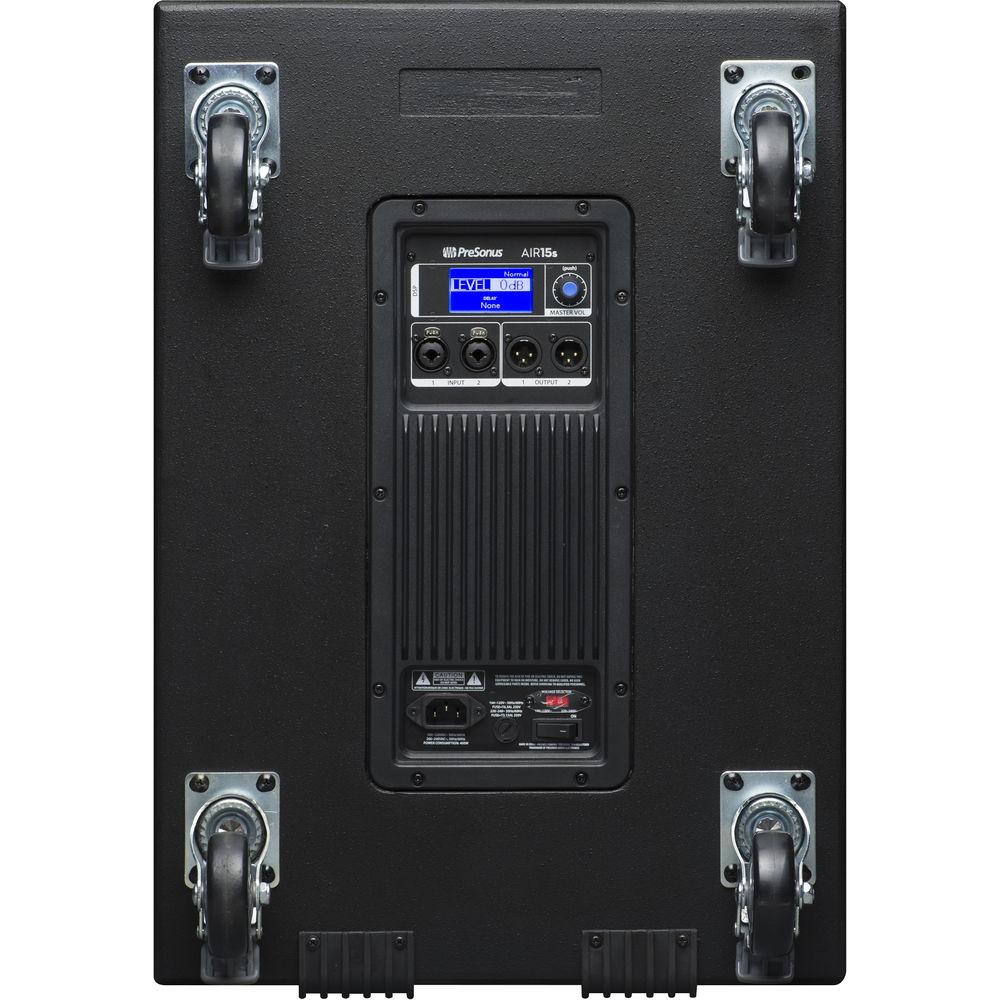

- Two combo XLR-1/4” inputs
- Two balanced XLR outputs
- Controls
-
- Easy-to-use DSP performance presets:
- Mo'Bass: Bass boost
- FOH: Normal front-of-house
- Cardioid: Two subs working to form a cardioid directional pattern
- Endfire: Creates off axis rejection
- Variable low pass filter
- Variable alignment delay
- Convenience Features
-
- Comfortable ergonomic handles
- 35mm pole socket for speaker poles

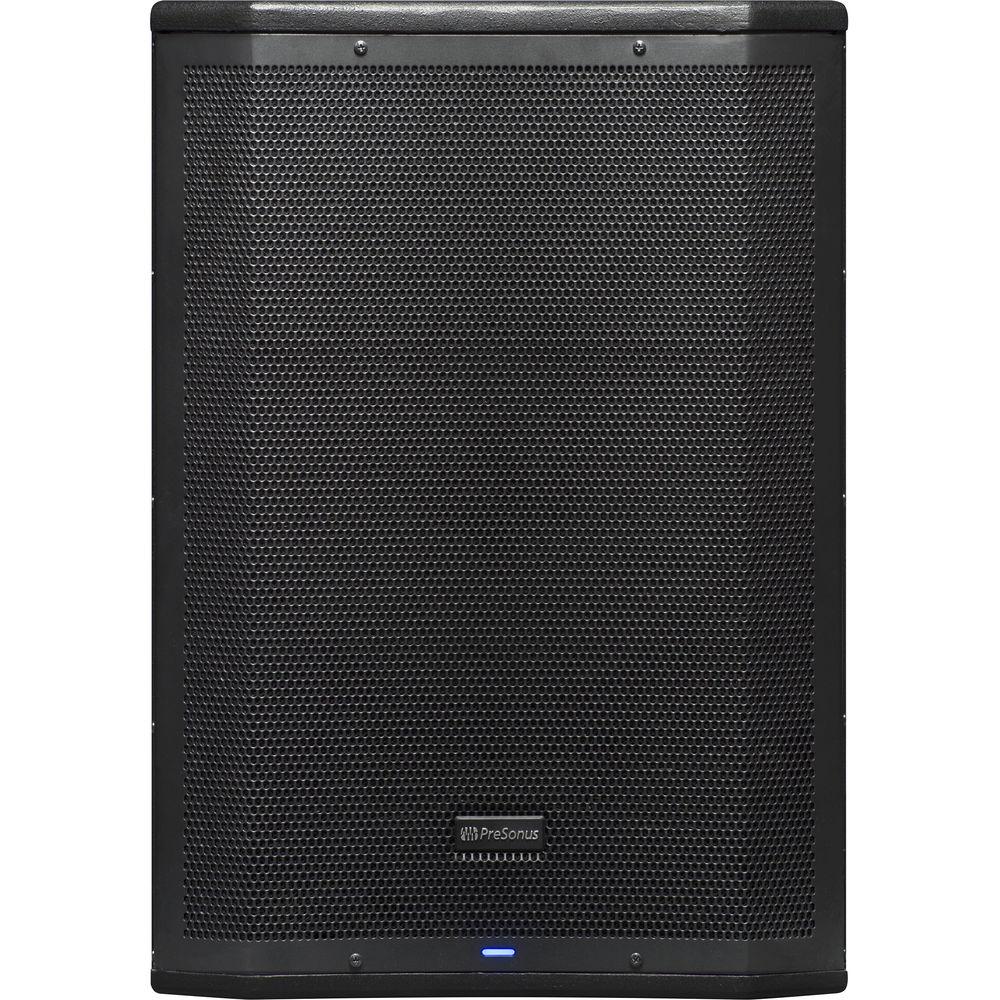

- Defeatable front-panel LED
- Rugged 15mm tour-grade birch plywood construction
- Includes caster kit
UPC: 673454005114 In the Box PreSonus AIR15S Active Sound-Reinforcement Subwoofer Power Cord Caster Kit Limited 6-Year Warranty User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus AIR15S Active Sound-Reinforcement Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus AIR15S Specs | | | Configuration | Active Subwoofer | | Enclosure Type | Bass-Reflex Subwoofer | | Total Power Capacity | 1200 W Peak
600 W RMS | | Amplifier Class | Class-D | | | | LF Driver | 1 x 15" / 38.1 cm Woofer | | LF Voice Coil | 3" / 7.6 cm | | | | Frequency Range | 35 Hz to 160 Hz -3 dB | | Maximum SPL | 132 dB | | | | AC Input Power | User Selectable:
100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz | | | | Mounting | 1 x Pole Socket | | Handles | 2 x Side | | Construction Material | Metal Grille, Plywood | | Dimensions | 27.6 x 20.5 x 30.0" / 70.1 x 52.1 x 76.2 cm | | Weight | 70.5 lb / 32 kg | | | | Package Weight | 76.5 lb | | Box Dimensions (LxWxH) | 28.5 x 27.5 x 20.7" |
