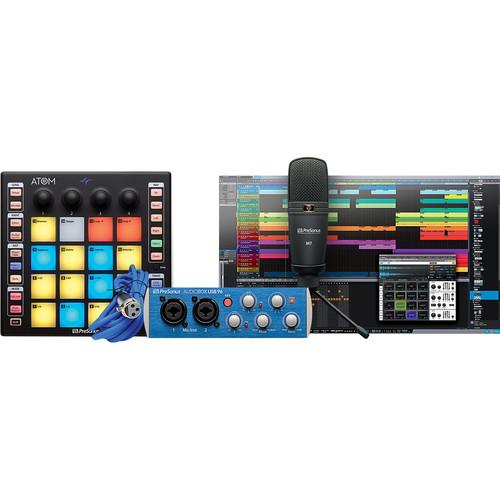

Product description The PreSonus ATOM Producer Lab is a complete production kit that combines the ATOM production and performance pad controller with Studio One Artist production software, the AudioBox USB 96 audio/MIDI interface, and the M7 large-diaphragm condenser microphone to create an all-in-one solution for musicians, producers, and engineers wishing to produce professional music.

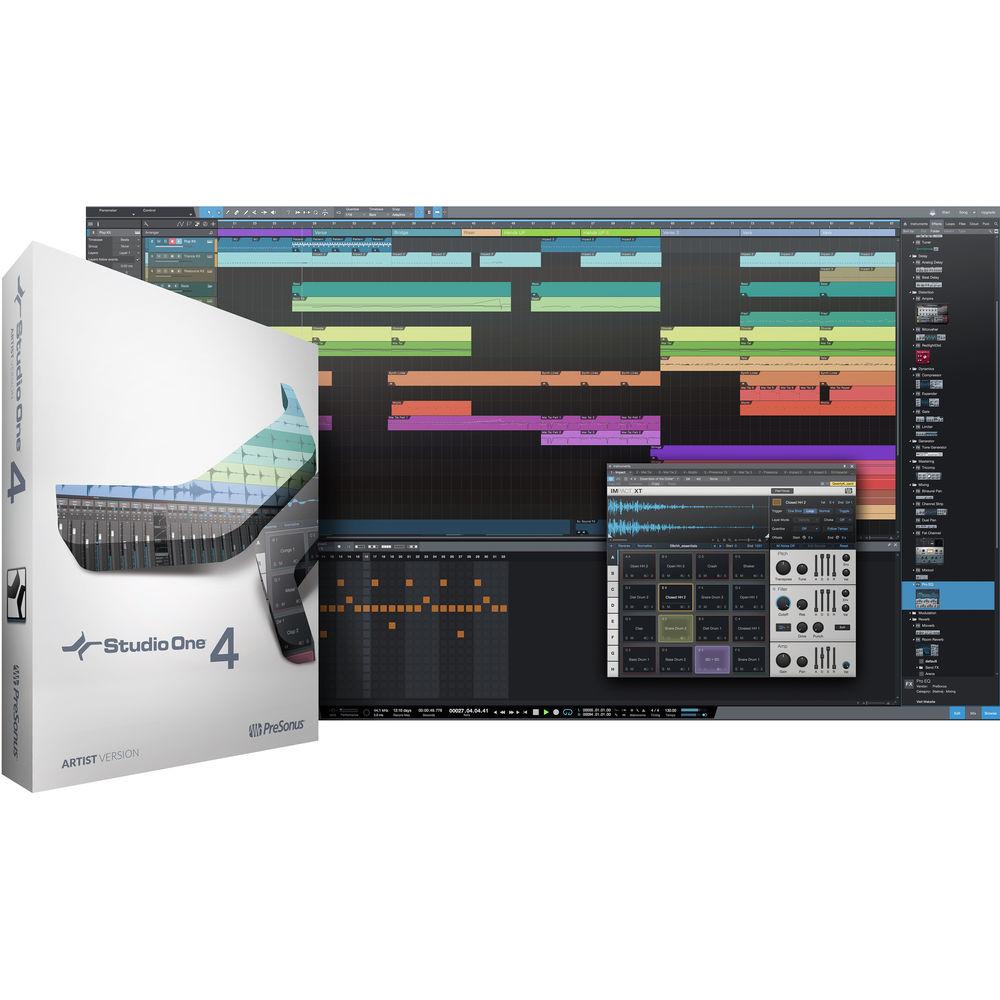

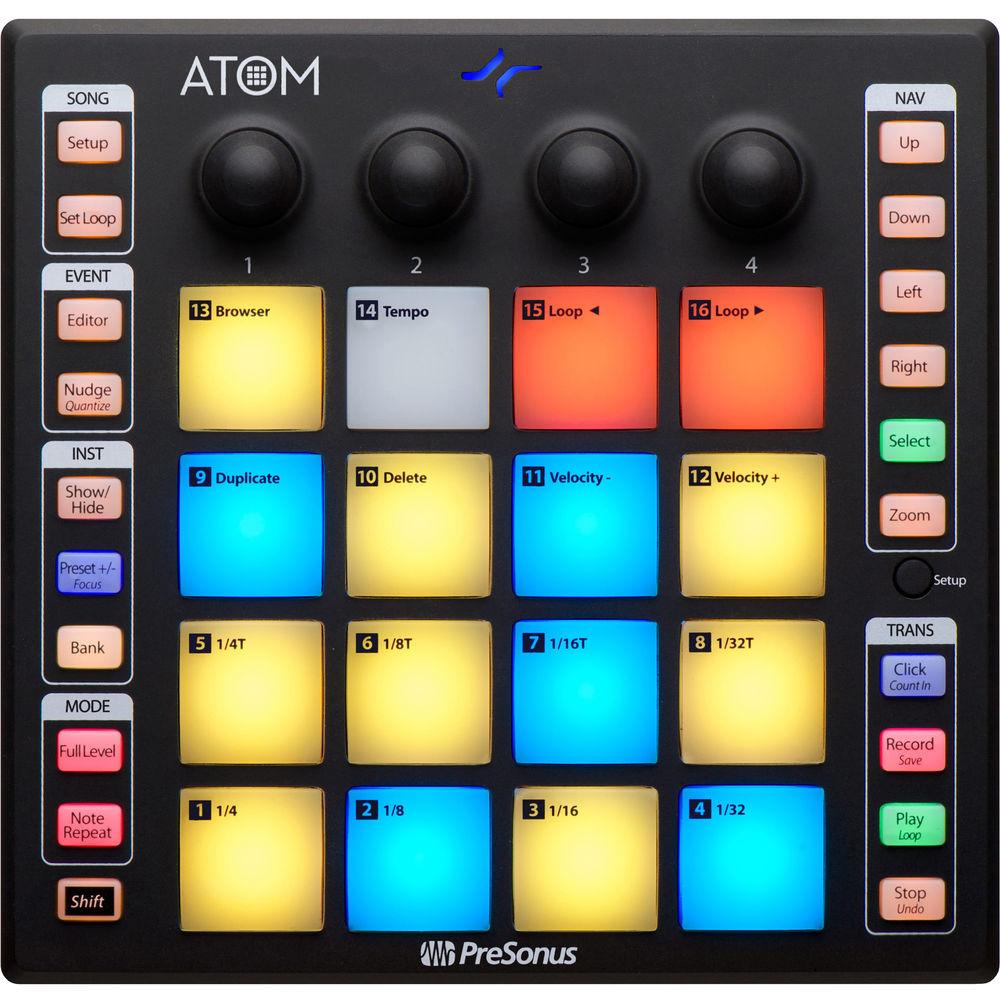

The ATOM pad controller offers tight integration with Studio One Artist, allowing for virtual instrument and preset browsing, creating loop points and timeline navigation, tempo control, MIDI editing and quantization, zoom, transport controls, and more. The Studio One 4 Artist software is an easy-to-use DAW that delivers unlimited audio tracks, MIDI, virtual instruments, buses, and FX channels. The software offers powerful drag-and-drop functionality and offers a single-window work environment. The software ships with 35 native effects and over 10GB of third-party software, loops, and instruments.AudioBox USB 96 offers two combo XLR-1/4" inputs capable of recording microphones and instruments via its professional-quality, 24-bit / 96 kHz converters. The interface is bus-powered and lightweight, making it an ideal portable interface that is compatible with Mac and Windows computers. The M7 is a large-diaphragm condenser with a cardioid pickup pattern, which offers focused sound recording from the front and solid off-axis rejection. The microphone offers a frequency response of 40 Hz to 18 kHz and can withstand a maximum SPL of 136 dB. Included with the ATOM Producer Lab is the Studio Magic Plug-In Suite. - ATOM Production and Performance Pad Controller
-
- Controls
- 16 full-size velocity- and pressure-sensitive, RGB LED pads
- Pressure switchable between MIDI aftertouch, channel pressure, and CC messages
- 8 assignable pad banks
- Selectable pad velocity curves and pad pressure thresholds
- 20 assignable buttons
- 4 endless rotary encoders
- Modes
- MIDI (keyboard) mode
- Note Repeat mode
- Full Velocity mode (sends consistent velocity 127)
- Connections
- Included Software
- MVP Loops content custom-designed for ATOM
- Studio One Artist Software
-
- Single-window work environment
- Powerful drag-and-drop functionality
- Unlimited audio tracks, MIDI tracks, virtual instruments, buses, and FX channels
- Content browser with convenient sort options and preview player
- Intuitive MIDI-mapping system
- Real-time audio time-stretching and resampling
- Multitrack comping and MIDI editing
- Transient detection and editing, plus groove extraction
- Automatic delay compensation
- Advanced automation
- Instantly configures to PreSonus interfaces¿
- Compatible with ASIO-, Windows Audio-, and Core Audio-compliant interfaces
- 35 native effects (32-bit effects) and virtual instrument plug-ins
- Over 10GB of third-party software, loops, and instruments
- Mac- and Windows-compatible
- AudioBox USB 96
-
- Bus-powered USB audio and MIDI interface
- Matched for Studio One Artist software for Mac and Windows
- 24-bit resolution, 44.1, 48, 88.1, and 96 kHz sampling rate
- Two combo mic/instrument inputs with Class-A mic preamplifiers
- 48V phantom power (for included M7 microphone or other condenser microphones)
- Zero-latency monitoring via internal analog mixer
- Headphone jack with level control (for included HD7 headphones or other headphones)
- 1/3 RU rackmountable
- Computer-to-interface connection cable included

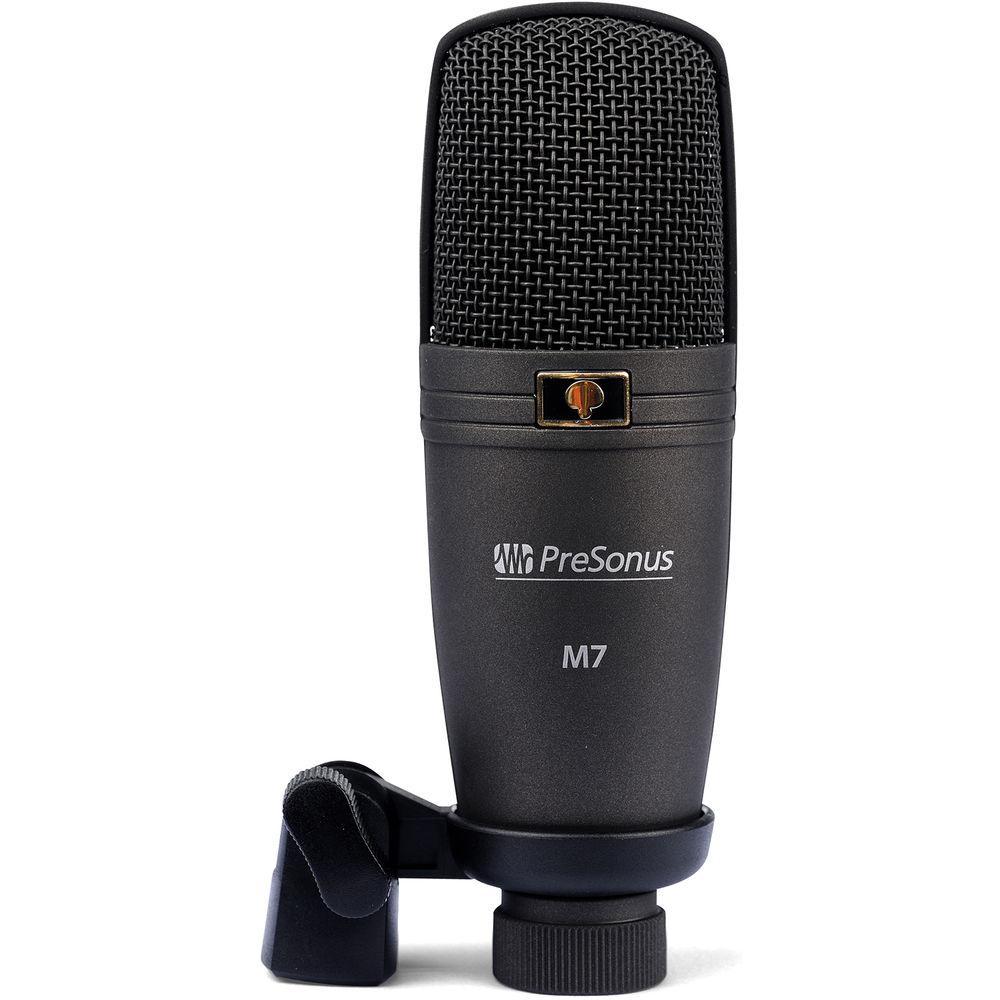

- M7 Microphone
-
- Large-diaphragm condenser
- Cardioid polar pattern
- Frequency Response: 40 Hz to 18 kHz
- Maximum SPL: 136 dB
- Captures far more detail than a dynamic mic
- Mic-stand adapter
- Phantom-powered via AudioBox USB
- 9' / 3m cable included
- Cloth carry bag included
- Studio Magic Plug-In Suite
-
- The Studio Magic Plug-in Suite for Mac and Windows includes seven popular plug-ins in VST, AU, and AAX formats
- SPL Attacker
- Mäag Audio EQ2
- Lexicon MPX-i Reverb
- Eventide H910
- Eventide 2016 Stereo Room
- Brainworx bx_opto Compressor
- Arturia Analog Lab Lite
UPC: 673454007156 In the Box PreSonus ATOM Producer Lab: Complete Production Kit ATOM Production and Performance Pad Controller Studio One 4 Artist - Audio and MIDI Recording/Editing Software (Activation Card) AudioBox 96 USB 2.0 Audio Recording Interface M7 Large-Diaphragm Microphone Microphone Cable Mic-Stand Adapter Microphone Cloth Carry Bag Studio Magic Plug-In Suite Limited 1-Year Warranty User Manual- AudioBox USB 96 PDF 7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus ATOM Producer Lab: Complete Production Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus ATOM Producer Lab Specs | | | Mac System Requirements | OS: Mac OS X 10.11 or later (64-bit only)
CPU: Intel Core 2 Duo processor (Intel Core i3 or faster recommended)
Memory: 4 GB RAM (8 GB or more recommended)
USB: USB 2.0 port
Internet connection (needed for software installation and activation)
Monitor: 1366 x 768 resolution (high-dpi monitor recommended)
Hard Drive Space: 40 GB
Universal Control: 2.9 or later (for firmware updates)
Studio One 4.1+ required for native integration | | Windows System Requirements | OS: Windows 7 (SP1 + platform update), Windows 8.1, or Windows 10 (64-bit only)
CPU: Intel Core Duo or AMD Athlon X2 processor (Intel Core 2 Duo or AMD Athlon X4 or better recommended)
Memory: 4 GB RAM (8 GB or more recommended)
USB: USB 2.0 portInternet connection (needed for software installation and activation)
Monitor: 1366 x 768 resolution (high-dpi monitor recommended)
Hard Drive Space: 40 GB
Universal Control: 2.9 or later (for firmware updates)

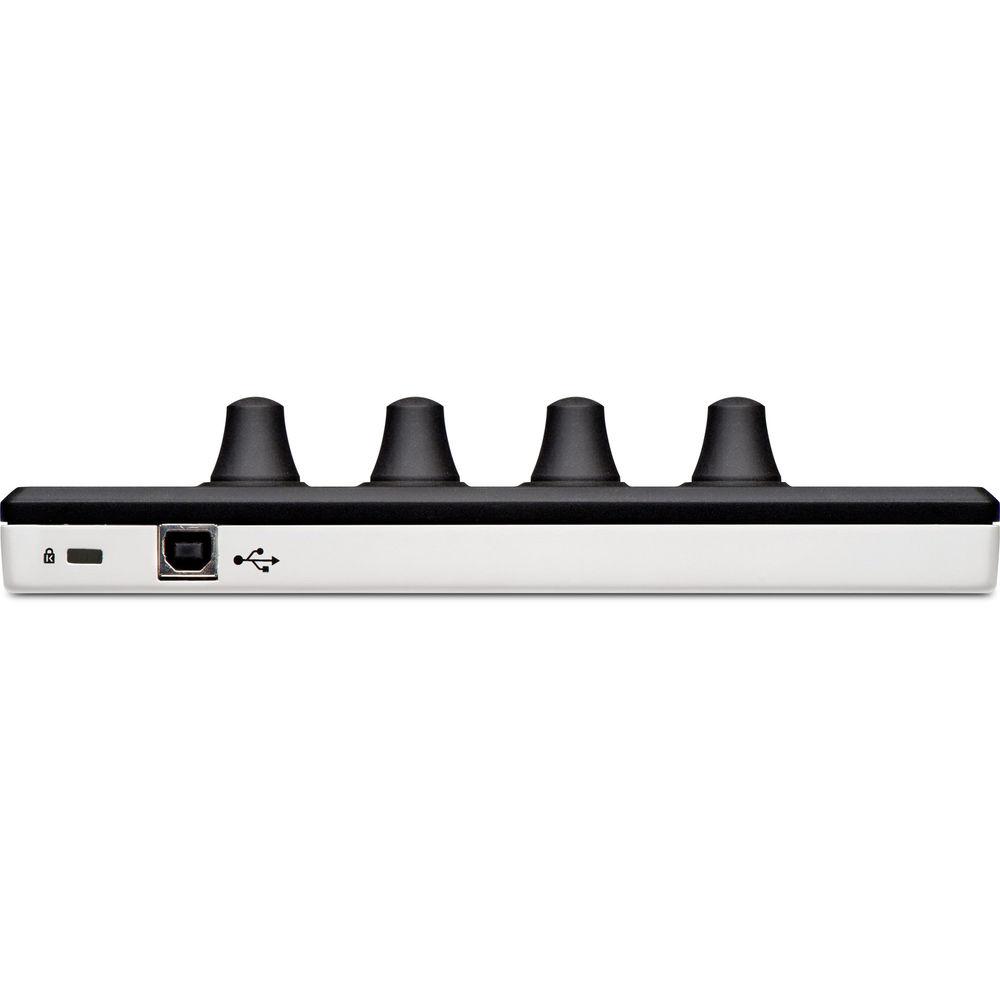

Studio One 4.1+ required for native integration | | | | Input | Connection Type: USB 2.0 (bus-powered) | | Controls | 16 x full-size velocity- and pressure-sensitive RGB LED pads
20 x assignable buttons
4 x endless rotary knobs
1 x setup button | | Dimensions (H x D x W) | 0.8 x 7.7 x 8.0" / 20.8 x 195.1 x 201.9 mm | | Weight | 1.0 lb / 0.5 kg | | | | Frequency Response | Microphone Preamp (±3.0 dB): 20 Hz to 20 kHz
Headphone Output (±1.0 dB): 20 Hz to 30 kHz | | Input Impedance | Microphone Preamp: 1.2 kOhms
Line: 0.5 MOhms | | Output Impedance | Line: 51 Ohms | | Maximum Output | Headphone: 60 mW/Ch at 60-Ohm load | | Total Harmonic Distortion (THD) | <0.008% | | Signal to Noise Ratio | >95 dB | | CMRR | >45 dB (1 kHz, 55 dB gain) | | Gain Range | 0 to 35 dB, ±1 dB | | Maximum Input Level | -3 dBu | | Connectors | 2 x XLR/TRS combo inputs (mic/line)
2 x 5-pin DIN MIDI I/O
2 x 1/4" TRS main out (balanced)
1 x 1/4" TRS headphone
1 x USB Type-B | | Power | USB bus-powered | | Phantom Power | +48 V | | AD/DA | Dynamic Range: 105 dB
Bit Depth: 24-bit
Reference Level for 0 dBFS: +4 dBu
Sample Rates: 44.1, 48, 88.2, 96 kHz | | System Requirements | Mac:
Intel Core Duo processor (Intel Core 2 Duo or Intel Core i3 or faster recommended)
OS X 10.8.5 or later
2 GB RAM or more (4 GB recommended)
USB 2.0 port
20 GB hard-drive space (internal or external 7200 RPM storage drive highly recommended)
1024 x 768 minimum monitor resolution
Internet connection (for activation)
Windows:
Intel Core 2 processor (Intel Core i3 processor or faster recommended)
Windows 7 (x64/x86) SP1, 8, 8.1 (x64/x86), 10 (x64/x86)
2 GB RAM or more (4 GB recommended)
USB 2.0 port
20 GB hard-drive space (internal or external 7200 RPM storage drive highly recommended)
1024 x 768 minimum monitor resolution
Internet connection (for activation) | | Dimensions (WxHxD) | 5.5 x 5.5 x 1.8" / 140 x 140 x 45 mm | | Weight | 5 lb / 2.7 kg | | | | Type | M7: Large-diaphragm condenser | | Element | Electret | | Polar Pattern | Cardioid | | Frequency Response | 40 Hz to 18 kHz | | Sensitivity | -39 dBV/ap (12.2 mV/pa) | | Rated Impedance | 200 Ohms | | Equivalent Input Noise | EIN: 20 dB | | Maximum SPL | 136 dB SPL | | Phantom Power Requirement | +12 to +52 VDC, 3 mA | | Signal to Noise Ratio (SNR) | 74 dB | | Dynamic Range | 11 dB | | Current Consumption | 3.5 mA | | Dimensions (W x L) | Interface: 2.1 x 6.7" / 5.4 x 17.0 cm | | | | Package Weight | 6.615 lb | | Box Dimensions (LxWxH) | 14.2 x 13.0 x 5.2" |
