User Manual for PreSonus AudioBox 96 Studio Complete Hardware Software Recording Kit Click to enlarge the picture
Contents of the user manual for the PreSonus AudioBox 96 Studio Complete Hardware
- Product category: Audio Interfaces & Systems PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Audio Interfaces & Systems
 |
User manual for the PreSonus AudioBox 96 Studio Complete Hardware contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|

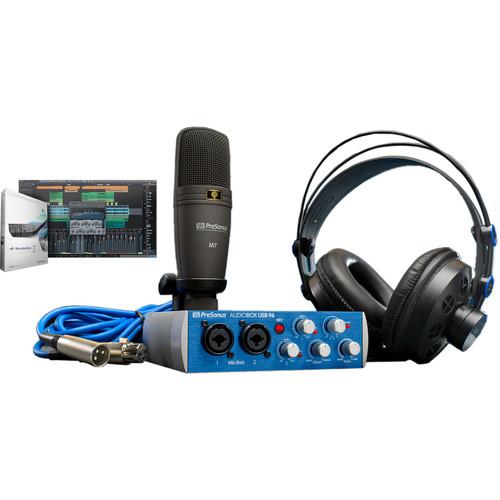

Product description The Presonus AudioBox 96 Studio is a complete recording-studio package that combines the AudioBox USB 96 audio/MIDI interface, a copy of Studio One 3 Artist recording and production software, the M7 large-diaphragm condenser microphone, and a pair of HD7 professional headphones to create an all-in-one solution for musicians and engineers wishing to produce professional music.

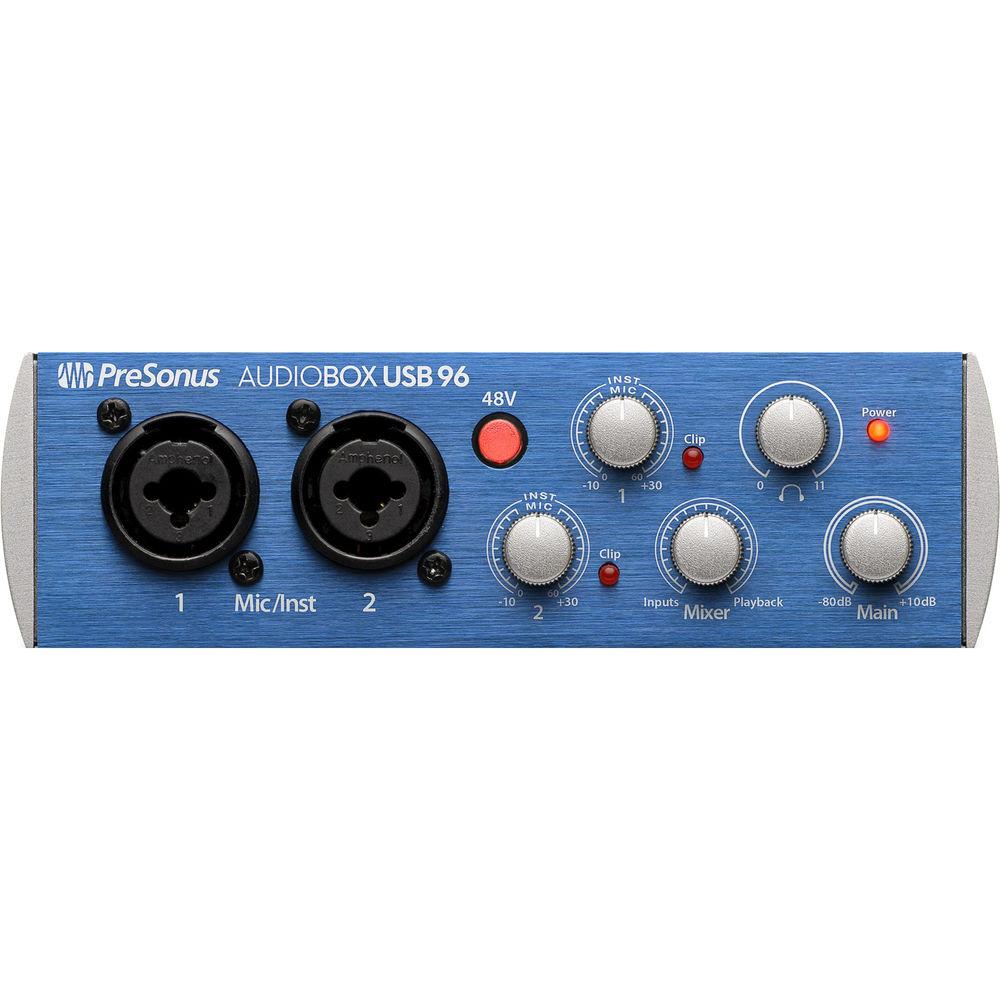

The AudioBox 96 offers two combo XLR-1/4" inputs capable of recording microphones and instruments via its professional-quality, 24-bit / 96 kHz converters. The interface is bus-powered and lightweight, making it an ideal portable interface that is compatible with Mac and Windows computers. The Studio One 3 Artist software is an easy-to-use DAW that delivers unlimited audio tracks, MIDI, virtual instruments, buses, and FX channels. The software offers powerful drag-and-drop functionality and offers a single-window work environment. The software ships with 26 native effects and over 10GB of third-party software, loops, and instruments.

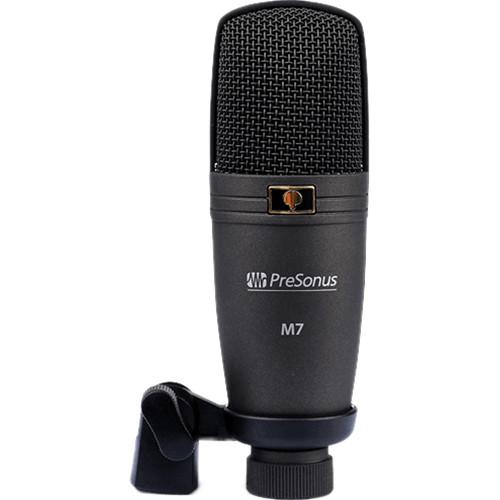

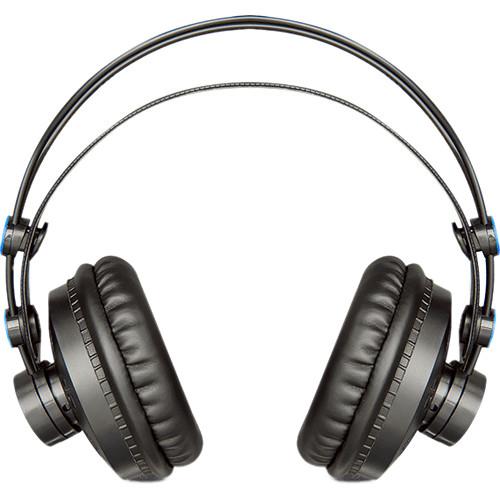

The M7 is a large-diaphragm condenser with a cardioid pickup pattern, which offers focused sound recording from the front and solid off-axis rejection. The microphone offers a frequency response of 40 Hz to 18 kHz and can withstand a maximum SPL of 136 dB. The HD7 headphones utilize 50mm neodymium drivers to deliver a frequency response of 10 Hz to 30 kHz with a sensitivity of 98 dB SPL (1mW). The leather earpads provide comfort for long listening sessions. Included with the AudioBox 96 Studio is the Studio Magic Plug-In Suite. - AudioBox 96
-
- Bus-powered USB audio and MIDI interface
- Perfect match with Studio One Artist software for Mac and Windows
- 24-bit resolution, 44.1, 48, 88.1, and 96 kHz sampling rate
- 2 combo mic/instrument inputs with Class-A mic preamplifiers
- 48V phantom power (for included M7 microphone or other condenser microphones)
- Zero-latency monitoring via internal analog mixer
- Headphone jack with level control (for included HD7 headphones or other headphones)
- 1/3 RU rackmountable
- Computer-to-interface connection cable included

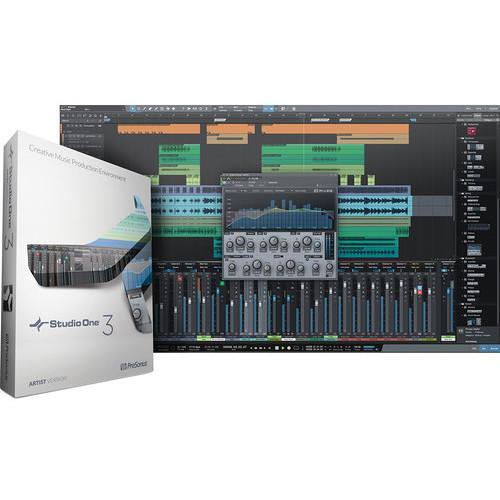

- Studio One Artist Software
-
- Single-window work environment
- Powerful drag-and-drop functionality
- Unlimited audio tracks, MIDI tracks, virtual instruments, buses, and FX channels
- Content browser with convenient sort options and preview player
- Intuitive MIDI-mapping system
- Real-time audio time-stretching and resampling
- Multitrack comping and MIDI editing
- Transient detection and editing, plus groove extraction
- Automatic delay compensation
- Advanced automation
- Integrates tightly with Celemony Melodyne
- Instantly configures to PreSonus interfaces
|
Upload User Manual
Have you got an user manual for the PreSonus AudioBox 96 Studio Complete Hardware Software Recording Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus AUDIOBOX 96 STUDIO Specs | | | Frequency Response | Microphone Preamp (±3.0 dB): 20 Hz to 20 kHz
Headphone Output (±1.0 dB): 20 Hz to 30 kHz | | Input Impedance | Microphone Preamp: 1.2 kOhms
Line: 0.5 MOhms | | Output Impedance | Line: 51 Ohms | | Maximum Output | Headphone: 60 mW/Ch at 60-Ohm load | | Total Harmonic Distortion (THD) | <0.008% | | Signal to Noise Ratio | >95 dB | | CMRR | >45 dB (1 kHz, 55 dB gain) | | Gain Range | 0 to 35 dB, ±1 dB | | Maximum Input Level | -3 dBu | | Connectors | 2 x XLR/TRS combo inputs (mic/line)
2 x 5-pin DIN MIDI I/O
2 x 1/4" TRS main out (balanced)
1 x 1/4" TRS headphone
1 x USB Type-B | | Power | USB bus-powered | | Phantom Power | +48 V | | AD/DA | Dynamic Range: 105 dB
Bit Depth: 24-bit
Reference Level for 0 dBFS: +4 dBu
Sample Rates: 44.1, 48, 88.2, 96 kHz | | System Requirements | Mac:
Intel Core Duo processor (Intel Core 2 Duo or Intel Core i3 or better recommended)
OS X 10.8.5 or later
2 GB RAM or more (4 GB recommended)
USB 2.0 port
20 GB hard-drive space (internal or external 7200 RPM storage drive highly recommended)
1024 x 768 minimum monitor resolution
Internet connection (for activation)
Windows
Intel Core 2 processor (Intel Core i3 processor or better recommended)
Windows 7 (x64/x86) SP1, 8, 8.1 (x64/x86), 10 (x64/x86)
2 GB RAM or more (4 GB recommended)
USB 2.0 port
20 GB hard-drive space (internal or external 7200 RPM storage drive highly recommended)
1024 x 768 minimum monitor resolution
Internet connection (for activation) | | Dimensions (WxHxD) | 5.5 x 5.5 x 1.8" / 140 x 140 x 45 mm | | Weight | 5 lb / 2.7 kg | | | | Type | M7: Large-diaphragm condenser | | Element | Electret | | Polar Pattern | Cardioid | | Frequency Response | 40 Hz to 18 kHz | | Sensitivity | -39 dBV/ap (12.2 mV/pa) | | Rated Impedance | 200 Ohms | | Equivalent Input Noise | EIN: 20 dB | | Maximum SPL | 136 dB SPL | | Phantom Power Requirement | +12 to +52 VDC, 3 mA | | Signal to Noise Ratio (SNR) | 74 dB | | Dynamic Range | 11 dB | | Current Consumption | 3.5 mA | | Dimensions (Ø x L) | 2.1 x 6.7" / 5.4 x 17.0 cm | | Weight | 11.3 oz / 320.3 g | | | | Design | HD7 Headphones Acoustic Design: Dynamic, semi-open | | Driver | 2.0" / 50.0 mm | | Frequency Response | 10 Hz to 30 kHz | | Sensitivity | 98 dB SPL (1 mW) | | Maximum Power | 300 mW | | Rated Impedance | 56 Ohms | | Earpad Material | Leather | | Cable Length | 8.2' / 2.5 m, straight, single-sided | | Weight | 7.8 oz / 221.1 g | | | | Package Weight | 4.75 lb | | Box Dimensions (LxWxH) | 13.6 x 9.4 x 5.9" |
