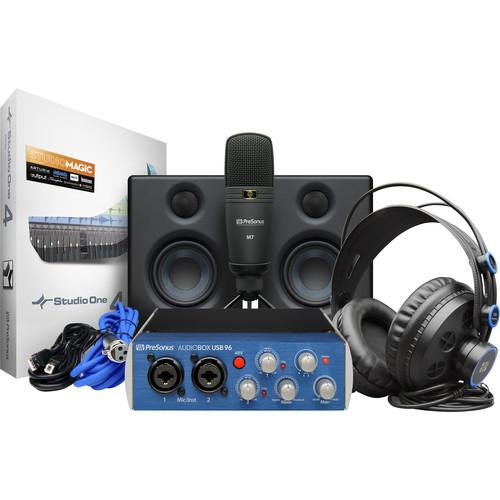

PreSonus AudioBox Studio Ultimate Bundle Deluxe

User Manual for PreSonus AudioBox Studio Ultimate Bundle Deluxe Hardware Software Recording Collection

• Product category: Audio Interfaces & Systems PreSonus
• Brand: PreSonus
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for PreSonus Audio Interfaces & Systems

Product description

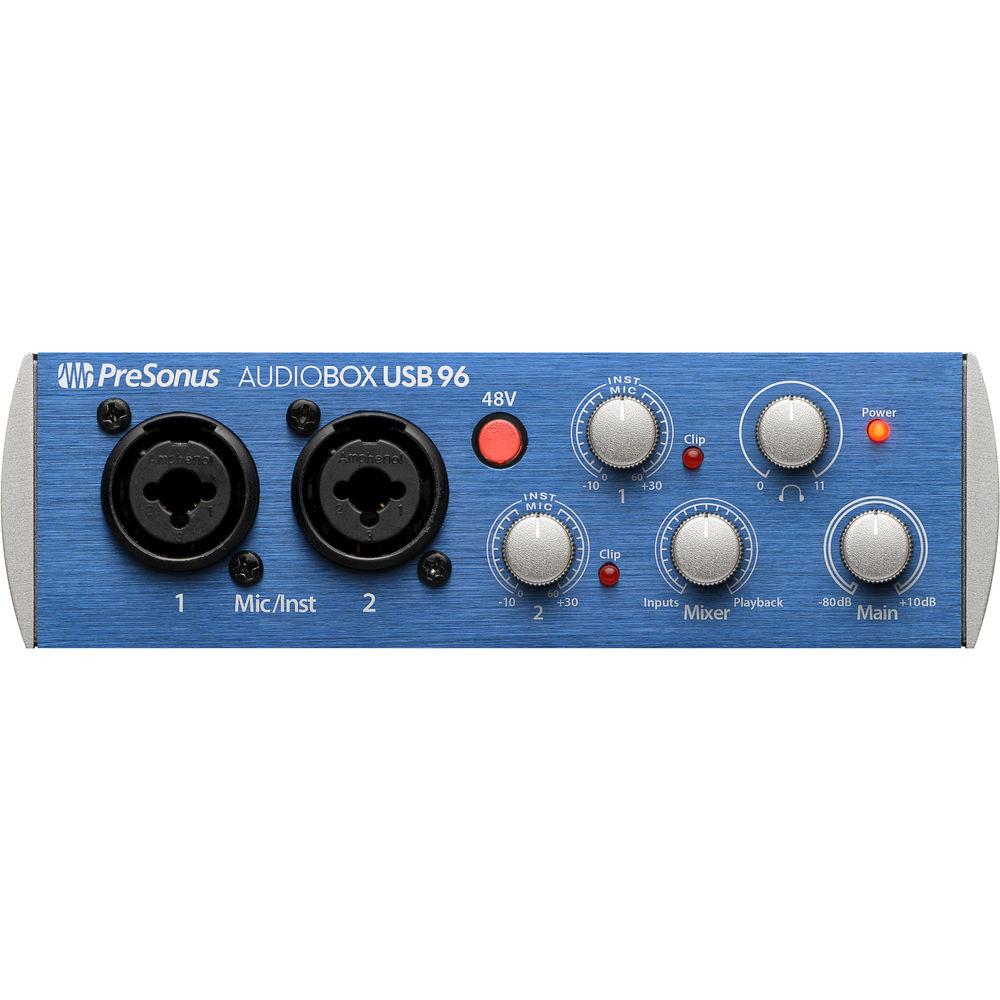

• AudioBox 96 USB 2.0 Audio Recording Interface The AudioBox 96 from Presonus is a two-channel USB computer audio interface. Designed to be portable, the unit utilizes 24-bit converters that sample at 44.1, 48, 88.1, or 96 kHz. Two high-quality PreSonus microphone preamps with switchable 48V phantom power are also provided, as are combination jacks for 1/4" or XLR inputs, MIDI I/O, and solid drivers. Whilst recording, you can achieve zero-latency monitoring with a knob that allows you to blend signal from the preamp with signal in your DAW, giving you a tailored balance of both sources. The interface is bundled with the Studio One Artist 3 DAW software for Mac and Windows, and includes the Studio Magic plug-in suite, providing effects, virtual instruments, and third-party loops, software, and instrument sounds. This unit is sturdy enough to be taken on the road, though also finds its home in the studio.
  • 24-bit/44.1, 48, 88.1, 96 kHz USB audio recording interface bundled with PreSonus Studio One 3 Artist
  • Two microphone/instrument preamps
  • Switchable 48V phantom power
  • Balanced 1/4" TRS phone outputs
  • Headphone output (1/4" TRS) with dedicated volume control
  • MIDI input and output
  • All metal chassis ready to withstand the rigors of the road
  • Powered via the USB bus
  UPC: 673454005381
• Eris E3.5 3.5" 2-Way 25W Nearfield Monitors (Pair) The PreSonus Eris E3.5 is a pair of 3.5" 2-way 25W nearfield monitors designed to provide a compact sonic reference system for musicians, producers, and audio engineers in home setups, project studios, and commercial facilities. Each monitor produces a frequency response of 80 Hz to 20 kHz via a 3.5" Kevlar woofer and a 1" silk dome tweeter powered by a 25W class AB amplifier. The monitors can handle 100 dB maximum peak SPL. A rear bass-reflex port provides enhanced low-frequency range.For inputs, the monitor system accepts balanced 1/4" TRS, unbalanced 3.5mm, and unbalanced RCA inputs. An integrated 2-band EQ allows you to fine tune the monitors to your listening preference. The EQ controls include ±6 dB gain at 100 Hz and ±6 dB at 10 kHz. A front-panel 3.5mm stereo mini-jack is provided for easy headphone monitoring.Each cabinet uses resonance-suppressing internal bracing to optimize the sound output and the amplifiers include RF interference, output-current limiting, over-temperature, transient, and subsonic protection circuits.
  Components and Construction
  • • 3.5" Kevlar low-frequency transducer
    • 1" ultra-low-mass, silk-dome, high-frequency transducer
    • Rear-firing acoustic port for enhanced bass-frequency reproduction
    • Optimized, resonance-suppressing internal bracing
  User Controls
  • • High-frequency shelving EQ at 10 kHz
    • Low-frequency shelving EQ at 100 Hz
    • Front-panel volume control for speakers and headphone amplifier
  I/O
  • • Balanced 1/4" TRS, unbalanced 3.5mm stereo, and unbalanced RCA inputs
    • Integrated stereo headphone amplifier with front-panel 3.5mm output
  Power and Safety
  • • 50W (25W per side) Class AB biamplification
    • RF interference, output current limiting, over-temperature, transient, and subsonic protection
    • Amplifier “soft start” feature eliminates popping on power-up
    • Internal power supply with IEC connector
    • Power switch with on/off LED
  UPC: 673454006388

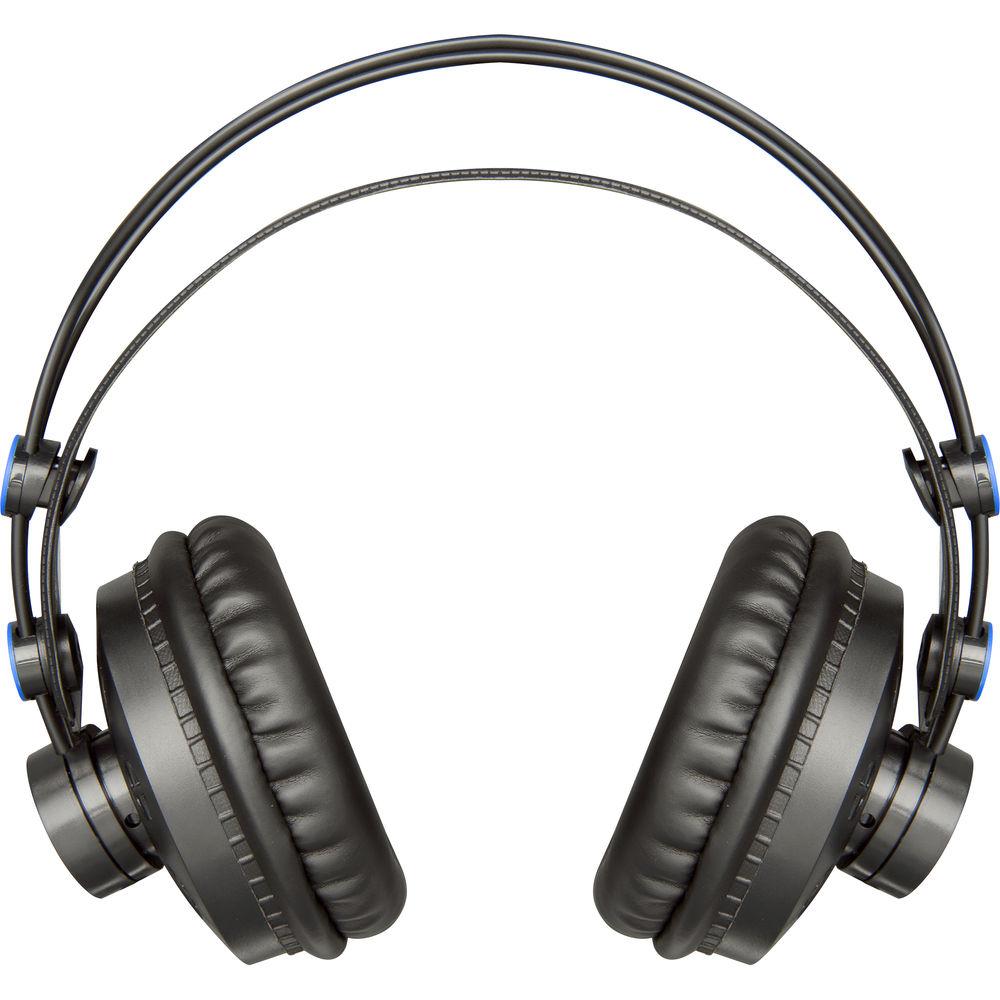

• HD7 Professional Over-Ear Monitoring Headphones The PreSonus HD7 is a pair of over-ear, semi-open headphones designed to provide high-quality audio in a durable design. These headphones feature 50mm neodymium drivers, as well as precision-tuned acoustic chambers to deliver crisp, detailed audio within a wide frequency response. Indeed, the headphones extend from 10 Hz to 30 kHz. The rugged construction can withstand the rigors of professional use.

  The headphones feature a self-adjusting headband and thick over-ear cushions to provide a snug, comfortable fit. A single-sided cable is provided, and this cable is 8.2' long to give you a good amount of slack. A 3.5mm plug with a 1/4" adapter ensures compatibility with most audio devices, consumer and professional alike. These headphones are relatively lightweight at 7.8 oz.
  Key Features at a Glance
  • • High-resolution drivers
    • Precision-tuned acoustic chamber
    • Extended bass response down to 10 Hz
    • Rugged construction
    • Comfortable and long-lasting earpads
    • Single-sided 8.2' cable
    • Lightweight at 7.8 oz
  UPC: 673454001246

• Studio One 3 Artist Software (Download)

• Limited 1-Year Warranty

• 5' Stereo 3.5mm TRS to Dual RCA Cable

• 5' Stereo 3.5mm TRS Cable

• 6.6' Speaker Cable

• Power Cable

• 8 x Foam Feet

• Limited 1-Year Warranty

• 1/4" Adapter

• Limited 1-Year Warranty

Also Includes

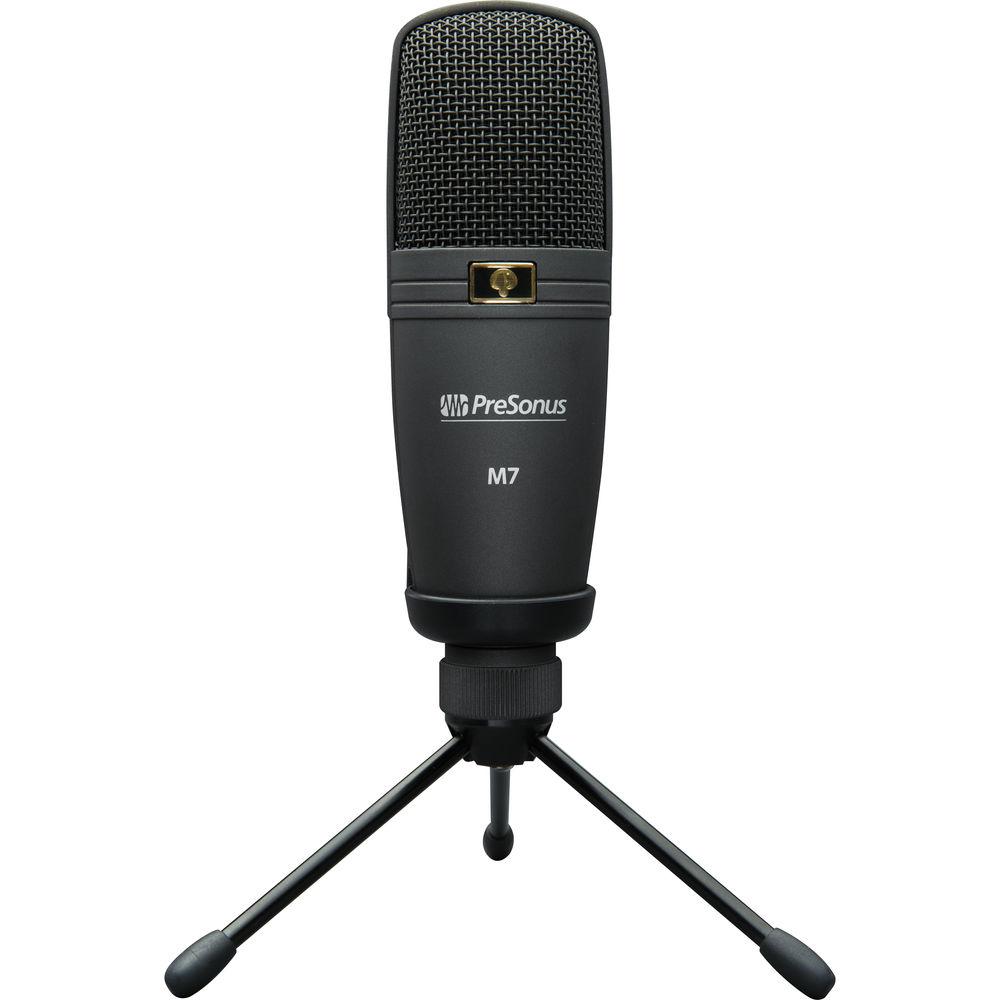

• M7 Condenser Microphone
• Desktop Tripod Mic Stand
• Mic Stand Adapter
• Cloth Microphone Carry Bag
• 10' XLR Microphone Cable
• 2 x 6' 1/4" TRS Cables
• USB 2.0 Cable
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AudioBox 96 USB 2.0 Audio Recording Interface

  Max Sample Rate/Resolution	96 kHz / 24-Bit

  Host Connection	1 x USB Type-B
  Analog I/O	2 x Combo XLR / 1/4" Mic/Line Input 2 x 1/4" (6.3 mm) TRS Balanced Monitor Output 1 x 1/4" (6.3 mm) TRS Headphone Output
  Phantom Power	+48 V
  Digital I/O	None
  MIDI I/O	1 x 5-Pin MIDI In 1 x 5-Pin MIDI Out

  Frequency Response

  Headphone Outputs: 20 Hz to 30 kHz Rating 100% users recommend this product to others. And what about you? This product has already been rated by 95 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
