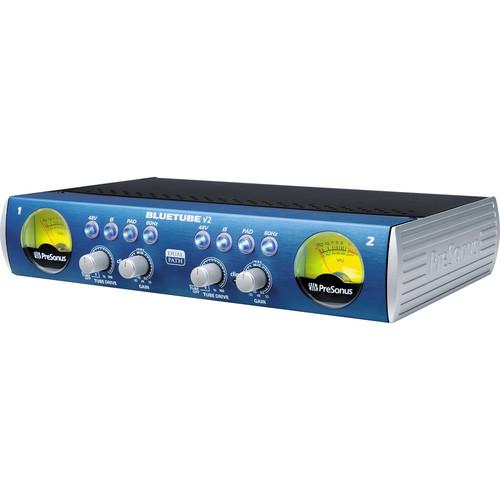

Product description The BlueTube DP v2 from PreSonus is a two-channel microphone/instrument preamplifier with "Dual Path" technology that delivers the best of both worlds. It offers a solid state preamplifier stage and a tube preamplifier stage in each channel, delivering either fat, warm tube tone, or solid state transparency. When the Tube Drive is clicked off, the tube preamplifier stage is bypassed delivering ultra-quiet pre-amplification. When it's engaged, the signal flows through the tube preamp providing anything from gentle warmth to edgy distortion.

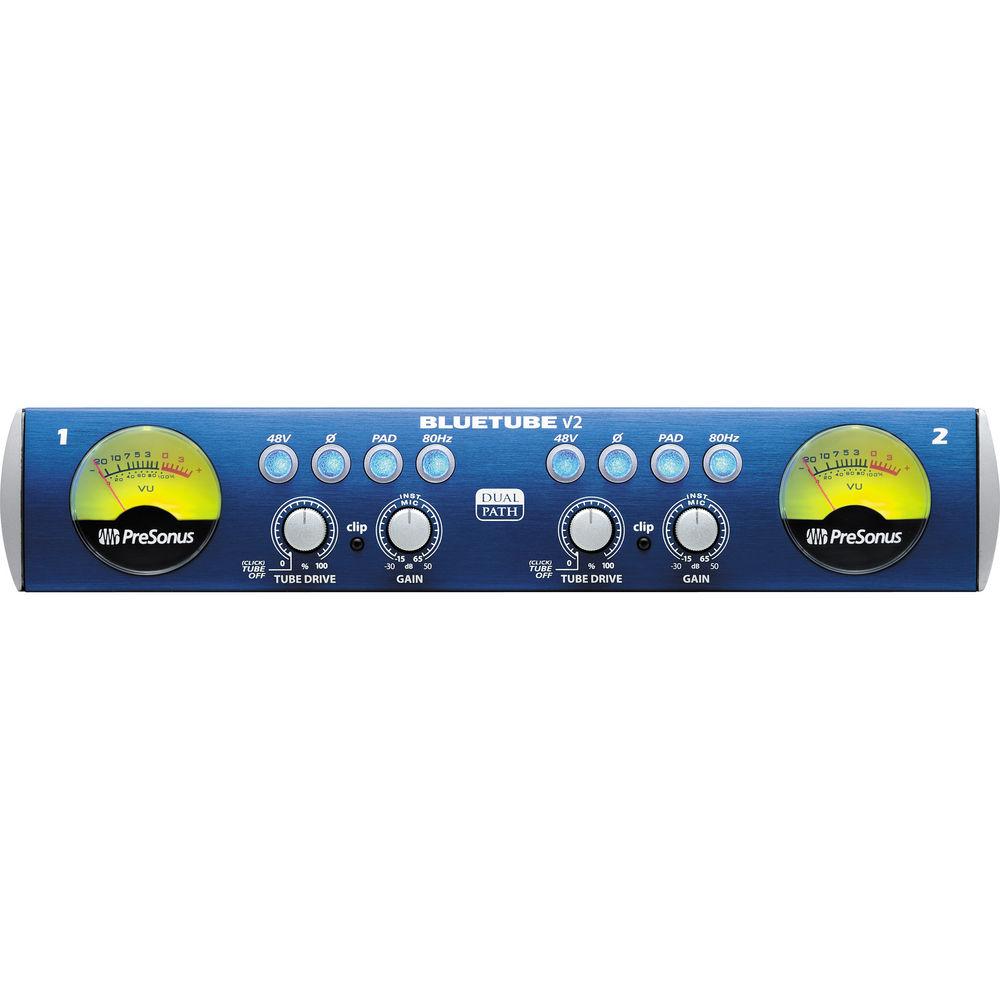

The solid-state path feeds the company's Class A XMAX microphone preamp with 80 dB of variable gain, while the tube path features a 12AX7 tube that operates on higher voltages than comparable models, producing lots of headroom. Each channel of the unit includes a -20dB pad, phase reverse, 80 Hz filter, and +48 V phantom power. Controls include a solid state GAIN control and switchable on/off Tube Drive. The front panel includes illuminated analog VU meters for each channel for easy visual monitoring.

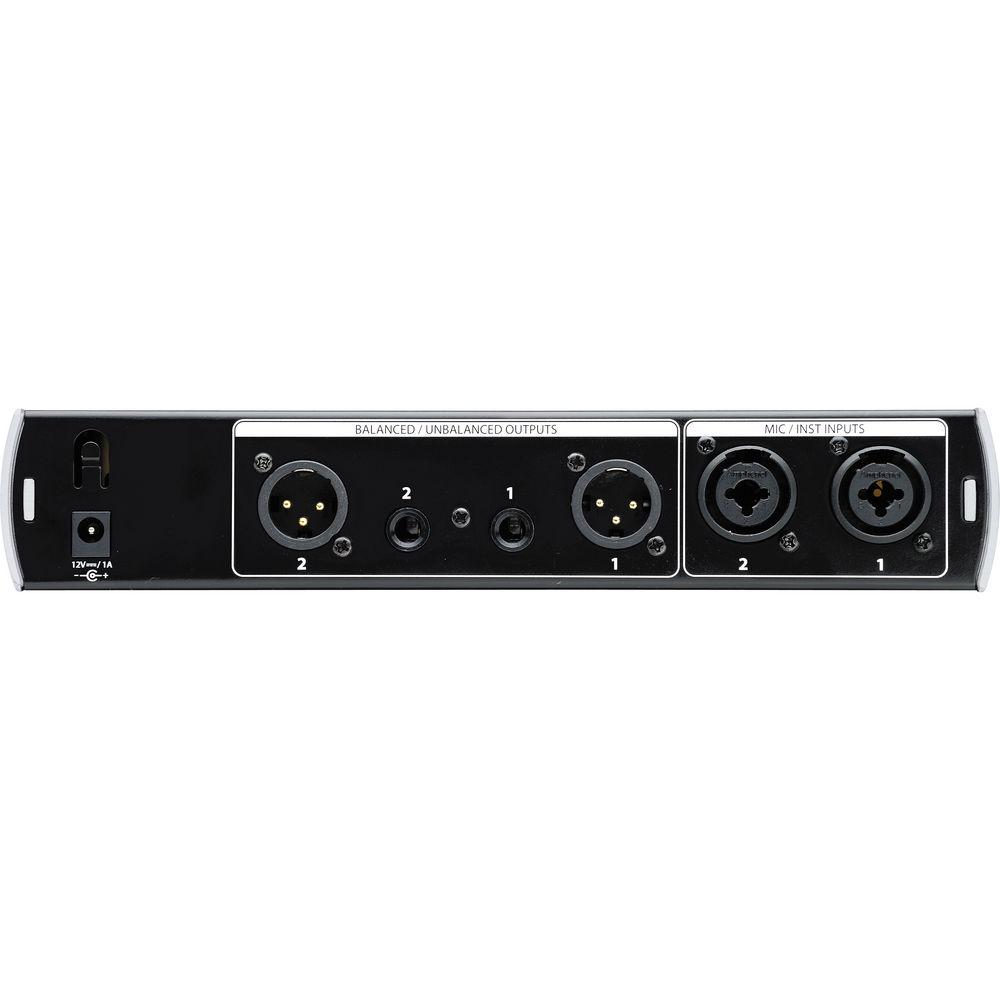

The preamp is great for enhancing all types of microphones including condensers, dynamics and ribbons, as well as instruments including keyboards, acoustic and electric guitars and bass. It also serves as a DI box, thanks to balanced XLR and unbalanced 1/4" outputs. Singer-songwriters can run their vocals through one channel and a guitar through the other, feeding both to a PA system. Housed in a rugged half-rack enclosure, the preamp can be used as a desktop unit, or can be screw-mounted to a standard rack tray. - Two-channel "Dual Path" microphone/instrument preamp
- High headroom Class A XMAX microphone preamp with 80 dB gain range
- 12AX7 vacuum tube gain stage
- Tube Drive tube-saturation control
- 20 dB pad, phase reverse and 80 Hz filter on each channel
- Two illuminated analog VU meters
- Functions as a DI for bass and guitar
UPC: 673454001703 In the Box PreSonus BlueTube DP v2 - Mic/Instrument Tube Preamp External Power Supply One (1) Year Warranty User Manual PDF 976.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus BlueTube DP v2 - Mic Instrument Tube Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus BlueTube DP V2 Specs | Number of Channels | 2 | | Inputs | 2 x 1/4" TS/XLR Neutrik Combo | | Input Impedance | Microphone: 1.3kΩ
Instrument: 1MΩ | | Output | 2 x XLR
2 x 1/4" TS phone | | Output Impedance | 51Ω | | Maximum Output Level | +20 dBu | | Phantom Power | +48 VDC, 10 mA (independently switchable) | | Multi Function | No | | Frequency Response | 20 Hz to 20 kHz, -0.3 dB, +4 dBu, unity gain
5 Hz to 120 kHz, -3.0 dB, +4 dBu, unity gain | | Noise | EIN
-131 dB, 20 kHz bandwidth, maximum gain, Rs=40Ω, A-weighted
-128 dB, 20k Hz bandwidth, maximum gain, Rs=40Ω, unweighted | | Dynamic Range | 115 dB, 1 kHz, unity gain, 20 kHz bandwidth, A-weighted
107 dB, 1 kHz, unity gain, 20 kHz bandwidth, unweighted | | THD + N | 0.01%, -10 dBu, 1 kHz, unity gain, 20 kHz bandwidth, unweighted | | Power Requirements | +12 VDC, 1000 mA, center pin positive via included power supply PSU Barrel Dimensions: 5.5 mm outer dimension x 2.1 mm inner dimension x 9.5 mm length | | Dimensions (WxDxH) | 8 x 5 x 1.75" (203 x 127 x 45 mm) | | Weight | 4 lb (1.8 kg) | | Specialties | Dual path amplifier | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 15.9 x 8.0 x 4.3" |
