Product description - PreSonus-Introducing the CDL Hybrid Point Source / Line Array Loudspeakers

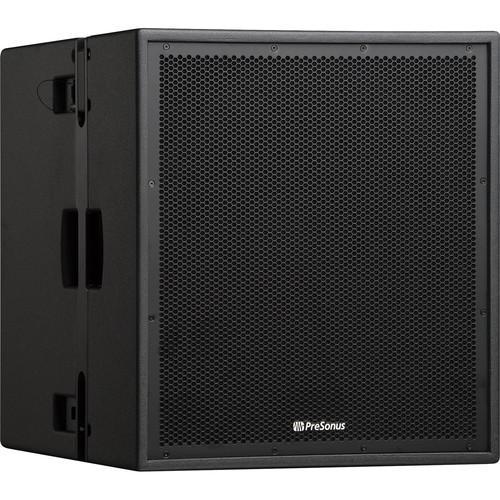

Designed for articulated sub-bass frequency reproduction, the PreSonus CDL18s Dante-Enabled Active Subwoofer delivers a high-output and controlled performance in sound-reinforcement applications for live stage, theater, clubs, and more. The CDL18s utilizes a 2000W (peak) Class-D amplifier to power the 18" woofer with a 4" voice coil, delivering a frequency response of 42 to 150 Hz with a peak SPL of 135 dB. The 15mm eucalyptus plywood enclosure is coated with a Chemline polyurea finish, a powder-coated steel grille, and offers XLR input and output with polarity invert. The driver and voice coil provide 7mm of driver travel before reaching over-excursion. The CDL18s easily ground stacks for simplified deployment and up to two subs may be flown with five CDL12 full-range tops for a complete line-array/point source sound system. Onboard DSP presets help facilitate simplified array configurations, or connect the array via Ethernet to enable WorxControl software for Mac and Windows, which provides compression, limiting, delay, and an 8-band EQ. Speakers and subs may be grouped and managed separately or together with remote performance monitoring indicators for temperature and signal levels. Additionally, the locking Ethernet connection allow the amplifier to integrate into Dante network environment. The PreSonus CDL18s ships with a powerCON power cord. -
- Tight, coherent low-end
- 18" woofer with 4" voice coil
- 2000W peak Class-D amplifier
- XLR input with XLR direct output
- 7mm driver travel before over-excursion

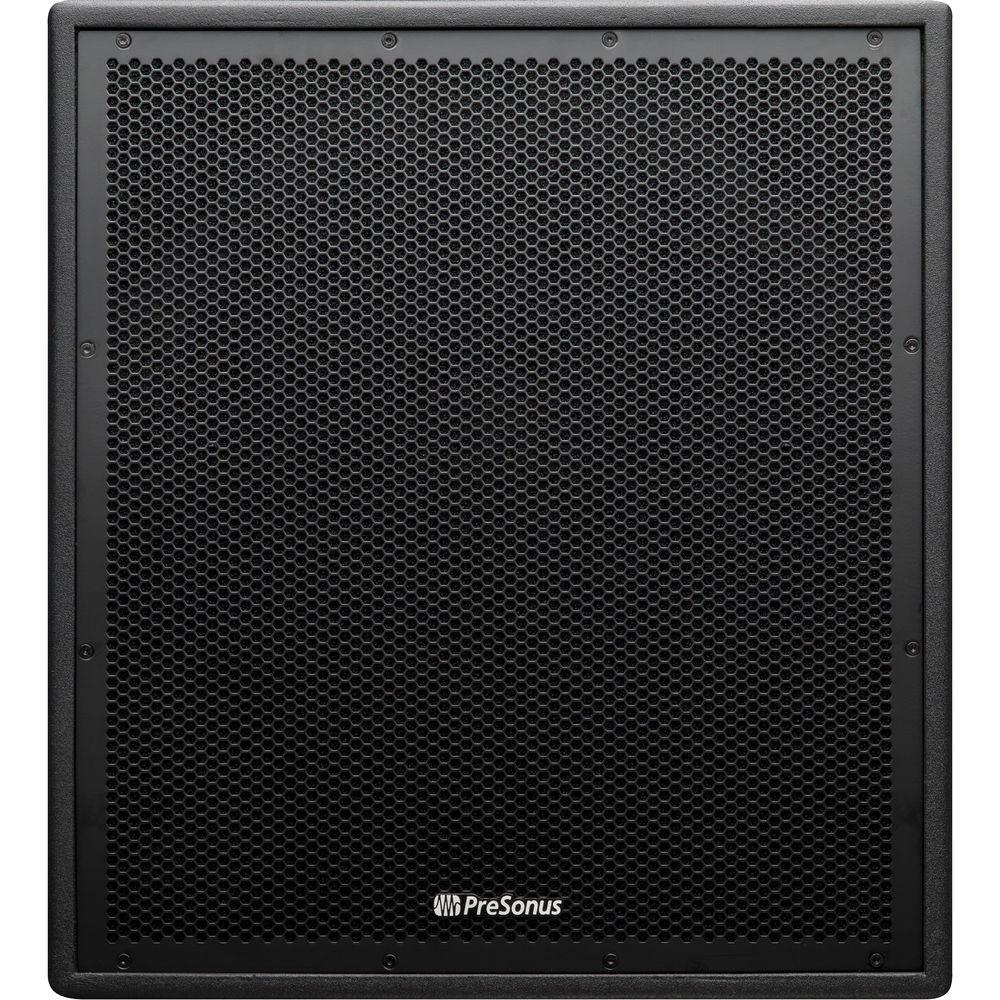

- Chemline polyurea finished eucalyptus plywood enclosure with powder-coated steel grille

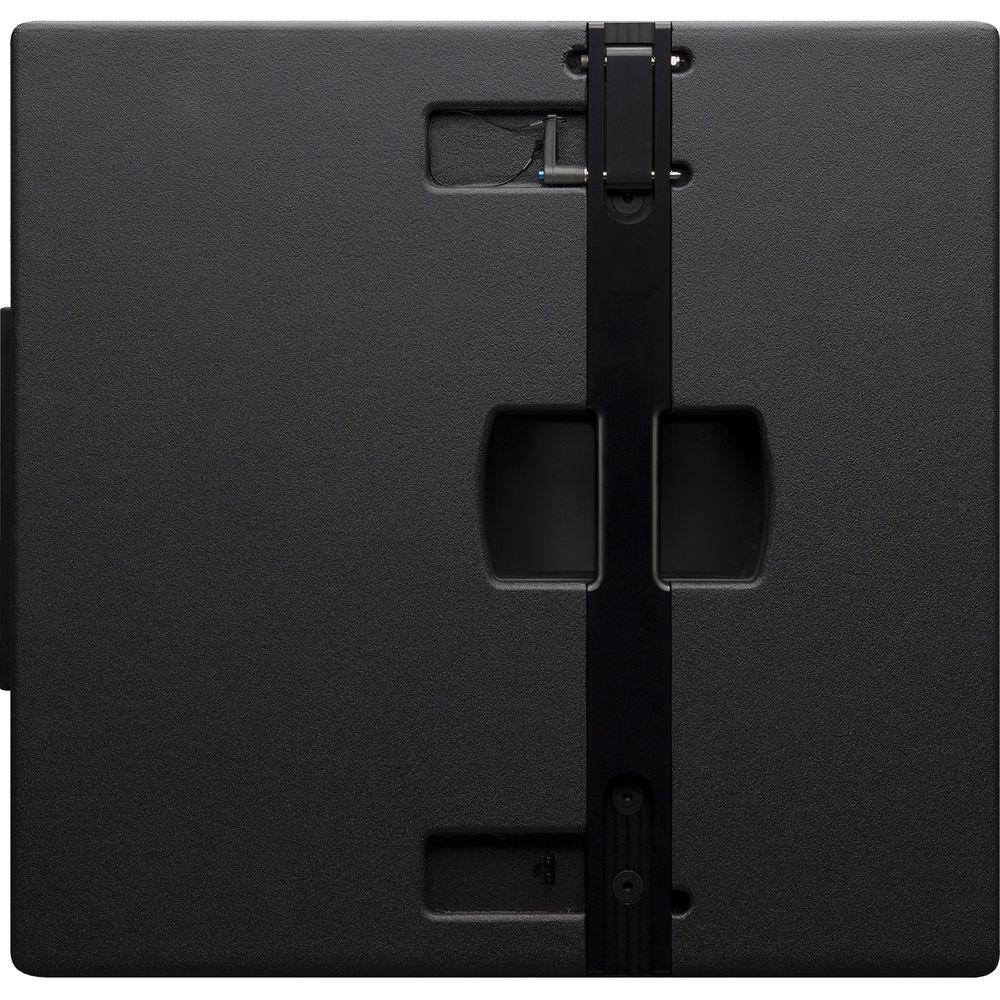

- Integrated rigging hardware for easy deployment of fly-rigs and ground stacks
- Two handles for ease in transport
- Optional caster kit and CDL rigging kit available
UPC: 673454006630 In the Box PreSonus CDL18s Dante-Enabled Active Subwoofer Power Cord Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus CDL18s Dante-Enabled Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus CDL18S Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 2000 W Peak
1000 W Program
500 W RMS | | | | LF Driver | 1 x 18" / 45.7 cm Woofer | | LF Voice Coil | 4" / 10.2 cm | | Magnet | Ferrite | | | | Frequency Range | 20 Hz to 20 kHz
36 Hz to 144 Hz -10 dB | | Frequency Response | 42 Hz to 150 Hz -3 dB | | Maximum SPL | 135 dB | | Max Input Level | +4 dBu | | I/O Impedance | Input:

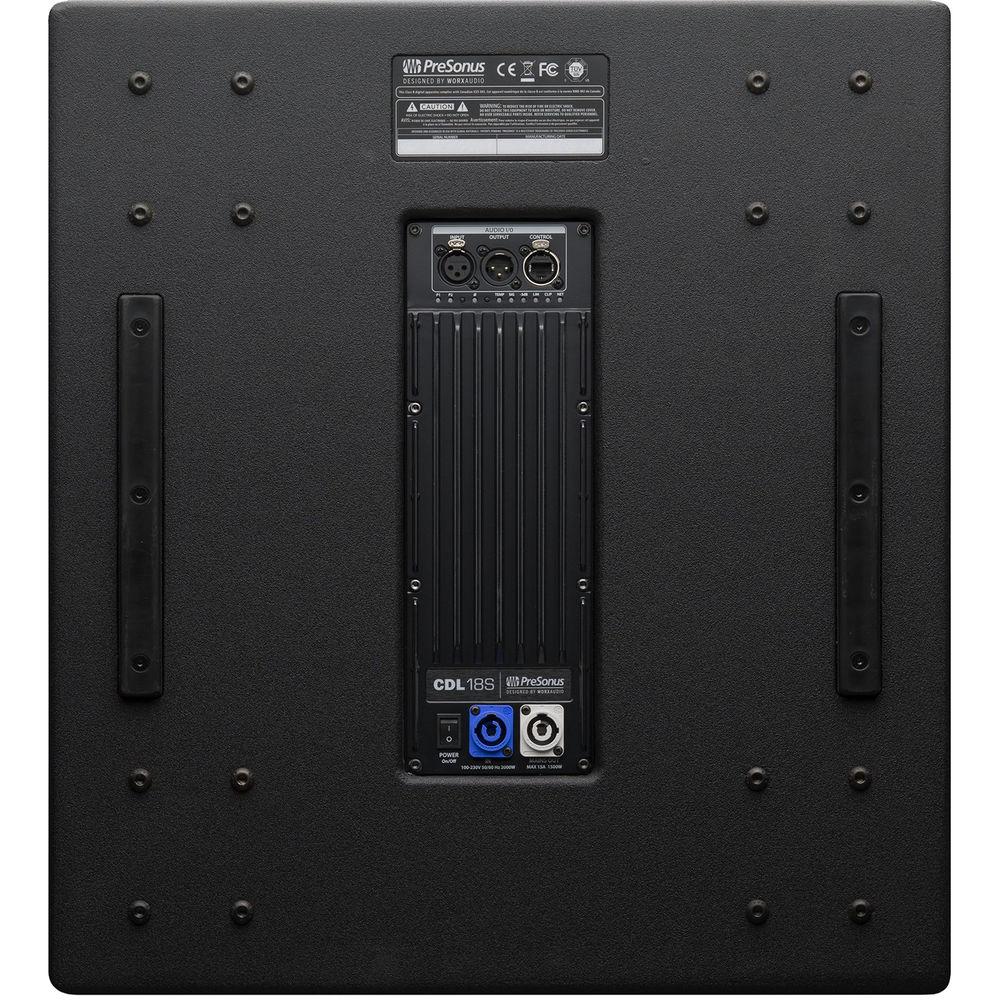

40 kOhms | | THD | <0.05% | | Protections | DC, Overcurrent, Overvoltage, Thermal, Undervoltage | | | | Audio I/O | XLR Line Input
XLR Output | | Network I/O | 1 x etherCON (Control) | | | | Crossover | 90 Hz | | EQ | Yes | | Dynamic Processing | Compression, HF Limiter, Limiter | | Alignment Delay | Yes | | Phase Adjustment | Yes | | Max Sample Rate/Resolution | 48 kHz / 24-Bit | | | | AC Input Power | 90 to 260 VAC, 50 / 60 Hz | | AC Power Connector | 1 x powerCON Input
1 x powerCON Output | | Current Consumption | 4.2 A (1/8 Power) | | | | Mounting | 1 x M20 (Top) Additional integrated rigging (10:1 load) | | Handles | 2 x Side | | Cooling | Convection | | Construction Material | Metal Grille, Plywood | | Dimensions | 23.2 x 20.8 x 24.0" / 589.3 x 528.3 x 609.6 mm | | Weight | 105 lb / 47.6 kg |
