Product description

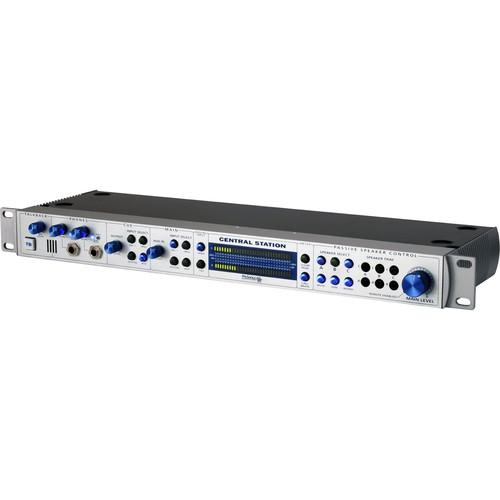

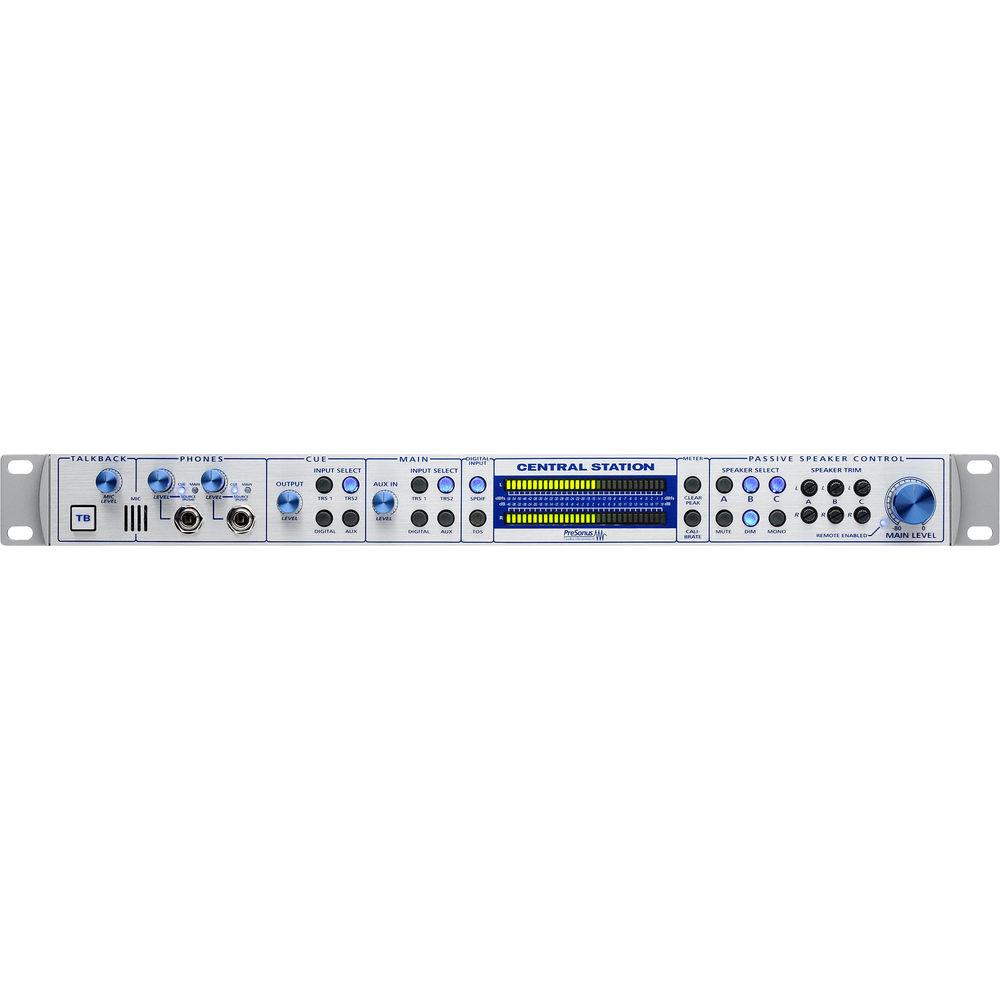

The PreSonus Central Station PLUS is a professional, audiophile-quality, passive monitor controller with a desktop remote well suited for commercial studios, project studios, and broadcast environments. The Central Station is designed to ensure a true transparent signal path and maximizes dynamic range, frequency response, and headroom while minimizing noise and coloration. The controller uses high-quality, passive components (no op-amps or ICs), including military-grade, 1% tolerance, metal-film resistors, multi-element potentiometers, and durable connectors to deliver professional sonic performance. The 1 RU enclosure houses controls for three sets of monitors, two high-gain headphone outputs, a built-in talkback mic, four sets of inputs, assignable cue and main outputs, and a precision dual 30-segment LED display with peak hold functionality.

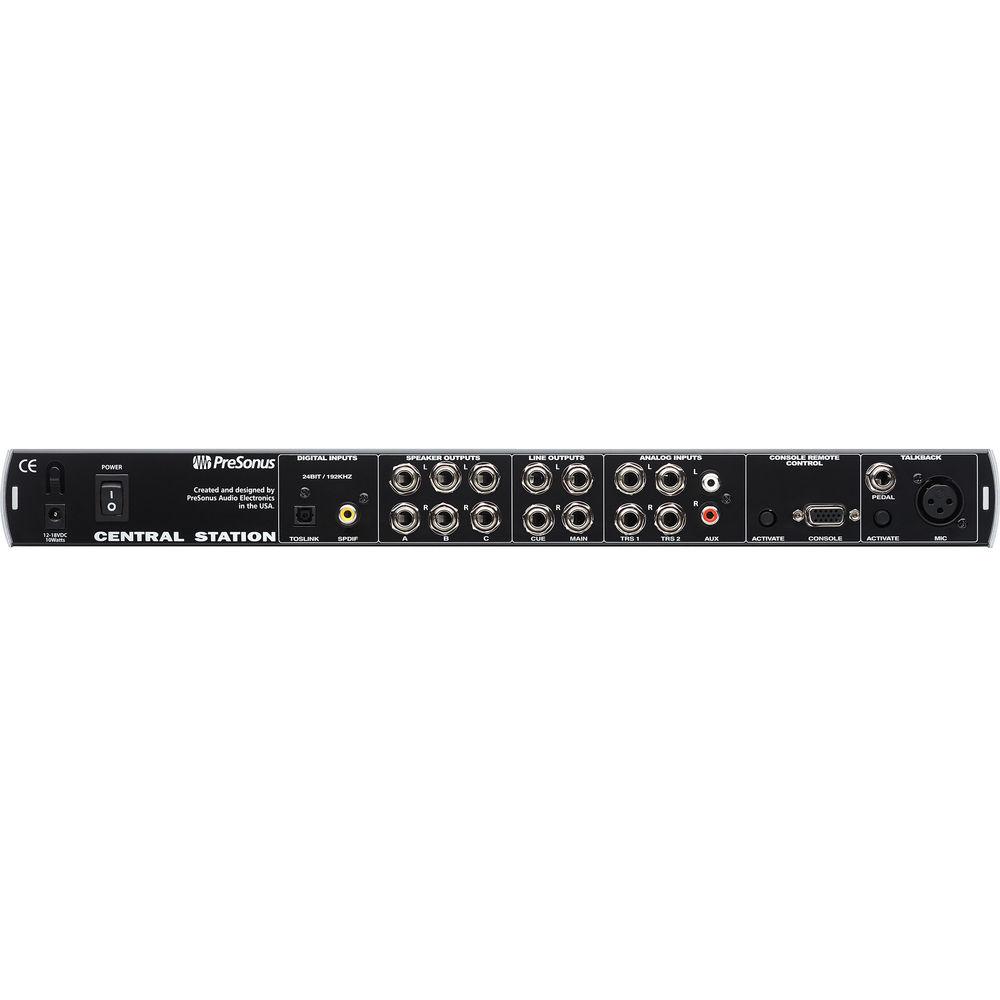

The rear panel offers two sets of 1/4" TRS inputs, as well as a set of RCA aux inputs. The Central Station PLUS also offers 24-bit/192 kHz digital inputs with TOSLINK and SPDIF connectors. There are two sets of 1/4" line outputs (Cue and Main) and three sets of 1/4" speaker outputs (A, B & C). Each speaker output features their own set of trim controls for setting levels and calibrating the loudness and balance of each monitor. The talkback mic section features an XLR input for using your own dynamic microphone and a pedal input for hands-free talkback engagement.

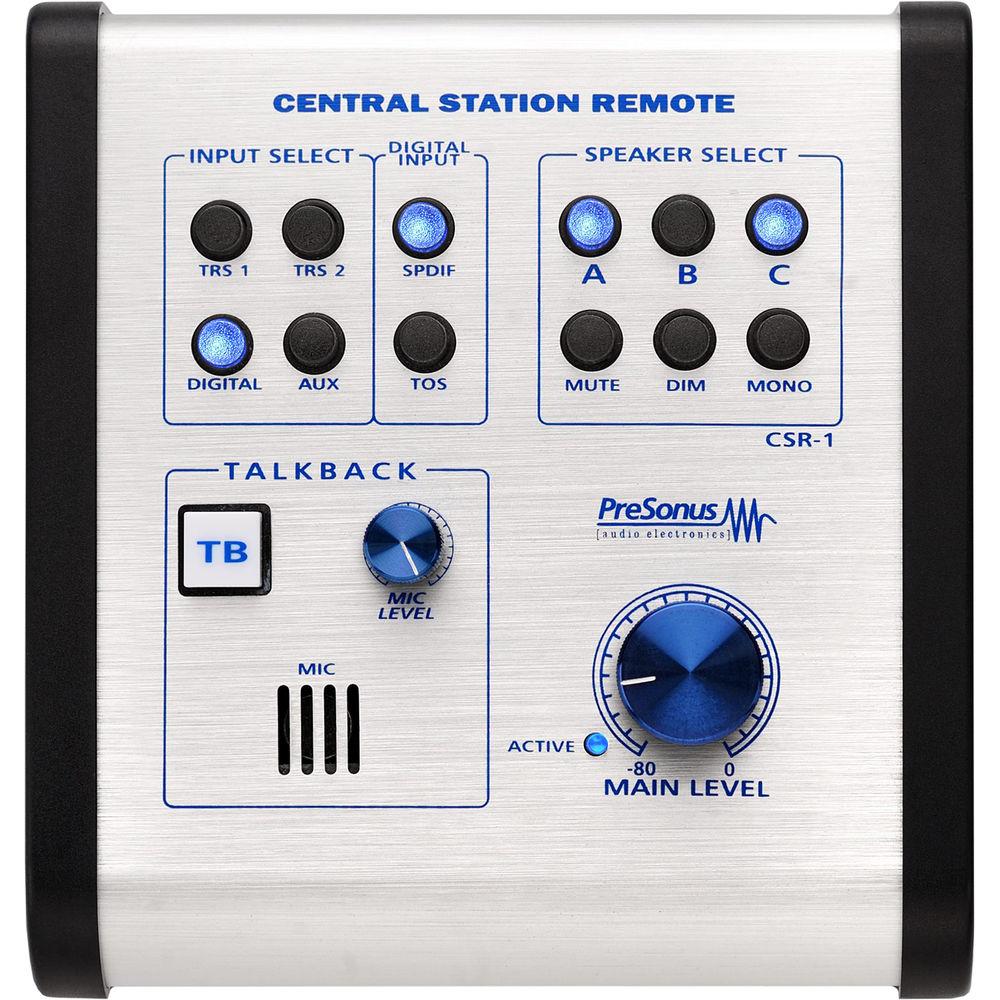

The included CSR-1 Central Station Remote is a desktop controller, which provides analog/digital input select, volume control, and speaker select. There are controls for mute, dim, and mono, as well as an additional built-in talkback microphone with its own level control and engagement switch. The PreSonus Central Station Plus ships with a 12' CSR-1 remote cable and a power supply.
    • Main Features
      • 3 x sets of stereo analog inputs let you switch between sources
      • 2 x sets of S/PDIF digital inputs (coax and optical)
      • 3 x sets of stereo speaker outputs with:
        • Speaker Select switches
        • Recessed trim pot for each speaker output
    • Cue Section
      • Input-select switch
      • Output-level control
    • Main Section
      • Input-select switch
      • Aux-input level control
      • Output-level control
      • Mute, Dim (-20 dB), and Mono switches
    • Two Headphone Outputs
      • Dual-function volume controls
      • Main-Cue input switches
      • Passive audio path: no op amps or IC's in main audio path
      • Onboard talkback microphone
      • Talkback microphone input with level control (feeds headphone and cue outputs)
      • Dual 30-segment, fast-acting, peak-hold LED metering (dBu and dBfs) with:
        • Clear Peak switch
        • Calibrate to match DAW or another audio device
      • Footswitch jack for hands-free talkback operation
      • Included Control Station Remote (CSR-1):
        • Main Volume
        • Input select
        • Output select
        • Talkback
        • Mute
        • Dim
        • Mono
    • Input/Output
      • 4 x balanced 1/4" analog line inputs (2 L/R pairs)
      • 2 x unbalanced RCA analog line inputs (L/R pair)
      • 1 x stereo S/PDIF optical (TOSLINK) digital input
      • 1 x stereo S/PDIF coax (RCA) digital input
      • 1 x balanced XLR talkback-microphone input
      • 6 x balanced 1/4", line-level speaker outputs (3 L/R pairs) w/separate, passive volume controls
      • 2 x balanced 1/4", line-level Main outputs (1 L/R pair) with source selection
      • 2 x balanced 1/4", line-level Cue outputs (1 L/R pair) with volume control and source selection
      • 2 x stereo 1/4" headphone jacks w/dual-function volume controls and Main-Cue input switches
      • 1 x DB15 port for optional Control Station Remote (CSR-1)
    • Digital
      • S/PDIF coax and optical digital inputs
      • High-definition, 24-bit, 192 kHz D/A converters (115 dBu dynamic range)
    • Enclosure
      • 1 RU 19" rack-mountable, rugged steel chassis
      • External AC power supply
    • CSR-1 Remote
      • Remote-control all functions of Central Station, including:
        • Input switching
        • Speaker selection
        • Main volume
        • Talkback system
      • Onboard electret condenser talkback microphone
      • Talk button (momentary switch) for talkback system
      • Active light shows when CSR-1 is controlling main volume
      • Connects with a proprietary DB15 cable (included)
      • Keep desktop neat and clutter-free
UPC: 673454001345 In the Box PreSonus Central Station PLUS with Desktop Remote
  • CSR-1 Central Station Remote
  • CSR003 Cable for CSR-1
  • Power Supply
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the PreSonus Central Station PLUS with Desktop Remote in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    PreSonus Central Station PLUS Specs

    Connectors Analog Inputs
    TRS1 (L/R): 2 x 1/4" / 6.35 mm
    TRS2 (L/R): 2 x 1/4" / 6.35 mm
    Aux (L/R): 2 x RCA
    Talkback Mic: XLR
    Talkback Pedal: 1/4" / 6.35 mm

    Digital Inputs
    TOSLINK: Optical
    SPDIF: RCA

    Analog Outputs
    Speaker A: 2 x 1/4" / 6.35 mm
    Speaker B: 2 x 1/4" / 6.35 mm
    Speaker C: 2 x 1/4" / 6.35 mm

    Line Outputs
    Cue: 2 x 1/4" / 6.35 mm
    Main: 2 x 1/4" / 6.35 mm

    Headphones: 2 x 1/4" / 6.35 mm

    Console Remote Control: DB15 (proprietary)
    TRS Audio Input Type: 1/4" / 6.35 mm TRS passive-balanced
    Input Impedance: 2-5 kOhms (speaker load and trim level dependent)
    S/N Ratio: >140 dB
    THD+N: <0.0005% (1 kHz @ 0 dBu)
    Frequency Response: >1 MHz
    Aux Type: RCA active-unbalanced
    Input Impedance: 8 kOhms
    S/N Ratio: >115 dB (1 kHz @ 0 dBu, unity gain)
    THD+N: <0.002% (1 kHz @ 0 dBu, unity gain)
    Frequency Response: 10 Hz to 50 kHz, -0.5 dB
    Gain Range: -90 dB to +20 dB
    SPDIF Types: RCA 75 Ohms coax and TOSLINK optical
    Dynamic Range: 117 dB
    THD+N: 0.0025% (1 kHz @ -1 dBfs)
    Maximum Output: +18 dBu (active-balanced)
    Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
    Input Meters Type: Dual 30 segment LED with peak hold
    Range: -48 dB to +18 dB (-66 dBfs to 0 dBfs)
    Accuracy: >0.25 dB
    Frequency Range: 10 Hz to 22 kHz
    Calibrate Range: ±18 dB
    Speaker Type: 1/4" / 6.35 mm TRS passive-balanced
    Type-Mono Activated: 1/4" / 6.35 mm TRS active-impedance balanced
    Trim Range: -90 dB to 0 dB
    Main Level Range: -90 dB to 0 dB
    Dim Attenuation: -30 dB
    Main Outputs Type: 1/4" / 6.35 mm TRS active-balanced
    Output Impedance: 51 Ohms
    THD+N: <0.0025%
    Frequency Response: 10 Hz to 50 kHz, -0.5 dB
    Cue Type: 1/4" / 6.35 mm TRS active-impedance balanced
    Output Impedance: 51 Ohms
    THD+N: >0.003% (1 kHz @ 0 dBu)
    Frequency Response: 10 Hz to 50 kHz, -0.5 dB
    Gain Range: -90 dB to 0 dB
    Dim Attenuation: -30 dB (talkback activated)
    Headphones Type: 1/4" / 6.35 mm TRS active stereo
    Maximum Output: 150 mW/channel @ 60 Ohms load
    THD+N: 0.015% (150 mW/channel @ 60 Ohms load)
    Frequency Response: 10 Hz to 50 kHz, +1 dB
    Dynamic Microphone Dynamic Microphone Input
    Type: XLR female balanced
    Input Impedance: 2400 Ohms
    Internal Microphone Type: Electret condenser
    Sensitivity: -42 dB
    Microphone Preamplifier Gain Range: 15 to 55 dB
    Power Type: External A/C transformer/internal linear
    Power Consumption: 40 VA
    Adapter Package Type: Molded plastic
    Cable Length CSR-1 Cable: 12.0' / 3.7 m
    Dimensions (W × H × D) Main Unit: 19.0 x 1.8 x 6.3" / 482.6 x 44.5 x 158.8 mm
    CSR-1 Remote: 5.3 x 5.8 x 2.4" / 133.4 x 146.1 x 60.5 mm
    Power Supply: 2.5 x 2.3 x 4.0" / 63.5 x 58.4 x 101.6 mm
    Weight Main Unit: 5.0 lb / 2.3 kg
    CSR-1 Remote: 1.3 lb / 0.6 kg
    Power Supply: 2.5 lb / 1.1 kg
    Package Weight 10.35 lb
    Box Dimensions (LxWxH) 23.7 x 12.0 x 5.2"
