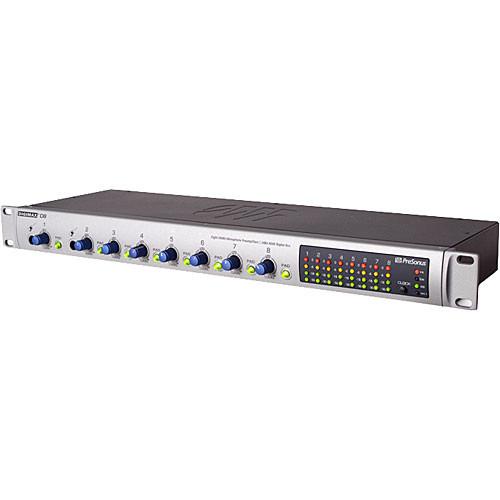

User Manual for PreSonus DigiMax D8 - Multi-Channel Microphone Preamp with ADAT Output Click to enlarge the picture
Contents of the user manual for the PreSonus DigiMax D8 - Multi-Channel Microphone
- Product category: Microphone Preamps PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Microphone Preamps
|
User manual for the PreSonus DigiMax D8 - Multi-Channel Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|
Product description The DigiMax D8 from Presonus is an eight-channel microphone preamplifier, featuring eight Class-A XMAX microphone preamps, coupled with eight-channels of analog-to-digital conversion via an ADAT digital output. Each of the preamps include a direct output (in addition to the digital output), a variable trim control, LED metering, a 20dB pad and +48V phantom power (switchable in pairs). The front panel features two 1/4", Hi-Z instrument inputs for plugging-in electric guitars. The balanced 1/4" TRS outputs on the real panel allow the unit to be used as a standalone microphone preamp with any analog mixing console. The unit also includes Wordclock sync input for ultra-low jitter and robust synchronization, making the DigiMax D8 a perfect front-end solution for any DAW with an ADAT optical input. - Microphone/line front-end with ADAT output for DAW systems
- Eight, XMAX Class-A microphone preamps with trim controls
- Two Hi-Z instrument inputs on the front panel
- Eight, line level direct outputs
- -20dB pad on every channel
- 24-bit ADAT digital output
- 44.1 and 48kHz internal sampling rates
- External sync via BNC Wordclock input
- LED input metering per channel
UPC: 673454000089 In the Box PreSonus DigiMax D8 - Multi-Channel Microphone Preamp with ADAT Output AC Power Cable One (1) Year Warranty (To Original Purchaser) User Manual PDF 2.6mbvastcarqwawafquzwxyxrvwcsartv Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus DigiMax D8 - Multi-Channel Microphone Preamp with ADAT Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus DigiMax D8 Specs | Number of Channels | 8 | | Inputs | 8 x XLR Microphone/Line
2 x 1/4" TS phone Instrument (front panel) | | Output | 8 x 1/4" TRS phone Line | | Phantom Power | +48V, switchable in pairs | | Multi Function | A/D conversion | | Gain Range | -4dB to 50dB | | Maximum Output Level | Not specified by manufacturer | | Frequency Response | 20Hz to 150kHz, +/-3.0dB | | Noise | SNR: >101dB (unweighted, reference +4dBu, unity gain, 20Hz to 22kHz) | | Dimensions (WxDxH) | 1U 19" rackmount chassis | | Weight | 6 lbs (2.7 kg) | | Specialties | 44.1 and 48kHz internal sampling frequency selection for analog-to-digital converter
BNC Wordclock input for external sync | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 23.5 x 12.4 x 5.1" |
