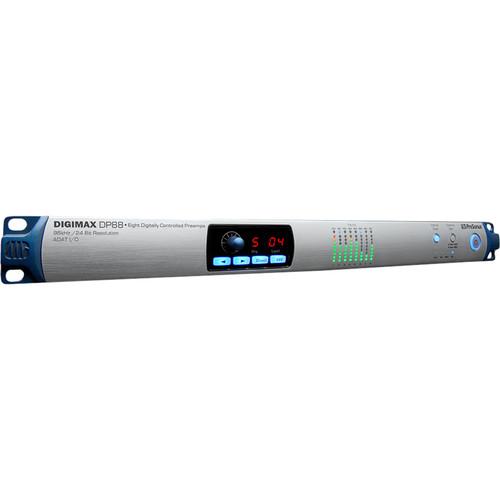

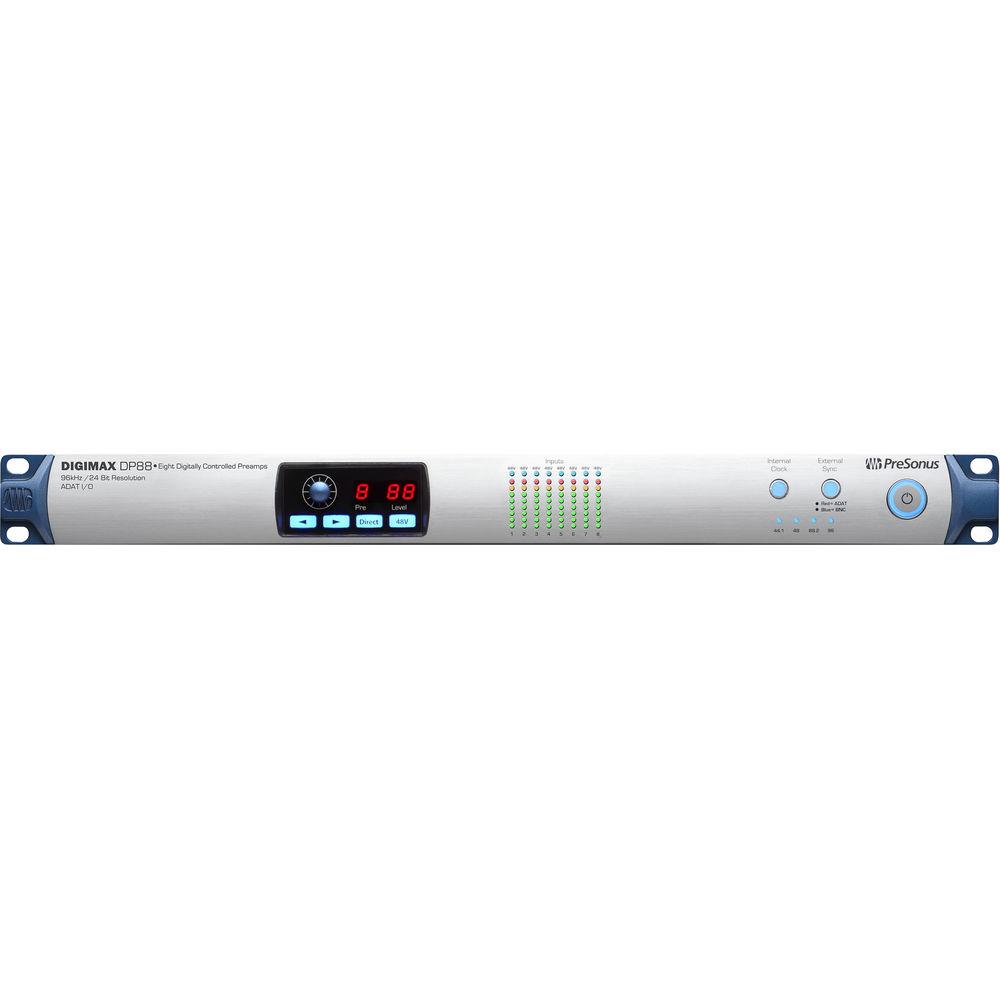

Product description The DigiMax DP88 8-Channel A/D/A Converter with Remote Preamps from PreSonus PreSonus is the latest innovation in the DigiMax line and offers digitally controlled analog preamps and unmatched digital conversion up to 96 kHz. It can be used to provide connectivity, flexibility, and professional sound quality that make it a suitable fit for any studio environment. The DigiMax DP88 features Burr-Brown converters that deliver 118 dB of dynamic range and a clock that delivers sub-50 picosecond jitter to capture complex musical harmonics smoothly and naturally. Eight digitally controlled analog XMAX preamps provide high headroom, low noise, wide dynamic range and extended frequency response. In addition, the DigiMax DP88 is equipped with MIDI I/O for easy remote control from anywhere using simple MIDI CC messages to control level, phantom power, and direct ADC input. It fits into any DAW environment and connects to your MIDI interface to enable it as a MIDI device. Start remote controlling your preamps and recalling settings with your audio sessions. Some other features include access to the preamps using XLR or DB25 connections. There are eight-direct analog-to-digital line-level inputs on DB25 connectors and they can be accessed per channel with a front panel button and allows you to keep all of your gear connected at the same time. Eight DAC outputs are provided via DB25 and eight channels of ADAT/dual SMUX optical I/O are available with up to a 96 kHz sample rate. Finally, the DigiMax DP88 provides Class A microphone preamps, Burr-Brown converters with 118 dB of dynamic range, a boast-worthy digital clock with sub-50 picosecond jitter, and flexible connection options to make it a nice fit in any studio environment. - A Smooth Trip from Analog to Digital
- The DigiMax DP88 is equipped with audiophile-grade, Burr-Brown processors to deliver top-quality digital conversion up to 96 kHz
- Easy MIDI Control
- The DigiMax DP88 is equipped with MIDI I/O for easy remote control from anywhere
- Flexible I/O Makes Setup a Snap

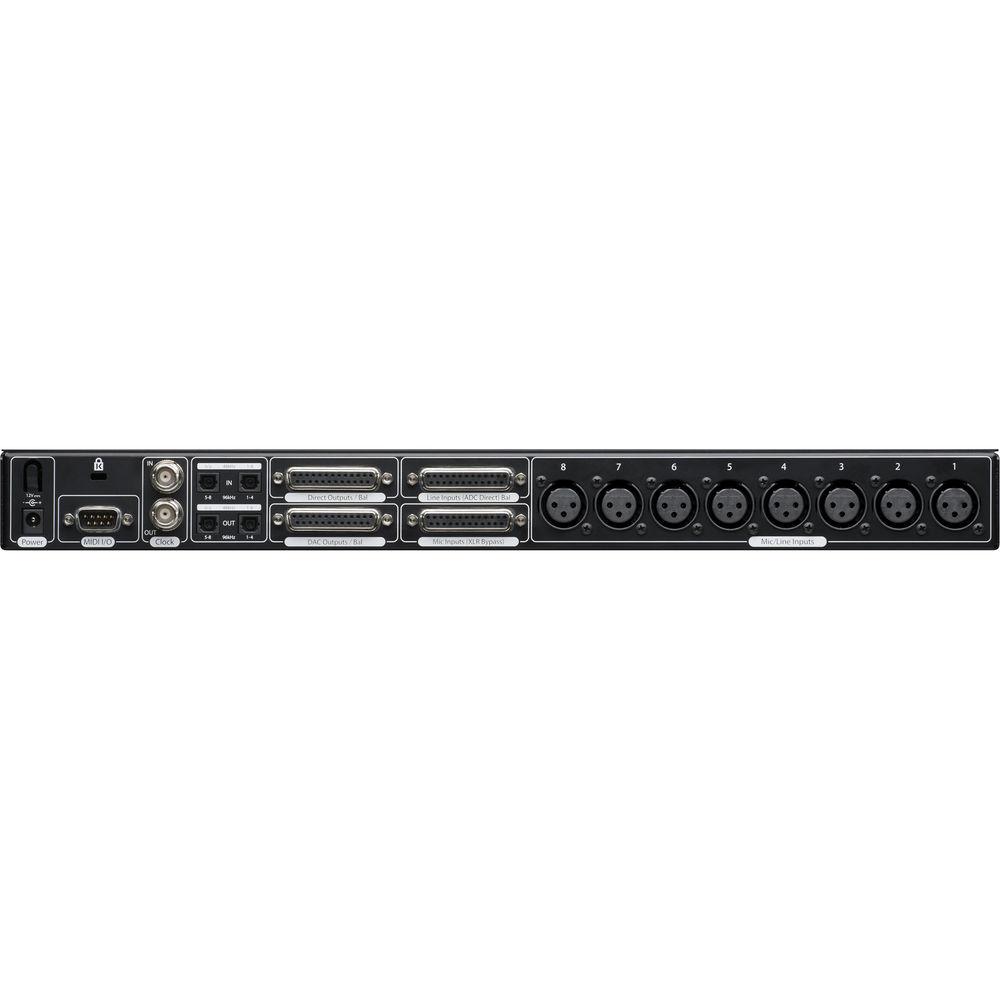

- Flexible rear-panel I/O makes it easy to incorporate the DigiMax DP88 into any studio environment. Access the preamps using XLR or DB25 connections. Eight direct, analog-to-digital, line-level inputs are available on DB25 and can be accessed per channel with a front-panel button, allowing you to keep all of your gear connected at the same time
- DAC Outputs
- Eight balanced DAC outputs are provided via DB25 so you can expand your interface's outputs for monitor mixes or speaker switching. You also get eight balanced direct outputs on DB25 and eight channels of ADAT/dual SMUX optical I/O up to 96 kHz
UPC: 673454003660 In the Box PreSonus DigiMax DP88 8-Channel A/D/A Converter with Remote Preamps MIDI I/O Break-Out Cable AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus DigiMax DP88 8-Channel A D A Converter with Remote Preamps in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus DP88 Specs | | | Type | XLR female
DB25 female
Balanced remote | | Maximum Input Level | +12 dBu, ±0.5 dB (min gain, 1 kHz @ 0.5% THD+N) | | Gain Control Range | 85 dB, ±1 dB | | Frequency Response | A-D: 10 Hz to 40 kHz, ±0.2 dB | | Dynamic Range | > 110 dB (min. gain, A-weighted)
> 105 dB (mid. gain, unweighted) | | THD + Noise | < 0.005% (min. gain, A-weighted) | | Input Impedance | 1600 ohms | | EIN | < -128 dBu (+55 dB gain, 150 ohms input, 20 Hz-22 kHz, A-weighted) | | Common Mode Rejection Ratio | >55 db (1 kHz, +55 dB gain) | | Phantom Power | +48 V, ±3 V, > 8 mA per channel | | | | Type | DB25 female, balanced | | Maximum Input Level | +22 dBu, ±0.5 dB (min. gain, 1 kHz @ 0.5% THD+N) | | Gain Control Range | ±20 dB, ±1 dB | | Frequency Response | A-D: 20 Hz to 20 kHz, ±0.2 dB | | Dynamic Range | > 114 dB (min. gain, A-weighted)
> 105 dB (mid. gain, unweighted) | | Total Harmonic Distortion(THD) + N | < 0.005% (1 kHz, -1 dBFS, A-weighted) | | Input Impedance | 10 kOhms | | Crosstalk | < -80 dB (1 kHz, channel-to-channel) | | | | Type | DB25 female, balanced | | Maximum Input Level | +22 dBu, ±0.5 dB (min. gain, 1 kHz @ 0.5% THD+N) | | Frequency Response | A-D: 20 Hz to 20 kHz, ±0.2 dB | | Dynamic Range | > 118 dB (min. gain, A-weighted)
> 105 dB (mid. gain, unweighted) | | Total Harmonic Distortion(THD) + N | < 0.005% (1 kHz, -1 dBFS, A-weighted) | | Input Impedance | 10 kOhms | | Crosstalk | < -80 dB (1 kHz, channel-to-channel) | | | | Type | DB25 female, balanced | | Maximum Output Level | +24 dBu, ±0.5 dB | | Frequency Response | 20 Hz to 20 kHz, ±0.2 dB | | Dynamic Range | > 120 dB (A-weighted) | | Total Harmonic Distortion(THD) + N | < 0.005% (1 kHz, -1 dBFS, unweighted) | | Output Impedance | 51 ohms | | Crosstalk | < -80 dB (1 kHz, channel-to-channel) | | | | Connection Type | ADAT/Dual SMUX | | Dynamic Range | ADC: 118 dB (A-weighted, 48 kHz)
DAC: 118 dB (A-weighted, 48 kHz) | | Bit Depth | 24-bits | | Supported Sample Rate | Internally: 44.1, 48, 88.2, 96 kHz | | | | Jitter | <50 ps RMS (20 Hz to 20 kHz) | | Jitter Attenuation | >60 dB (1 ns in => 1 ps out) | | | | Signal Level | Signal 1 -50 dBFS
Signal 2 -30 dBFS
Signal 3 -20 dBFS
Signal 4 -10 dBFS
Signal 5 -6 dBFS
Signal 6 -4 dBFS
Signal 7 -2 dBFS
Clip -0.5 dBFS | | | | Package Weight | 10.15 lb | | Box Dimensions (LxWxH) | 23.3 x 14.1 x 4.8" |
