Product description - PreSonus EarMix 16M: 16x2 AVB-networked personal monitor mixer

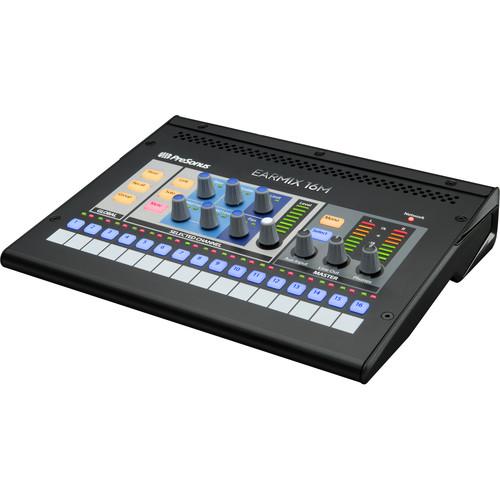

The Presonus EarMix 16M is a 16-channel personal monitor mixer that is compatible with all StudioLive Series III mixers, as well as with other AVB-enabled systems. The EarMix 16M mixes 16 mono channels via AVB networking and provides stereo channel linking and channel grouping along with three-band EQ and limiting for each channel as well as the main mix. For outputs, the unit offers a pair of balanced 1/4" TRS connectors as well as a 1/4" headphone output with a loud, clear headphone amplifier capable of driving low impedance devices such as high-quality in-ear monitors. The two AVB jacks enable daisy-chaining up to 24 EarMix units with a StudioLive Series III mixer. The EarMix 16M can be powered by the included external power supply or over Ethernet (PoE) from a compatible switch. -

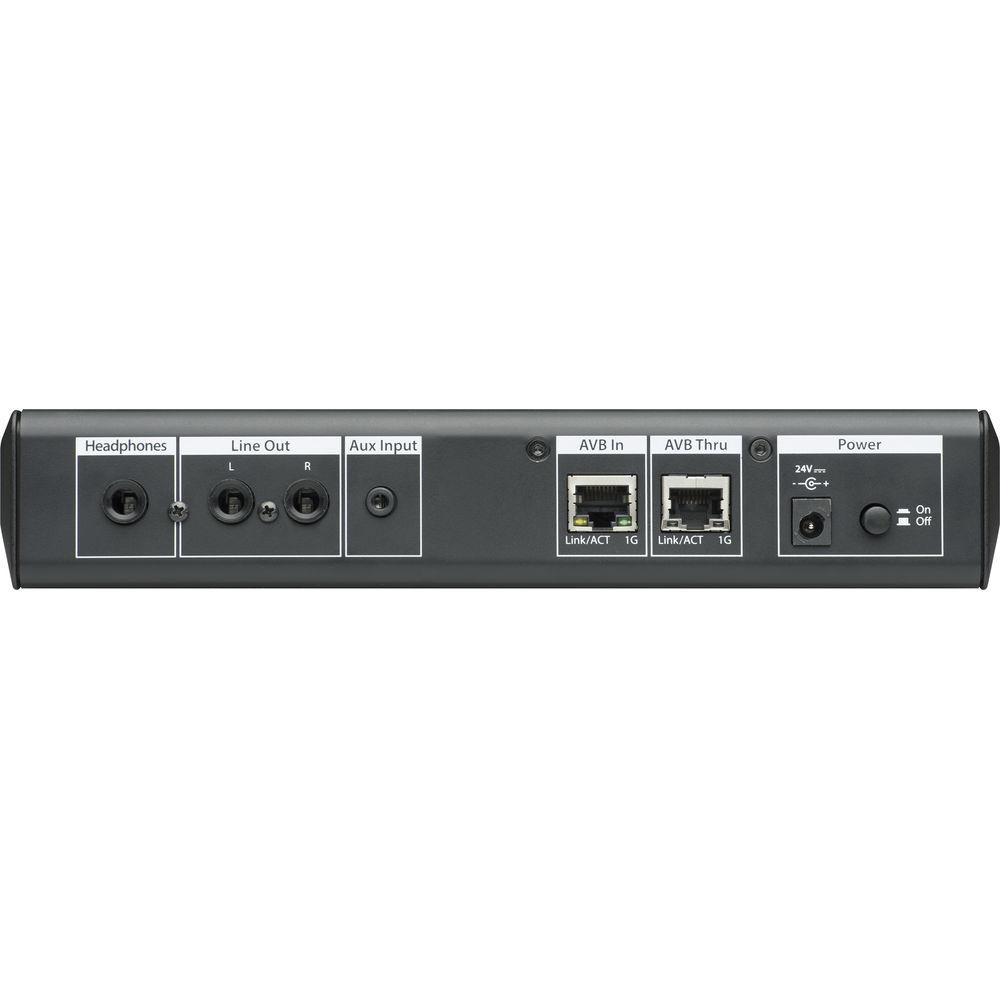

- Analog Input/Output
- 1/8" stereo aux input
- 2 x balanced 1/4" TRS line outputs
- 1/4" TRS stereo headphone output with loud, clear headphone amp that can drive low-impedance in-ear monitors

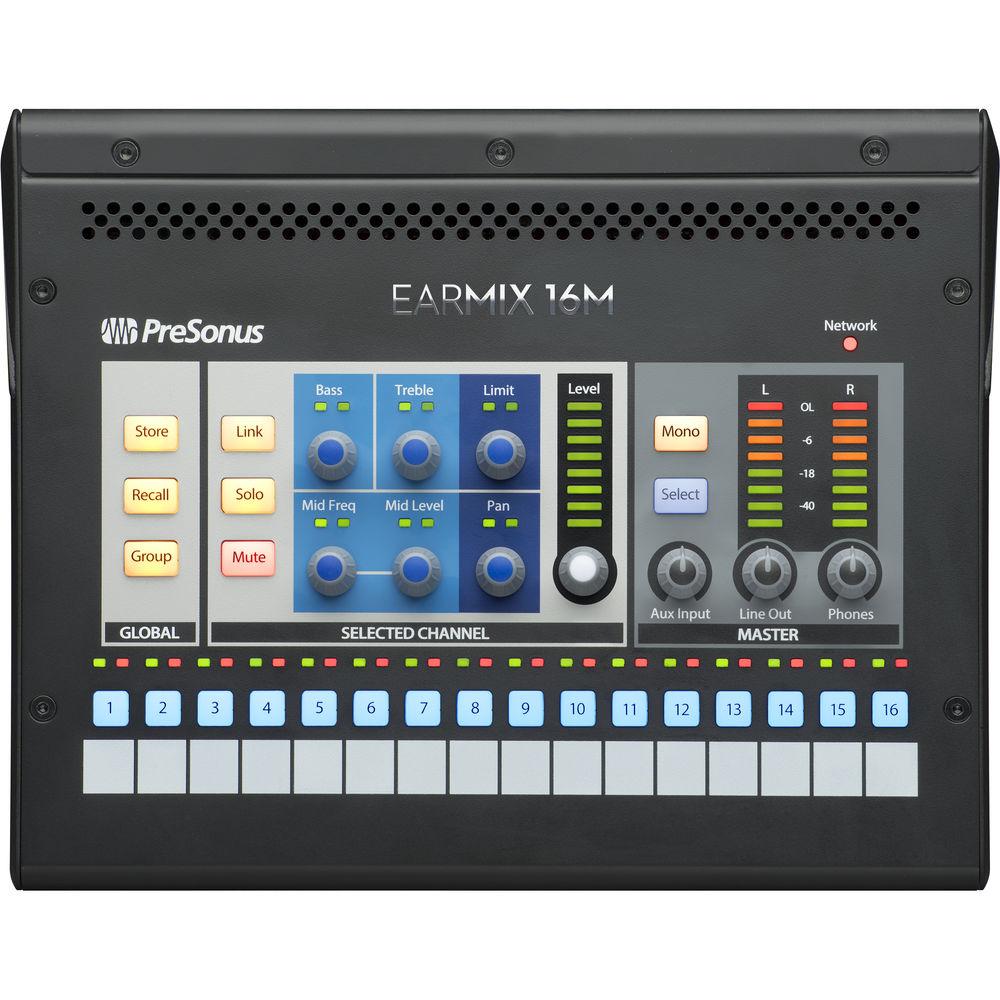

- Meters, Controls, and Processing
- 3-band EQ with sweepable mid frequency on all channels and main mix
- Limiter on all channels and main mix
- Stereo channel linking
- Channel grouping
- Solo and mute
- Mix scene Store and Recall; store up to 16 mix scenes locally
- 16 x signal present and clip LEDs (one for each input)
- 8-segment stereo output meter
- Channel Level rotary control with 8-segment level indicator
- Aux input level control
- Independent monitor (line out) and phones level controls
- Routing setup from StudioLive Series III consoles and UC Surface
- Digital
- 16 x mono channels of input via AVB networking
- 2 x AVB Ethernet ports
- 24-bit, up to 48 kHz operation
- Power
- External 24 VDC power supply (included)
- Support for PoE power
- Physical

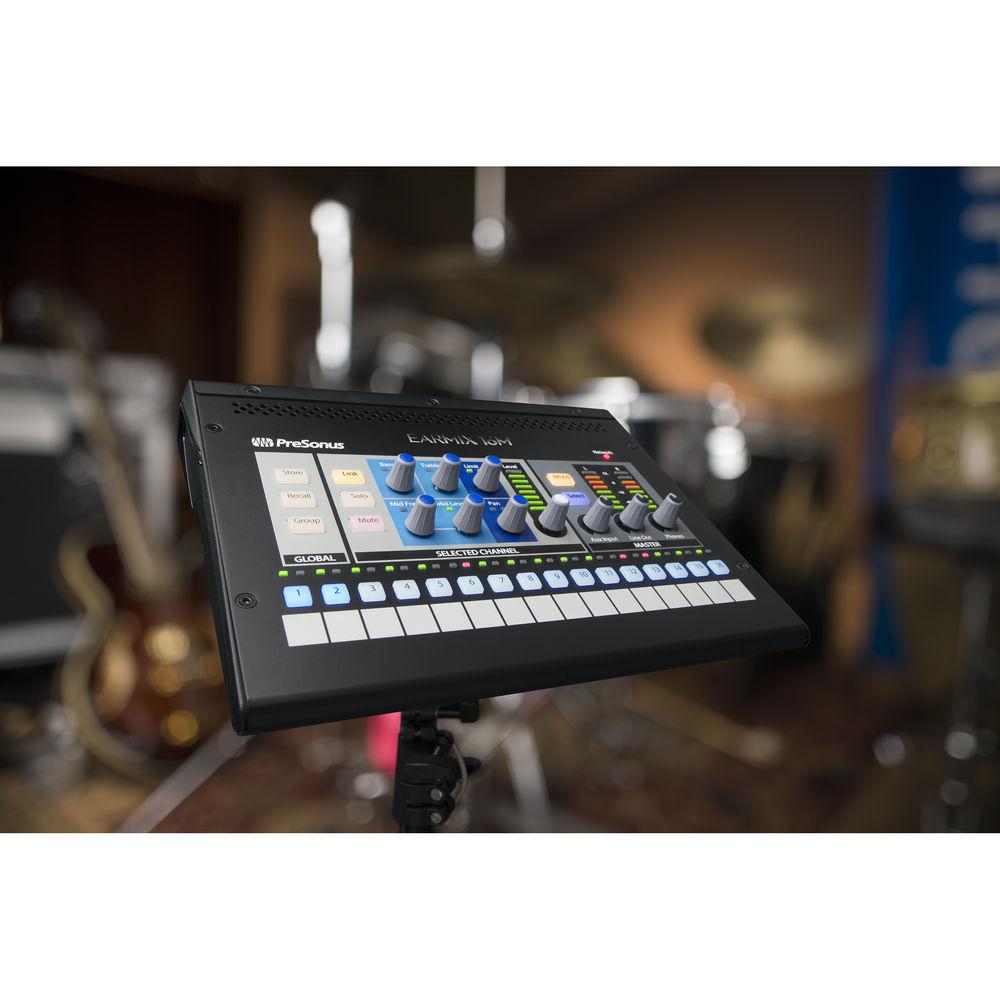

- Optional mic stand mount (sold separately)
UPC: 673454006470 In the Box PreSonus EarMix 16M - 16x2 AVB-Networked Personal Monitor Mixer Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus EarMix 16M - 16x2 AVB-Networked Personal Monitor Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus EARMIX 16M Specs | Analog Inputs and Outputs | Aux Input: 1 x 1/8" / 3.5 mm TRS
Line Output: 2 x 1/4" / 6.35 mm TRS
Headphone: 1 x 1/4" / 6.35 mm TRS | | Digital | 16 x mono channels of input via AVB networking
2 x AVB Ethernet ports
24-bit, up to 48 kHz operation | | EQ Section | 3-band EQ with sweepable mids on all channels and main mix | | Limiter | Yes, all channels and main mix | | Stereo Linking | Stereo channel link | | Groups | Channel grouping | | Indicators and Controls | 16 x track select
1 x solo
1 x mute
16 x signal present and clip LEDs (one for each input)
8-segment stereo output meter
1 x channel level rotary control with 8-segment level indicator
1 x aux input level control
1 x independent monitor (line out)
1 x phones level control | | Presets | Mix scene store and recall
Store up to 16 mix scenes locally | | Power | External 24 VDC power supply
Supports PoE power | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 13.2 x 10.9 x 4.1" |
