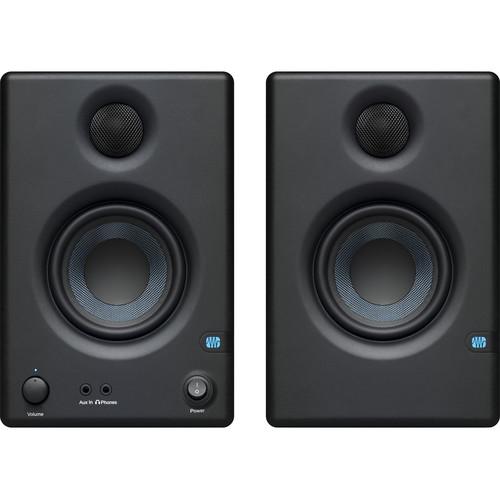

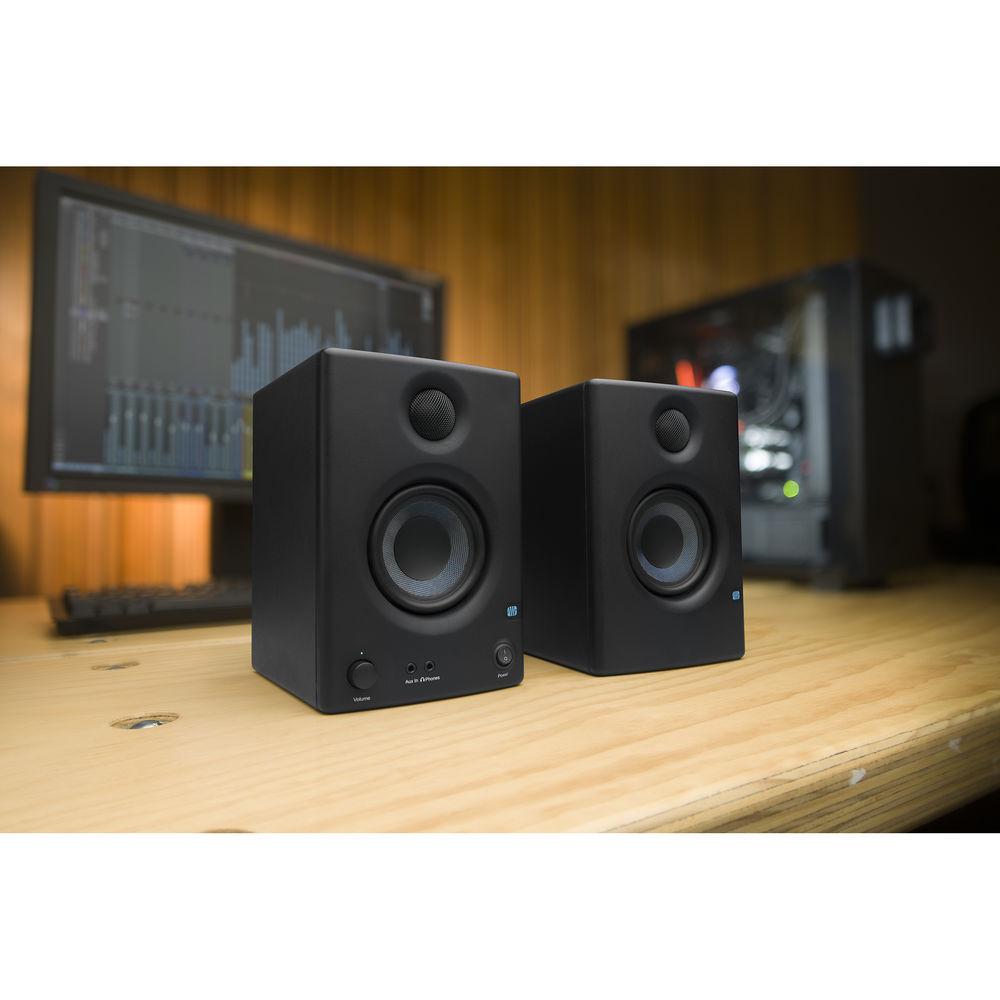

Product description The PreSonus Eris E3.5 is a pair of 3.5" 2-way 25W nearfield monitors designed to provide a compact sonic reference system for musicians, producers, and audio engineers in home setups, project studios, and commercial facilities. Each monitor produces a frequency response of 80 Hz to 20 kHz via a 3.5" Kevlar woofer and a 1" silk dome tweeter powered by a 25W class AB amplifier. The monitors can handle 100 dB maximum peak SPL. A rear bass-reflex port provides enhanced low-frequency range.For inputs, the monitor system accepts balanced 1/4" TRS, unbalanced 3.5mm, and unbalanced RCA inputs. An integrated 2-band EQ allows you to fine tune the monitors to your listening preference. The EQ controls include ±6 dB gain at 100 Hz and ±6 dB at 10 kHz. A front-panel 3.5mm stereo mini-jack is provided for easy headphone monitoring.Each cabinet uses resonance-suppressing internal bracing to optimize the sound output and the amplifiers include RF interference, output-current limiting, over-temperature, transient, and subsonic protection circuits. - Components and Construction
-
- 3.5" Kevlar low-frequency transducer
- 1" ultra-low-mass, silk-dome, high-frequency transducer
- Rear-firing acoustic port for enhanced bass-frequency reproduction
- Optimized, resonance-suppressing internal bracing
- User Controls
-
- High-frequency shelving EQ at 10 kHz
- Low-frequency shelving EQ at 100 Hz
- Front-panel volume control for speakers and headphone amplifier

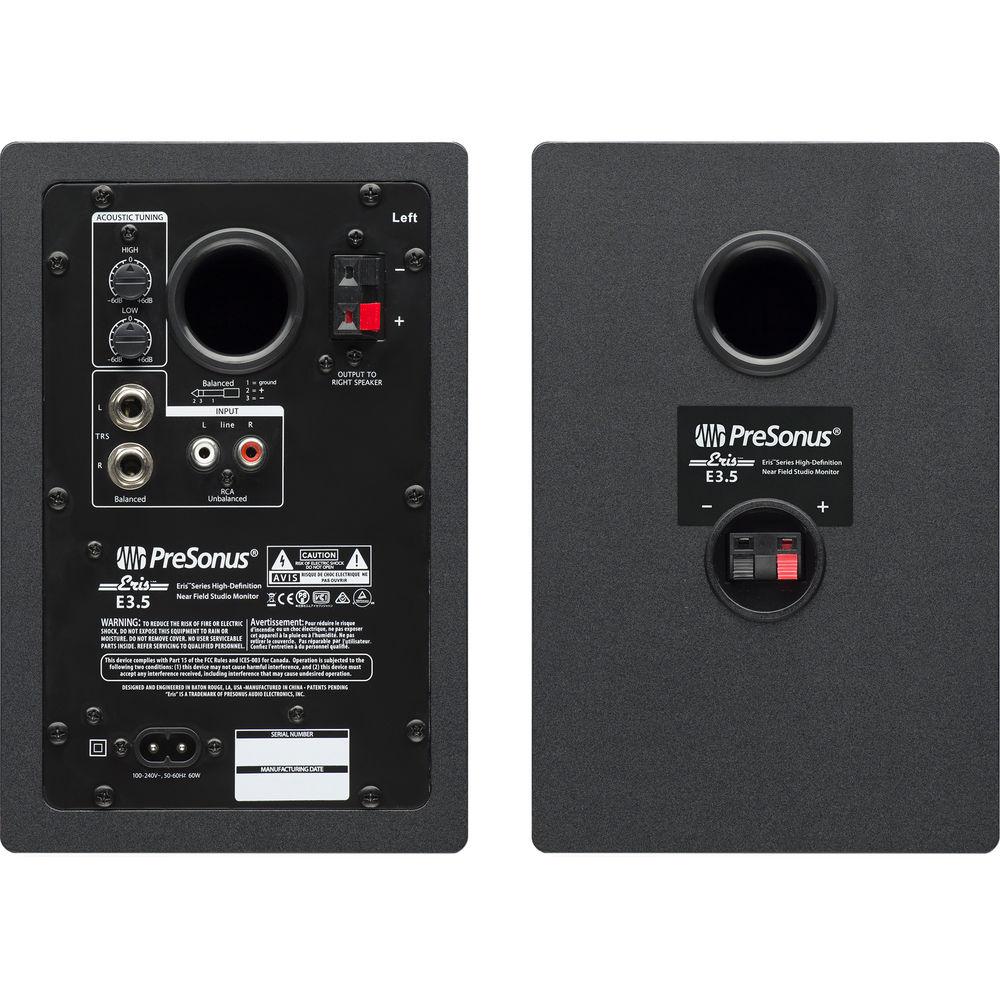

- I/O
-
- Balanced 1/4" TRS, unbalanced 3.5mm stereo, and unbalanced RCA inputs
- Integrated stereo headphone amplifier with front-panel 3.5mm output
- Power and Safety
-
- 50W (25W per side) Class AB biamplification
- RF interference, output current limiting, over-temperature, transient, and subsonic protection
- Amplifier “soft start” feature eliminates popping on power-up
- Internal power supply with IEC connector
- Power switch with on/off LED
UPC: 673454006388 In the Box PreSonus Eris E3.5 3.5" 2-Way 25W Nearfield Monitors (Pair) 5' Stereo 3.5mm TRS to Dual RCA Cable 5' Stereo 3.5mm TRS Cable 6.6' Speaker Cable Power Cable 8 x Foam Feet Limited 1-Year Warranty User Manual PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus Eris E3.5 3.5" 2-Way 25W Nearfield Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus E3.5 Specs | | | LF Driver | 3.5" / 89 mm Kevlar speaker | | HF Driver | 1" / 25 mm silk dome tweeter | | | | Inputs | 2 x balanced 1/4" TRS
2 x unbalanced RCA (L/R pair)
1 x 1/8" (3.5 mm) TRS stereo mini-jack | | Outputs | 1 x 1/8" (3.5 mm) TRS stereo mini-jack | | | | Frequency Response | 80 Hz to 20 kHz | | Crossover Frequency | 2.8 kHz | | Amplifier Power | 25 W per speaker | | Maximum SPL | At 1 m: 100 dB (peak) | | Input Impedance | 10 kOhms | | | | Volume Management | A-type taper | | Mid Frequency Driver | Control: variable (-6 to +6 dB, center @ 100 Hz) | | High Frequency Driver | Control: variable (-6 to +6 dB, center @ 10 kHz) | | Protection | RF interference
Output-current limiting
Over-temperature
Turn on/off transient
Subsonic filter
External mains fuse | | | | Power Requirements | 100 to 120 VAC at 50/60 Hz, or 220 to 240 VAC at 50/60 Hz | | | | Cabinet | Vinyl-laminated MDF | | Dimensions (W x D x H) | 5.6 x 6.4 x 8.3" / 141 x 162 x 210 mm | | Weight | Per pair: 6.4 lb / 2.9 kg | | | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 15.2 x 10.8 x 8.4" |
