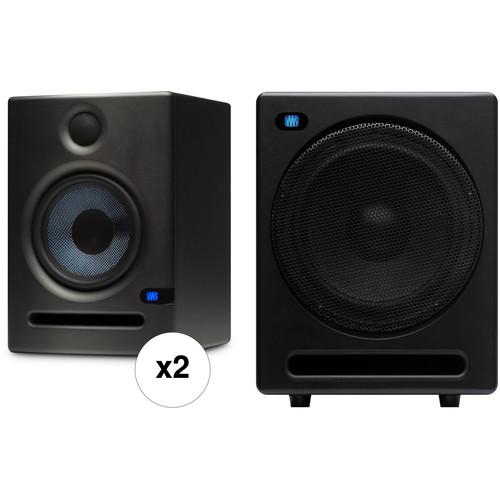

User Manual for PreSonus Eris E5 Two-Way Active Studio Monitor and T10 Active Subwoofer Kit

• Product category: Studio Monitors PreSonus
• Brand: PreSonus
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for PreSonus Studio Monitors

Product description

• 2 x PreSonus Eris E5 Two-Way Active 5.25" Studio Monitor (Each) The Eris E5 Two-Way Active 5.25" Studio Monitor from PreSonus delivers an accurate response with tight bass and a clear upper end. The Kevlar low frequency transducers, low-mass silk-dome tweeters and responsive Class AB amplification combine with acoustic-adjustment controls to create a versatile and adaptable listening system.

  The E5 begins with a front-ported enclosure made of vinyl-laminated MDF. It features a 5.25" Kevlar low-frequency driver mated with a 45W, Class AB amplifier. For the highs, Eris employs a 1" silk-dome tweeter powered by a 35W, Class AB amplifier. The E5 outputs a clean 102 dB peak SPL. Its frequency response is rated at 64Hz to 22kHz.

  The Eris E5 provides a balanced XLR, a balanced ¼" TRS, and an unbalanced RCA line-level input. Once you're plugged in, set the Input Gain and you're ready to go!
  Acoustic Tuning Controls
  • The Eris provides three EQ controls in its Acoustic Tuning section: High, Mid, and Low Cutoff. These controls enable you to fine-tune the monitors to your space. The Low control also is useful when using the E5 with a subwoofer.

    The High control is a shelving filter that boosts or cuts all frequencies above 4.5kHz by as much as 6dB. The Mid control is a mid-frequency peak filter that boosts or cuts frequencies centered at 1kHz and extending about one octave above and below that frequency. The Low Cutoff control rolls off frequencies below either 80 or 100Hz at a slope of 12dB/octave. This control is especially useful if you also have a connected subwoofer.
  Acoustic Space Control
  • A three-position Acoustic Space switch controls a second-order, low shelving filter that cuts frequencies below 800 Hz by either 2 or 4dB to compensate for the boundary bass boost that occurs in close proximity to walls or corners.
  Thorough Protection Circuitry
  • RF shielding protects against radio frequencies that could be introduced to the signal and become audible. Eris monitors also provide overheat protection, current-output limiting and subsonic protection. "Soft startup" amplifiers prevent damaging pops from sounding through the speakers when you power them up.
  UPC: 673454002175
• PreSonus Temblor T10 Active 10" Studio Subwoofer The Temblor T10 Active 10" Studio Subwoofer is designed for low frequency sound reinforcement while monitoring in a recording studio. The subwoofer utilizes a 10-inch composite low frequency driver with a frequency response of 20 to 200 Hz and a maximum SPL of 110 dB. The driver is housed within a heavily braced and reinforced MDF cabinet with a vinyl finish and ported bass reflex design. It is powered by a 250 Watt Class AB plate amplifier. To reduce vibration, the unit features internal dampening and rests on built-in feet. The subwoofer features a variable crossover frequency between 50 and 130 Hz, input gain controls from -30 dB to +6 dB, a 0° or 180° phase switch, and a ground lift switch.

  You can connect to the subwoofer via a pair of balanced XLR inputs, a balanced pair of 1/4" TRS inputs, or an unbalanced pair of RCA inputs. The subwoofer also includes a balanced pair of XLR pass-through outputs, a balanced pair of 1/4" TRS pass-through outputs, and a balanced XLR sub output. The unit features a 120/240 VAC switchable power supply to accompany studio monitors in different regions. UPC: 673454002687

• 2 x Eris E5 Two-Way Active 5.25" Studio Monitor (Each)
• Power Cable
• Limited 1-Year Warranty

• Temblor T10 Active 10" Studio Subwoofer

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x PreSonus Eris E5 Two-Way Active 5.25" Studio Monitor (Each)

  Inputs	1 x XLR balanced 1 x 1/4" TRS balanced 1 x RCA phono unbalanced
  Frequency Response	53 Hz to 22 kHz
  Crossover Frequency	3 kHz
  LF Amplifier	45W
  HF Amplifier	35W
  Maximum SPL	102 dB @ 1 meter
  Low Frequency Driver	5.25" (13.34 cm) Kevlar
  High Frequency Driver	1" (2.54 cm) silk dome
  Input Impedance	10kΩ
  Volume Control	A-type taper
  Equalization	HF Control: -6, 0, +6 dB; continuously variable MF Control: -6, 0, +6 dB; continuously variable Low Cut Filter: Flat, 80 Hz, 100 Hz; switchable Acoustic Space Control: Flat, -2 dB, -4 dB; switchable
  Protection	RF interference Output-current limiting Over-temperature Turn-on/off transient Subsonic filter External mains fuse
  Enclosure Material	Vinyl-laminated MDF
  Power Requirements	100 to 120V or 220 to 240V, 50/60 Hz
  Dimensions (W x D x H)	7 x 7.68 x 10.24" (178 x 195 x 260 mm)
  Weight	10.2 lb (4.63 kg)

  Box Dimensions (LxWxH)	13.1 x 11.6 x 9.9"

• PreSonus Temblor T10 Active 10" Studio Subwoofer

  Transducer	10" Composite
  Power	250 W
  Amplifier Type	Class AB
  Maximum SPL	110 dB continuous
  Controls	Input gain: continuously variable from -30 to +6 dB Low pass filter: continuously variable from 50 to 130 Hz Phase switch: 0° and 180° Ground lift switch
  Inputs	Left and right balanced XLR Left and right balanced 1/4" TRS Left and right unbalanced RCA
  Outputs	Left and right balanced XLR pass-through Left and right balanced 1/4" TRS pass-through Balanced XLR Sub out 1/4" Sub bypass
  Design	Front firing bass-reflex acoustic port Internal dampening and heat sink
  Construction	Resonance-suppressing internal bracing Internal dampening and heat sink
  Frequency Response	20 to 200 Hz
  Crossover Frequency	Variable 50 to 130 Hz
  Voltage	100 to 120 VAC at 50/60 Hz 220 to 240 VAC at 50-60 Hz
  Dimensions (H x W x D)	16.14 x 13.19 x 16" (410 x 335 x 406 mm)
  Weight	31.7 lb (14.4 kg)

  Box Dimensions (LxWxH)	21.7 x 20.3 x 17.1"
