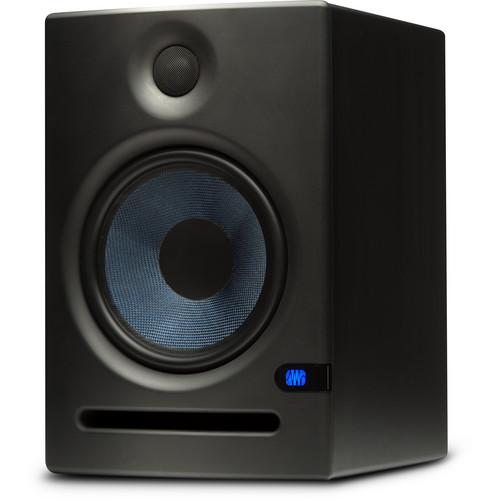

User Manual for PreSonus Eris E8 Two-Way Active 8" Studio Monitor Click to enlarge the picture
Contents of the user manual for the PreSonus Eris E8 Two-Way Active 8"
- Product category: Studio Monitors PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Studio Monitors
 |
User manual for the PreSonus Eris E8 Two-Way Active 8" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|
Product description New Studio Monitors from PreSonus Read More The Eris E8 Two-Way Active 8" Studio Monitor from PreSonus delivers an accurate response with tight bass and a clear upper end. The Kevlar low frequency transducers, low-mass silk-dome tweeters and responsive Class AB amplification combine with acoustic-adjustment controls to create a versatile and adaptable listening system.

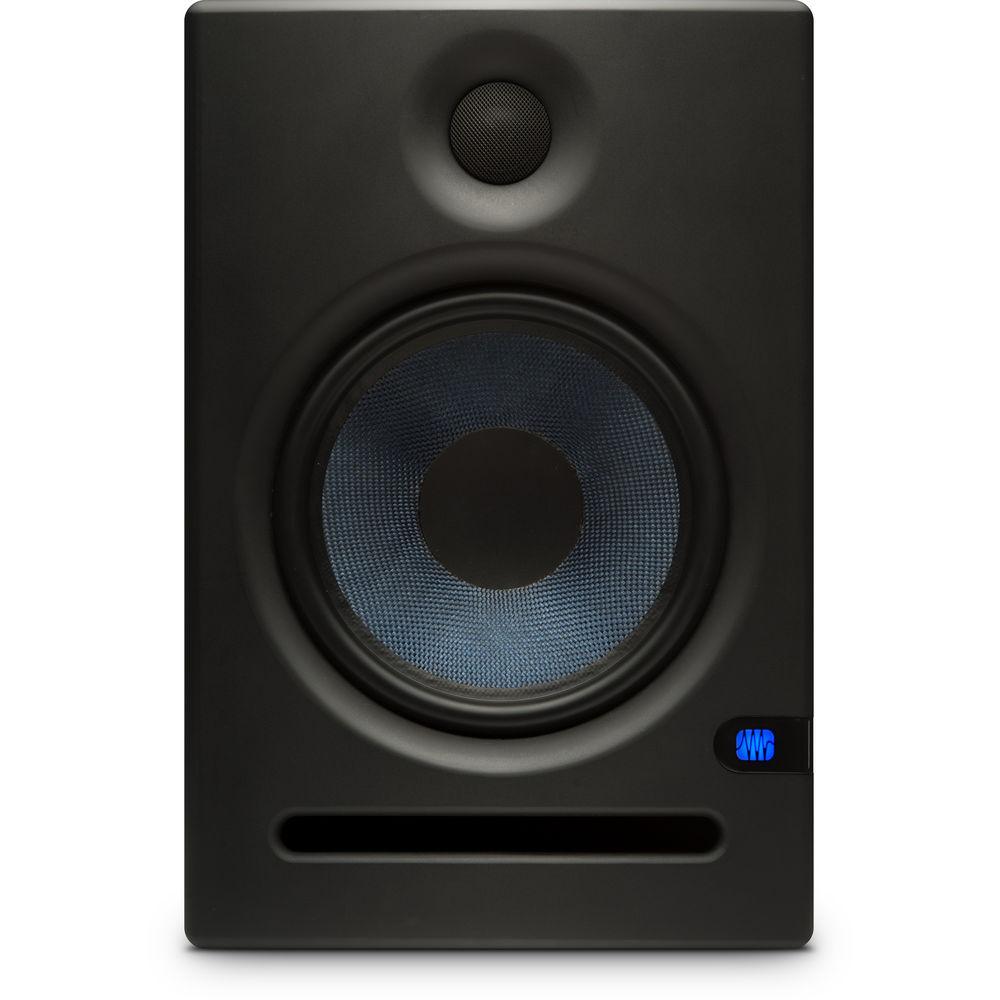

The E8 begins with a front-ported enclosure made of vinyl-laminated MDF. It features an 8" Kevlar low-frequency woofer driven by a 75W, Class AB amplifier. For the highs, Eris employs a 1.25" silk-dome tweeter powered by a 65W, Class AB amplifier. The E8 outputs a clean 105 dB peak SPL. Its frequency response is rated at 35Hz to 22kHz.

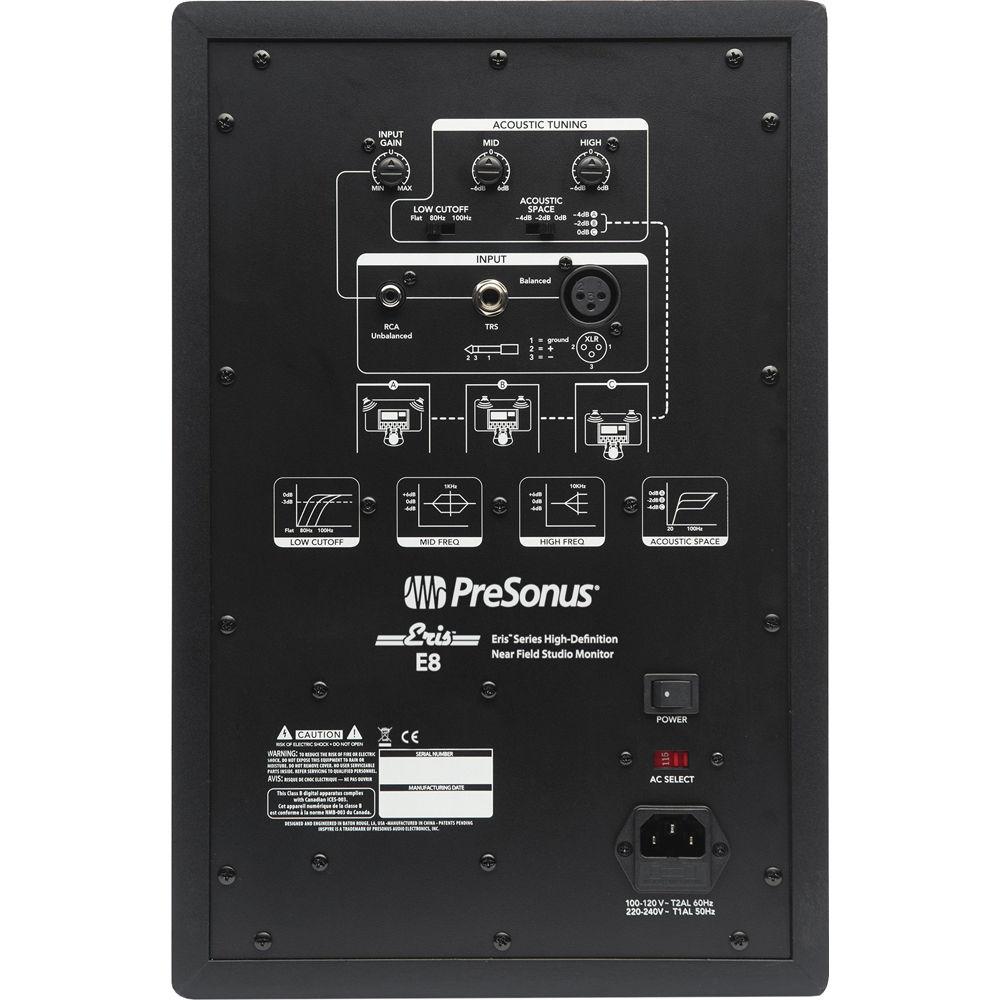

The Eris E8 provides a balanced XLR, a balanced ¼" TRS, and an unbalanced RCA line-level input. Once you're plugged in, set the Input Gain and you're ready to go! - Acoustic Tuning Controls
- The Eris provides three EQ controls in its Acoustic Tuning section: High, Mid, and Low Cutoff. These controls enable you to fine-tune the monitors to your space. The Low control also is useful when using the E8 with a subwoofer.
The High control is a shelving filter that boosts or cuts all frequencies above 4.5kHz by as much as 6dB. The Mid control is a mid-frequency peak filter that boosts or cuts frequencies centered at 1kHz and extending about one octave above and below that frequency. The Low Cutoff control rolls off frequencies below either 80 or 100Hz at a slope of 12dB/octave. This control is especially useful if you also have a connected subwoofer. - Acoustic Space Control
- A three-position Acoustic Space switch controls a second-order, low shelving filter that cuts frequencies below 800 Hz by either 2 or 4dB to compensate for the boundary bass boost that occurs in close proximity to walls or corners.
- Thorough Protection Circuitry
- RF shielding protects against radio frequencies that could be introduced to the signal and become audible. Eris monitors also provide overheat protection, current-output limiting and subsonic protection. "Soft startup" amplifiers prevent damaging pops from sounding through the speakers when you power them up.
UPC: 673454002229 In the Box PreSonus Eris E8 Two-Way Active 8" Studio Monitor (Each) Power Cable Limited 1-Year Warranty User Manual PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus Eris E8 Two-Way Active 8" Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus E8 Specs | Inputs | 1 x XLR balanced
1 x 1/4" TRS balanced
1 x RCA phono unbalanced | | Frequency Response | 35 Hz to 22 kHz | | Crossover Frequency | 2.2 kHz | | LF Amplifier | 75W | | HF Amplifier | 65W | | Maximum SPL | 105 dB @ 1 meter | | Low Frequency Driver | 8" (10.32 cm) Kevlar | | High Frequency Driver | 1.25" (3.18 cm) silk dome | | Input Impedance | 10kΩ | | Volume Control | A-type taper | | Equalization | HF Control: -6, 0, +6 dB; continuously variable
MF Control: -6, 0, +6 dB; continuously variable
Low Cut Filter: Flat, 80 Hz, 100 Hz; switchable
Acoustic Space Control: Flat, -2 dB, -4 dB; switchable | | Protection | RF interference
Output-current limiting
Over-temperature
Turn-on/off transient
Subsonic filter
External mains fuse | | Enclosure Material | Vinyl-laminated MDF | | Power Requirements | 100 to 120V or 220 to 240V, 50/60 Hz | | Dimensions (W x D x H) | 9.84 x 11.77 x 15.12" (250 x 299 x 384 mm) | | Weight | 22.2 lb (10.07 kg) | | | | Package Weight | 24.5 lb | | Box Dimensions (LxWxH) | 18.4 x 15.8 x 13.2" |
