User Manual for PreSonus HP2 Personal Stereo Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the PreSonus HP2 Personal Stereo Headphone Amplifier
- Product category: Headphone Amplifiers PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Headphone Amplifiers
 |
User manual for the PreSonus HP2 Personal Stereo Headphone Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|

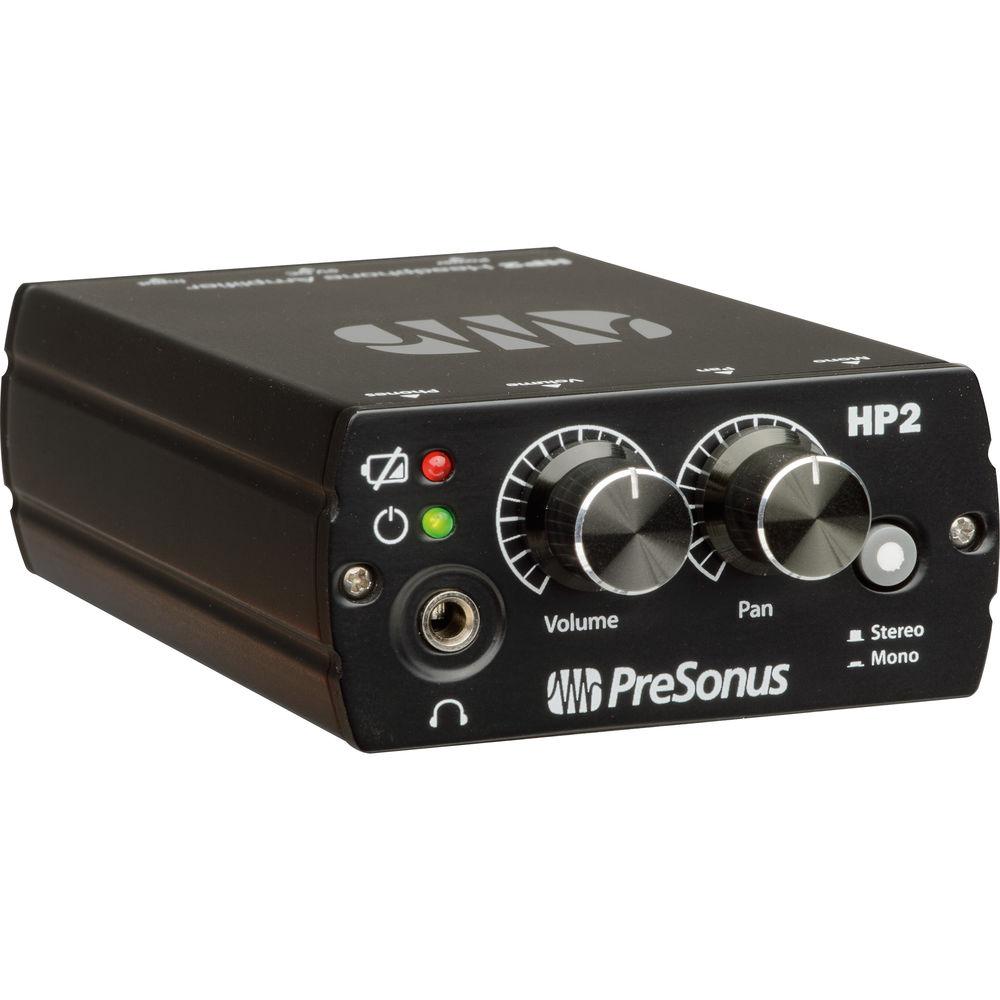

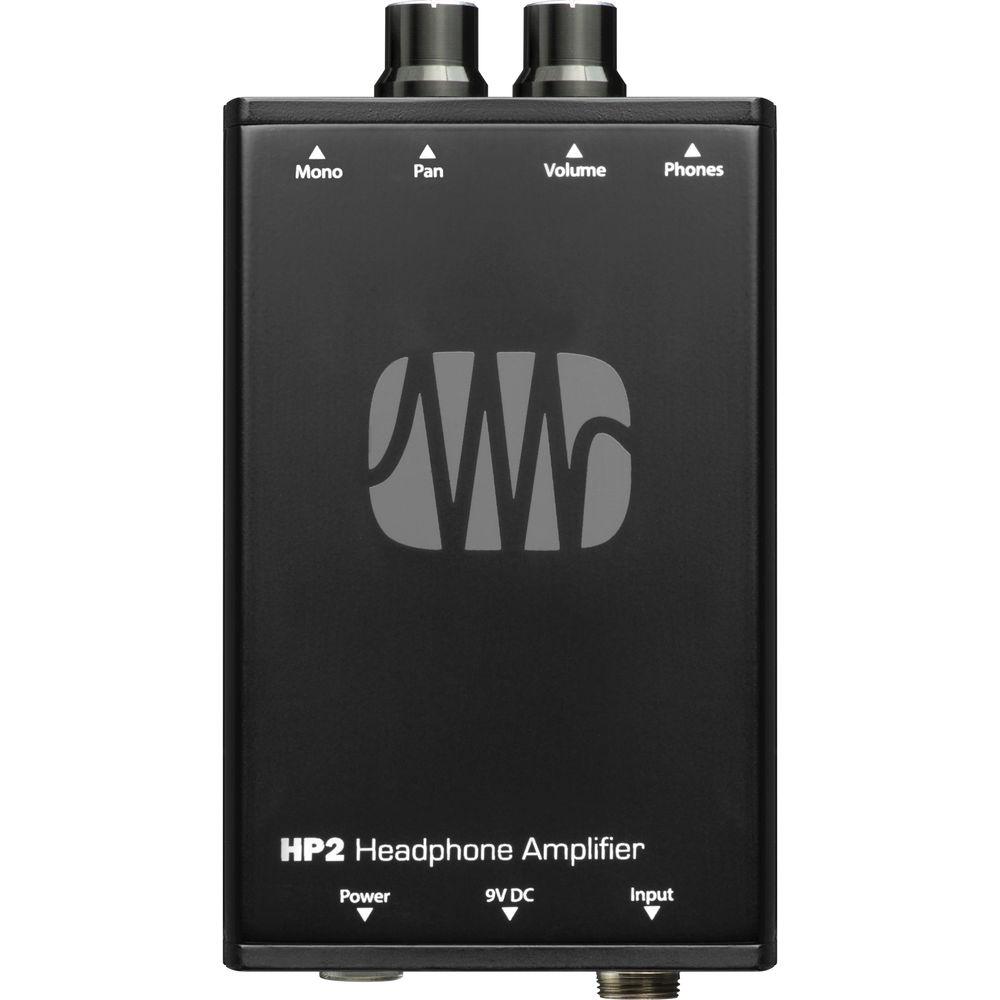

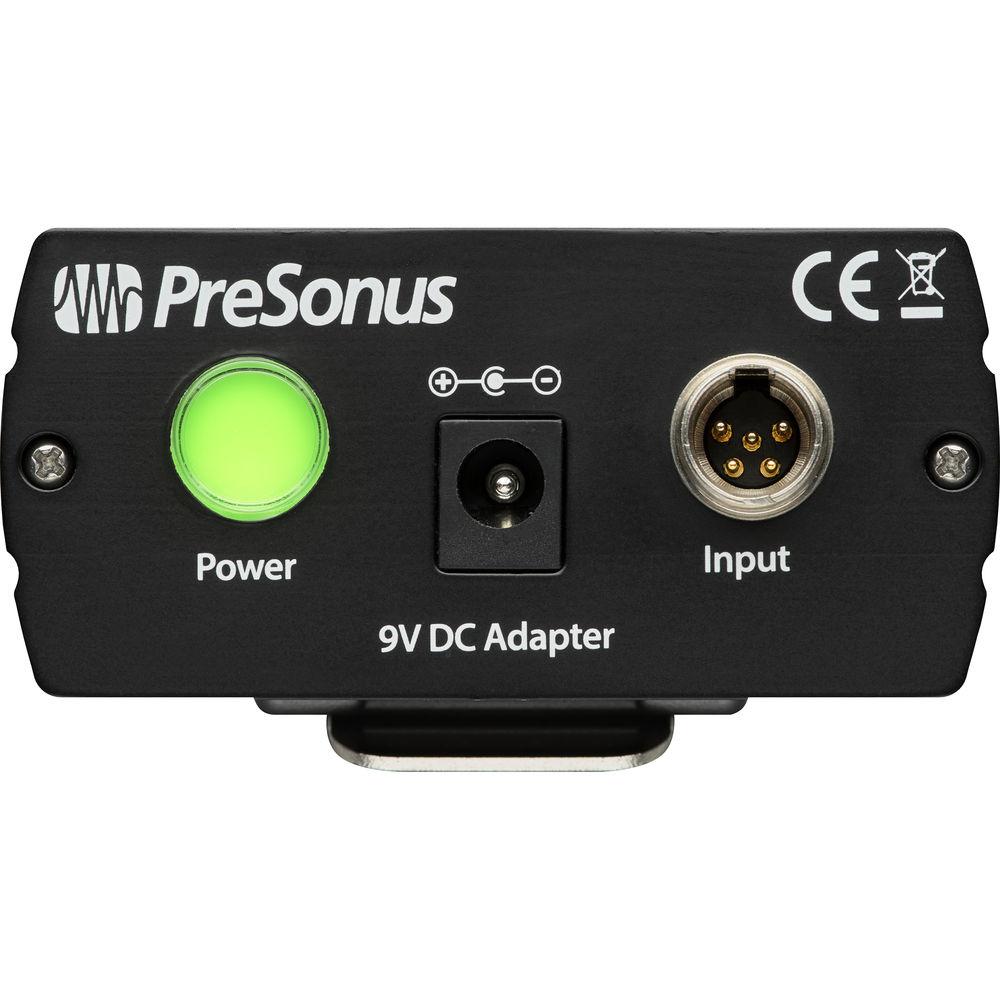

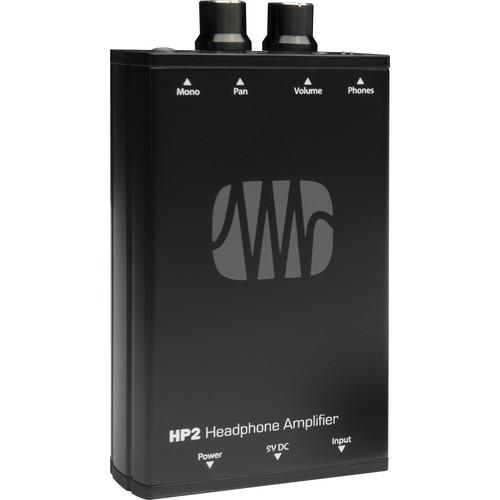

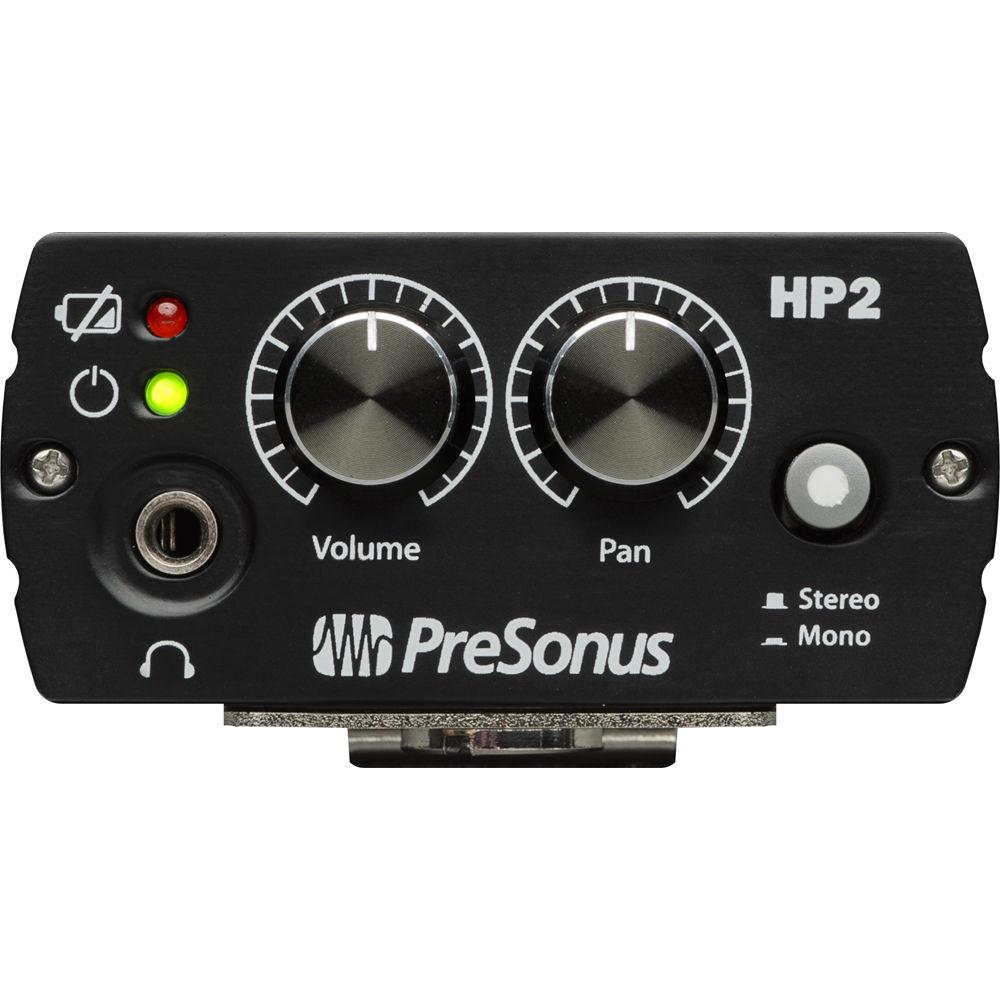

Product description The HP2 from Presonus is a battery-powered personal headphone amplifier with volume and pan control for driving wired in-ear monitors as well as headphones. It can be used by musicians and performers in applications such as live stage, theater, rehearsals, and more. The HP2 features two XLR line-level inputs and one stereo 1/8" headphone output and can be switched from stereo to mono operation. It is built tough to take the rigors of life on the road and will mount on a microphone stand or clip to your belt. In addition, the HP2 has an LED battery indicator and can be powered with an external DC power supply or a 9V battery, which can last more than seven hours. The 6.6' 5-pin mini XLR to two female XLR Y-cables is included along with a 5/8" microphone stand-mount-socket and a belt-clip. UPC: 673454004438 In the Box PreSonus HP2 Personal Stereo Headphone Amplifier Belt-Clip 5/8" Microphone Stand-Mount-Socket 6.6' 5-Pin Mini XLR to Two Female XLR Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus HP2 Personal Stereo Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus HP2 Specs | | | Connector Type | 2x XLR female | | Max Input | Level: +4 dBV <0.01% THD+N, unity gain | | Input Impedance | 15 kOhms | | Limit Input Level | +5 dBm | | | | Connector | 1/8" TRS female | | Max Output Power | 50 mW / channel, <0.01% THD+N, 20 ohms load | | Frequency Response | 30 Hz - 20 kHz, ±2 dB | | Impedance | Working Range: >12 ohms | | | | Battery Power | 9 V | | AC Adapter | 9 VDC, 40 mA, center pin negative | | | | Exterior Dimensions (H x D x W) | 1.25 x 2.86 x 5.25 (31.8 x 73.0 x 133.4 mm) | | Weight | 1 lb (0.45 kg) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 9.7 x 4.4 x 2.5" |
