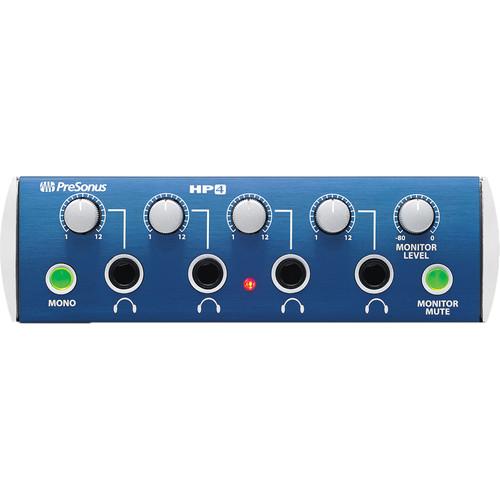

User Manual for PreSonus HP4 - 4-Channel Headphone Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the PreSonus HP4 - 4-Channel Headphone Distribution
- Product category: Headphone Amplifiers PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Headphone Amplifiers
|
User manual for the PreSonus HP4 - 4-Channel Headphone Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|
Product description The HP4 from PreSonus answers the need for a headphone distribution amplifier with professional specifications in a small package at an affordable price. It is designed with four discrete headphone outputs on the front panel, each with its own volume potentiometer and 150mW of amplification per channel.
The HP4 also features adjustment capability for control-room monitors with a separate volume control, monitor mute switch and mono switch, thus giving you an extremely powerful monitoring solution at an amazingly low price. - Four High Power Headphone Outputs
- The PreSonus HP4 manages four headphones with up to 150mW per channel. It features musical wide dynamic range, and control-room monitor outputs with level control.
- Modular Add-On
- This affordable unit can be added-on or added-to. The daisy chain configuration allows an infinite number of units to be connected.
- Convenient Controls
- There is no scrambling with this headphone distribution amplifier. With easy front-panel access you have push button mono or stereo operation, individual headphone level controls and a monitor mute switch right in front.
UPC: 673454000423 In the Box PreSonus HP4 - 4-Channel Headphone Distribution Amplifier 1-Year Limited Warranty User Manual PDF 1.1mbyecdbtaszzvqsr Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus HP4 - 4-Channel Headphone Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus HP4 Specs | Number of Channels | 4 | | Input Connections | 1 x 1/4" TRS Input | | Output Connectors | 4 x High Power 1/4" TRS Outputs | | Maximum Output Level | -80dB to +10dB; 51 Ohm Impedance | | Function Controls | Headphone Level, Monitor / Feed Output, Mono Switch, Monitor / Feed Mute | | Frequency Response | 10Hz to 50kHz | | THD + N | 0.002% | | Noise | -98dB | | Display | No | | Dimensions | 5.5 x 1.75 x 5.5" (140 x 44 x 140mm) | | Weight | 5 lbs (2.3kg) | | | | Package Weight | 3.21 lb | | Box Dimensions (LxWxH) | 12.5 x 7.85 x 4.25" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
