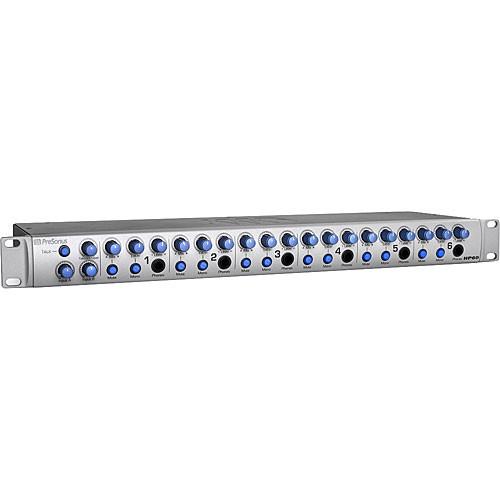

User Manual for PreSonus HP60 - Rack Mount 6-Channel Headphone Mixing System Click to enlarge the picture
Contents of the user manual for the PreSonus HP60 - Rack Mount 6-Channel
- Product category: Headphone Amplifiers PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Headphone Amplifiers
 |
User manual for the PreSonus HP60 - Rack Mount 6-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|
Product description The HP60 from PreSonus is a versatile six-channel headphone mixing system ideal for live or studio applications. This rack mountable unit contains six independent headphone amplifiers for strong, clear audio. Two stereo inputs and an external input allow you to mix the output between three audio streams. Each channel has stereo line output, allowing you to send mixes to additional amplifiers or monitor systems, in addition to headphones.

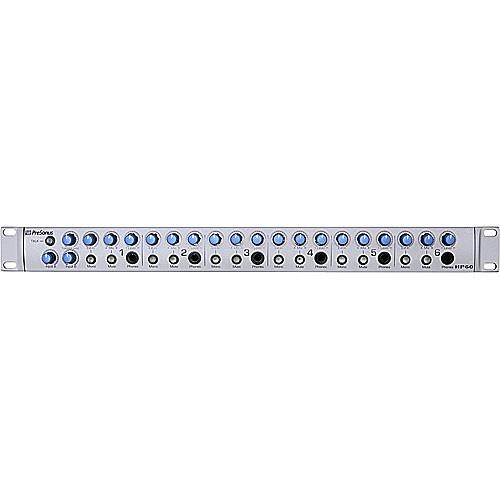

Each of the six channels features controls for adjusting headphone level, mixing controls between inputs A and B, and adjusting external input volume. Mute and mono functions are also available. An external XLR microphone input is provided for talkback situations. - Great for live or studio use
- Six independent low-noise, high-output headphone amplifiers
- Dual stereo inputs on 1/4" TRS connectors
- Stereo external input point with trim control for "more me"
- A/B input mix control on each channel
- XLR microphone jack for talkback
- Stereo line output on each channel for connecting to additional headphone amps or monitor systems
- Mute and mono functions on each channel
UPC: 673454000690 In the Box PreSonus HP60 - Rack Mount 6-Channel Headphone Mixing System Power Cable Owner's Manual 1-Year Limited Warranty User Manual PDF 653.7kbeyybzaqtxwuawefeqcysr Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus HP60 - Rack Mount 6-Channel Headphone Mixing System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

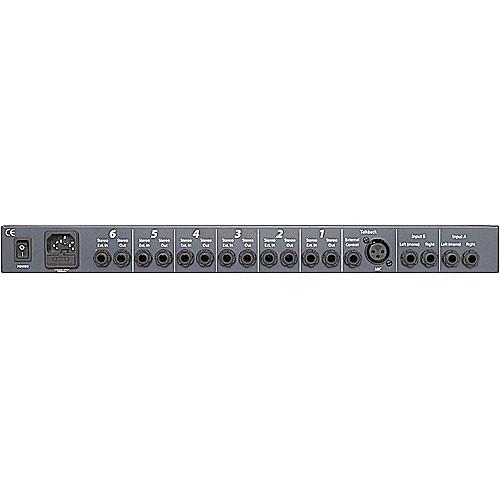

Technical parametersPreSonus HP60 Specs | Number of Channels | 6 | | Input Connections | 2 x Stereo 1/4" TRS Inputs (4 Total Jacks, Balanced)
1 x Stereo 1/4" TRS External Input (Unbalanced) | | Output Connectors | 6 x 1/4" TRS Headphone Outputs (Unbalanced) | | Maximum Output Level | 150mW RMS (60 Ohms) Per Channel | | Function Controls | 1 x Talk Button
1 x Talkback Level Control
2 x Input Level Controls (A, B)
6 x Ext In Knobs
6 x A/B Mix Knobs
6 x Headphone Level Knobs
6 x Mono Buttons
6 x Mute Buttons | | Frequency Response | Inputs: 10Hz - 40kHz ±1dB
Outputs: 10Hz - 70kHz ±1dB | | THD + N | < 0.05% | | Noise | Not Specified by Manufacturer | | Display | No | | Dimensions (WxHxD) | 19 x 1.75 x 5.5" (483 x 44 x 140mm) | | Weight | 5 lbs (2.3kg) | | | | Package Weight | 7.45 lb | | Box Dimensions (LxWxH) | 23.4 x 12.1 x 5.0" |
