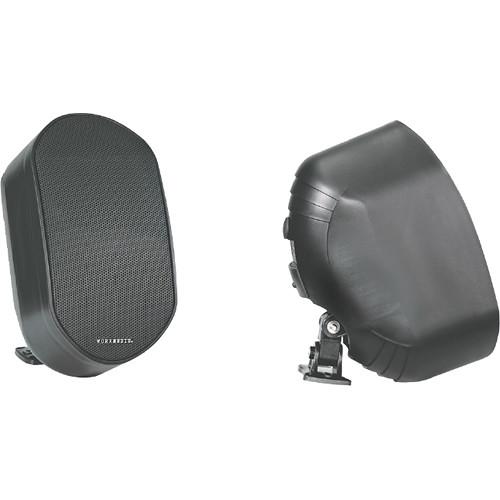

User Manual for PreSonus I O-4 Speaker System Click to enlarge the picture
Contents of the user manual for the PreSonus I O-4 Speaker System
- Product category: Installed Speakers PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Installed Speakers
|
User manual for the PreSonus I O-4 Speaker System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|
Product description The black I/O-4 Speaker System from PreSonus is a small format high performance sound reinforcement system, comprised of two speakers. The I/O-4 is designed for high quality foreground and background music applications for both indoor or outdoor applications. The I/O-4 utilizes a two element array of high output 4" woofers. The horn loaded high frequency wave guide is positioned between the two element arrays for coherent and balanced high frequency response. Polar lobing is controlled by this geometry and produces an aimed response at the crossover frequency. The system features a standard multi-tap transformer input that is switchable from a maximum of 50W of input power. The I/O-4 is equipped with a standard mounting bracket designed for flexible aiming and easy installation. The I/O-4 is ideal for use in restaurants, retail environments, bars, hotels, and more. Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus I O-4 Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus I/O 4 Specs | Type | 2 Way full range bass reflex | | Enclosure | Injection molded high impact polycarbonate | | Grille | Stainless steel | | Nominal Impedance | 8 ohms | | Transformer | Type: Isolate 12.5 , 25, 50 W / 100 V | | Maximum SPL | Passive: 105 dB @ 1 M | | Components | 2 x LF, 4" (101.6 mm)
1 x HF, 1" Exit (25.4 mm)
Titanium Diaphragm
1 x Passive network | | Connector | Push terminal | | Sensitivity | 2.83 V: 87 dB (1 w / 1 m) | | Frequency Range | 75 Hz - 19 kHz | | Frequency Response | 80 Hz - 18 kHz | | Coverage Angle | Horizontal: 75° (-6dB)
Vertical: 50° (-6dB) | | Power Capacity | Noise (IEC 268-5): 50 W
Maximum: 100 W | | Dimensions | Each unit: 11.9 x 6.2 x 10.5" (303 x 157 x 267 mm) | | Weight | 11 lb (5 kg) |
