User Manual for PreSonus Monitor Station V2 Desktop Studio Control Center Click to enlarge the picture
Contents of the user manual for the PreSonus Monitor Station V2 Desktop Studio
- Product category: Studio Monitor Controllers PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Studio Monitor Controllers
 |
User manual for the PreSonus Monitor Station V2 Desktop Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|

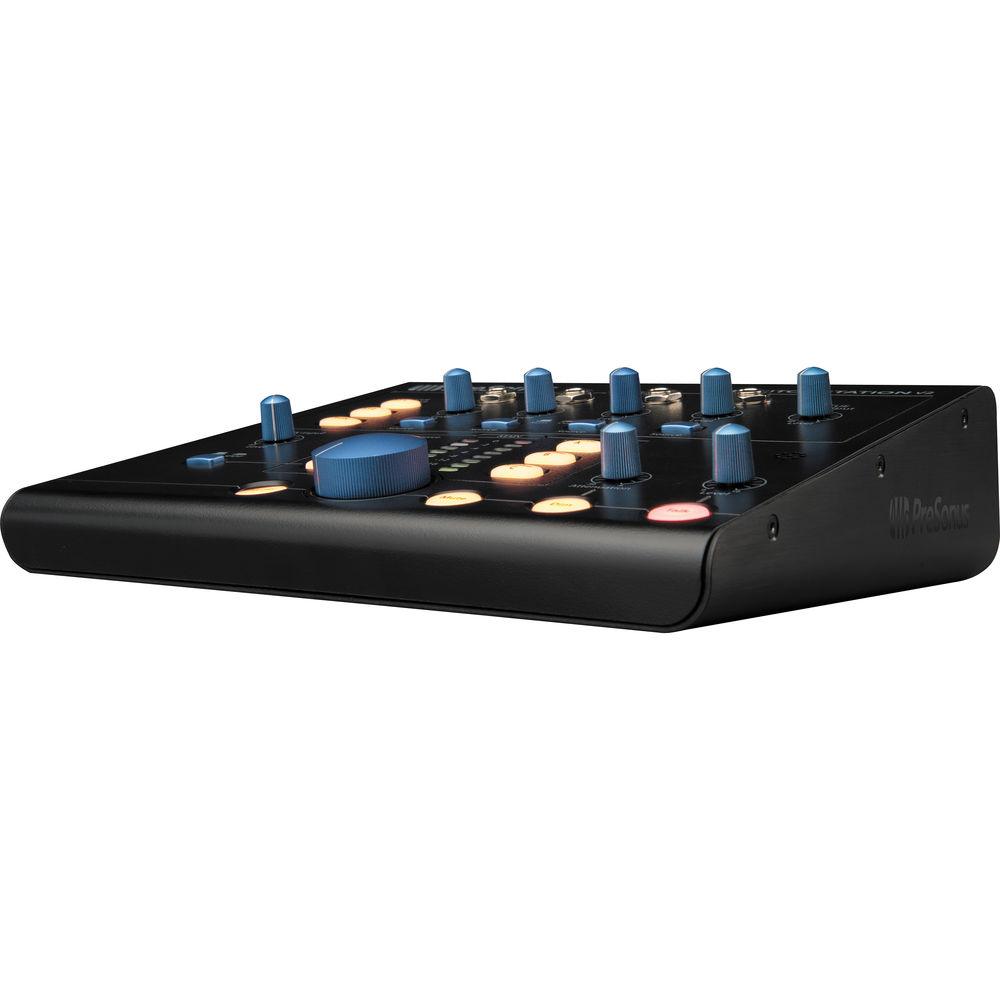

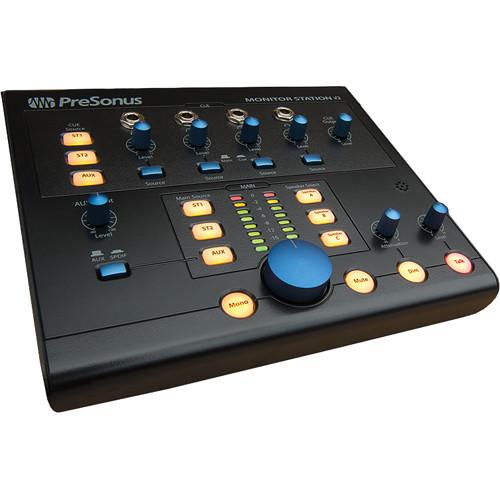

Product description The Monitor Station V2 from PreSonus is a desktop studio control center that allows you to switch between three sets of studio monitors and three input sources. It also features a built-in headphone amplifier with four 1/4" headphone outputs, each with dedicated level control. These features make the Monitor Station V2 suitable for a variety of recording, monitoring and mixing applications.
For communicating with the talent, the Monitor Station V2 is equipped with a built-in electret-condenser talkback microphone with input-gain control and talkback button. It has a large main level control knob, dedicated buttons for input and speaker selection, and 8-segment color LED input meters for visual monitoring. - Inputs and Outputs
-

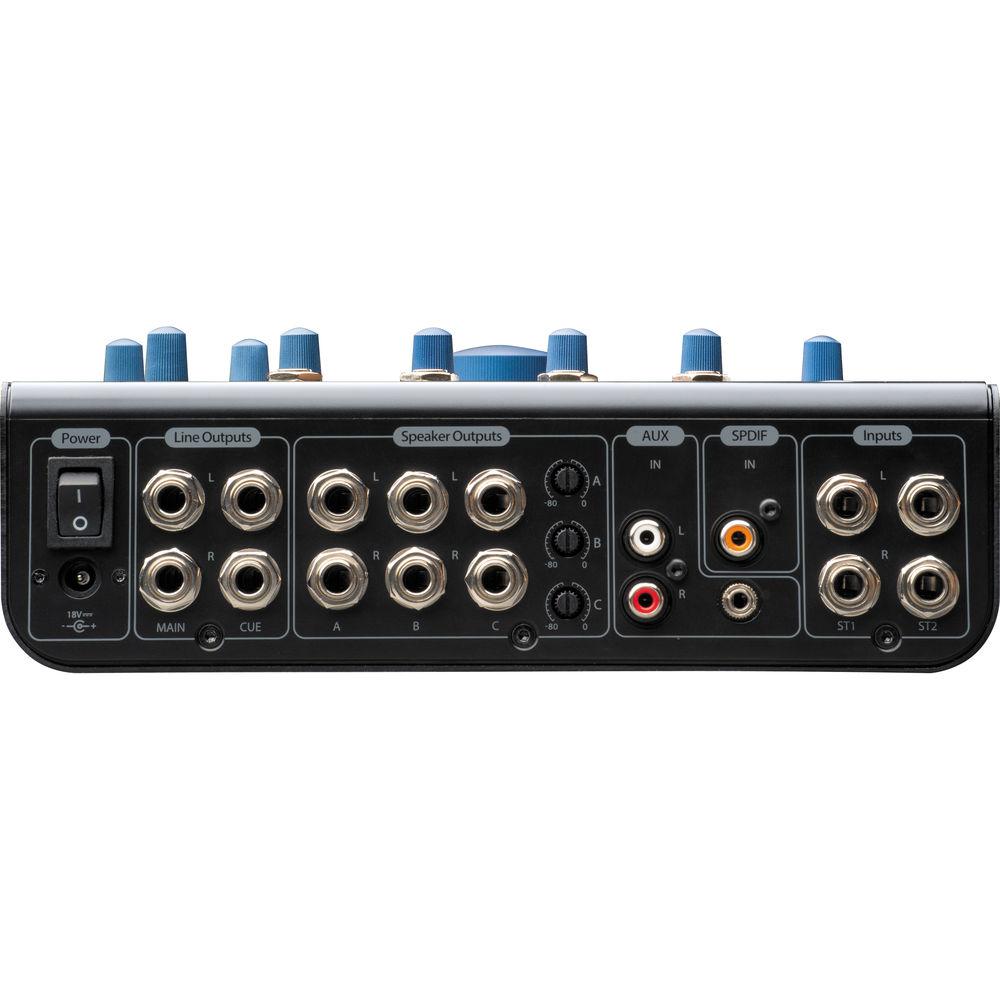

- 2x stereo pairs of 1/4" TRS inputs
- 1x stereo pair of RCA Aux inputs
- 1x stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
- 3x stereo pairs of 1/4" TRS speaker outputs with level controls
- 1x stereo pair of 1/4" TRS main outputs
- 1x stereo pair of 1/4" TRS cue outputs
- 4x 1/4" TRS stereo headphone outputs

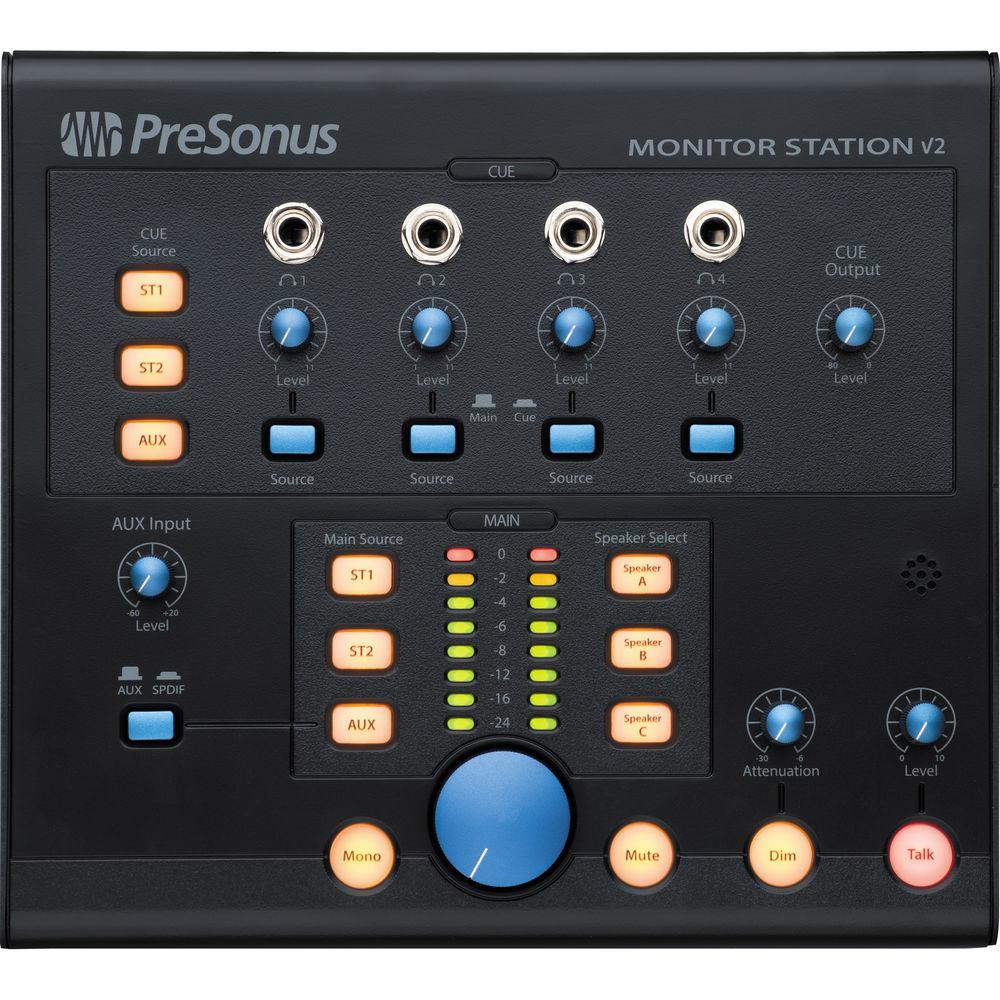

- Controls
-
- Large main level control
- 3x individual main source (ST1, ST2, Aux) select switches
- 3x individual speaker select switches
- Cue section with source select (ST1, ST2, Aux) and output-level control
- Aux-S/PDIF select switch
- Aux input level control
- Main mute, Mono, and Dim switches with variable Dim attenuation
- Additional Features
-
- 8-segment color LED input meters with selectable reference level
- Built-in electret-condenser talkback microphone with input-gain control and talkback button
- Convenient desktop design
UPC: 673454002823 In the Box PreSonus Monitor Station V2 Desktop Studio Control Center Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus Monitor Station V2 Desktop Studio Control Center in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus MONITOR STATION 2 Specs | | | Microphone | Gain Range: +15 to +55 dBType: Electret condenserSensitivity: -42 dB | | Stereo Input | Type: 1/4” TRS Active BalancedInput Impedance: 10 kΩ (balanced) S/N Ratio: (1 kHz @ +10 dBu, unity gain) >105 dBTHD+N: (unwtd, 1 kHz @ 0 dBu output, unity gain) <0.0075%Frequency Response: (±0.5 dB) 10 Hz to 65 kHzNoise Floor: (20 Hz to 20 kHz, 150Ω input termination) -96 dBuMaximum Input Level: (minimum gain, 1 kHz @ 0.5% THD+N) +22 dBu | | AUX Inputs | Type: RCA active unbalancedInput Impedance: 47.5 kΩS/N Ratio: (1 kHz @ 0 dBu, Unity Gain) >115 dBTHD+N: (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) <0.01%Frequency Response: (±0.5 dB) 10 Hz to 50 kHzGain Range: 80 dB to +10 dB | | S/PDIF | Type: RCA 75Ω coaxDynamic Range: 113 dBTHD+N: 0.0025% (1 kHz @ -1 dBFS)Maximum Output: at 0 dBFS +18 dBuSample Rates: 44.1, 48, 88.2, 96 kHz | | Input Meters | Type: Dual 8-segment LED w/peak holdSensitivity Range: -24 dB to 0 dB | | | | Analog Outputs | Type: 1/4" TRS active balancedOutput Impedance: 51Ω (balanced) THD+N: (unwtd, 1 kHz @ 0 dBu, unity gain) <0.01%Frequency Response: (±0.5 dB) 10 Hz to 50 kHz | | Speaker Out | Trim Range: -80 dB to 0 dBMain Level Range: -80 dB to 0 dBDim Attenuation Range: -30 dB to -6dB | | Cue | Cue Level Range: -80 dB to 0 dBDim Attenuation: (talkback activated) -20 dB | | Headphone Outputs | Type: 1/4” TRS active stereoMaximum Output: (60Ω load) 150 mW / channelFrequency Response: (±1.0 dB) 10 Hz to 50 kHz | | Power | Power Supply Type: External DC transformer/internal lineInput Connector Type: Barrel, 5.5 mm outside diameter, 2.1 mm inside diameterMonitor Station Input Voltage Range: 18 VDCPower Requirements: (continuous) 10W | | Physical | 2.5 x 8.5 x 9.0" (63.5 x 216.0 x 228.6 mm) | | Weight | 6 lb (4.54 kg) | | | | Package Weight | 5.35 lb | | Box Dimensions (LxWxH) | 16.85 x 12.047 x 5.039" |
