User Manual for PreSonus NSB 16.8 - 16 x 8 AVB-Networked Stage Box Click to enlarge the picture
Contents of the user manual for the PreSonus NSB 16.8 - 16 x
- Product category: Digital Mixer Accessories PreSonus
- Brand: PreSonus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PreSonus Digital Mixer Accessories
 |
User manual for the PreSonus NSB 16.8 - 16 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PreSonus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PreSonus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PreSonus product will considerably shorten its lifespan!
|

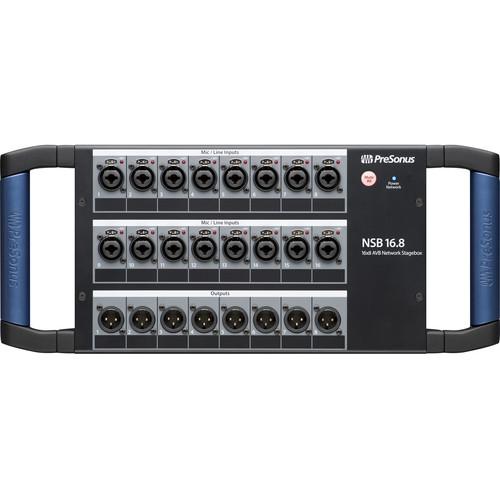

Product description Designed to work seamlessly with PreSonus StudioLive Series III mixers, the PreSonus NSB 16.8 stage box offers 16 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios, as well as 16 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software.
All eight outputs employ locking XLR jacks, while the built-in 2-port AVB switch lets you daisy-chain multiple units. The rugged steel chassis with sturdy handles is designed with a stage box form factor and allows the NSB 16.8 to sit well on the stage and survive the rigors of on-the-road wear and tear. The unit can be rackmounted with an optional rack-ear kit. -
- Analog Input/Output

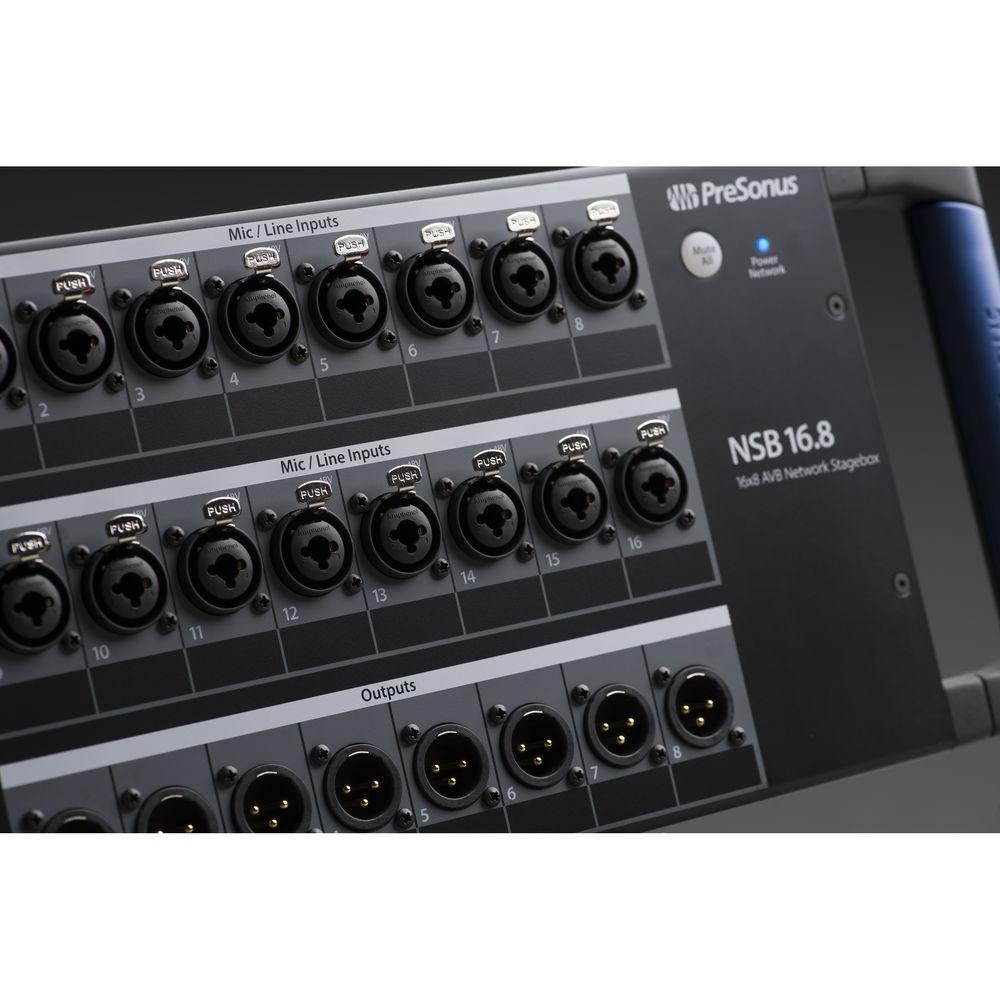

- Locking, remote controllable combo mic/line inputs
- 16 remote-controllable XMAX preamps
- Gain compensation for shared inputs
- 8 locking XLR line outputs
- Meters, Controls, and Processing
- Mute All button
- +48V indicators
- Easy setup and control from StudioLive Series III consoles and UC Surface
- Digital
- 32x8 AVB (16 direct input channels + 16 gain-compensated input channels)

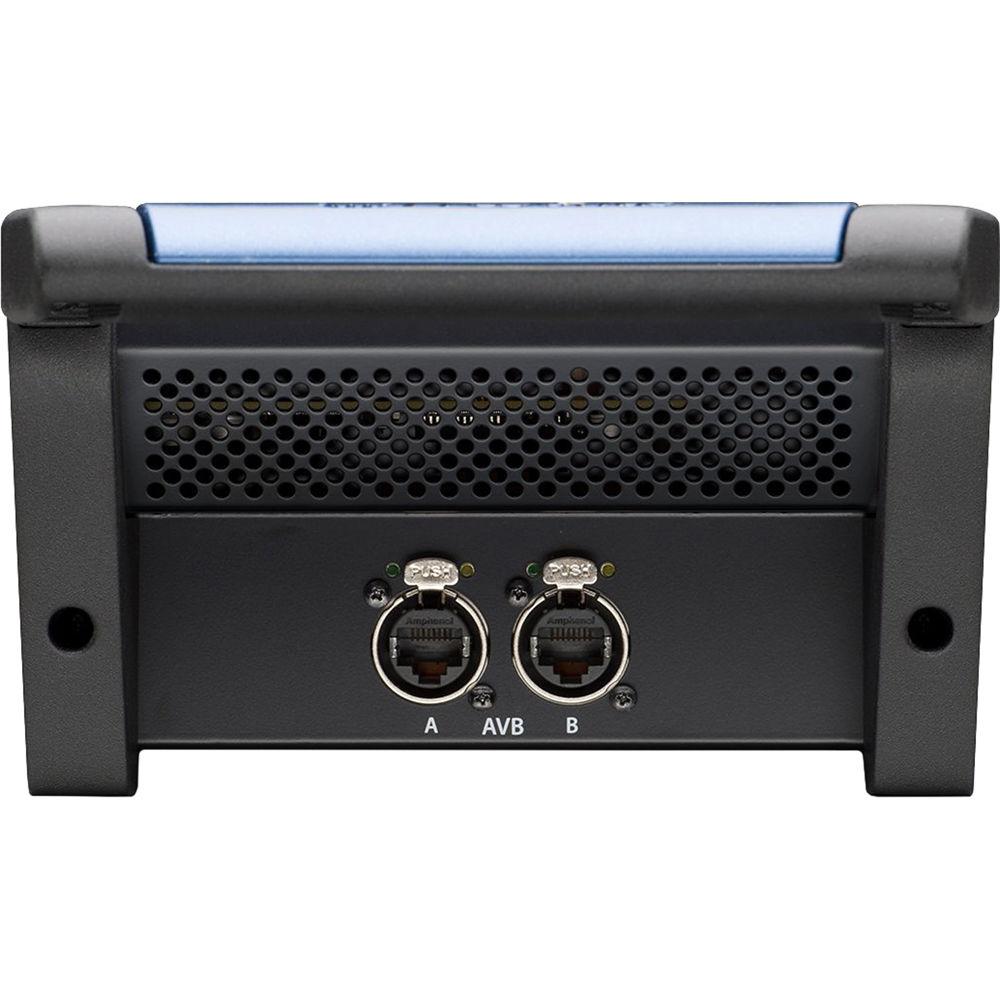

- 2 AVB ports with locking XLR Ethernet jacks
- Actively Integrated Software
- Easy setup and control from PreSonus UC Surface touch control software for Mac, Windows, iPad, and Android, available free from Apple App Store and Google Play
- Power
- Physical
- Rugged stage box enclosure
- Optional rack ears
- Compatible with stage pockets from Ace Backstage
UPC: 673454006487 In the Box PreSonus NSB 16.8 - 16 x 8 AVB-Networked Stage Box Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PreSonus NSB 16.8 - 16 x 8 AVB-Networked Stage Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPreSonus NSB16.8 Specs | Analog Inputs and Outputs | Inputs: 16 x combo XLR-1/4" / 6.35 mm
Outputs: 8 x XLR | | Digital | 32 x 8 AVB (16 direct input channels + 16 gain-compensated input channels)
AVB Ports: 2 with locking XLR Ethernet jacks | | Indicators & Controls | Button: Mute All button
Indicators: 16 x +48 V

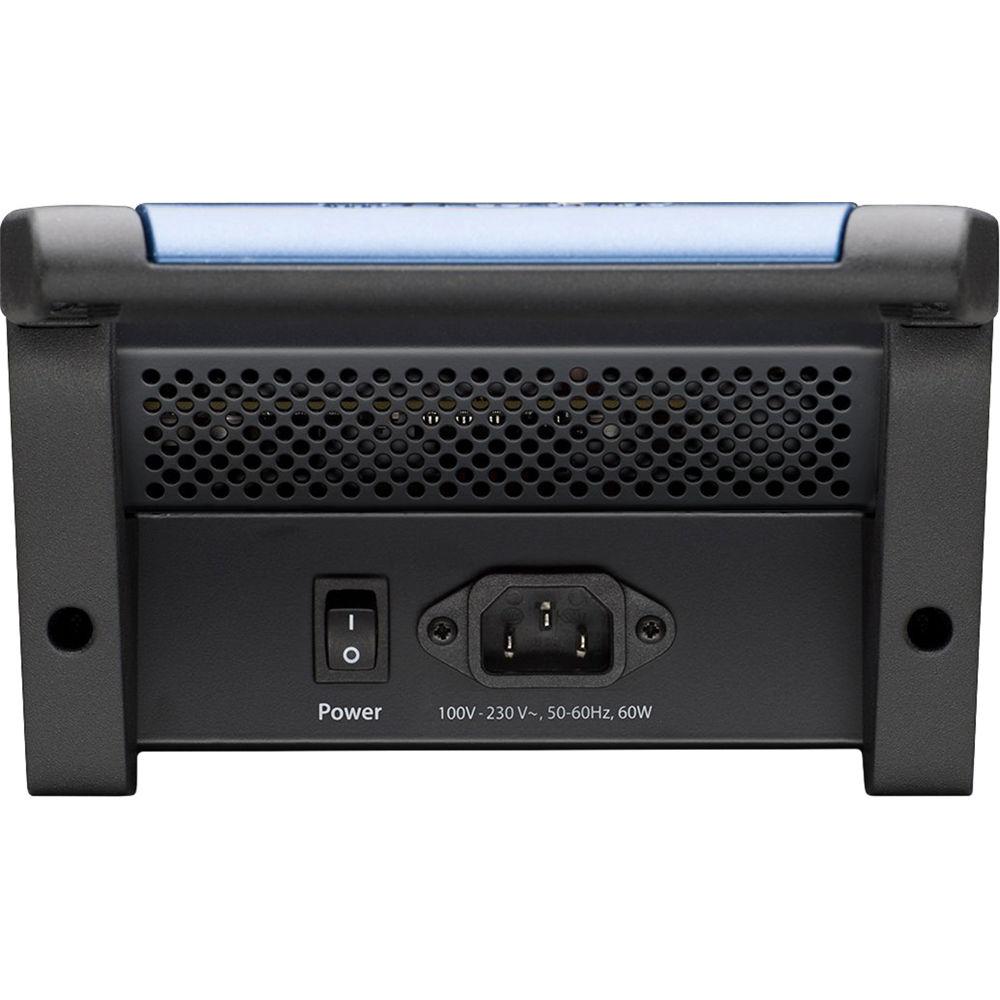

Power network indicator | | Power | Connector: Standard IEC
Power Supply: 100 to 230 VAC, 50/60 Hz, 60 W | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 9.3 lb | | Box Dimensions (LxWxH) | 20.7 x 9.3 x 8.1" |
